Makita RBC2110 Petrol Brushcutter Spare Parts

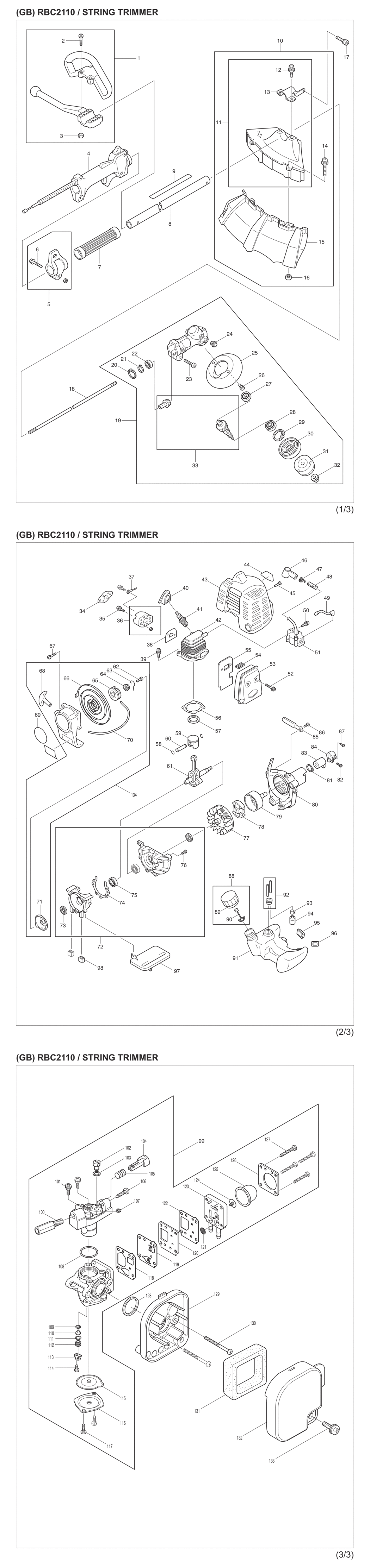

An exploded drawing and spare parts listing for the Makita RBC2110 Petrol Brushcutter

	Ex VAT	Inc VAT
2-1 - SCREW DBC260L/RBC281/MS2810 MSP-266845-8.A3 266845-8	£2.50	£3.00
2 - *SCREW DBC260L/RBC281/MS2810 MSP-6214016030.A1 6214016030	£1.44	£1.73
3-2 - HEX FULL NUT M5 RP0900/AN510 MSP-931202-6.A49 931202-6	£1.44	£1.73
3 - *NUT M5 RBC230/260/310/2810 MSP-0022705000.A2 0022705000	£1.44	£1.73
4 - CONTROL LEVER ASSY FOR TZ9V-2 MSP-6195021000.A0 6195021000	£80.01	£96.01
4-1 - CONTROL LEVER ASSY 2L RBC2110 MSP-6195026000 6195026000	£64.94	£77.93
5 - *ANGER ASSY RBC260L/U/RBC201/ MSP-6197005001.A0 6197005001	£11.08	£13.29
6-1 - SCREW & WASHER ASSY DBC260L/U MSP-266788-4.A6 266788-4	£1.44	£1.73
7-1 - SPACER ER2650LH/2550/DUR362L MSP-450659-7.A7 450659-7	£2.50	£3.00
7 - *SPACER DBC260L/RBC201/MS20C/ MSP-6271501501.A1 6271501501	£5.92	£7.11
8-1 - SHAFT PIPE RBC2110 MSP-141986-0 141986-0	£134.64	£161.57
9-1 - LABEL/CAUTION RBC2110 MSP-800N21-4 800N21-4	£8.27	£9.92
10-1 - PROTECTOR ASSY RBC2110 MSP-6198014001 6198014001	£63.50	£76.20
12-2 - BOLT/CROSS RECESSED M6X30 MSP-266617-1.A3 266617-1	£2.50	£3.00
12-1 - *BOLT/CROSS RECESS M6X23 MSP-0100069770.A2 0100069770	£3.59	£4.31
13-1 - PROTECTOR CLAMP EM4251/RBC225 MSP-346493-0.A0 346493-0	£6.40	£7.68
14 - SCREW ASSY M5x40 DBC260L/U MSP-0140059380.A2 0140059380	£12.63	£15.16
15 - PROTECTOR RBC201/221/251 MSP-6198008001 6198008001	£13.98	£16.78
16-1 - NUT M5 DBC260L/U/RBC3101 MSP-264035-7.A6 264035-7	£1.44	£1.73
19-2 - GEAR CASE RBC260L/U/RBC2110 MSP-125476-1.A0 125476-1	£84.29	£101.15
21-1 - PUTER SNAP RING RBC260L/U/RBL MSP-257986-1.A4 257986-1	£4.21	£5.05
22-1 - BALL BEARING 609ZZ EBH253L/BB MSP-210049-4.A0 210049-4	£4.21	£5.05
23-1 - SOCKET HEAD BOLT M5X25 DBC260 MSP-266805-0.A1 266805-0	£1.44	£1.73
25-1 - GUARD RBC260L/U/RBC230/260/RB MSP-450653-9.A0 450653-9	£1.44	£1.73
26-1 - SCREW ASSY M5X12 DBC260L/U MSP-265195-8.A0 265195-8	£1.44	£1.73
27-1 - BALL BEARING 626ZZ DBC260L/U MSP-210083-4.A1 210083-4	£10.92	£13.10
28-1 - BALL BEARING 6000DDU DBC260L/ MSP-210082-6.A3 210082-6	£15.58	£18.70
30-2 - RECEIVE WASHER DUR362/EM4251 MSP-332042-9.A0 332042-9	£23.62	£28.34
31-2 - CLAMP COMPL WASHER RBC260L/U/ MSP-168797-8.A1 168797-8	£2.24	£2.69
32-1 - NUT SPRING WASHER RBC260L/U/E MSP-264018-7.A4 264018-7	£1.20	£1.44
34-1 - SPACER GASKET RBC230/260/320E MSP-442177-9.A4 442177-9	£1.44	£1.73
35-1 - SCREW M5X25 RBC221/PB250/HTR5 MSP-266700-4.A8 266700-4	£1.44	£1.73
36-1 - FLYWHEEL RBC201/MS20C/RST200 MSP-141056-5.A2 141056-5	£7.18	£8.61
37 - *WIRE RBC201/MS20C/MS3200E/RB MSP-6165500201.A4 6165500201	£1.44	£1.73
38-2 - GASKET-INSULATOR RBC201/MS20C MSP-442175-3 442175-3	£2.18	£2.62
39 - *SOCKET HD BOLT M5X20 DBC260L MSP-0119059730.A12 0119059730	£1.44	£1.73
41-1 - SPARK PLUG DBC260L/U/RBC351/4 MSP-168648-5.A4 168648-5	£17.80	£21.36
42-1 - CYLINDER HTR4900/RBC2110 MSP-318785-7.A1 318785-7	£69.30	£83.16
43-2 - CYLINDER HD COVER RBC2110/RST MSP-455795-4 455795-4	£15.26	£18.31
44 - LABEL/TRADE MARK RBC201RBC3 MSP-6279505700.A0 6279505700	£4.83	£5.80
45-1 - PT SCREW M5X14 RBC201/RBC2510 MSP-266702-0.A0 266702-0	£1.44	£1.73
46-1 - PLUG CAP RST200/PTR2500/RBC21 MSP-424337-5.A0 424337-5	£1.44	£1.73
47-1 - PLUG CAP SPRING ER2650LH/BHX2 MSP-324891-8.A12 324891-8	£1.44	£1.73
48-1 - TUBE EM2651LH/ER2650LH/EY2650H MSP-444021-6.A3 444021-6	£1.20	£1.44
49 - *WIRE RBC2110 MSP-5197018000 5197018000	£2.81	£3.37
51-1 - IGINITION COIL RBC201/RST200/ MSP-168683-3 168683-3	£41.23	£49.48
52-1 - HEX SOCKET HD BOLT M5X40 BHX2 MSP-266440-4.A9 266440-4	£1.44	£1.73
53-1 - MUFFLER-EXHAUST RBC201/MS20C MSP-168679-4.A1 168679-4	£26.92	£32.31
54 - SPARK ARRESTER RBC201/MS20C MSP-5193001050.A0 5193001050	£6.08	£7.30
55-1 - INSULATOR MUFFLER RST200 MSP-168680-9 168680-9	£4.37	£5.24
56-1 - CYLINDER GASKET RBC201/MS20C MSP-442173-7.A0 442173-7	£2.65	£3.18
57-1 - PISTON RING HTR4900/RBC2110 MSP-257320-5.A0 257320-5	£5.46	£6.55
58-1 - CLIP ER2650LH/EM2651LH/EBH253 MSP-233976-8.A16 233976-8	£1.44	£1.73
59-1 - PISTON HTR4900/RBC2110 MSP-318831-6.A0 318831-6	£21.89	£26.27
60-1 - PISTON PIN RBC201/MS20C/RBC21 MSP-268277-5.A1 268277-5	£3.90	£4.68
61-2 - CRANKSHAFT RBC2110 MSP-141047-6.A0 141047-6	£138.84	£166.61
62-1 - TAPPING SCREW M5X12 ER2650LH MSP-266585-8.A11 266585-8	£1.44	£1.73
63-1 - SWING ARM ER2650/ER2550/CS246 MSP-325923-4.A3 325923-4	£1.44	£1.73
64-1 - COLLAR ER2650LH/ER2550/EY2650 MSP-451938-6.A11 451938-6	£1.44	£1.73
65-1 - REEL RBC201/MS20C/HTR5600 MSP-452972-9.A0 452972-9	£6.40	£7.68
66-1 - SPIRAL SPRING RBC201/MS20C MSP-234220-6.A2 234220-6	£11.70	£14.04
68-1 - STARTER KNOB ER2650LH/EM2651L MSP-424319-7.A5 424319-7	£2.34	£2.81
69 - LABEL/RBC2110 MSP-6199520100 6199520100	£7.18	£8.61
70-1 - STARTER ROPE EM2651/EM2654 MSP-444024-0.A0 444024-0	£1.44	£1.73
71-1 - PULLEY ER2550/BHX2501/ER2650L MSP-168483-1.A13 168483-1	£1.44	£1.73
72 - CRANKCASE ASSY RST200/RBC211 MSP-5191004001 5191004001	£115.67	£138.80
73-1 - OIL SEAL RBC201/RBC2110 MSP-213638-4.A2 213638-4	£3.28	£3.93
74-1 - GASKET CRANKCASE RBC201/MS20C MSP-442174-5.A3 442174-5	£14.35	£17.22
75-2 - BALL BEARING 6000 2414NB/LC12 MSP-211064-1.A18 211064-1	£2.34	£2.81
75-1 - *BALL BEARING 6000 EH7500/260 MSP-210086-8.A1 210086-8	£11.70	£14.04
76-2 - HEX SOCKET HD BOLT M5X25/365U MSP-922241-7.A7 922241-7	£1.44	£1.73
77-1 - FLYWHEEL RBC201/MS20C/RST200 MSP-318791-2.A0 318791-2	£72.82	£87.39
78-1 - CLUTCH RBC201/MS20C MSP-168818-6 168818-6	£14.20	£17.04
79 - *CLUTCH DRUM RBC201/MS20C MSP-6192001001.A0 6192001001	£21.89	£26.27
81-1 - EXT DIN 471 CIRCLIP-10 KP0810 MSP-961006-2.A21 961006-2	£1.44	£1.73
82-1 - SOCKET HEAD BOLT M5X25 RBC310 MSP-266712-7.A0 266712-7	£1.44	£1.73
83-1 - DAMPER PIPE RBC201/2110/MS20C MSP-424461-4.A0 424461-4	£4.52	£5.43
84-1 - PIPE BRACKET RBC201/MS20 MSP-318792-0.A1 318792-0	£8.27	£9.92
85 - *CLAMP RBC525/MS20C/EM4251/43 MSP-0566059980.A7 0566059980	£2.34	£2.81
86-2 - PAN HD SCREW M5X20 W/CP WASHE MSP-911233-1.A13 911233-1	£1.44	£1.73
87-1 - SOCKET HD BOLT RBC201/MS20C MSP-266711-9.A0 266711-9	£1.44	£1.73
88-1 - CAP FUEL TANK ASSY RBC350E MSP-168668-9.A1 168668-9	£14.20	£17.04
89-1 - FUEL TANK CAP MS221/PB25 MSP-452920-8.A3 452920-8	£8.58	£10.30
90-1 - STRAP ER2550/EBH341U MSP-140436-2.A12 140436-2	£3.96	£4.75
91-1 - FUEL TANK RBC201/RBC2110 MSP-452989-2 452989-2	£25.20	£30.24
92-2 - TUBE RBC201/MS20C MSP-162329-3.A0 162329-3	£6.40	£7.68
93-1 - HOSE CLAMP ER2550/EBH251L/341 MSP-345920-4.A15 345920-4	£1.44	£1.73
94-1 - GASOLIN FILTER ER2550/DCS230T MSP-163447-0.A26 163447-0	£3.42	£4.10
94-2 - GASOLIN FILTER ER2550/DCS230T MSP-163447-0.A47 163447-0	£3.42	£4.10
95-1 - PLATE ER2550/ EBH251L/341U MSP-424102-2.A9 424102-2	£1.44	£1.73
96-1 - GASKET ER2550/ EBH251L/341U MSP-424103-0.A6 424103-0	£1.44	£1.73
97 - *PLATE -MUFFLER RBC2110/20MS2 MSP-5193500101.A1 5193500101	£4.99	£5.99
97-1 - PLATE -MUFFLER RBC2110/20MS20 MSP-452988-4.A1 452988-4	£5.46	£6.55
98-1 - DAMPER RBC230/320E/MS3200E/MH MSP-424446-0.A7 424446-0	£1.44	£1.73
100-2 - STAY 2L RBC2110/RST210/LT210 MSP-346510-6 346510-6	£10.77	£12.92
100 - *ADJUST SCREW RBC201/RBC2110 MSP-5196019240.A2 5196019240	£19.58	£23.50
102-1 - LEVER END RBC201/RBC2110 MSP-326099-0.A1 326099-0	£17.13	£20.56
102 - *LEVER END RBC201/RBC2110 MSP-5196019450.A2 5196019450	£20.30	£24.36
104-1 - STARTER LEVER RBC201/RBC2110 MSP-452976-1.A0 452976-1	£4.99	£5.99
105-1 - STARTER SPRING RBC201/2110 MSP-234221-4.A1 234221-4	£3.59	£4.31
108-1 - O RING RBC201/RBC2110 MSP-213630-0.A0 213630-0	£5.62	£6.74
109-1 - O RING RBC201/RBC2110 MSP-213629-5.A2 213629-5	£4.52	£5.43
110-1 - MAIN JET RBC201/RBC2110 MSP-326100-1.A1 326100-1	£18.72	£22.46
111-1 - O RING RBC201/RBC2110 MSP-213631-8.A2 213631-8	£4.83	£5.80
112-1 - CHECK VALVE ASSY RBC201 MSP-126052-4.A0 126052-4	£14.35	£17.22
115-1 - DIAPHRAGM ASSY RBC201/RBC2110 MSP-126038-8.A2 126038-8	£34.99	£41.99
116-1 - DIAPHRAGM COVER RBC201/RBC211 MSP-346513-0.A0 346513-0	£54.65	£65.58
118-1 - PUMP PACKING RBC201/RBC2110 MSP-442176-1.A0 442176-1	£2.97	£3.56
119-1 - PUMP DIAPHRAGM RBC201/RBC2110 MSP-424460-6.A1 424460-6	£7.64	£9.17
120-1 - PUMP PLATE RBC201/RBC2110 MSP-346508-3.A1 346508-3	£4.99	£5.99
121-1 - FILTER RBC201/RBC2110 MSP-352018-0.A1 352018-0	£6.40	£7.68
122-1 - PUMP PACKING RBC201/RBC2110 MSP-442178-7.A0 442178-7	£2.97	£3.56
123-1 - PUMP COVER RBC201/RBC2110 MSP-452975-3.A1 452975-3	£9.20	£11.04
124-1 - COMBINATION VALVE RBC201 MSP-452977-9.A1 452977-9	£14.98	£17.97
125-1 - PRIMING PUMP RBC201/RBC2110 MSP-424462-2.A1 424462-2	£7.02	£8.42
125-2 - PRIMING PUMP RBC201/RBC2110 MSP-424462-2.A4 424462-2	£7.02	£8.42
126 - *PRIMING PUM PLATE RBC201/211 MSP-5196019320.A0 5196019320	£14.40	£17.28
128-1 - O RING RBC201/RST200/2110 MSP-213632-6.A1 213632-6	£4.37	£5.24
129-1 - PLATE/AIR CLEANER ASSY RBC201 MSP-126036-2.A1 126036-2	£18.72	£22.46
130-1 - PAN HEAD SCREW M5X60 RBC230 MSP-266695-1.A0 266695-1	£1.44	£1.73
131-1 - ELEMENT/AIR CLEANER RBC201 MSP-443168-3.A1 443168-3	£6.40	£7.68
132-1 - CASE/AIR CLEANER RBC201/2110 MSP-452971-1.A0 452971-1	£8.73	£10.48
133-1 - SCREW ASSY M5X14 EPH1000/RBC2 MSP-266809-2.A19 266809-2	£1.44	£1.73
134-1 - REWIND STARTER RST200 MSP-126037-0.A0 126037-0	£30.96	£37.15
135 - LABEL/CAUTION EM2651LHEBH253 MSP-808723-2.A12 808723-2	£1.44	£1.73
136 - WASHER BUR360/EM2651LH/EBH253 MSP-413143-3.A24 413143-3	£1.44	£1.73

Attribute Name	Value
Brand	Makita
