Makita MT361 Router Spare Parts

Home Details Reviews Delivery

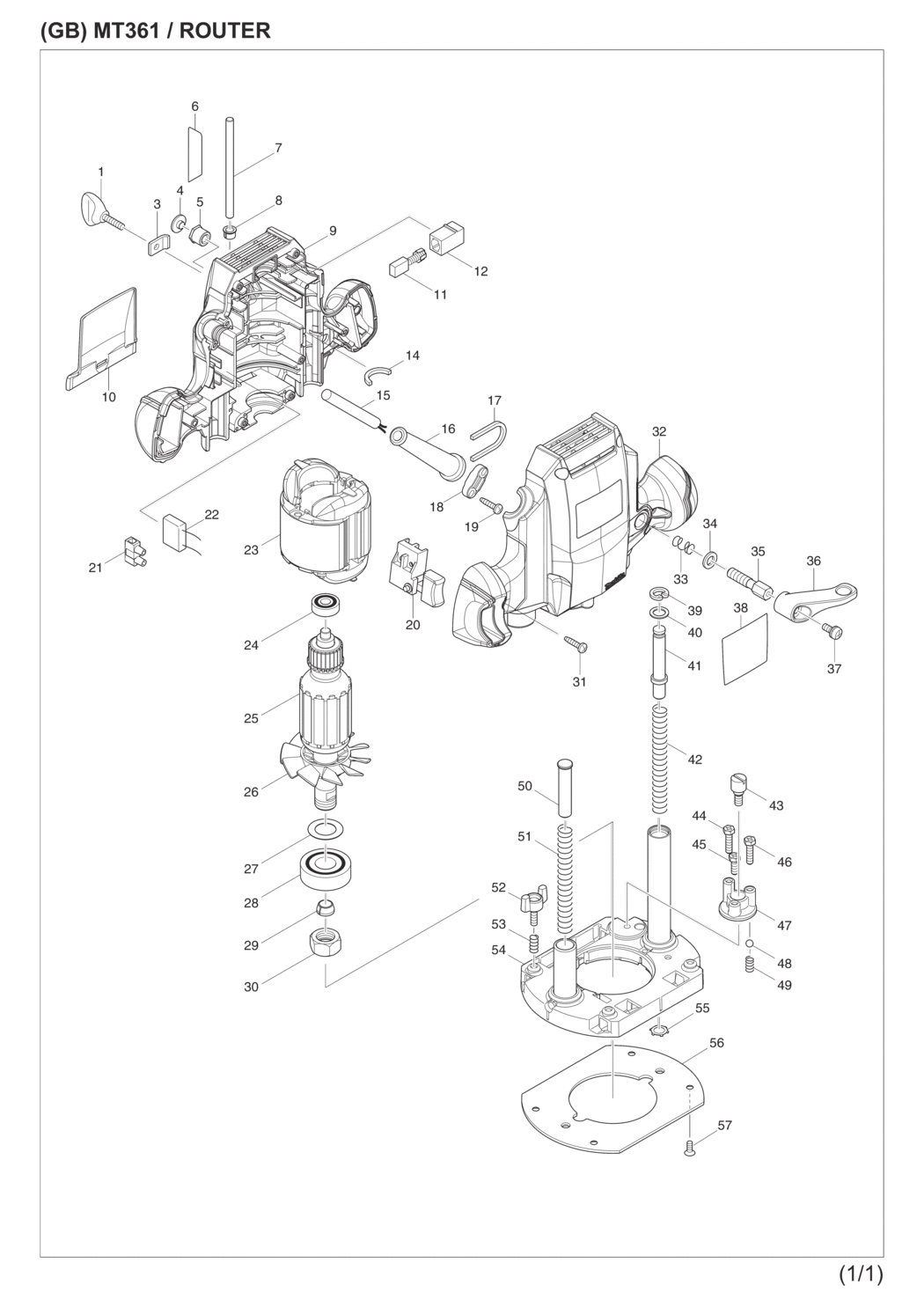

An exploded drawing and spare parts listing for the Makita MT361 Router

	Ex VAT	Inc VAT
1 - WING SCREW M5X20 MT361/RP09/K MSP-251878-6.A9 251878-6	£1.66	£1.99
3 - PRESSURE PLATE RP0900/MT361 MSP-346007-5.A2 346007-5	£1.66	£1.99
5 - VERY SPECIAL NUT MT361/RP0900 MSP-252094-3.A2 252094-3	£2.49	£2.99
6 - LABLE/SCALE MT361/M3601 MSP-893386-7.A1 893386-7	£1.66	£1.99
7 - STOPPER POLE MT361/RP0900/362 MSP-321948-6.A0 321948-6	£1.66	£1.99
8 - DEPTH POINTER MT361/RP0900 MSP-451035-8.A0 451035-8	£1.66	£1.99
9-1 - HEX FULL NUT M5 RP0900/AN510 MSP-931202-6.A81 931202-6	£1.66	£1.99
9-1 - HOUSING SET MT361 MSP-187202-6.A2 187202-6	£30.58	£36.70
9-1 - RUBBER PIN 6 DUR/DHR/DTW/DG MSP-263005-3.A832 263005-3	£1.66	£1.99
9 - HEX FULL NUT M5 RP0900/AN510 MSP-931202-6.A82 931202-6	£1.66	£1.99
9 - HOUSING SET MT361 MSP-187202-6.A3 187202-6	£30.58	£36.70
9-1 - RUBBER PIN 4 GA7050/9050/5021 MSP-263002-9.A425 263002-9	£1.66	£1.99
9 - RUBBER PIN 4 GA7050/9050/5021 MSP-263002-9.A442 263002-9	£1.66	£1.99
9 - RUBBER PIN 6 DUR/DHR/DTW/DG MSP-263005-3.A831 263005-3	£1.66	£1.99
10 - CHIP DEFLECTOR RP0900/M3601 MSP-450820-6.A2 450820-6	£1.66	£1.99
11 - CARBON BRUSH CB-106 RP0900 MSP-194976-2.A2 194976-2	£9.75	£11.70
12 - BRUSH HOLDER CB-16 RP0900 MSP-643601-7.A3 643601-7	£2.49	£2.99
14 - FELT RP0900/3620/M3601 MSP-443073-4.A1 443073-4	£1.66	£1.99
15 - POWER SUPPLY CORD 1.0-2.5 110 MSP-665905-7.A4 665905-7	£10.01	£12.01
15-2 - POWER SUPPLY CORD 1.0-2.5 240 MSP-692516-5.A30 692516-5	£8.58	£10.30
15 - POWER SUPPLY CORD 1.0-2.5 240 MSP-692516-5.A55 692516-5	£8.58	£10.30
15-1 - POWER SUPPLY CORD 1.0-2-2.0 MSP-692706-0.A16 692706-0	£9.36	£11.23
16 - CORD GUARD 9.3-85 MT814/815 MSP-682516-3.A48 682516-3	£1.66	£1.99
17 - FELT RP0900/3620/M3601 MSP-443074-2.A2 443074-2	£1.66	£1.99
18 - STRAIN RELIEF M9001/DVC/RP0900 MSP-687124-5.A16 687124-5	£1.66	£1.99
19 - TAPPING SCREW M4X18 EBH253/EB3 MSP-266326-2.A555 266326-2	£1.66	£1.99
20 - SWITCH FA1-6/1W-1 MT361/M3601 MSP-650218-9.A0 650218-9	£2.49	£2.99
21-1 - TERMINAL BLOCK HS7100/KP0800 MSP-654532-5.A31 654532-5	£2.49	£2.99
22 - NOISE SUPPRESSOR 4100KB HS7611 MSP-645141-1.A7 645141-1	£1.66	£1.99
23 - INSULATION TERMINAL FT1.25-M3 MSP-654037-5.A0 654037-5	£1.66	£1.99
23 - FIELD 110V RP0900/M3601 MSP-594591-6.A0 594591-6	£21.12	£25.34
23 - FIELD 240V RP0900 MSP-594594-0.A2 594594-0	£21.78	£26.14
23-1 - FIELD 110V M3601 MSP-590052-4.A1 590052-4	£16.28	£19.54
23-1 - FIELD 240V M3601 MSP-590054-0.A0 590054-0	£16.39	£19.67
24 - BALL BEARING 608ZZ MT361/M5802 MSP-210029-0.A29 210029-0	£2.92	£3.50
25 - ARMATURE ASSY 240V MT361 MSP-510205-9.A0 510205-9	£34.21	£41.05
25 - ARMATURE ASSY 110V MT361/M3601 MSP-510203-3.A1 510203-3	£34.98	£41.98
26 - FAN 72 RP0900/M3601 MSP-240123-4.A2 240123-4	£2.49	£2.99
27 - BLUE WASHER 17 RP0900/8412DWH MSP-267114-0.A14 267114-0	£1.66	£1.99
28 - BALL BEARING 6203DDW M9001 MSP-211285-5.A9 211285-5	£2.49	£2.99
29 - COLLET CONE RP0900/M362 MSP-763637-1.A6 763637-1	£9.16	£10.99
30 - COLLET NUT RP0900/3608B/3620 MSP-763615-1.A11 763615-1	£3.29	£3.95
31 - TAPPING SCREW M4X18 EBH253/EB3 MSP-266326-2.A554 266326-2	£1.66	£1.99
32-1 - HOUSING SET MT361 MSP-187202-6.A0 187202-6	£30.58	£36.70
32 - HEX FULL NUT M5 RP0900/AN510 MSP-931202-6.A107 931202-6	£1.66	£1.99
32-1 - HEX FULL NUT M5 RP0900/AN510 MSP-931202-6.A108 931202-6	£1.66	£1.99
32 - HOUSING SET MT361 MSP-187202-6.A1 187202-6	£30.58	£36.70
32 - RUBBER PIN 4 GA7050/9050/5021 MSP-263002-9.A135 263002-9	£1.66	£1.99
32-1 - RUBBER PIN 6 DUR/DHR/DTW/DG MSP-263005-3.A839 263005-3	£1.66	£1.99
32-1 - RUBBER PIN 4 GA7050/9050/5021 MSP-263002-9.A134 263002-9	£1.66	£1.99
32 - RUBBER PIN 6 DUR/DHR/DTW/DG MSP-263005-3.A840 263005-3	£1.66	£1.99
33 - COMPRESSION SPRING 8 RP0900/H MSP-233110-0.A5 233110-0	£1.66	£1.99
34 - FLAT WASHER 8 DIN125-A RP0900 MSP-941202-8.A5 941202-8	£1.66	£1.99
35-1 - SET BOLT M8 RP0900/M3601 MSP-266920-0.A2 266920-0	£2.49	£2.99
36 - LEVER RP0900/M3601 MSP-450821-4.A0 450821-4	£1.66	£1.99
37 - PAN HEAD SCREW M5X12 ER2550 MSP-911213-7.A0 911213-7	£1.66	£1.99
38 - NAME PLATE MT361 MSP-896038-9 896038-9	£1.66	£1.99
39 - INTERNAL INVERTED RING-15 RP0 MSP-962065-9.A3 962065-9	£1.66	£1.99
40 - NARROW WASHER 10 RP0900/6905D MSP-267047-9.A0 267047-9	£1.66	£1.99
41 - PIN 10 MT361/M3601 MSP-451524-3.A0 451524-3	£1.66	£1.99
42 - COMPRESSION SPRING 10 MT361/R MSP-231416-0.A1 231416-0	£1.66	£1.99
43 - SLOT HD SHOULDER SCREW M6 36 MSP-251447-3.A1 251447-3	£1.66	£1.99
44 - SPARE PART MSP-265587-1.A11 265587-1	£1.66	£1.99
45 - SPARE PART MSP-265586-3.A3 265586-3	£1.66	£1.99
46 - SPARE PART MSP-265587-1.A10 265587-1	£1.66	£1.99
47 - STOPPER ASSY RP0900/M3601 MSP-135264-8.A2 135264-8	£3.77	£4.52
48 - STEEL BALL 7.0 M3601/M8701 MSP-216022-2.A59 216022-2	£1.66	£1.99
49 - COMPRESSION SPRING 5 RP0900/M MSP-231419-4.A7 231419-4	£1.66	£1.99
50 - PIN 10 RP0900/M362/3620/M3601 MSP-256651-9.A3 256651-9	£1.66	£1.99
51 - COMPRESSION SPRING 10 MT361/R MSP-231417-8.A2 231417-8	£1.66	£1.99
52 - THUMB SCREW M5X16 RP0900/M3601 MSP-265761-1.A0 265761-1	£1.66	£1.99
53 - COMPRESSION SPRING 7 RP0900/ MSP-231240-1.A28 231240-1	£1.66	£1.99
54 - BASE RP0900/MT361/M3601 MSP-158808-7.A0 158808-7	£21.78	£26.14
55 - SELF LOCK 15 RP0900/M362/3620 MSP-259019-8.A2 259019-8	£1.66	£1.99
56 - BASE PLATE MT361/M3601 MSP-452913-5.A1 452913-5	£2.49	£2.99
A01 - STRAIGHT GUIDE MT361/RP0900 MSP-164834-6.A0 164834-6	£10.82	£12.99
A02 - SPANNER 13 MT361/RP0900/3601B MSP-781006-4.A3 781006-4	£3.16	£3.79
A03 - SPANNER 22 MT361/RP0900/M3601 MSP-781011-1.A12 781011-1	£3.98	£4.77
A04 - STRAIGHT BIT 6E M3700/M3601 MSP-733238-9.A2 733238-9	£6.41	£7.69
A05 - DUST NOZZLE SET MT361/RP0900 MSP-194733-8.A0 194733-8	£2.99	£3.59
A05 - O RING 3 MT361/RBL25/RP1801 MSP-213022-3.A2 213022-3	£1.66	£1.99
A05 - THUMB SCREW M4X19 MT361/RP090 MSP-265774-2.A9 265774-2	£2.49	£2.99
E02 - *NON INSULATED TERMINAL GD0801 MSP-654091-9.A31 654091-9	£1.66	£1.99
