Makita KP0810 Power Planer Spare Parts

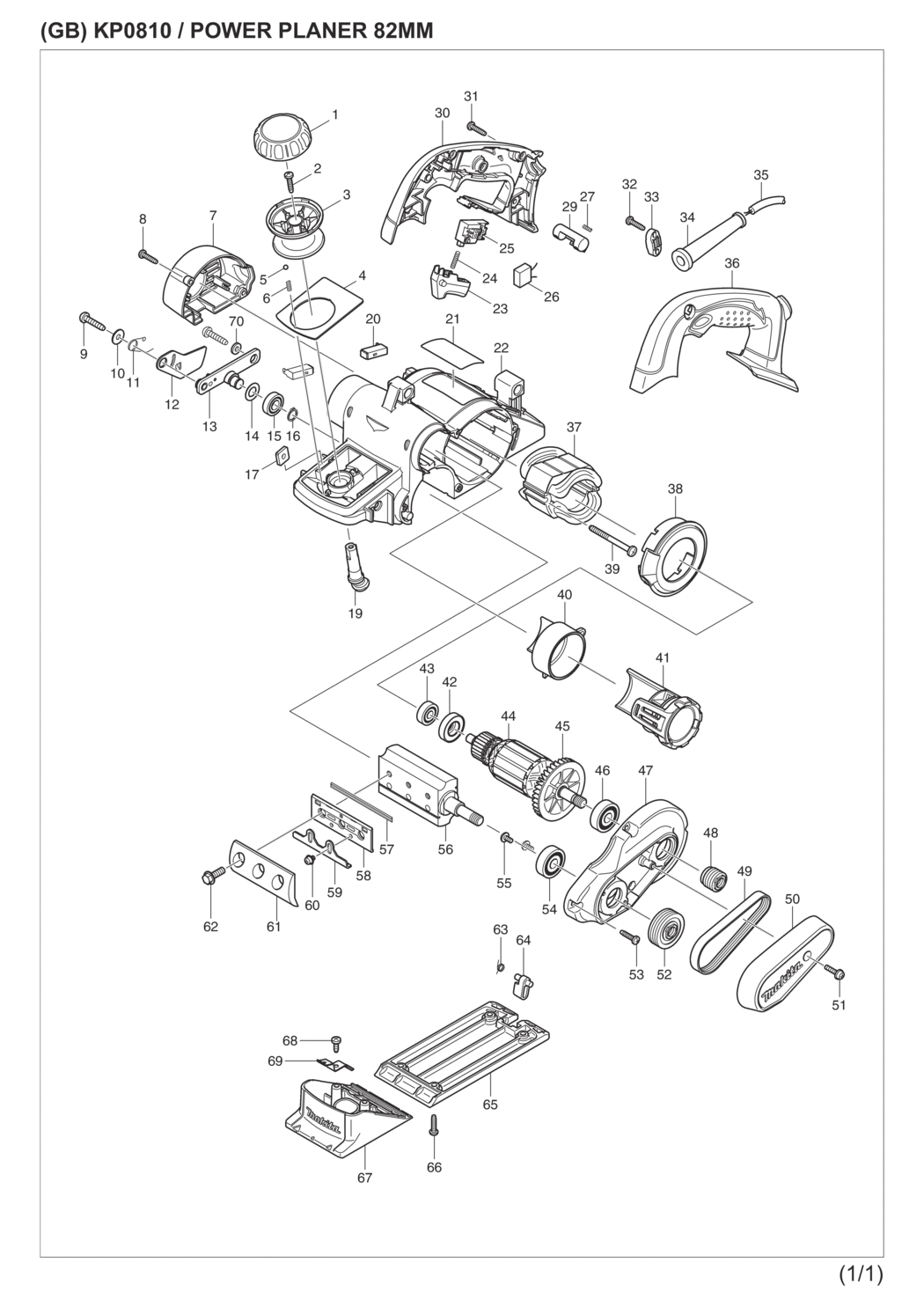

An exploded drawing and spare parts listing for the Makita KP0810 Power Planer

	Ex VAT	Inc VAT
1 - KNOB COVER KP0810 MSP-419700-5.A0 419700-5	£6.55	£7.86
2 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A1132 265995-6	£1.44	£1.73
3 - KNOB KP0810 MSP-419699-4.A2 419699-4	£2.50	£3.00
4 - FRONT PANEL KP0810 MSP-345766-8.A1 345766-8	£4.68	£5.62
5 - STEEL BALL 4 5008MB/JV101D MSP-216008-6.A15 216008-6	£1.44	£1.73
6 - COMPRESSION SPRING KP0810C MSP-233325-9.A1 233325-9	£1.44	£1.73
7 - REAR COVER KP0810 MSP-419697-8.A2 419697-8	£4.06	£4.87
8 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A1131 265995-6	£1.44	£1.73
9 - PT SCREW 5X25 KP0810C KP0810 MSP-266041-8.A40 266041-8	£1.44	£1.73
10 - WASHER 5 HM1317C/CB/KP0810C/K MSP-253194-2.A20 253194-2	£1.44	£1.73
11 - TORSION SPRING 10 KP0810 MSP-233521-9.A0 233521-9	£1.44	£1.73
12 - DRUM COVER KP0810 MSP-345765-0.A0 345765-0	£2.50	£3.00
13 - DRUM HOLDER KP0810 MSP-158184-9.A2 158184-9	£26.92	£32.31
14 - THIN HARD WASHER 10 BST220/KP MSP-253758-2.A11 253758-2	£1.44	£1.73
15 - BALL BEARING 6900LLB KP0810C MSP-210057-5.A14 210057-5	£7.64	£9.17
16 - EXT DIN 471 CIRCLIP-10 KP0810 MSP-961006-2.A37 961006-2	£1.44	£1.73
17 - SQUARE NUT M5 KP0810C MSP-264002-2.A9 264002-2	£1.44	£1.73
19 - CAM A KP0810 MSP-419702-1.A0 419702-1	£1.44	£1.73
20 - CARBON BRUSH CB-132 KP0810C MSP-191972-1.A4 191972-1	£7.80	£9.36
21 - NAME PLATE KP0810 MSP-863213-2.A0 863213-2	£1.44	£1.73
22 - HOUSING KP0810 MSP-419694-4.A0 419694-4	£29.38	£35.25
23 - SWITCH LEVER KP0810 MSP-419703-9.A2 419703-9	£1.44	£1.73
24 - COMPRESSION SPRING 3 KP0810 MSP-233408-5.A0 233408-5	£1.44	£1.73
25 - SWITCH TG71B PC5000/5001C/KP0 MSP-651922-3.A15 651922-3	£15.42	£18.51
26-1 - NOISE SUPPRESSOR/CONDENSOR MSP-645185-1.A4 645185-1	£1.44	£1.73
26 - NOISE SUPPRESSOR/CONDENSOR 64 MSP-645105-5.A8 645105-5	£2.34	£2.81
27 - COMPRESSION SPRING 4 MSP-231433-0.A46 231433-0	£1.44	£1.73
30 - HANDLE SET KP0810 MSP-188215-0.A5 188215-0	£20.30	£24.36
31 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A1180 265995-6	£1.44	£1.73
32 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A1269 265995-6	£1.44	£1.73
33 - STRAIN RELIEF HS7100/BO5041 MSP-687052-4.A150 687052-4	£1.44	£1.73
34 - CORD GUARD HP1641/BO5031/HP16 MSP-682504-0.A16 682504-0	£2.50	£3.00
35 - POWER SUPPLY CORD 1.0-2-2.5 MSP-665918-8.A55 665918-8	£12.01	£14.41
35 - LEAD WIRE HS7100/GD0801C/HP16 MSP-692527-0.A58 692527-0	£29.38	£35.25
36 - HANDLE SET KP0810 MSP-188215-0.A4 188215-0	£20.30	£24.36
37 - FIELD ASSY 240V KP0810 MSP-525748-8.A1 525748-8	£30.96	£37.15
37 - FIELD ASSY 115V KP0810 MSP-525746-2.A0 525746-2	£32.69	£39.23
37 - RECEPTACLE KP0810C/KP0810/UM1 MSP-654069-2.A31 654069-2	£1.44	£1.73
38 - BAFFLE PLATE KP0810 MSP-419701-3.A2 419701-3	£1.44	£1.73
39 - PT SCREW 5X55 UC3530A/KP0810 MSP-266095-5.A0 266095-5	£1.44	£1.73
40 - NOZZLE KP0810 MSP-419710-2.A2 419710-2	£2.65	£3.18
41 - AIR DUCT KP0810 MSP-125353-7.A0 125353-7	£5.46	£6.55
42 - INSULATION WASHER MT852/KP081 MSP-681659-8.A2 681659-8	£1.44	£1.73
43 - BALL BEARING 608LLB(/608VV) 6 MSP-211031-6.A74 211031-6	£3.90	£4.68
44 - ARMATURE ASSY 240V KP0810 MSP-513684-0.A1 513684-0	£44.88	£53.86
44 - ARMATURE ASSY 110V KP0810 MSP-513681-6.A0 513681-6	£44.88	£53.86
45 - FAN 62 KP0810 MSP-240079-1.A2 240079-1	£2.18	£2.62
46 - BALL BEARING VC3211M/KP0810/C MSP-211087-9.A27 211087-9	£9.67	£11.61
47 - BRACKET KP0810 MSP-158149-1.A2 158149-1	£13.58	£16.29
48 - V-PULLEY 4-20L KP0810C/KP0810 MSP-222125-2.A3 222125-2	£6.08	£7.30
49 - POLY V-BELT 4-24 DKP180 MSP-225007-7.A6 225007-7	£9.98	£11.98
50 - BELT COVER KP0810 MSP-419698-6.A0 419698-6	£6.55	£7.86
51 - PAN HD SCREW M4X18 KP0810C MSP-911133-5.A2 911133-5	£1.44	£1.73
52 - V-PULLEY 4-37 KP0810C/KP0810 MSP-222126-0.A0 222126-0	£8.73	£10.48
53 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A1127 265995-6	£1.44	£1.73
54 - BALL BEARING VC3211M/KP0810/C MSP-211087-9.A26 211087-9	£9.67	£11.61
55 - + SCREW M4X8 KP0810C/KP0810/ MSP-251291-8.A2 251291-8	£1.44	£1.73
56 - DRUM KP0810 MSP-158156-4.A0 158156-4	£42.48	£50.98
57-1 - *TCT PLANER BLADE MINI MT191/K MSP-D-07945.A3 D-07945	£13.65	£16.38
58 - SET PLATE MSP-343433-9.A0 343433-9	£4.12	£4.94
59 - ADJUST PLATE DKP180/KP0810/1 MSP-347027-2.A5 347027-2	£2.88	£3.46
60 - PAN HEAD SCREW W. WASHER M4X5 MSP-251246-3.A2 251246-3	£1.44	£1.73
60-1 - PAN HD SREW M4X5 DKP180 MSP-265132-2.A10 265132-2	£1.44	£1.73
61-1 - DRUM PLATE SET1923B(2PC/SET)N MSP-187676-1.A1 187676-1	£15.91	£19.09
62 - HEX HEAD M6X17 N1923BD MSP-251609-3.A10 251609-3	£1.44	£1.73
63 - TORSION SPRING 7 MT191/DKP180 MSP-231698-4.A5 231698-4	£1.44	£1.73
64 - FOOT KP0810 MSP-419706-3.A0 419706-3	£2.40	£2.88
65 - BASE KP0810 MSP-318098-6.A0 318098-6	£20.30	£24.36
66 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A1128 265995-6	£1.44	£1.73
67 - FRONT BASE KP0810 MSP-158360-5.A0 158360-5	£21.89	£26.27
68 - CT SCREW M4X12 UC3530A/KP0810 MSP-266026-4.A85 266026-4	£1.44	£1.73
69 - LEAF SPRING KP0810 MSP-232232-3.A0 232232-3	£1.44	£1.73
70 - FLAT WASHER KP0810C/KP0810 MSP-267012-8.A0 267012-8	£1.44	£1.73
A01 - O RING 3 MT361/RBL25/RP1801 MSP-213022-3.A0 213022-3	£1.44	£1.73
A01 - WING SCREW M5X10 KP0810C MSP-251871-0.A1 251871-0	£1.44	£1.73
A01 - GUIDE RULE ASSY KP0810 MSP-122785-9.A0 122785-9	£5.10	£6.12
A01 - O RING 4 DGA463-DGA517/KP0810 MSP-213009-5.A41 213009-5	£1.44	£1.73
A01 - GUIDE HOLDER KP0810 MSP-345768-4.A2 345768-4	£1.20	£1.44
A01 - WING SCREW M5X20 MT361/RP09/K MSP-251878-6.A6 251878-6	£1.44	£1.73
A01 - *THIN BLUE WASHER 5 BO3710/11 MSP-267066-5.A22 267066-5	£1.44	£1.73
A02 - BLADE GAUGE ASSY KP0810C MSP-123062-2.A3 123062-2	£5.72	£6.86
A02 - BLADE GAUGE PLATE BKP180Z MSP-411086-3.A5 411086-3	£1.20	£1.44
A03 - SOCKET WRENCH 9 KP0810C/KP0810 MSP-782209-3.A4 782209-3	£3.16	£3.79
A04 - WING SCREW M5X20 MT361/RP09/K MSP-251878-6.A7 251878-6	£1.44	£1.73
A05 - *THIN BLUE WASHER 5 BO3710/11 MSP-267066-5.A21 267066-5	£1.44	£1.73
A06 - DEPTH GUIDE KP0810C KP0810 MSP-342390-8.A2 342390-8	£2.34	£2.81
A07 - DUST BAG ASSY KP0810 MSP-122793-0.A2 122793-0	£14.16	£16.99
A07 - FASTENER PJ7000/KP0810C/KP0810 MSP-410602-8.A36 410602-8	£1.66	£1.99
E02 - *NON INSULATED TERMINAL GD0801 MSP-654091-9.A17 654091-9	£1.44	£1.73
