Makita 3612C Router Spare Parts

Home Details Reviews Delivery

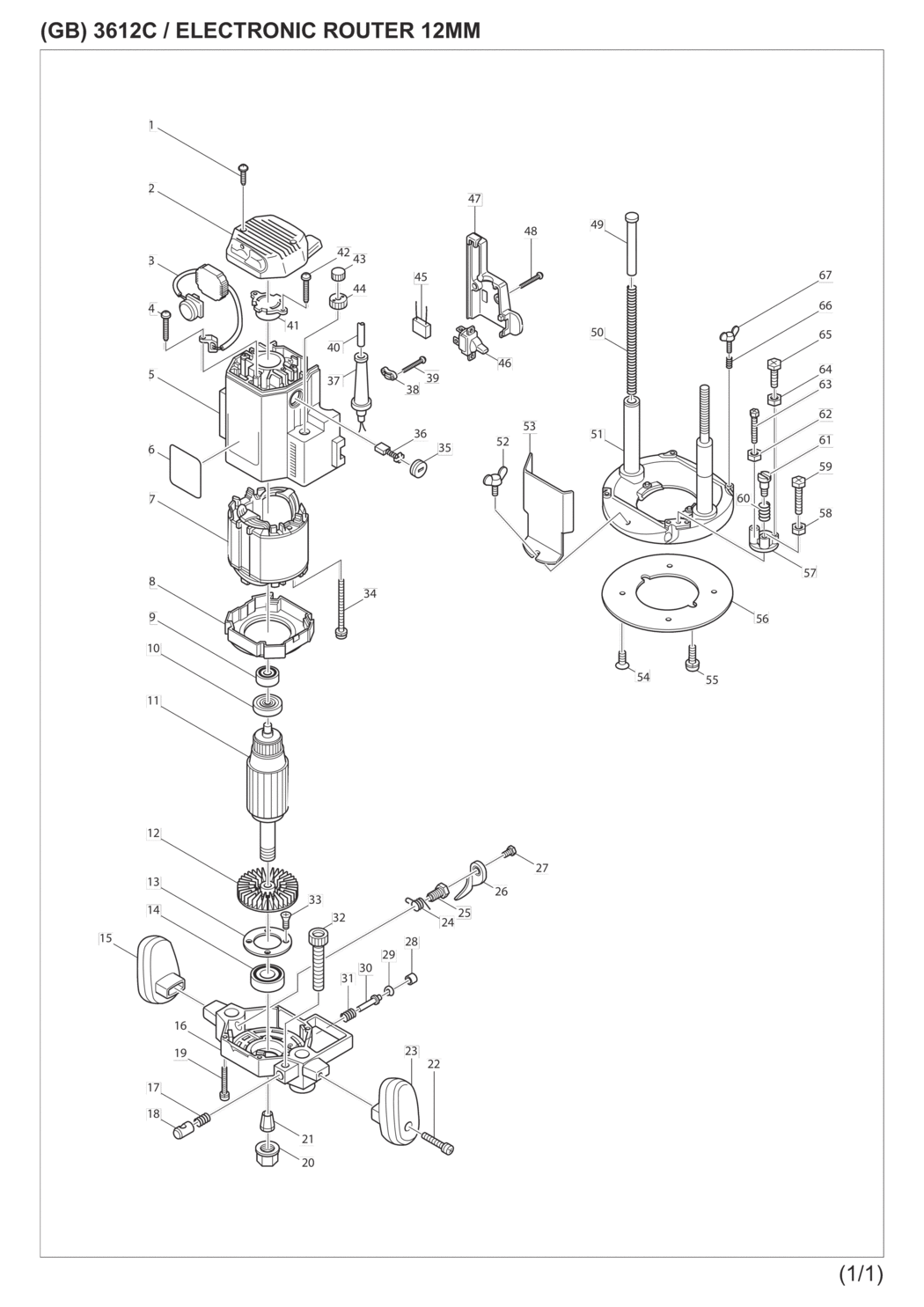

An exploded drawing and spare parts listing for the Makita 3612C Router

	Ex VAT	Inc VAT
1-1 - PT SCREW 5X20 HM1303 MSP-266021-4.A13 266021-4	£1.66	£1.99
2 - REAR COVER 3612C MSP-415067-9 415067-9	£11.96	£14.35
3 - CONTROLLER 110V 3612C MSP-631150-6 631150-6	£139.39	£167.27
3A - CONTROLLER 240V 3612C MSP-631151-4 631151-4	£106.95	£128.34
4 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A1000 265995-6	£1.66	£1.99
5B - BRUSH HOLDER GA7050/ 9047/904 MSP-643707-1.A2 643707-1	£4.55	£5.46
5B - MOTOR HOUSING 3612C MSP-159650-9 159650-9	£84.46	£101.35
6-1 - NAME PLATE 3612C MSP-851513-2 851513-2	£1.66	£1.99
7D - FIELD 240V 3612C MSP-636014-9 636014-9	£40.48	£48.58
7A - FIELD 110V 3612C MSP-636011-5 636011-5	£40.48	£48.58
8 - BAFFLE PLATE 3612C/3612 MSP-415069-5.A0 415069-5	£3.77	£4.52
9 - BALL BEARING VC3211M/3612/C/ MSP-211092-6.A45 211092-6	£7.15	£8.58
9-2 - BALL BEARING VC3211M/3612/C/ MSP-211092-6.A54 211092-6	£7.15	£8.58
10 - INSULATION WASHER 3612C MSP-681631-0 681631-0	£11.99	£14.39
11-1 - ARMATURE ASSY 110V 3612C MSP-516505-5.A2 516505-5	£107.24	£128.69
11C - ARMATURE ASSY 240V 3612C MSP-516509-7.A1 516509-7	£146.60	£175.92
11C2 - ARMATURE ASSY 240V 3612C MSP-516509-7.A2 516509-7	£146.60	£175.92
11-2 - ARMATURE ASSY 110V 3612C MSP-516505-5.A1 516505-5	£107.24	£128.69
11C1 - ARMATURE ASSY 240V 3612C MSP-516509-7.A0 516509-7	£146.60	£175.92
11 - ARMATURE ASSY 110V 3612C MSP-516505-5.A0 516505-5	£107.24	£128.69
12 - FAN 74 3612C MSP-241861-1 241861-1	£14.30	£17.16
13 - BEARING RETAINER 50 3612BR/RP MSP-285657-0.A2 285657-0	£1.66	£1.99
14 - BALL BEARING 2012DDW/3612 MSP-211326-7.A1 211326-7	£10.27	£12.32
14-1 - BALL BEARING 2012DDW/3612 MSP-211326-7.A10 211326-7	£10.27	£12.32
15 - KNOB (L) 3612C/3612 MSP-415070-0.A1 415070-0	£10.14	£12.17
16-2 - MOTOR BRACKET 3612C/ MSP-152567-5.A0 152567-5	£68.58	£82.30
17 - COMPRESSION SPRING 10 MSP-231142-1.A2 231142-1	£1.66	£1.99
18 - HALF NUT 3600B/3612 MSP-323559-3.A2 323559-3	£1.66	£1.99
19 - PAN HD SCREW M5X40 W/CP WASHE MSP-911263-2.A1 911263-2	£1.66	£1.99
20 - COLLET NUT 3612BR/M3600 MSP-763629-0.A2 763629-0	£7.92	£9.50
21A - COLLET CONE 12.7 3612BR/M3600 MSP-763622-4.A1 763622-4	£23.46	£28.15
23A - KNOB (R) 3612C MSP-415407-1.A1 415407-1	£8.45	£10.14
24 - TORSION SPRING 15 3600B MSP-231574-2.A1 231574-2	£6.24	£7.49
24-1 - TORSION SPRING 15 3612C MSP-231618-8.A0 231618-8	£1.66	£1.99
25 - SET BOLT M10 3600B (N0666) MSP-265813-8.A1 265813-8	£4.16	£4.99
25-1 - SET BOLT M10 3612C MSP-266015-9.A1 266015-9	£7.15	£8.58
26 - LOCK LEVER 3600B (N0666) MSP-341933-3.A0 341933-3	£1.66	£1.99
26-1 - LOCK LEVER 3612C MSP-344097-2.A1 344097-2	£2.49	£2.99
27 - HEX HD SCREW M5X12 3600B MSP-265269-5.A0 265269-5	£1.66	£1.99
28 - CAP 11 3612BR MSP-286235-9.A1 286235-9	£1.66	£1.99
29 - INTERNAL INVERTED RING-12 MSP-962062-5.A0 962062-5	£1.66	£1.99
30 - PIN 6 9600 MSP-256606-4.A2 256606-4	£4.16	£4.99
32 - KNURL THUMB SETSCREW M10X78 MSP-251861-3.A0 251861-3	£2.49	£2.99
33-1 - COUNTERSUNK HEAD SCREW M4X14 MSP-251295-0.A6 251295-0	£1.66	£1.99
33 - COUNTERSUNK HEAD SCREW M4X14 MSP-251295-0.A7 251295-0	£1.66	£1.99
34-1 - PAN HD SCREW M5X80 W/CP WASHE MSP-911944-8.A1 911944-8	£2.49	£2.99
35 - BRUSH HOLDER CAP 7-18 GA7050/ MSP-643700-5.A33 643700-5	£1.66	£1.99
36 - CARBON BRUSH CB-203 3612C/241 MSP-194991-6.A10 194991-6	£5.13	£6.16
37A1 - CORD GUARD 12-90 110V 9029 MSP-682506-6.A14 682506-6	£1.66	£1.99
37B1 - CORD GUARD UH45570/5570/5580 MSP-682505-8.A65 682505-8	£1.66	£1.99
37A - CORD GUARD 10-90 HS6100/7100 MSP-682505-8.A53 682505-8	£1.66	£1.99
37B3 - CORD GUARD 10-90 HS6100/7100 MSP-682505-8.A54 682505-8	£1.66	£1.99
37B2 - CORD GUARD HS6100/7100/MT852 MSP-682540-6.A13 682540-6	£1.66	£1.99
38 - STRAIN RELIEF 3612C/5103R/411 MSP-687054-0.A5 687054-0	£1.66	£1.99
38-1 - STRAIN RELIEF 110V UK360/HS61 MSP-687053-2.A51 687053-2	£1.66	£1.99
38-2 - STRAIN RELIEF 3612C/5103R/411 MSP-687054-0.A4 687054-0	£1.66	£1.99
38B - STRAIN RELIEF HS7100/BO5041 MSP-687052-4.A117 687052-4	£1.66	£1.99
39 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A1003 265995-6	£1.66	£1.99
40B3 - POWER SUPPLY CORD 110V 5903R MSP-665550-8.A19 665550-8	£22.44	£26.93
40C1 - LEAD WIRE HS7100/GD0801C/HP16 MSP-692527-0.A69 692527-0	£22.44	£26.93
41 - BEARING BOX 3612C MSP-316499-2.A1 316499-2	£9.10	£10.92
42 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A1005 265995-6	£1.66	£1.99
43 - WING NUT M10 3612BR MSP-252625-8.A2 252625-8	£2.49	£2.99
44 - NYLON NUT M10 RP1100C/3612BR MSP-410129-8.A0 410129-8	£1.66	£1.99
45A1 - NOISE SUPPRESSOR 110V MSP-645253-0.A37 645253-0	£4.16	£4.99
45-1 - NOISE SUPPRESSOR/CONDENSOR 64 MSP-645105-5.A15 645105-5	£2.49	£2.99
46A1 - SWITCH RP1801/3612C MSP-651430-4.A1 651430-4	£11.33	£13.60
47A - COVER 3612C MSP-415409-7.A1 415409-7	£8.97	£10.76
48 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A1004 265995-6	£1.66	£1.99
49 - POLE 3600B MSP-314062-5.A0 314062-5	£1.66	£1.99
50 - COMPRESSION SPRING 11 3612BR MSP-231329-5.A2 231329-5	£1.66	£1.99
51A - BASE 3612C MSP-151407-4.A0 151407-4	£81.98	£98.37
52 - WING SCREW M5X10 N1923BDD MSP-924206-5.A7 924206-5	£1.66	£1.99
53 - CHIP DEFLECTOR 3612BR MSP-410128-0.A2 410128-0	£2.49	£2.99
54 - COUNTERSUNK SCREW M4X10 RP090 MSP-912112-6.A5 912112-6	£1.66	£1.99
55 - PAN HD SCREW M5X10 W/SP WASHE MSP-911206-4.A10 911206-4	£1.66	£1.99
56A - BASE PLATE 3612C MSP-413063-1.A0 413063-1	£10.40	£12.48
56 - BASE PLATE 3612BR MSP-413024-1.A0 413024-1	£7.02	£8.42
57 - STOPPER ASSY 3612BR MSP-134205-1.A0 134205-1	£8.32	£9.98
58 - HEX FULL NUT M5 RP0900/AN510 MSP-931202-6.A101 931202-6	£1.66	£1.99
59 - HEX HD SCREW M5X28 MSP-265335-8.A1 265335-8	£1.66	£1.99
59-1 - SPARE PART MSP-265587-1.A12 265587-1	£1.66	£1.99
60 - COMPRESSION SPRING 12 3600B MSP-231231-2.A2 231231-2	£1.66	£1.99
61 - SLOTTED HD SHOULDER BOLT M6 MSP-251423-7.A1 251423-7	£1.66	£1.99
62 - HEX FULL NUT M5 RP0900/AN510 MSP-931202-6.A102 931202-6	£1.66	£1.99
63-1 - SPARE PART MSP-265587-1.A13 265587-1	£1.66	£1.99
63 - HEX HD SCREW M5X40 MSP-265336-6.A4 265336-6	£1.66	£1.99
64 - HEX FULL NUT M5 RP0900/AN510 MSP-931202-6.A103 931202-6	£1.66	£1.99
65 - HEX HD SCRWE M5X16 3620 MSP-265333-2.A3 265333-2	£1.66	£1.99
65-1 - SPARE PART MSP-265586-3.A2 265586-3	£1.66	£1.99
66 - COMPRESSION SPRING 7 RP0900/ MSP-231240-1.A20 231240-1	£1.66	£1.99
69 - LOCK-OFF BUTTON 3612C MSP-415411-0.A1 415411-0	£2.49	£2.99
70 - COMPRESSION SPRING 4 6702D MSP-233024-3.A9 233024-3	£1.66	£1.99
71 - SWITCH LEVER JR3020/4304 MSP-415158-6.A1 415158-6	£3.25	£3.90
72 - PIN 3 DST111/DST112/JR3020 MSP-256221-4.A7 256221-4	£1.66	£1.99
73 - COMPRESSION SPRING 5 5016NB MSP-231372-4.A4 231372-4	£1.66	£1.99
74 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A1001 265995-6	£1.66	£1.99
75 - KNOB COVER 3612C MSP-415408-9.A0 415408-9	£6.50	£7.80
76 - CAP 14 3612C MSP-286239-1.A0 286239-1	£2.49	£2.99
77 - LOCK PLATE 3612C MSP-344098-0.A0 344098-0	£7.54	£9.05
78 - TENSION SPRING 4 3612C MSP-231794-8.A0 231794-8	£2.49	£2.99
79 - THIN BLUE WASHER 5 BFS440/683 MSP-253811-4.A0 253811-4	£1.66	£1.99
80 - PIVOT SCREW M5X10 3612C MSP-266016-7.A3 266016-7	£4.16	£4.99
81 - DUST NOZZLE 3612C/M3600 MSP-415412-8.A2 415412-8	£18.36	£22.03
A01 - STRAIGHT GUIDE 3600B/M3600 MSP-342428-9.A2 342428-9	£11.02	£13.23
A02 - WRENCH 8 RP1110C/3600B/3612BR MSP-781213-9.A2 781213-9	£2.66	£3.19
A03-2 - WRENCH 24 3600B/3612BR/M3600 MSP-781034-9.A1 781034-9	£3.25	£3.90
A06A - COLLET SLEEVE 36B/3601B MSP-763805-6.A3 763805-6	£5.32	£6.39
A08 - WINGSCREW M6X12 LS1020 MSP-924311-8.A0 924311-8	£1.66	£1.99
A07A - COLLET SLEEVE 36B/3601B MSP-763803-0.A1 763803-0	£6.92	£8.30
A09 - M6 SPRING RING DIN128 BHS630 MSP-253428-3.A50 253428-3	£1.66	£1.99
A10 - FLAT WASHER 6 DIN125-B BHS630 MSP-941151-9.A42 941151-9	£1.66	£1.99
A11 - GUIDE BASE ASSY 3600B MSP-122256-6.A2 122256-6	£23.82	£28.58
A12 - THUMB SETSCREW M10X34 3600B MSP-251830-4.A1 251830-4	£2.49	£2.99
E02 - COMPRESSION SPRING 5 5016NB MSP-231372-4.A5 231372-4	£1.66	£1.99
E01-1 - DUST NOZZLE 3612C/M3600 MSP-415412-8.A3 415412-8	£18.36	£22.03
E03 - TENSION SPRING 4 3612C MSP-231794-8.A1 231794-8	£2.49	£2.99
E04 - COMPRESSION SPRING 4 6702D MSP-233024-3.A8 233024-3	£1.66	£1.99
E05 - PIN 3 DST111/DST112/JR3020 MSP-256221-4.A8 256221-4	£1.66	£1.99
E06 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A1002 265995-6	£1.66	£1.99
E07 - PIVOT SCREW M5X10 3612C MSP-266016-7.A2 266016-7	£4.16	£4.99
E08 - CAP 14 3612C MSP-286239-1.A1 286239-1	£2.49	£2.99
E09 - LOCK PLATE 3612C MSP-344098-0.A1 344098-0	£7.54	£9.05
E10 - SWITCH LEVER JR3020/4304 MSP-415158-6.A0 415158-6	£3.25	£3.90
E11 - KNOB COVER 3612C MSP-415408-9.A1 415408-9	£6.50	£7.80
E12 - LOCK-OFF BUTTON 3612C MSP-415411-0.A0 415411-0	£2.49	£2.99
E15 - THIN BLUE WASHER 5 BFS440/683 MSP-253811-4.A1 253811-4	£1.66	£1.99

Attribute Name	Value
Brand	Makita
