Makita EA3501S35B Petrol Chain Saw Spare Parts

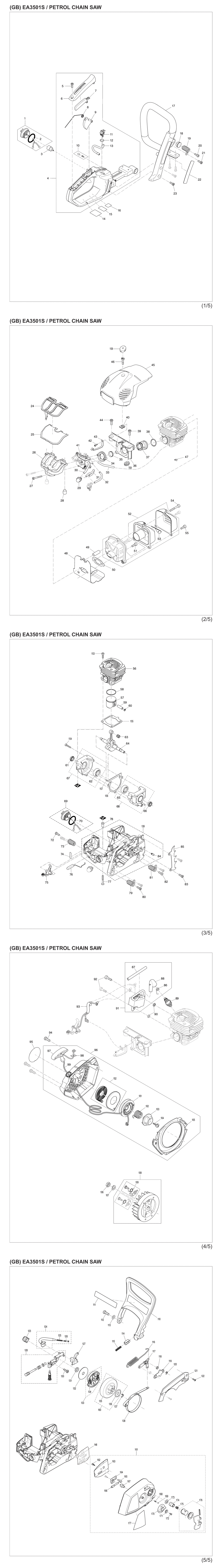

An exploded drawing and spare parts listing for the Makita EA3501S35B Petrol Chain Saw

	Ex VAT	Inc VAT
1 - TANK CAP PS32/EA3201S MSP-168823-3.A1 168823-3	£2.18	£2.62
2 - *O RING 29.5 EA3601 EA3500/01 MSP-213080-9.A11 213080-9	£1.44	£1.73
3 - GASOLIN FILTER ER2550/DCS230T MSP-163447-0.A32 163447-0	£3.42	£4.10
3-1 - GASOLIN FILTER ER2550/DCS230T MSP-163447-0.A41 163447-0	£3.42	£4.10
4 - TANK ASSEMBLY A BLUE EA3201S3 MSP-195758-5.A1 195758-5	£32.69	£39.23
5 - H L TAPPING SCREW 5.5X16 PS32 MSP-266651-1.A36 266651-1	£1.44	£1.73
6 - GRIP SHELL EA3500/EA3501/PS32 MSP-452021-2.A4 452021-2	£1.44	£1.73
7 - CATCH LEVER EA3500/3501/PS32 MSP-452020-4.A1 452020-4	£1.44	£1.73
8 - TORISON SPRING 10 EA3500/3501 MSP-231866-9.A6 231866-9	£1.44	£1.73
9 - THROTTLE LEVER EA3500/01/PS32 MSP-452019-9.A4 452019-9	£1.44	£1.73
10 - AIR VALVE SET EA3500/01/PS32 MSP-195762-4.A2 195762-4	£2.34	£2.81
11 - FUEL NIPPLE EA3500/3501/PS32 MSP-452018-1.A2 452018-1	£1.44	£1.73
12 - O RING 11.5 EA3500/3501/PS32 MSP-213586-7.A4 213586-7	£1.44	£1.73
13 - FUEL LINE EA3500/EA3501/PS32 MSP-424456-7.A1 424456-7	£9.36	£11.23
17 - TUBULAR HANDLE EA3500/01/PS32 MSP-452036-9.A4 452036-9	£19.58	£23.50
18 - CUP WASHER 6 EA3500/3501/PS32 MSP-346517-2.A3 346517-2	£1.44	£1.73
19 - COMPRESSION SPRING 12 PS32 MSP-234189-4.A18 234189-4	£1.44	£1.73
20 - H L SOCKET BOLT M5 X 16 PS3 MSP-266605-8.A18 266605-8	£1.44	£1.73
21 - H L TAPPING SCREW 5.5X16 PS32 MSP-266651-1.A39 266651-1	£1.44	£1.73
23 - H L TAPPING SCREW 5.5X16 PS32 MSP-266651-1.A62 266651-1	£1.44	£1.73
24 - AIR FILTER COVER EA3500/3501 MSP-452031-9.A3 452031-9	£1.44	£1.73
25 - AIR FILTER PS32/EA3500/EA3501 MSP-423414-0.A1 423414-0	£2.49	£2.99
27 - H L SOCKET HEAD BOLT M4X40 PS3 MSP-266604-0.A0 266604-0	£1.44	£1.73
28 - DAMPING PLUG EA3500/3501/PS32 MSP-424173-9.A1 424173-9	£1.44	£1.73
29 - PRIMER PUMP DCS230T/EA32/EA36 MSP-168398-2.A19 168398-2	£4.52	£5.43
30 - TUBE 2.5-5.5 EA3500/3501/PS32 MSP-422067-2.A1 422067-2	£1.44	£1.73
31 - TUBE 2.5-11.2 EA3500/01/PS32 MSP-422065-6.A1 422065-6	£2.18	£2.62
32 - TUBE 3-70 EA3500/EA3501/PS32 MSP-422068-0.A4 422068-0	£1.44	£1.73
33 - TUBE 2.5-72 EA3500/3501/PS32 MSP-422066-4.A4 422066-4	£1.44	£1.73
34 - FLANGE RING EA3500/3501/PS32 MSP-318634-8.A2 318634-8	£1.44	£1.73
35 - BUSH 17 EA3500/EA3501/PS32 MSP-346413-4.A1 346413-4	£1.44	£1.73
36 - INTERMEDIATE FLANGE EA3500&1 MSP-454874-5.A0 454874-5	£1.44	£1.73
37 - INTAKE HOSE EA3500/EA3501 MSP-424617-9.A2 424617-9	£7.96	£9.55
38 - RING SPRING EA3500/3501/PS32 MSP-233971-8.A0 233971-8	£1.44	£1.73
39 - H L TAPPING SCREW 5.5X16 PS32 MSP-266651-1.A35 266651-1	£1.44	£1.73
40 - SNAP NUT M5 EA3500/3501/PS32 MSP-264044-6.A0 264044-6	£1.44	£1.73
41-1 - CARBURETOR EA3500/EA3501 MSP-168829-1.A2 168829-1	£42.90	£51.48
41-1 - PIN DCS230T/EA3201/EA3601 MSP-ZJ00000008.A9 ZJ00000008	£1.44	£1.73
41-1 - SCREW EA3601F/PS32 MSP-ZJ00000009.A0 ZJ00000009	£1.44	£1.73
41-1 - GASKET-PUMP EA3601/PS32 MSP-ZJ00000016.A0 ZJ00000016	£1.44	£1.73
41-1 - LEVER EA3601F/EA3201 MSP-ZJ00000006.A9 ZJ00000006	£1.44	£1.73
41 - CARBURETOR EA3500/EA3501 MSP-168829-1.A3 168829-1	£42.90	£51.48
41-1 - SCREW ASSY EA3601/ PS32 MSP-ZJ00000014.A9 ZJ00000014	£1.44	£1.73
41-1 - VALVE DCS230T/EA3201/EA3601 MSP-ZJ00000007.A0 ZJ00000007	£2.97	£3.56
41-1 - DIAPHRAGM PUMP EA3601F/PS32 MSP-ZJ00000029.A9 ZJ00000029	£1.44	£1.73
41-1 - SPRING EA3601F/EA3201S MSP-ZJ00000073.A3 ZJ00000073	£1.44	£1.73
42 - TAPPING SCREW 3X10 HR2811FT MSP-266421-8.A7 266421-8	£1.44	£1.73
44 - H L TAPPING SCREW 5.5X16 PS32 MSP-266651-1.A34 266651-1	£1.44	£1.73
48 - COOLING PLATE EA3500/EA3501 MSP-346764-5.A0 346764-5	£1.44	£1.73
50 - GASKET EA3500S/3501S EA3201S MSP-346304-9.A5 346304-9	£1.44	£1.73
51 - H L SOCKET BOLT M5 X 16 PS3 MSP-266605-8.A20 266605-8	£1.44	£1.73
52 - MUFFLER EA3500/3501 MSP-168830-6.A2 168830-6	£44.22	£53.06
54 - H.L. S H BOLT EA3500/3501 MSP-266480-2.A0 266480-2	£1.44	£1.73
55 - H L SOCKET BOLT M5 X 16 PS3 MSP-266605-8.A19 266605-8	£1.44	£1.73
56-1 - CYLINDER EA3500/3501 MSP-143323-4.A2 143323-4	£50.29	£60.35
62 - *BALL BEARING 6201 EA3500/3501 MSP-211494-6.A3 211494-6	£33.12	£39.74
62-1 - BALL BEARING PS32 EA3201S MSP-211341-1.A8 211341-1	£2.89	£3.47
64-1 - *CRANK CASE ASSY EA3500/3501 MSP-123530-5.A2 123530-5	£75.60	£90.72
65-1 - BALL BEARING PS32 EA3201S MSP-211341-1.A7 211341-1	£2.89	£3.47
65 - *BALL BEARING 6201 EA3500/3501 MSP-211494-6.A4 211494-6	£33.12	£39.74
69 - TANK CAP PS32/EA3201S MSP-168823-3.A2 168823-3	£2.18	£2.62
70 - *O RING 29.5 EA3601 EA3500/01 MSP-213080-9.A12 213080-9	£1.44	£1.73
72 - H L TAPPING SCREW 5.5X16 PS32 MSP-266651-1.A32 266651-1	£1.44	£1.73
73 - COMPRESSION SPRING 12 PS32 MSP-234189-4.A19 234189-4	£1.44	£1.73
74 - LABEL/INDICATION EA3500/3501 MSP-816917-5.A3 816917-5	£1.44	£1.73
75 - CHOKE LEVER EA3500/3501/PS32 MSP-452025-4.A2 452025-4	£1.44	£1.73
76 - THROTTLE LINKAGE EA3500/3501 MSP-452022-0.A1 452022-0	£1.44	£1.73
77 - H L TAPPING SCREW 5X4 PS32/EA MSP-266608-2.A1 266608-2	£1.44	£1.73
79 - COMPRESSION SPRING 12 PS32 MSP-234189-4.A20 234189-4	£1.44	£1.73
80 - H L TAPPING SCREW 5.5X16 PS32 MSP-266651-1.A33 266651-1	£1.44	£1.73
81 - COMPRESSION SPRING 12 PS32 MSP-234189-4.A21 234189-4	£1.44	£1.73
82 - H L TAPPING SCREW 5.5X16 PS32 MSP-266651-1.A40 266651-1	£1.44	£1.73
83 - H L TAPPING SCREW 5.5X16 PS32 MSP-266651-1.A61 266651-1	£1.44	£1.73
84 - VENT VALVE EA3500/EA3501/PS32 MSP-168504-9.A0 168504-9	£2.50	£3.00
85 - SPIKE BAR EA3500/EA3501/PS32 MSP-346301-5.A1 346301-5	£1.44	£1.73
89 - SPARK PLUG CMR6A EB7650TH MSP-168401-9.A5 168401-9	£7.49	£8.99
90 - ISOLATING WASHER EA3500/3501 MSP-452670-5.A2 452670-5	£1.44	£1.73
91 - IGNITION COIL ASSY EA3201S/PS MSP-126270-4.A2 126270-4	£53.20	£63.84
93 - CABLE HARNESS EA3500/01/PS32 MSP-168601-1.A3 168601-1	£2.65	£3.18
94 - H L TAPPING SCREW 5.5X16 PS32 MSP-266651-1.A38 266651-1	£1.44	£1.73
96-1 - STARTER BLUE EA3201 MSP-161328-2.A5 161328-2	£26.92	£32.31
97 - STARTER GRIP EA3500/3501/PS32 MSP-453783-5.A3 453783-5	£2.50	£3.00
99 - STARTER ROPE EA3500/3501/PS32 MSP-444038-9.A5 444038-9	£1.44	£1.73
101-1 - REEL EA3500/EA3501/PS32 MSP-455919-2.A1 455919-2	£3.74	£4.49
102 - TORSION SPRING 20 EA3500/3501 MSP-234253-1.A4 234253-1	£2.18	£2.62
103 - CAM PLATE EA3500/EA3501/PS32 MSP-453786-9.A2 453786-9	£2.65	£3.18
104 - TAPPING SCREW 5X12 EA360/PS3 MSP-266777-9.A7 266777-9	£1.44	£1.73
105 - AIR GUIDE PLATE EA3500/EA3501 MSP-452026-2.A4 452026-2	£2.18	£2.62
106 - HEX NUT M8X1 EA3500/3501/PS32 MSP-264053-5.A3 264053-5	£1.44	£1.73
107 - SPRING WASHER 8 EA3500/EA3501 MSP-267822-3.A5 267822-3	£1.44	£1.73
109 - RATCHET SET EA3500/3501/PS32 MSP-195761-6.A3 195761-6	£1.20	£1.44
110 - HAND GUARD EA3500/EA3501/PS32 MSP-452032-7.A4 452032-7	£3.74	£4.49
112 - H L TAPPING SCREW 5.5X16 PS32 MSP-266651-1.A37 266651-1	£1.44	£1.73
113 - HARD WASHER 6 EA3500/3501 MSP-253715-0.A33 253715-0	£1.44	£1.73
114 - HAND GUARD GUIDE PS32/EA3601F MSP-313212-9.A1 313212-9	£1.44	£1.73
115 - COMPRESSION SPRING 6 EA36/ PS MSP-234210-9.A7 234210-9	£1.44	£1.73
117 - LINK PLATE EA3500/3501 MSP-163500-2.A3 163500-2	£15.58	£18.70
119 - SPACER SHEET MEAL EA3500/3501 MSP-346299-6.A4 346299-6	£1.44	£1.73
120 - EXT E-RING JIS E-4 EA3201 MSP-961011-9.A15 961011-9	£1.44	£1.73
121 - *BRAKE COVER EA3500/3501/PS32 MSP-452033-5.A2 452033-5	£1.44	£1.73
122 - TAPPING SCREW 3X10 HR2811FT MSP-266421-8.A6 266421-8	£1.44	£1.73
123 - PUMP DRIVE EA3500/EA3501/PS32 MSP-452035-1.A3 452035-1	£3.59	£4.31
124 - OIL SUCTION LINE PS3 MSP-168645-1.A1 168645-1	£4.83	£5.80
127 - OIL PRESSURE LINE EA3500/3501 MSP-424342-2.A1 424342-2	£3.90	£4.68
128 - OIL PUMP EA3201 /3500/01 MSP-161346-0.A2 161346-0	£18.29	£21.95
130 - H L SOCKET BOLT M5 X 16 PS3 MSP-266605-8.A22 266605-8	£1.44	£1.73
131 - FLAT WASHER 10 EA3500/01/PS32 MSP-267430-0.A1 267430-0	£1.44	£1.73
132 - FLAT WASHER 10 EA3500/01/PS32 MSP-267431-8.A5 267431-8	£1.44	£1.73
133 - CLUTCH EA3500/EA3501 MSP-168607-9.A5 168607-9	£5.92	£7.11
134 - TENSION SPRING 5 EA3500/3501 MSP-231873-2.A5 231873-2	£1.44	£1.73
135-1 - CLUTCH DRUM EA3201 EA3500/01 MSP-140M30-8.A0 140M30-8	£13.88	£16.66
136 - CUP WASHER 8 EA3201/3500/3501 MSP-267833-8.A0 267833-8	£1.44	£1.73
137 - RETAINING RING E EA3500/3501 MSP-259033-4.A7 259033-4	£1.44	£1.73
138 - *BRAKE BAND EA3500/EA3501/PS32 MSP-347636-6.A5 347636-6	£3.16	£3.79
148 - GUIDE PLATE EA3500/3501/PS32 MSP-346518-0.A5 346518-0	£1.44	£1.73
152 - REWIND SPRING SET EA3500/3501 MSP-195955-3.A0 195955-3	£8.11	£9.73
153 - H.L. S.H BOLT M5X20 EA3500/01 MSP-266960-8.A2 266960-8	£1.44	£1.73
155 - CYLINDER BASE GASKET EA3500&1 MSP-346760-3.A2 346760-3	£1.44	£1.73
157 - TENSION PIN 3-16 DIN1481/AN635 MSP-951063-8.A6 951063-8	£1.44	£1.73
161 - SPROCKET GUARD TLC EA3 MSP-142783-7.A0 142783-7	£26.92	£32.31
162 - PT SCREW 3X10 TRILOBULAR/MS248 MSP-266007-8.A55 266007-8	£1.44	£1.73
163 - GUIDE PLATE EA3201S35B/PS32T MSP-346309-9.A0 346309-9	£1.44	£1.73
164 - COVER EA3201S35B/PS32TLC MSP-417403-5.A2 417403-5	£1.44	£1.73
165 - ADJUST PIN EA3201S35B/PS32TLC MSP-324068-5.A2 324068-5	£1.44	£1.73
166 - HELICAL GEAR 8 DCS230T/EA3201 MSP-226534-7.A2 226534-7	£12.32	£14.79
167 - HELICAL GEAR 17 EA3201S35B MSP-226681-4.A2 226681-4	£2.65	£3.18
168 - COMPRESSION SPRING 4 UC4020A MSP-233033-2.A4 233033-2	£1.44	£1.73
169 - STEEL BALL 4 5008MB/JV101D MSP-216008-6.A27 216008-6	£1.44	£1.73
170 - DIAL 40 UC4020A/3520/3530A/40 MSP-419233-0.A6 419233-0	£1.44	£1.73
171 - LARGE BLUE WASHER 4 PS32TLC MSP-253874-0.A26 253874-0	£1.44	£1.73
172 - BINDING HD SCREW M4 PS32TLC MSP-915106-0.A1 915106-0	£1.44	£1.73
174 - HEX NUT M8-13 PS32TLC/EA3201 MSP-264099-1.A2 264099-1	£1.44	£1.73
175 - COMPRESSION SPRING 8 PS32TLC MSP-231025-5.A7 231025-5	£1.44	£1.73
176 - WING GRIP SET PS32TLC/EA3201S MSP-195764-0.A0 195764-0	£4.79	£5.75
177 - LABEL/INDICATION EA3201S35B MSP-892502-8.A2 892502-8	£1.44	£1.73
A01 - GUIDE BAR UC3530A/EA3601F MSP-165201-8.A4 165201-8	£12.84	£15.41
A02 - CHAIN COVER UC3530A/EA3201/EA MSP-419559-0.A0 419559-0	£2.93	£3.52
A04 - UNIVERSAL WRENCH 13/16 EA3500 MSP-782026-1.A5 782026-1	£3.02	£3.62
A05 - SCREWDRIVER PS32/EK7650/EA3500 MSP-783012-5.A2 783012-5	£1.20	£1.44

Attribute Name	Value
Brand	Makita
