Makita DLM431PT2 Cordless Lawn Mower Spare Parts

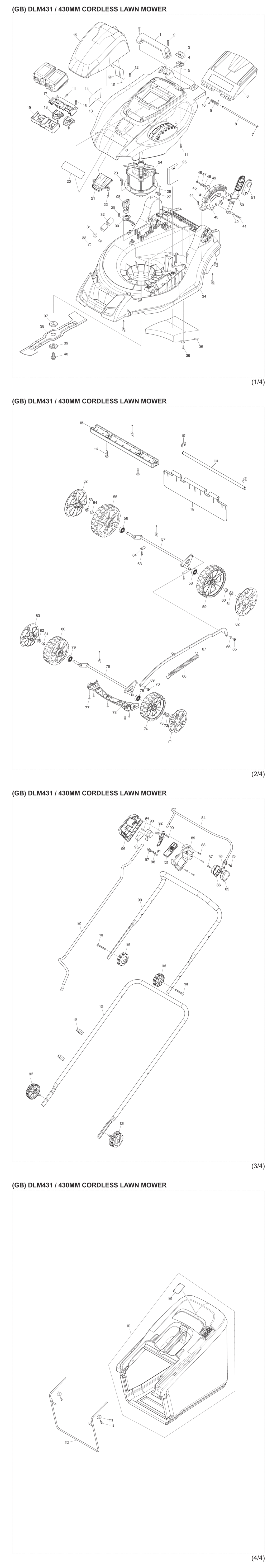

An exploded drawing and spare parts listing for the Makita DLM431PT2 Cordless Lawn Mower

	Ex VAT	Inc VAT
2 - TAPPING SCREW 5X25 PC5000/01C MSP-266459-3.A4 266459-3	£1.44	£1.73
5 - COMPRESSION SPRING 4 UC4020A MSP-233173-6.A10 233173-6	£1.44	£1.73
6 - *REAR FLAP LM430D/DLM431 MSP-141300-0.A2 141300-0	£12.01	£14.41
7 - EXT E-RING JIS JE-5 DLS714 MSP-961018-5.A74 961018-5	£1.64	£1.97
10 - EXT E-RING JIS JE-5 DLS714 MSP-961018-5.A81 961018-5	£1.64	£1.97
11 - TAPPING SCREW M4X18 EBH253/EB3 MSP-266326-2.A582 266326-2	£1.44	£1.73
12 - TAPPING SCREW M4X18 EBH253/EB3 MSP-266326-2.A591 266326-2	£1.44	£1.73
13 - COWLING M DML431 MSP-456347-4.A1 456347-4	£26.35	£31.62
14 - NAME PLATE DLM431 MSP-851P60-9.A0 851P60-9	£1.44	£1.73
15 - BATTERY COVER E DML431 MSP-143506-6.A0 143506-6	£28.94	£34.73
16 - TAPPING SCREW M4X18 EBH253/EB3 MSP-266326-2.A37 266326-2	£1.44	£1.73
17 - TERMINAL HOUSING SET DLM380/A MSP-187926-4.A4 187926-4	£12.79	£15.35
17 - RUBBER PIN 6 DUR/DHR/DTW/DG MSP-263005-3.A225 263005-3	£1.44	£1.73
18 - TERMINAL DUR182/DHR165/DKP180 MSP-644808-8.A17 644808-8	£4.28	£5.14
19 - TERMINAL HOUSING SET DLM380/A MSP-187926-4.A5 187926-4	£12.79	£15.35
19 - RUBBER PIN 6 DUR/DHR/DTW/DG MSP-263005-3.A224 263005-3	£1.44	£1.73
20 - LABEL/MAKITA LOGO LM430/DLM43 MSP-890383-4.A1 890383-4	£1.44	£1.73
22 - TAPPING SCREW M4X18 EBH253/EB3 MSP-266326-2.A36 266326-2	£1.44	£1.73
24 - DC MOTOR DML431 MSP-629177-8.A2 629177-8	£136.08	£163.30
25 - CONTROLLER DML431 MSP-620479-5.A0 620479-5	£98.66	£118.39
26 - PT SCREW 4X25 VC3211M/BSS500 MSP-265999-8.A104 265999-8	£1.44	£1.73
27 - STRAIN RELIEF VC3211M/SMA910 MSP-687149-9.A17 687149-9	£1.44	£1.73
28 - KEY UK360/LM430D/DLM431 MSP-643890-4.A1 643890-4	£3.67	£4.40
29 - TAPPING SCREW M4X18 EBH253/EB3 MSP-266326-2.A41 266326-2	£1.44	£1.73
30 - LEAD UNIT DML431 MSP-632F82-6.A1 632F82-6	£4.21	£5.05
31 - LINE FILTER VC3211M/TD0101F MSP-688131-1.A2 688131-1	£1.44	£1.73
32 - LINE FILTER LF1000/BCV01/LS MSP-688140-0.A4 688140-0	£4.83	£5.80
33 - LINE FILTER DFS441/451/HP331 MSP-688164-6.A7 688164-6	£1.44	£1.73
35 - UNDER COVER LM430D/DLM431 MSP-453239-8.A3 453239-8	£5.62	£6.74
36 - TAPPING SCREW M4X18 EBH253/EB3 MSP-266326-2.A43 266326-2	£1.44	£1.73
37 - INNER FLANGE 40 LM430D/DLM431 MSP-224444-2.A1 224444-2	£4.68	£5.62
38-1 - BLADE 430 SET LM430D/DLM431 MSP-197761-2.A3 197761-2	£26.35	£31.62
39 - OUTER FLANGE 40 LM430D/DLM431 MSP-224445-0.A3 224445-0	£5.46	£6.55
40 - HEX BOLT M10X25 LM430D/DLM431 MSP-266731-3.A1 266731-3	£1.44	£1.73
44 - TAPPING SCREW M4X18 EBH253/EB3 MSP-266326-2.A42 266326-2	£1.44	£1.73
45 - HEX FULL NUT M6 LF1000/DST111 MSP-931302-2.A49 931302-2	£1.44	£1.73
46 - TAPPING SCREW M4X18 EBH253/EB3 MSP-266326-2.A45 266326-2	£1.44	£1.73
48 - COMPRESSION SPRING 9 LS1030 MSP-231297-2.A2 231297-2	£1.44	£1.73
49 - FLAT WASHER 9 7104L/DLM431 MSP-253808-3.A2 253808-3	£1.44	£1.73
51 - CHANEG LEVER COVER LM430D MSP-453253-4.A2 453253-4	£2.65	£3.18
53 - *COLLARED HEX NUT M8 DCS230T MSP-252145-2.A9 252145-2	£1.44	£1.73
55 - REAR WHEEL LM430D/DLM431 MSP-453243-7.A6 453243-7	£15.26	£18.31
56 - BALL BEARING 6200ZZ SMA910/M9 MSP-210070-3.A12 210070-3	£4.07	£4.88
57 - REAR SHAFT LM430D/DLM431 MSP-165669-8.A1 165669-8	£23.62	£28.34
58 - BALL BEARING 6200ZZ SMA910/M9 MSP-210070-3.A11 210070-3	£4.07	£4.88
59 - REAR WHEEL LM430D/DLM431 MSP-453243-7.A7 453243-7	£15.26	£18.31
61 - *COLLARED HEX NUT M8 DCS230T MSP-252145-2.A10 252145-2	£1.44	£1.73
63 - TAPPING SCREW M4X18 EBH253/EB3 MSP-266326-2.A44 266326-2	£1.44	£1.73
65 - HEX LOCK NUT M5-8 BO3710/3711 MSP-252103-8.A60 252103-8	£1.58	£1.89
66 - *FLAT WASHER 5 DIN125-B RP0900 MSP-941101-4.A59 941101-4	£1.44	£1.73
67 - CONNECTING ROD LM430D/DLM431 MSP-346543-1.A2 346543-1	£18.72	£22.46
69 - *FLAT WASHER 5 DIN125-B RP0900 MSP-941101-4.A58 941101-4	£1.44	£1.73
70 - HEX LOCK NUT M5-8 BO3710/3711 MSP-252103-8.A59 252103-8	£1.58	£1.89
71 - FRONT WHEEL CAP LM430D/DLM431 MSP-453240-3.A2 453240-3	£11.70	£14.04
72 - *COLLARED HEX NUT M8 DCS230T MSP-252145-2.A8 252145-2	£1.44	£1.73
75 - BALL BEARING 6200ZZ SMA910/M9 MSP-210070-3.A13 210070-3	£4.07	£4.88
76 - FRONT SHAFT LM430D/DLM431 MSP-165668-0.A3 165668-0	£22.90	£27.48
77 - TAPPING SCREW M4X18 EBH253/EB3 MSP-266326-2.A40 266326-2	£1.44	£1.73
78 - FRONT COVER DLM430/DLM431 MSP-456353-9.A1 456353-9	£5.92	£7.11
79 - BALL BEARING 6200ZZ SMA910/M9 MSP-210070-3.A14 210070-3	£4.07	£4.88
82 - *COLLARED HEX NUT M8 DCS230T MSP-252145-2.A11 252145-2	£1.44	£1.73
83 - FRONT WHEEL CAP LM430D/DLM431 MSP-453240-3.A3 453240-3	£11.70	£14.04
86 - SWITCH LEVER CASE COVER DML43 MSP-456352-1.A1 456352-1	£2.02	£2.43
87 - TAPPING SCREW M4X18 EBH253/EB3 MSP-266326-2.A581 266326-2	£1.44	£1.73
88 - TAPPING SCREW M4X18 EBH253/EB3 MSP-266326-2.A592 266326-2	£1.44	£1.73
90 - PAN HD SCREW M4X20 9032/LS081 MSP-911138-5.A6 911138-5	£1.44	£1.73
91 - LEVER DLM380/AM3738/BLM381/LM MSP-455075-8.A4 455075-8	£1.44	£1.73
93 - SWITCH BUTTON DLM380/AM3738/B MSP-455074-0.A2 455074-0	£1.44	£1.73
94 - COMPRESSION SPRING 6 AG125 MSP-233068-3.A0 233068-3	£1.44	£1.73
95 - SWITCH TG72BD-6 DHS710D/DUC252 MSP-650730-9.A8 650730-9	£19.30	£23.16
97 - STRAIN RELIEF VC3211M/SMA910 MSP-687149-9.A16 687149-9	£1.44	£1.73
98 - PT SCREW 4X25 VC3211M/BSS500 MSP-265999-8.A103 265999-8	£1.44	£1.73
99 - UPPER PIPE DLM431/430 MSP-143510-5.A2 143510-5	£18.00	£21.60
100 - POWER SUPPLY CORD DML431 MSP-660330-7.A2 660330-7	£31.82	£38.19
101 - CUP H. SQ NECK BOLT M6X50 DLM MSP-265A14-4.A2 265A14-4	£1.44	£1.73
102 - THUMB NUT M6 LM430D/DLM431 MSP-264070-5.A4 264070-5	£2.50	£3.00
103 - THUMB NUT M6 LM430D/DLM431 MSP-264070-5.A5 264070-5	£2.50	£3.00
104 - CUP H. SQ NECK BOLT M6X50 DLM MSP-265A14-4.A3 265A14-4	£1.44	£1.73
105 - LOWER PIPE DLM431/DLM430 MSP-326635-2.A2 326635-2	£16.70	£20.04
107 - THUM SCREW M8X35 LM430/DLM431 MSP-266729-0.A2 266729-0	£3.74	£4.49
108 - THUM SCREW M8X35 LM430/DLM431 MSP-266729-0.A7 266729-0	£3.74	£4.49
110-1 - REAR BAG ASSY DLM431/LM430D MSP-127276-5.A2 127276-5	£70.99	£85.19
111 - TAPPING SCREW M4X18 EBH253/EB3 MSP-266326-2.A38 266326-2	£1.44	£1.73
112 - REAR BAG ROD LM430D/DLM431 MSP-327179-5.A3 327179-5	£16.32	£19.58
113 - FLAT WASHER 5 LM430D/DLM431 MSP-267438-4.A3 267438-4	£1.44	£1.73
114 - TAPPING SCREW M4X18 EBH253/EB3 MSP-266326-2.A39 266326-2	£1.44	£1.73
121 - STOP RING CS-3 4010Y/DLM431 MSP-259015-6.A2 259015-6	£1.44	£1.73
122 - PAN HD SCREW M4X20 9032/LS081 MSP-911138-5.A5 911138-5	£1.44	£1.73
123 - ARM DLM380/AM3738/BLM381/LM38 MSP-455078-2.A3 455078-2	£1.44	£1.73
A01 - SOCKET WRENCH 17 14/12N/4110C MSP-782210-8.A5 782210-8	£4.07	£4.88
A02 - DC18RD TWIN-PORT FAST CHARGER MSP-*DC18RD.A1 *DC18RD	-
A03 - BATTERY BL1850B MSP-197280-8.A17 197280-8	£196.99	£236.39
