Makita DPT350RFE Cordless Pin Nailer Spare Parts

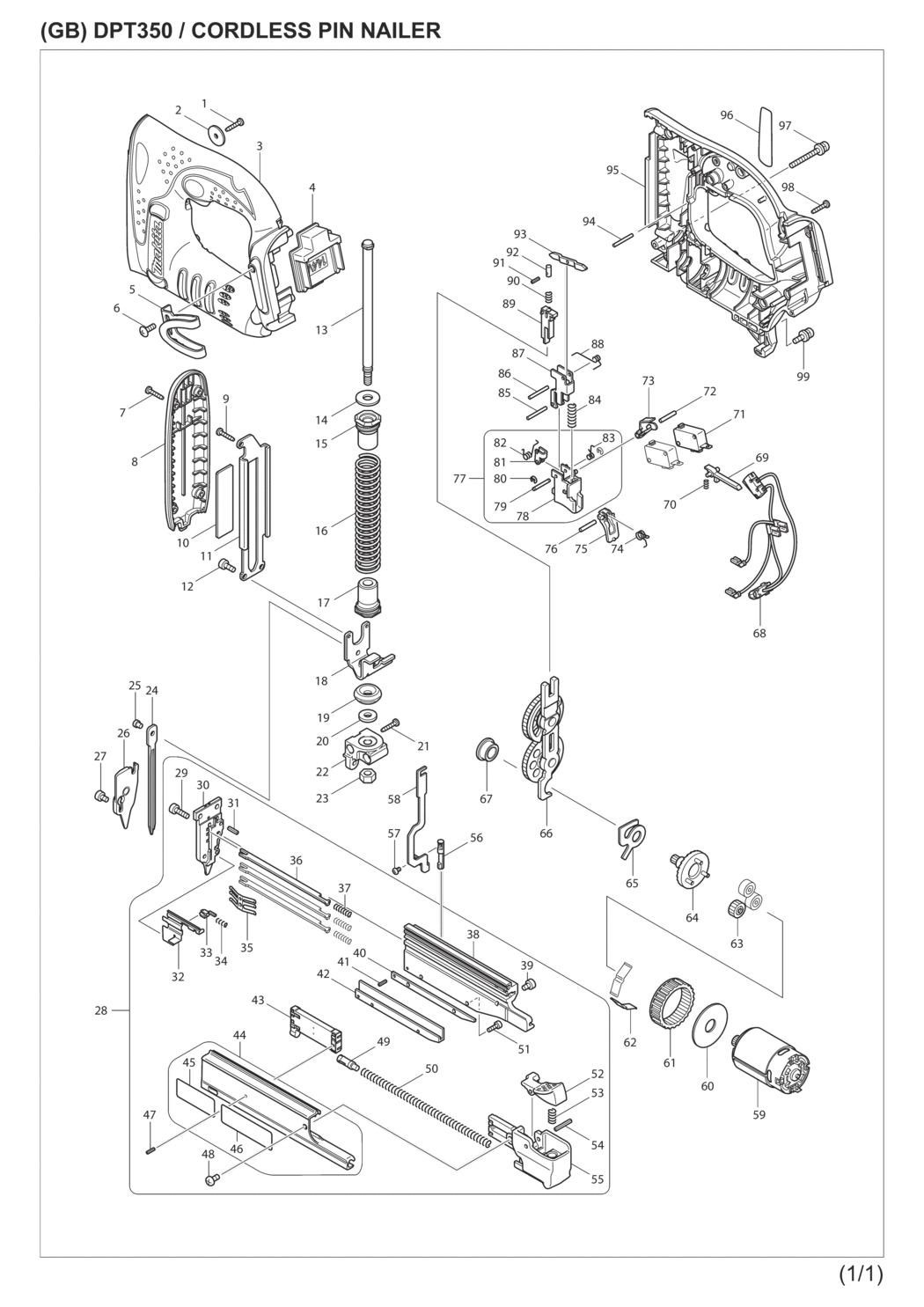

An exploded drawing and spare parts listing for the Makita DPT350RFE Cordless Pin Nailer

	Ex VAT	Inc VAT
1 - TAPPING SCREW BIND 3 X 16 L14 MSP-266130-9.A53 266130-9	£1.44	£1.73
2 - BLUE WASHER 4 DUR181/141/UR14 MSP-267071-2.A8 267071-2	£1.44	£1.73
4 - TERMINAL BFS440/BDF343/DFT022 MSP-643828-9.A20 643828-9	£4.83	£5.80
5 - HOOK BTD136/147/BFS441/451/ MSP-346317-0.A76 346317-0	£1.93	£2.32
6 - SPECIAL PAN HD SCREW M4X12 MSP-251314-2.A150 251314-2	£1.44	£1.73
7 - TAPPING SCREW BIND 3 X 16 L14 MSP-266130-9.A52 266130-9	£1.44	£1.73
8 - FRONT COVER BPT350 MSP-419450-2.A0 419450-2	£7.02	£8.42
9 - TAPPING SCREW BIND 3 X 16 L14 MSP-266130-9.A51 266130-9	£1.44	£1.73
10 - UPPER PLATE BPT350 MSP-345704-0.A2 345704-0	£1.44	£1.73
11 - RAIL BPT350 MSP-345703-2.A0 345703-2	£25.20	£30.24
12 - CAP HD SCREW M4X10 BHX2501/43 MSP-922112-8.A6 922112-8	£1.44	£1.73
13 - GUIDE BOLT BPT350 MSP-324683-5.A1 324683-5	£15.42	£18.51
14 - HARD WASHER 8 DST111/DST112 MSP-253762-1.A5 253762-1	£1.44	£1.73
15 - SPRING HOLDER BPT350 MSP-421962-3.A0 421962-3	£6.55	£7.86
16 - COMPRESSION SPRING 17 BPT350 MSP-233472-6.A0 233472-6	£5.78	£6.93
17 - SPRING HOLDER BPT350 MSP-421962-3.A1 421962-3	£6.55	£7.86
18 - HAMMER BPT350 MSP-345701-6.A0 345701-6	£14.82	£17.78
19 - CUSHION BPT350 MSP-421956-8.A1 421956-8	£1.44	£1.73
20 - BLUE WASHER 6 CS DST112/DLS71 MSP-253804-1.A82 253804-1	£1.44	£1.73
21 - TAPPING SCREW BIND 3 X 16 L14 MSP-266130-9.A54 266130-9	£1.44	£1.73
22 - HOLDER BPT350 MSP-318025-3.A0 318025-3	£9.98	£11.98
23 - HEX FULL NUT M6 LF1000/DST111 MSP-931302-2.A46 931302-2	£1.44	£1.73
24 - DRIVER BPT350 MSP-345702-4.A0 345702-4	£33.32	£39.99
25 - PIN 4 BST220/BPT350 MSP-256882-0.A1 256882-0	£2.81	£3.37
26 - DRIVER GUIDE COVER BPT350 MSP-168430-2 168430-2	£30.96	£37.15
27 - HEX SOCKET HD BOLT M4X6 SC161 MSP-922102-1.A1 922102-1	£1.44	£1.73
28 - MAGAZINE ASSY BPT350/BPT351 MSP-135372-5 135372-5	£336.00	£403.20
29 - HEX SOCKET HD BOLT M4X14 BPT3 MSP-922122-5.A1 922122-5	£1.44	£1.73
30 - DRIVER GUIDE BPT350 MSP-310173-4 310173-4	£59.92	£71.91
31 - *TENSION PIN 3-10 DIN 1481 MSP-951054-9.A1 951054-9	£1.44	£1.73
32 - PUSHER BPT350 MSP-345699-7 345699-7	£7.49	£8.99
33 - STOPPER DPT343/PT354 MSP-310176-8.A0 310176-8	£2.81	£3.37
34 - COMPRESSION SPRING 3 MSP-233018-8.A0 233018-8	£1.44	£1.73
35 - LEAF SPRING BPT350 MSP-232229-2 232229-2	£4.68	£5.62
36 - NAIL STOPPER BPT350 MSP-346239-4.A1 346239-4	£3.28	£3.93
37 - COMPRESSION SPRING 4 BPT350 MSP-233476-8 233476-8	£1.44	£1.73
38 - MAGAZINE BPT350 MSP-318024-5 318024-5	£64.94	£77.93
39 - HEX SOCKET HD BOLT M4X6 SC161 MSP-922102-1.A0 922102-1	£1.44	£1.73
40 - SPACER BPT350 MSP-345696-3 345696-3	£2.65	£3.18
41 - SPRING PIN 2-8 BPT350/AN635H MSP-951001-0.A5 951001-0	£1.44	£1.73
42 - LOWER RAIL BPT350 MSP-318023-7 318023-7	£21.89	£26.27
43 - NAIL GUIDE HOLDER BPT350 MSP-452877-3 452877-3	£7.49	£8.99
45 - LABEL/SAFETY INSTRUCTION MSP-813728-9.A1 813728-9	£1.44	£1.73
48 - PAN HEAD SCREW M4X10 DLS714 MSP-911113-1.A76 911113-1	£1.44	£1.73
49 - SHOULDER PIN 5-7 BPT350 MSP-419443-9 419443-9	£2.65	£3.18
50 - COMPRESSION SPRING 5 BPT350 MSP-233470-0 233470-0	£1.44	£1.73
51 - CAP HD SCREW M3X10/JV101D MSP-266177-3.A8 266177-3	£1.44	£1.73
52 - LEVER BPT350 MSP-419446-3 419446-3	£4.06	£4.87
53 - COMPRESSION SPRING 6 BHS630/P MSP-233117-6.A40 233117-6	£1.44	£1.73
54 - TENSION PIN 3-18 DIN 1481 MSP-951066-2.A2 951066-2	£1.44	£1.73
55 - SLIDE DOOR CAP BPT350 MSP-419444-7 419444-7	£6.08	£7.30
56 - PIN 5 BPT350 MSP-268158-3.A1 268158-3	£9.20	£11.04
57 - PAN HD SCREW M3X4 9032 MSP-265040-7.A2 265040-7	£1.44	£1.73
58 - LOCK ARM BPT350 MSP-345705-8 345705-8	£4.52	£5.43
59 - DC MOTOR BPT350 MSP-629129-9 629129-9	£15.98	£19.18
60 - FLAT WASHER 12 DST111/DST112 MSP-267053-4.A3 267053-4	£1.44	£1.73
61 - INTERNAL GEAR 69 DST111/DST112 MSP-227166-3.A2 227166-3	£3.28	£3.93
62 - LEAF SPRING BPT350 MSP-232230-7.A0 232230-7	£4.37	£5.24
63 - SPUR GEAR DST111/DST112/BPT35 MSP-221961-3.A6 221961-3	£3.74	£4.49
64 - SPUR GEAR 7 BPT350 MSP-154973-0.A0 154973-0	£6.71	£8.05
65 - ANTI BACK PLATE DST111/DST112 MSP-345773-1.A0 345773-1	£3.28	£3.93
66 - SPUR GEAR 55 BPT350 MSP-154972-2 154972-2	£43.60	£52.32
67 - PLANE BEARING 10 BPT350 MSP-214060-8.A0 214060-8	£1.44	£1.73
68 - LED CIRCUIT BPT350 MSP-631704-9 631704-9	£21.89	£26.27
69 - LIGHT SWITCH ARM BPT350 MSP-419452-8 419452-8	£2.81	£3.37
70 - COMPRESSION SPRING 4 6706D MSP-233032-4 233032-4	£1.44	£1.73
71 - SWITCH V-15-3A6 DUM166/168/DU MSP-651891-8.A17 651891-8	£3.59	£4.31
72 - PIN 3 BPT350 MSP-256299-7.A1 256299-7	£1.44	£1.73
73 - LINK PLATE BPT350 MSP-419453-6.A0 419453-6	£2.65	£3.18
74 - TORSION SPRING 4 BPT350 MSP-231693-4.A0 231693-4	£1.44	£1.73
75 - SAFETY TRIGGER BPT350 MSP-419454-4.A1 419454-4	£3.74	£4.49
76 - PIN 3 BPT350 MSP-256299-7.A0 256299-7	£1.44	£1.73
77 - TRIGGER SET BPT350 MSP-188168-3.A1 188168-3	£15.13	£18.16
78 - TRIGGER BPT350 MSP-419451-0.A1 419451-0	£3.59	£4.31
79 - PIN 2.5 BPT350 MSP-256771-9.A0 256771-9	£2.34	£2.81
80 - STOP RING E-2.00 BPT350 MSP-257926-9.A1 257926-9	£1.44	£1.73
81 - SWING ARM BPT350 MSP-345707-4.A0 345707-4	£3.74	£4.49
82 - TORSION SPRING 3 BPT350 MSP-231694-2.A1 231694-2	£1.44	£1.73
83 - TORSION SPRING 3 BPT350 MSP-231695-0.A0 231695-0	£1.44	£1.73
84 - COMPRESSION SPRING 4 MT240 MSP-233360-7.A18 233360-7	£1.44	£1.73
85 - PIN 2.5 HR3000C/BTW200/6990D MSP-256176-3.A6 256176-3	£1.44	£1.73
86 - PIN 2.5 HR3000C/BTW200/6990D MSP-256176-3.A9 256176-3	£1.44	£1.73
87 - GUIDE PLATE BPT350 MSP-345706-6.A0 345706-6	£4.52	£5.43
88 - TORSION SPRING 4 BPT350 MSP-231692-6.A0 231692-6	£1.44	£1.73
89 - CAM BLOCK BPT350 MSP-168489-9.A0 168489-9	£2.34	£2.81
90 - COMPRESSION SPRING 2 MSP-233188-3.A1 233188-3	£1.44	£1.73
91 - SPRING PIN 2-8 BPT350/AN635H MSP-951001-0.A6 951001-0	£1.44	£1.73
92 - PUSH PIN BPT350 MSP-324923-1.A0 324923-1	£3.59	£4.31
93 - SWITCH ARM BPT350 MSP-345708-2.A1 345708-2	£4.52	£5.43
94 - PIN 2.5 HR3000C/BTW200/6990D MSP-256176-3.A5 256176-3	£1.44	£1.73
96 - NAME PLATE DPT350 MSP-815X79-0 815X79-0	£1.44	£1.73
97 - PAN HD SCREW M4X35 W/CP WASHE MSP-911163-6.A0 911163-6	£1.44	£1.73
98 - TAPPING SCREW BIND 3 X 16 L14 MSP-266130-9.A47 266130-9	£1.44	£1.73
99 - PAN HEAD SCREW M4X14 T221D MSP-911123-8.A0 911123-8	£1.44	£1.73
100 - COMPRESSION SPRING 3 DHR164 MSP-233459-8.A16 233459-8	£1.44	£1.73
101 - *TENSION PIN 3-10 DIN 1481 MSP-951054-9.A2 951054-9	£1.44	£1.73
A01 - SAFETY GOGGLE HR2450/AN MODELS MSP-195246-2.A18 195246-2	£2.55	£3.06
A02 - NOSE ADAPTER BPT350 MSP-419525-7 419525-7	£1.20	£1.44
A03 - HEX WRENCH 3 JS1602/43BA/BV/ MSP-783201-2.A37 783201-2	£1.20	£1.44
A04 - LATCH FOR 824650-5 PL CASE MSP-417724-5.A126 417724-5	£1.20	£1.44
A04 - PLASTIC CASE LID BST221/BTP13 MSP-419215-2.A37 419215-2	£7.18	£8.61
A04 - PLATE BST221/BTD140SFE/BHR162 MSP-413098-2.A25 413098-2	£1.44	£1.73
A04 - HANDLE HP1641/BTD140/DTW251 MSP-419216-0.A77 419216-0	£1.44	£1.73
A04 - PLASTIC CASE BHR162/BST221 MSP-141074-3.A1 141074-3	£69.52	£83.43
A04 - SHAFT BST221/BHP451/BDF451 MSP-324667-3.A1 324667-3	£2.18	£2.62
A06 - DC18RC COMPACT CHARGER MSP-*DC18RC.A24 *DC18RC	-
A08 - BATTERY COVER BDG800/DTW251 MSP-450128-8.A99 450128-8	£1.20	£1.44
