Makita 4131 Metal Cutter Spare Parts

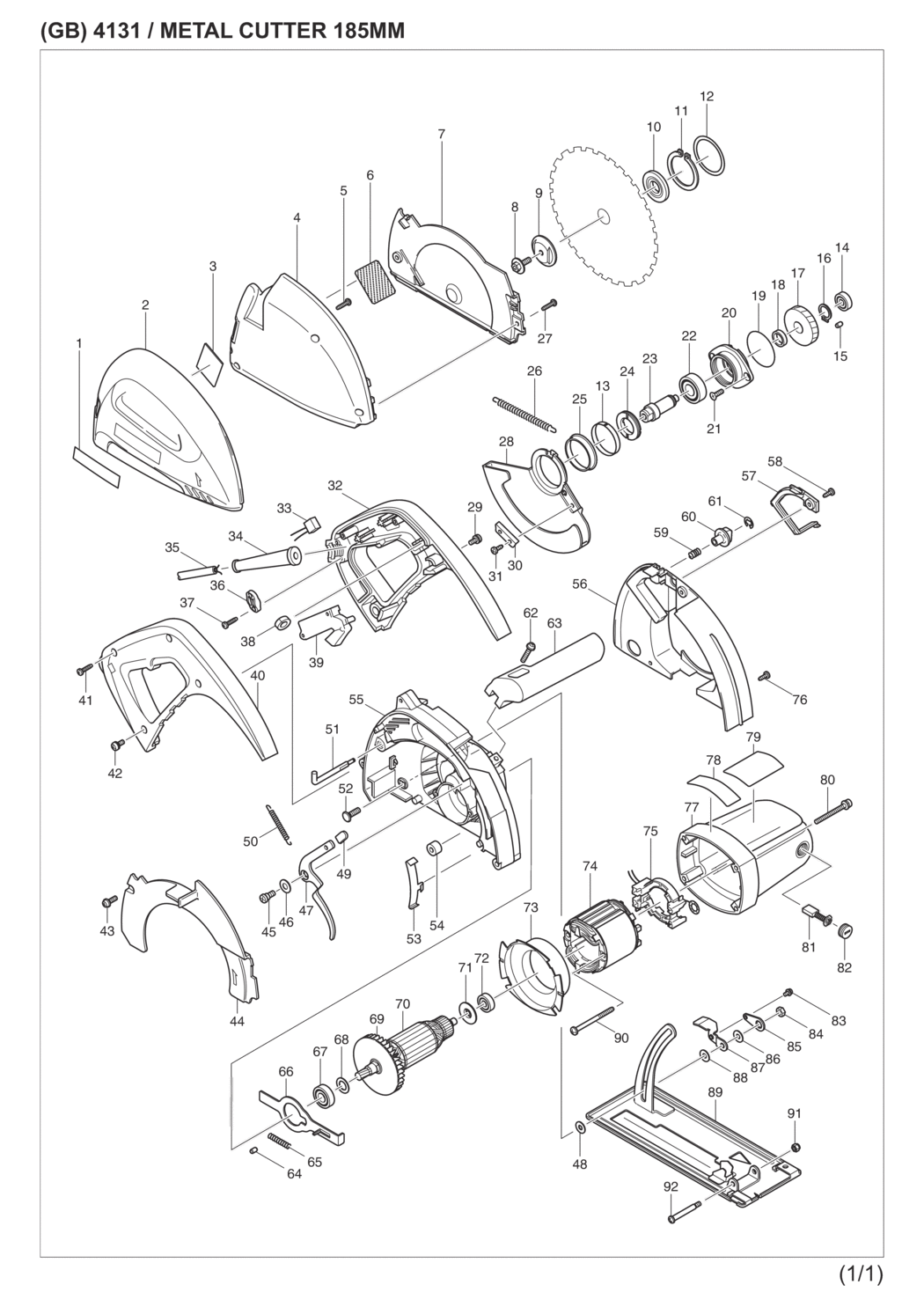

An exploded drawing and spare parts listing for the Makita 4131 Metal Cutter

	Ex VAT	Inc VAT
1 - LABEL/MAKITA LS10305603R241 MSP-819064-1.A36 819064-1	£1.44	£1.73
2 - LABEL/CAUTION 4131 MSP-810055-5 810055-5	£1.44	£1.73
2 - DUST CASE COVER 4131 MSP-183837-1 183837-1	£12.48	£14.98
3 - HEAT RESISTING GLASS 4131 MSP-431005-3 431005-3	£15.13	£18.16
4 - DUST CASE 4131 MSP-317776-5 317776-5	£20.30	£24.36
5 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A434 265995-6	£1.44	£1.73
6 - PUNCHING METAL COVER 4131 MSP-343760-4 343760-4	£2.81	£3.37
7 - DUST PLATE 4131 MSP-317777-3 317777-3	£15.13	£18.16
8-1 - HEX SOCKET HD BOLT M6X18 BHS6 MSP-266458-5.A4 266458-5	£1.44	£1.73
9 - OUTER FLANGE 40 4131 MSP-224366-6 224366-6	£7.18	£8.61
10 - INNER FLANGE 40 MT582/5704R MSP-224370-5.A0 224370-5	£5.46	£6.55
11 - RETAINING RINGS-42 LF1000 MSP-961201-4.A0 961201-4	£1.44	£1.73
12 - WASHER 42 4131 MSP-267784-5 267784-5	£1.44	£1.73
13 - THICKNESS RING 4131 MSP-343759-9 343759-9	£2.50	£3.00
14 - BALL BEARING 608LLB(/608VV) 6 MSP-211031-6.A12 211031-6	£3.90	£4.68
15 - RUBBER PIN 4 GA7050/9050/5021 MSP-263002-9.A381 263002-9	£1.44	£1.73
16 - EXT DIN 471 CIRCLIP-15 9217SP MSP-961055-9.A33 961055-9	£1.44	£1.73
17 - HELICAL GEAR 48 4131 MSP-226591-5 226591-5	£12.95	£15.54
18 - RING 15 BJR240/6510PB MSP-257053-2.A0 257053-2	£1.44	£1.73
19 - O RING 46 4131/LH1040/4157KB MSP-213621-1.A3 213621-1	£1.44	£1.73
20 - BEARING BOX 4131 MSP-316579-4 316579-4	£9.98	£11.98
21 - COUNTERSUNK HD SCREW M5X12 MSP-251372-8.A3 251372-8	£1.44	£1.73
22 - BALL BEARING 6202DDW BO3710/1 MSP-211228-7.A27 211228-7	£10.14	£12.17
23 - SPINDLE 4131 MSP-324475-2 324475-2	£14.51	£17.41
24 - BEARING RETAINER 6300-4/4131 MSP-285807-7.A3 285807-7	£2.18	£2.62
25 - *SPACER 4131/5008MB MSP-345422-0.A0 345422-0	£1.44	£1.73
25-1 - SPACER 4131/5008MB MSP-346880-3.A3 346880-3	£1.44	£1.73
26-1 - TORSION SPRING 4 4131 MSP-231891-0 231891-0	£1.44	£1.73
27 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A435 265995-6	£1.44	£1.73
28 - SAFETY COVER 4131 MSP-317775-7 317775-7	£17.86	£21.43
29 - PAN HEAD SCREW M5X12 ER2550 MSP-911213-7.A32 911213-7	£1.44	£1.73
30 - SUB PLATE 5017RKB/4131 MSP-344944-7.A1 344944-7	£3.28	£3.93
31 - CT SCREW M4X12 UC3530A/KP0810 MSP-266026-4.A3 266026-4	£1.44	£1.73
32 - HANDLE SET 4131 MSP-183826-6.A1 183826-6	£20.30	£24.36
33 - NOISE SUPPRESSOR 4100KB HS7611 MSP-645141-1.A128 645141-1	£3.21	£3.85
34 - CORD GUARD UH45570/5570/5580 MSP-682505-8.A81 682505-8	£1.44	£1.73
35 - POWER SUPPLY CORD 1.5-2-2.5 MSP-663839-8.A2 663839-8	£12.01	£14.41
36 - STRAIN RELIEF HS7100/BO5041 MSP-687052-4.A46 687052-4	£1.44	£1.73
37 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A436 265995-6	£1.44	£1.73
38 - SPONGE RING 4131 MSP-421492-4 421492-4	£1.44	£1.73
39 - SWTICH TG71CL-2 KP312/4131 MSP-651057-0.A1 651057-0	£25.20	£30.24
40 - HANDLE SET 4131 MSP-183826-6.A0 183826-6	£20.30	£24.36
41 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A437 265995-6	£1.44	£1.73
42 - PAN HEAD SCREW M5X12 ER2550 MSP-911213-7.A33 911213-7	£1.44	£1.73
43 - PAN HD SCREW 5X16 W/CP/DLS714 MSP-911223-4.A0 911223-4	£1.44	£1.73
44 - BLADE COVER 4131 MSP-317778-1 317778-1	£14.20	£17.04
45 - PAN HD SHOULDER SCREW M6 2400 MSP-251267-5.A6 251267-5	£1.44	£1.73
46 - FLAT WASHER 8 DIN125-B HS7611 MSP-941201-0.A9 941201-0	£1.44	£1.73
47 - OPEN LVER 4131 MSP-345421-2 345421-2	£2.50	£3.00
48 - LARGE HARD WASHER 6 MSP-253783-3.A6 253783-3	£1.44	£1.73
49-1 - RUBBER CAP 4131 MSP-421903-9 421903-9	£1.44	£1.73
49 - RUBBER CAP 5017RKB MSP-421676-4.A1 421676-4	£1.44	£1.73
50 - TENSION SPRING 4 5017RKB/4131 MSP-231823-7.A1 231823-7	£1.44	£1.73
51 - HOOK 4131 MSP-324476-0 324476-0	£9.20	£11.04
52 - CAP SQUARE NECK BOLT M6X20 MSP-266031-1 266031-1	£2.34	£2.81
53 - PROTECTOR 4131 MSP-343758-1 343758-1	£2.18	£2.62
54 - RUBBER SLEEVE 6 M241 BHS630/ MSP-262511-5.A14 262511-5	£1.44	£1.73
55 - GEAR HOUSIN 4131 MSP-153924-0 153924-0	£51.61	£61.93
56 - GEAR HOUSING COVER 4131 MSP-418612-9 418612-9	£9.20	£11.04
57 - LEAD COVER 4131 MSP-418613-7 418613-7	£1.44	£1.73
58 - CT SCREW M4X12 UC3530A/KP0810 MSP-266026-4.A2 266026-4	£1.44	£1.73
59 - COMPRESSION SPRING 7 MSP-231402-1.A2 231402-1	£1.44	£1.73
60 - THUMB PIPE 23 4131 MSP-271421-5 271421-5	£2.34	£2.81
61 - EXT E-RING JIS JE-3 BPJ140/81 MSP-961017-7.A36 961017-7	£1.44	£1.73
62 - PAN HD SCREW M5X25 W/CP WASHE MSP-911243-8.A15 911243-8	£1.44	£1.73
63 - GRIP 4131 MSP-415469-9 415469-9	£8.89	£10.67
64 - RUBBER PIN 4 GA7050/9050/5021 MSP-263002-9.A380 263002-9	£1.44	£1.73
65 - COMPRESSION SPRING 5 LS800DWB MSP-233092-6.A9 233092-6	£1.44	£1.73
66 - SHAFT LOCK 4131 MSP-343832-5 343832-5	£3.74	£4.49
67 - BALL BEARING 6001DDW HS7100 MSP-211131-2.A8 211131-2	£7.80	£9.36
68 - HARD WASHER 12 2414/BGA450 MSP-253744-3.A102 253744-3	£1.44	£1.73
69 - FAN 76 HR4000C/5017RKB/4131 MSP-241876-8.A0 241876-8	£3.90	£4.68
70 - ARMATURE ASSY 110V 4131 MSP-518645-5 518645-5	£68.54	£82.25
71 - INSULATION WASHER 4131 MSP-681634-4.A2 681634-4	£1.44	£1.73
72 - BALL BEARING 608LLB(/608VV) 6 MSP-211031-6.A11 211031-6	£3.90	£4.68
73 - BAFFLE PLATE 4131 MSP-415467-3 415467-3	£1.44	£1.73
74 - FIELD 110V MSP-634511-9 634511-9	£15.58	£18.70
75 - SUPPORT 4131 MSP-638358-3 638358-3	£6.08	£7.30
76 - CT SCREW M4X12 UC3530A/KP0810 MSP-266026-4.A1 266026-4	£1.44	£1.73
77 - BRUSH HOLDER HM1100C/HR3000C MSP-643754-2.A8 643754-2	£4.99	£5.99
77 - MOTOR HOUSING CO 4131 MSP-159685-0 159685-0	£29.38	£35.25
78 - LABEL/INDICATION 4131 MSP-816816-1 816816-1	£1.44	£1.73
79 - NAME PLATE 4131 MSP-860463-0 860463-0	£1.44	£1.73
80 - PAN HD SCREW M5X40 W/CP WASHE MSP-911263-2.A32 911263-2	£1.44	£1.73
81 - CARBON BRUSH CB-303 MT582 MSP-191963-2.A39 191963-2	-
82 - BRUSH HOLDER CAP 4100KB HS7611 MSP-643750-0.A31 643750-0	£1.44	£1.73
82-1 - HOLDER CAP 7-11 2107F/4131 MSP-643515-0.A0 643515-0	£1.44	£1.73
83 - PAN HEAD SCREW M4X8 BDF453 MSP-911108-4.A28 911108-4	£1.44	£1.73
84 - HEX NUT 4131 MSP-252135-5 252135-5	£3.28	£3.93
85 - LOCK PLATE 4131/SR1800 MSP-341718-7.A0 341718-7	£1.44	£1.73
86 - BLUE WASHER 6 CS DST112/DLS71 MSP-253804-1.A80 253804-1	£1.44	£1.73
87 - LEVER PLATE 4131 MSP-342907-7 342907-7	£1.44	£1.73
88 - BLUE WASHER 6 CS DST112/DLS71 MSP-253804-1.A81 253804-1	£1.44	£1.73
89 - BASE 4131 MSP-165387-8 165387-8	£42.48	£50.98
90 - PT SCREW 5X65 5703R MSP-266029-8.A21 266029-8	£1.44	£1.73
91 - HEX LOCK NUT M5-8 BO3710/3711 MSP-252103-8.A73 252103-8	£1.58	£1.89
92 - +PAN HD SCREW M5 5704R MSP-265075-8.A2 265075-8	£2.34	£2.81
A01 - SAFETY GOGGLE BCS550.DCS551 MSP-192219-6.A1 192219-6	£2.55	£3.06
A02 - WRENCH HOLDER 5.6 TM3000C MSP-410047-0.A4 410047-0	£1.44	£1.73
A03 - HEX WRENCH 5 BHS630/PC5000/01C MSP-783203-8.A62 783203-8	£1.20	£1.44
E02 - *NON INSULATED TERMINAL GD0801 MSP-654091-9.A312 654091-9	£1.44	£1.73
