Makita MS4300.4U String Trimmer Spare Parts

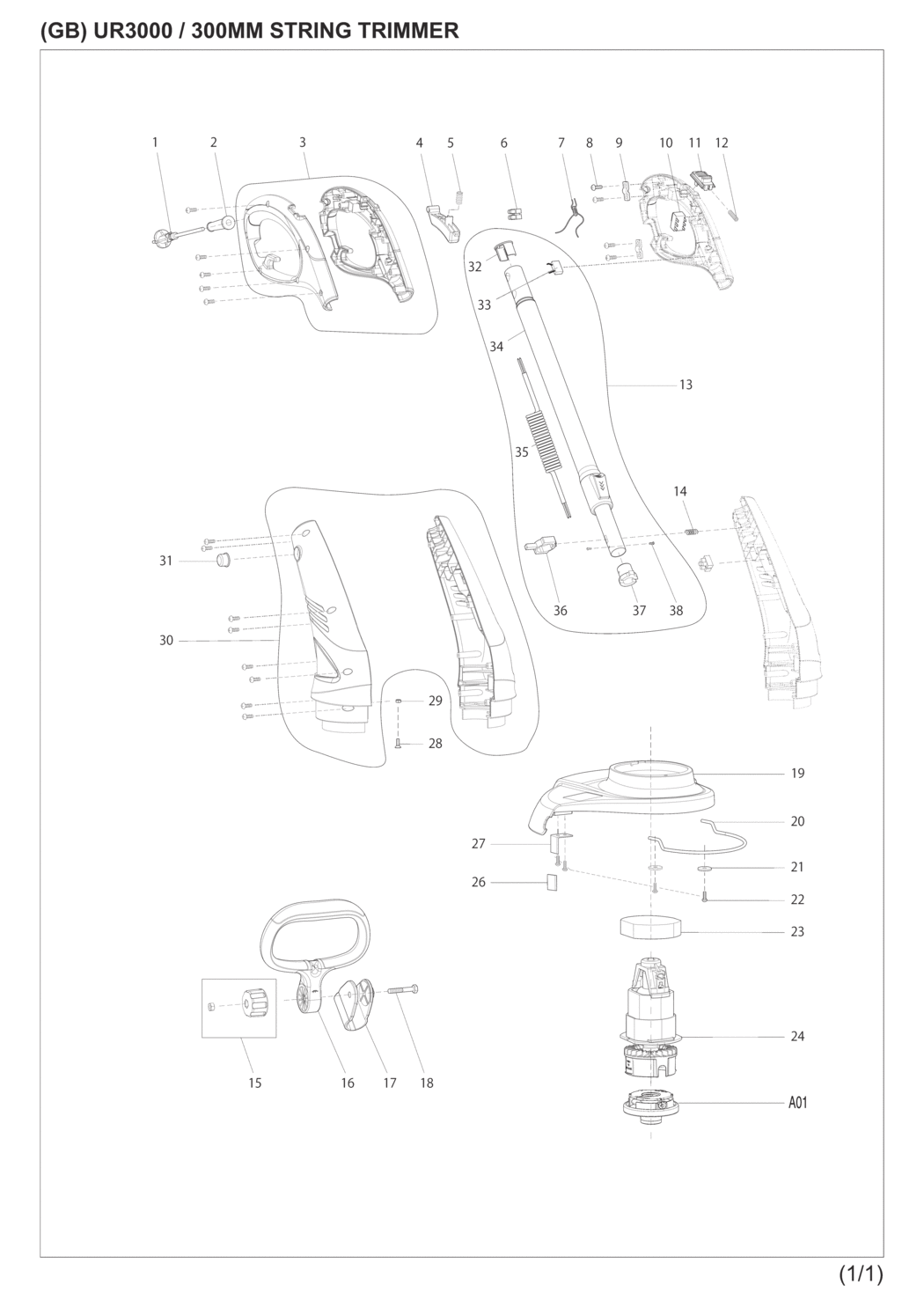

An exploded drawing and spare parts listing for the Makita MS4300.4U String Trimmer

	Ex VAT	Inc VAT
8 - SCREW ST4X16 UR3000 MSP-DA00000012.A0 DA00000012	£1.44	£1.73
14 - SPRING UR3000 MSP-DA00000018.A4 DA00000018	£1.44	£1.73
26 - BLADE COVER UR3000 MSP-DA00000030.A0 DA00000030	£1.44	£1.73
30 - MOTOR HOUSING SET UR3000 MSP-DA00000049.A4 DA00000049	£21.89	£26.27
31 - LOCK BUTTON UR3000 MSP-DA00000035.A4 DA00000035	£1.44	£1.73
33 - CAPACITANCE UR3000 MSP-DA00000054.A0 DA00000054	£1.44	£1.73
35 - SPRING CABLE UR3000 MSP-DA00000056.A4 DA00000056	£7.96	£9.55
38 - SCREW ST3X6 UR3000 MSP-DA00000059.A0 DA00000059	£1.44	£1.73
A03 - SHOULDER BELT UR3000 MSP-DA00000037.A0 DA00000037	£2.86	£3.43

Attribute Name	Value
Brand	Makita
