Makita LM430DWB Cordless Lawn Mower Spare Parts

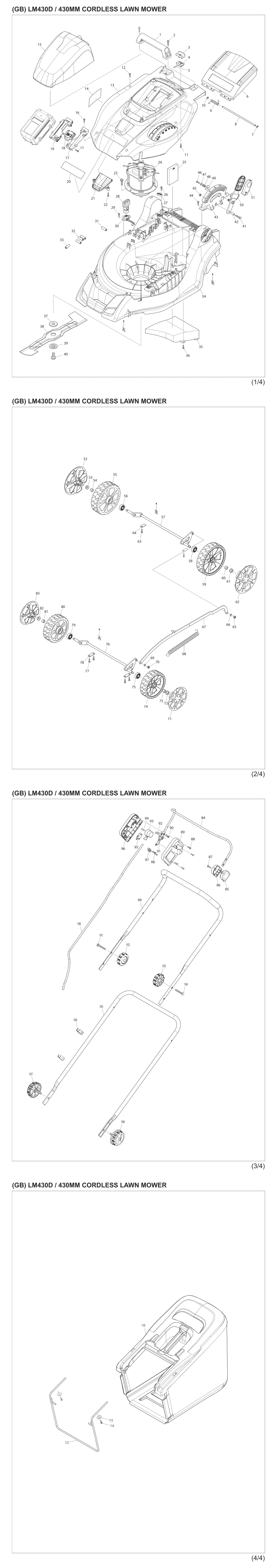

An exploded drawing and spare parts listing for the Makita LM430DWB Cordless Lawn Mower

	Ex VAT	Inc VAT
2 - TAPPING SCREW 5X25 PC5000/01C MSP-266459-3.A6 266459-3	£1.44	£1.73
5 - COMPRESSION SPRING 4 UC4020A MSP-233173-6.A13 233173-6	£1.44	£1.73
6 - *REAR FLAP LM430D/DLM431 MSP-141300-0.A1 141300-0	£12.01	£14.41
7 - EXT E-RING JIS JE-5 DLS714 MSP-961018-5.A76 961018-5	£1.64	£1.97
10 - EXT E-RING JIS JE-5 DLS714 MSP-961018-5.A79 961018-5	£1.64	£1.97
11 - TAPPING SCREW M4X18 EBH253/EB3 MSP-266326-2.A572 266326-2	£1.44	£1.73
12 - TAPPING SCREW M4X18 EBH253/EB3 MSP-266326-2.A601 266326-2	£1.44	£1.73
15 - *BATTERY COVR LM430D MSP-141305-0.A0 141305-0	-
15-1 - BATTERY COVER LM430D MSP-143852-7.A0 143852-7	£21.60	£25.92
15-1 - STOP RING CS-3 4010Y/DLM431 MSP-259015-6.A4 259015-6	£1.44	£1.73
16 - TAPPING SCREW M4X18 EBH253/EB3 MSP-266326-2.A243 266326-2	£1.44	£1.73
17 - TERMINAL HOUSING LM430D MSP-187254-7.A0 187254-7	£4.21	£5.05
18 - TERMINAL UK360D/BUB360Z/BBC23 MSP-643849-1.A10 643849-1	£6.08	£7.30
19 - TERMINAL HOUSING LM430D MSP-187254-7.A1 187254-7	£4.21	£5.05
20 - LABEL/MAKITA LOGO LM430/DLM43 MSP-890383-4.A3 890383-4	£1.44	£1.73
22 - TAPPING SCREW M4X18 EBH253/EB3 MSP-266326-2.A244 266326-2	£1.44	£1.73
25 - CONTROLLER LM430D MSP-620084-8.A0 620084-8	£126.67	£152.00
26 - TAPPING SCREW M4X18 EBH253/EB3 MSP-266326-2.A240 266326-2	£1.44	£1.73
27 - *STRAIN RELIEF MT811/952/9554 MSP-687123-7.A14 687123-7	£1.44	£1.73
28 - KEY UK360/LM430D/DLM431 MSP-643890-4.A7 643890-4	£3.67	£4.40
29 - TAPPING SCREW M4X18 EBH253/EB3 MSP-266326-2.A245 266326-2	£1.44	£1.73
30 - LEAD UNIT LM430D MSP-638946-6.A4 638946-6	£4.21	£5.05
31 - LINE FILTER UK360/BUB360/TD12 MSP-688165-4.A92 688165-4	£1.44	£1.73
32 - LINE FILTER UK360/BUB360/TD12 MSP-688165-4.A107 688165-4	£1.44	£1.73
33 - LINE FILTER UK360/BUB360/TD12 MSP-688165-4.A108 688165-4	£1.44	£1.73
34 - *DECK LM430D MSP-453234-8.A0 453234-8	£77.11	£92.53
35 - UNDER COVER LM430D/DLM431 MSP-453239-8.A1 453239-8	£5.62	£6.74
36 - TAPPING SCREW M4X18 EBH253/EB3 MSP-266326-2.A239 266326-2	£1.44	£1.73
37 - INNER FLANGE 40 LM430D/DLM431 MSP-224444-2.A0 224444-2	£4.68	£5.62
38-1 - BLADE 430 SET LM430D/DLM431 MSP-197761-2.A1 197761-2	£26.35	£31.62
39 - OUTER FLANGE 40 LM430D/DLM431 MSP-224445-0.A4 224445-0	£5.46	£6.55
40 - HEX BOLT M10X25 LM430D/DLM431 MSP-266731-3.A3 266731-3	£1.44	£1.73
44 - TAPPING SCREW M4X18 EBH253/EB3 MSP-266326-2.A238 266326-2	£1.44	£1.73
45 - HEX FULL NUT M6 LF1000/DST111 MSP-931302-2.A34 931302-2	£1.44	£1.73
46 - TAPPING SCREW M4X18 EBH253/EB3 MSP-266326-2.A237 266326-2	£1.44	£1.73
48 - COMPRESSION SPRING 9 LS1030 MSP-231297-2.A8 231297-2	£1.44	£1.73
49 - FLAT WASHER 9 7104L/DLM431 MSP-253808-3.A4 253808-3	£1.44	£1.73
51 - CHANEG LEVER COVER LM430D MSP-453253-4.A0 453253-4	£2.65	£3.18
53 - *COLLARED HEX NUT M8 DCS230T MSP-252145-2.A2 252145-2	£1.44	£1.73
55 - REAR WHEEL LM430D/DLM431 MSP-453243-7.A1 453243-7	£15.26	£18.31
56 - BALL BEARING 6200ZZ SMA910/M9 MSP-210070-3.A2 210070-3	£4.07	£4.88
57 - REAR SHAFT LM430D/DLM431 MSP-165669-8.A0 165669-8	£23.62	£28.34
58 - BALL BEARING 6200ZZ SMA910/M9 MSP-210070-3.A1 210070-3	£4.07	£4.88
59 - REAR WHEEL LM430D/DLM431 MSP-453243-7.A0 453243-7	£15.26	£18.31
61 - *COLLARED HEX NUT M8 DCS230T MSP-252145-2.A0 252145-2	£1.44	£1.73
63 - TAPPING SCREW M4X18 EBH253/EB3 MSP-266326-2.A242 266326-2	£1.44	£1.73
65 - HEX LOCK NUT M5-8 BO3710/3711 MSP-252103-8.A69 252103-8	£1.58	£1.89
66 - *FLAT WASHER 5 DIN125-B RP0900 MSP-941101-4.A79 941101-4	£1.44	£1.73
67 - CONNECTING ROD LM430D/DLM431 MSP-346543-1.A1 346543-1	£18.72	£22.46
69 - *FLAT WASHER 5 DIN125-B RP0900 MSP-941101-4.A78 941101-4	£1.44	£1.73
70 - HEX LOCK NUT M5-8 BO3710/3711 MSP-252103-8.A68 252103-8	£1.58	£1.89
71 - FRONT WHEEL CAP LM430D/DLM431 MSP-453240-3.A8 453240-3	£11.70	£14.04
72 - *COLLARED HEX NUT M8 DCS230T MSP-252145-2.A1 252145-2	£1.44	£1.73
75 - BALL BEARING 6200ZZ SMA910/M9 MSP-210070-3.A4 210070-3	£4.07	£4.88
76 - FRONT SHAFT LM430D/DLM431 MSP-165668-0.A4 165668-0	£22.90	£27.48
77 - TAPPING SCREW M4X18 EBH253/EB3 MSP-266326-2.A241 266326-2	£1.44	£1.73
78 - PLATE JR3020/JR140D/JR3030T MSP-341462-6.A11 341462-6	£1.44	£1.73
78-1 - FRONT COVER DLM430/DLM431 MSP-456353-9.A3 456353-9	£5.92	£7.11
79 - BALL BEARING 6200ZZ SMA910/M9 MSP-210070-3.A3 210070-3	£4.07	£4.88
82 - *COLLARED HEX NUT M8 DCS230T MSP-252145-2.A3 252145-2	£1.44	£1.73
83 - FRONT WHEEL CAP LM430D/DLM431 MSP-453240-3.A9 453240-3	£11.70	£14.04
87 - TAPPING SCREW M4X18 EBH253/EB3 MSP-266326-2.A573 266326-2	£1.44	£1.73
88 - TAPPING SCREW M4X18 EBH253/EB3 MSP-266326-2.A600 266326-2	£1.44	£1.73
90 - PAN HD SCREW M4X20 9032/LS081 MSP-911138-5.A16 911138-5	£1.44	£1.73
91 - LEVER LM430D MSP-453248-7.A1 453248-7	£1.44	£1.73
94 - COMPRESSION SPRING 6 AG125 MSP-233068-3.A14 233068-3	£1.44	£1.73
97 - *STRAIN RELIEF MT811/952/9554 MSP-687123-7.A15 687123-7	£1.44	£1.73
98 - TAPPING SCREW M4X18 EBH253/EB3 MSP-266326-2.A236 266326-2	£1.44	£1.73
99-1 - UPPER PIPE DLM431/430 MSP-143510-5.A4 143510-5	£18.00	£21.60
99 - *UPPER PIPE LM430D/BLM43 MSP-141299-9.A1 141299-9	£24.48	£29.38
101 - *CUP.H.SQ NECK BOLT LM430D MSP-266730-5.A0 266730-5	£1.44	£1.73
101-1 - CUP H. SQ NECK BOLT M6X50 DLM MSP-265A14-4.A1 265A14-4	£1.44	£1.73
102 - THUMB NUT M6 LM430D/DLM431 MSP-264070-5.A1 264070-5	£2.50	£3.00
103 - THUMB NUT M6 LM430D/DLM431 MSP-264070-5.A8 264070-5	£2.50	£3.00
104 - *CUP.H.SQ NECK BOLT LM430D MSP-266730-5.A1 266730-5	£1.44	£1.73
104-1 - CUP H. SQ NECK BOLT M6X50 DLM MSP-265A14-4.A0 265A14-4	£1.44	£1.73
105 - *LOWER PIPE LM430D/BLM430 MSP-331973-9.A0 331973-9	£17.86	£21.43
105-1 - LOWER PIPE DLM431/DLM430 MSP-326635-2.A1 326635-2	£16.70	£20.04
107 - THUM SCREW M8X35 LM430/DLM431 MSP-266729-0.A0 266729-0	£3.74	£4.49
108 - THUM SCREW M8X35 LM430/DLM431 MSP-266729-0.A9 266729-0	£3.74	£4.49
110-3 - REAR BAG ASSY DLM431/LM430D MSP-127276-5.A1 127276-5	£70.99	£85.19
111 - TAPPING SCREW M4X18 EBH253/EB3 MSP-266326-2.A235 266326-2	£1.44	£1.73
112 - REAR BAG ROD LM430D/DLM431 MSP-327179-5.A1 327179-5	£16.32	£19.58
113 - FLAT WASHER 5 LM430D/DLM431 MSP-267438-4.A0 267438-4	£1.44	£1.73
114 - TAPPING SCREW M4X18 EBH253/EB3 MSP-266326-2.A574 266326-2	£1.44	£1.73
115 - TAPPING SCREW M4X18 EBH253/EB3 MSP-266326-2.A599 266326-2	£1.44	£1.73
A01 - SOCKET WRENCH 17 14/12N/4110C MSP-782210-8.A0 782210-8	£4.07	£4.88
A02 - DC36WA MSP-*DC36WA.A3 *DC36WA	-
A03 - BATTERY BL3622A MSP-195410-5.A0 195410-5	£375.43	£450.52
A03-1 - BATTERY BL3622A MSP-195410-5.A7 195410-5	£375.43	£450.52
A04 - BATTERY COVER FOR 194873-2 MSP-451153-2.A0 451153-2	£2.18	£2.62
