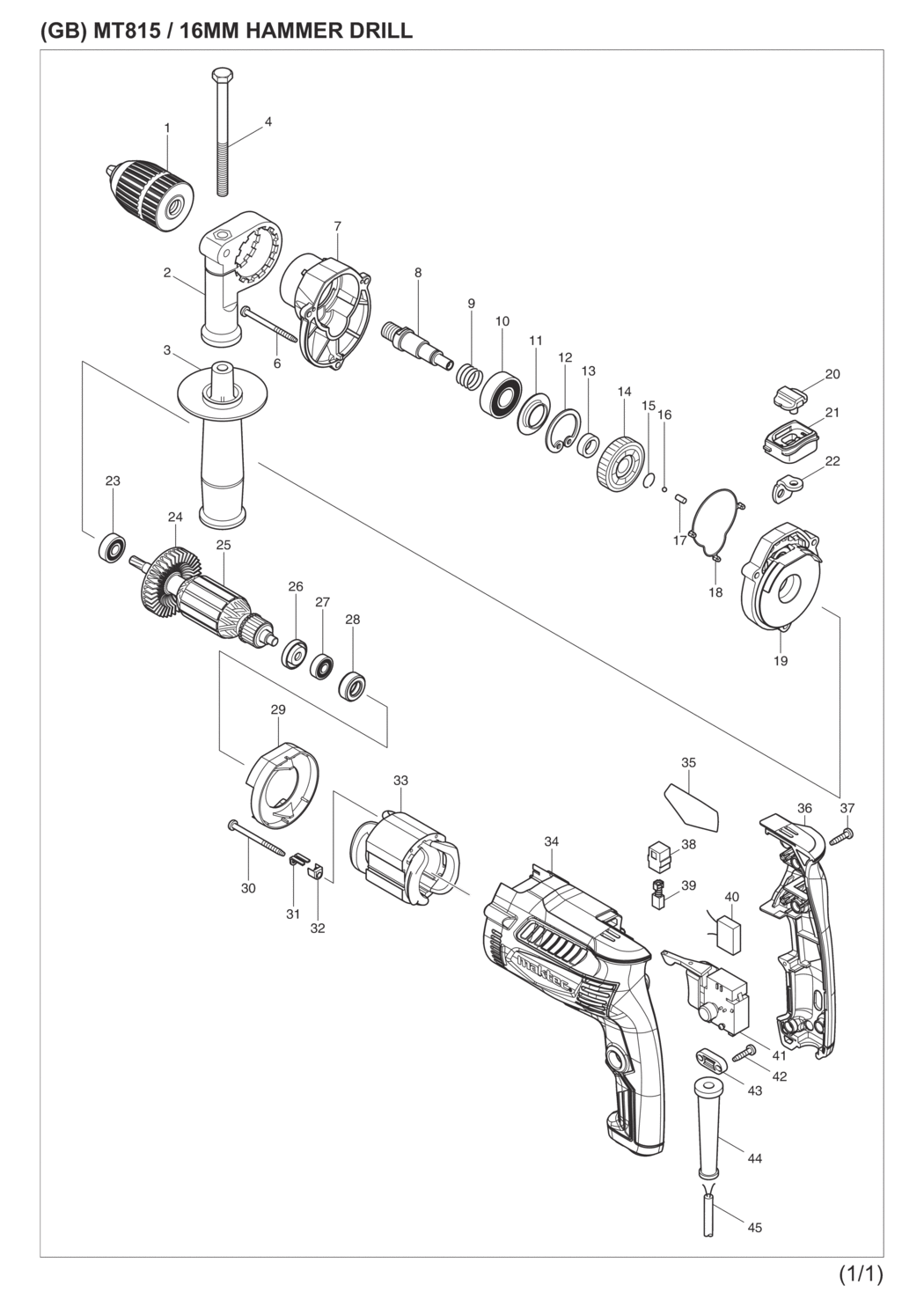

1-2 - KEYLESSDRILL CHUCK HP1500/8540
MSP-196193-0.A3
196193-0
|
£24.72
|
£29.66
|
|
|
2 - GRIP BASE MT811/814/815
MSP-417822-5.A2
417822-5
|
£1.44
|
£1.73
|
|
|
3 - GRIP 36 GD0810/MT814
MSP-153503-4.A6
153503-4
|
£1.44
|
£1.73
|
|
|
4 - HEX BOLT M8X110 MT814/815/811
MSP-265495-6.A2
265495-6
|
£1.44
|
£1.73
|
|
|
6 - TAPPING SCREW 4X30 BGA454/504
MSP-266361-0.A18
266361-0
|
£1.44
|
£1.73
|
|
|
7 - GEAR HOUSING MT814/815
MSP-451907-7.A0
451907-7
|
£2.97
|
£3.56
|
|
|
8 - SPINDLE MT811/814/815/HP1631
MSP-324223-9.A1
324223-9
|
£4.99
|
£5.99
|
|
|
9 - COMPRESSION SPRING 16 MT811/H
MSP-233330-6.A0
233330-6
|
£1.44
|
£1.73
|
|
|
10 - BALL BEARING 6202DDW PC5000/0
MSP-211241-5.A11
211241-5
|
£3.52
|
£4.22
|
|
|
11 - RING 19 MT811/814/815/HP1631
MSP-257246-1.A2
257246-1
|
£1.44
|
£1.73
|
|
|
12 - RETAINING RING R-35 HP1631/41
MSP-962153-2.A6
962153-2
|
£1.44
|
£1.73
|
|
|
13 - RING 12 MT814/MT815//MT852
MSP-257173-2.A15
257173-2
|
£1.44
|
£1.73
|
|
|
14 - HELICAL GEAR MT814/815
MSP-226589-2.A3
226589-2
|
£3.28
|
£3.93
|
|
|
15 - RING SPRING 12 HP1631/MT814&5
MSP-233938-6.A2
233938-6
|
£1.44
|
£1.73
|
|
|
16 - STEEL BALL 3.5 BPJ/DTD154/TL06
MSP-216001-0.A51
216001-0
|
£1.59
|
£1.91
|
|
|
17 - PIN 4 HP1631/8406C/HP2030/845
MSP-256251-5.A7
256251-5
|
£1.44
|
£1.73
|
|
|
18 - SEAL RING MT814/815/HP1631
MSP-424112-9.A0
424112-9
|
£1.44
|
£1.73
|
|
|
19 - GEAR HOUSING COVER C MT814/81
MSP-140426-5.A0
140426-5
|
£14.40
|
£17.28
|
|
|
20 - CHANGE LEVER MT811/814/815/HP
MSP-417819-4.A2
417819-4
|
£1.44
|
£1.73
|
|
|
21 - LEVER CASE MT814/815 M8101
MSP-451908-5.A2
451908-5
|
£1.44
|
£1.73
|
|
|
22 - CHANGE PLATE MT814/815/HP1631
MSP-345944-0.A3
345944-0
|
£1.44
|
£1.73
|
|
|
23 - BALL BEARING 608LLB(/608VV) 6
MSP-211031-6.A19
211031-6
|
£3.90
|
£4.68
|
|
|
24 - FAN 55 BHS630/MT814/815/HP163
MSP-241869-5.A26
241869-5
|
£4.52
|
£5.43
|
|
|
25 - ARMATURE ASSY 110V MT814/MT81
MSP-510165-5.A1
510165-5
|
£29.38
|
£35.25
|
|
|
25 - ARMATURE ASSY 240V MT815
MSP-510164-7.A1
510164-7
|
£31.53
|
£37.84
|
|
|
26 - INSULATION WASHER MT814/815
MSP-681636-0.A51
681636-0
|
£2.18
|
£2.62
|
|
|
27 - BALL BEARING 607ZZ BO3710/MT4
MSP-210062-2.A21
210062-2
|
£4.08
|
£4.90
|
|
|
28 - RUBBER RING HP1631/MT952/814
MSP-421808-3.A3
421808-3
|
£1.44
|
£1.73
|
|
|
29 - BAFFLE PLATE MT814/815/HP1631
MSP-450620-4.A1
450620-4
|
£1.44
|
£1.73
|
|
|
30 - TAPPING SCREW M4X55 HP1631/HR
MSP-266415-3.A0
266415-3
|
£1.44
|
£1.73
|
|
|
31 - RETAINER GD0801C/811C/MT814
MSP-344871-8.A21
344871-8
|
£1.44
|
£1.73
|
|
|
32 - INSULATION COVER MT814/GD080
MSP-417237-6.A6
417237-6
|
£1.44
|
£1.73
|
|
|
33 - *FIELD 110V MT814/815/HP1631
MSP-628183-0.A1
628183-0
|
£20.30
|
£24.36
|
|
|
34 - MOTOR HOUSING MT814/815
MSP-451905-1.A0
451905-1
|
£15.13
|
£18.16
|
|
|
35 - NAME PLATE MT815
MSP-868133-5
868133-5
|
£1.44
|
£1.73
|
|
|
36 - HANDLE COVER CO MT814/815
MSP-140427-3.A1
140427-3
|
£6.24
|
£7.49
|
|
|
36 - RUBBER PIN 4 GA7050/9050/5021
MSP-263002-9.A258
263002-9
|
£1.44
|
£1.73
|
|
|
37 - TAPPING SCREW M4X18 EBH253/EB3
MSP-266326-2.A105
266326-2
|
£1.44
|
£1.73
|
|
|
38-1 - BRUSH HOLDER 5X8 MT814/815/64
MSP-643566-3.A1
643566-3
|
£1.44
|
£1.73
|
|
|
39 - CARBON BRUSH CB-85 HP1631/MT8
MSP-191998-3.A1
191998-3
|
£3.74
|
£4.49
|
|
|
40 - NOISE SUPPRESSOR 4100KB HS7611
MSP-645141-1.A12
645141-1
|
£3.21
|
£3.85
|
|
|
41 - SWITCH DGQ-1108B MT814/815/64
MSP-650585-2.A3
650585-2
|
£14.35
|
£17.22
|
|
|
41 - SWITCH DGQ-1104H 6413/HP1631
MSP-650586-0.A0
650586-0
|
£14.35
|
£17.22
|
|
|
42 - TAPPING SCREW M4X18 EBH253/EB3
MSP-266326-2.A106
266326-2
|
£1.44
|
£1.73
|
|
|
43 - STRAIN RELIEF M9001/DVC/RP0900
MSP-687124-5.A78
687124-5
|
£1.44
|
£1.73
|
|
|
44 - CORD GUARD 9.3-85 MT814/815
MSP-682516-3.A12
682516-3
|
£1.44
|
£1.73
|
|
|
45-2 - POWER SUPPLY CORD 1.0-2.5 240
MSP-692516-5.A9
692516-5
|
£8.58
|
£10.30
|
|
|
45 - POWER SUPPLY CORD 1.0-2.5 110
MSP-665905-7.A19
665905-7
|
£12.01
|
£14.41
|
|
|
45 - POWER SUPPLY CORD 1.0-2.5 240
MSP-692516-5.A10
692516-5
|
£8.58
|
£10.30
|
|
|
45-1 - POWER SUPPLY CORD 1.0-2-2.0
MSP-692706-0.A2
692706-0
|
£11.23
|
£13.48
|
|
|
46 - HEX WASHER BHR262/HP1641/51
MSP-345280-4.A9
345280-4
|
£1.44
|
£1.73
|
|
|
A02 - LABEL/MAKTEC LOGO MT814 815
MSP-819906-9.A2
819906-9
|
£1.44
|
£1.73
|
|
|
A02 - PLASTIC CASE MT815
MSP-824952-9
824952-9
|
£11.36
|
£13.63
|
|
|
A02 - SIDE LATCH MT815
MSP-452180-2.A0
452180-2
|
£1.20
|
£1.44
|
|
|
A03 - LABEL/PLASTCI CASE MT814 815
MSP-819981-5
819981-5
|
£1.44
|
£1.73
|
|
|
E02 - *NON INSULATED TERMINAL GD0801
MSP-654091-9.A241
654091-9
|
£1.44
|
£1.73
|
|
