Makita HR4011C Rotary Hammer Spare Parts

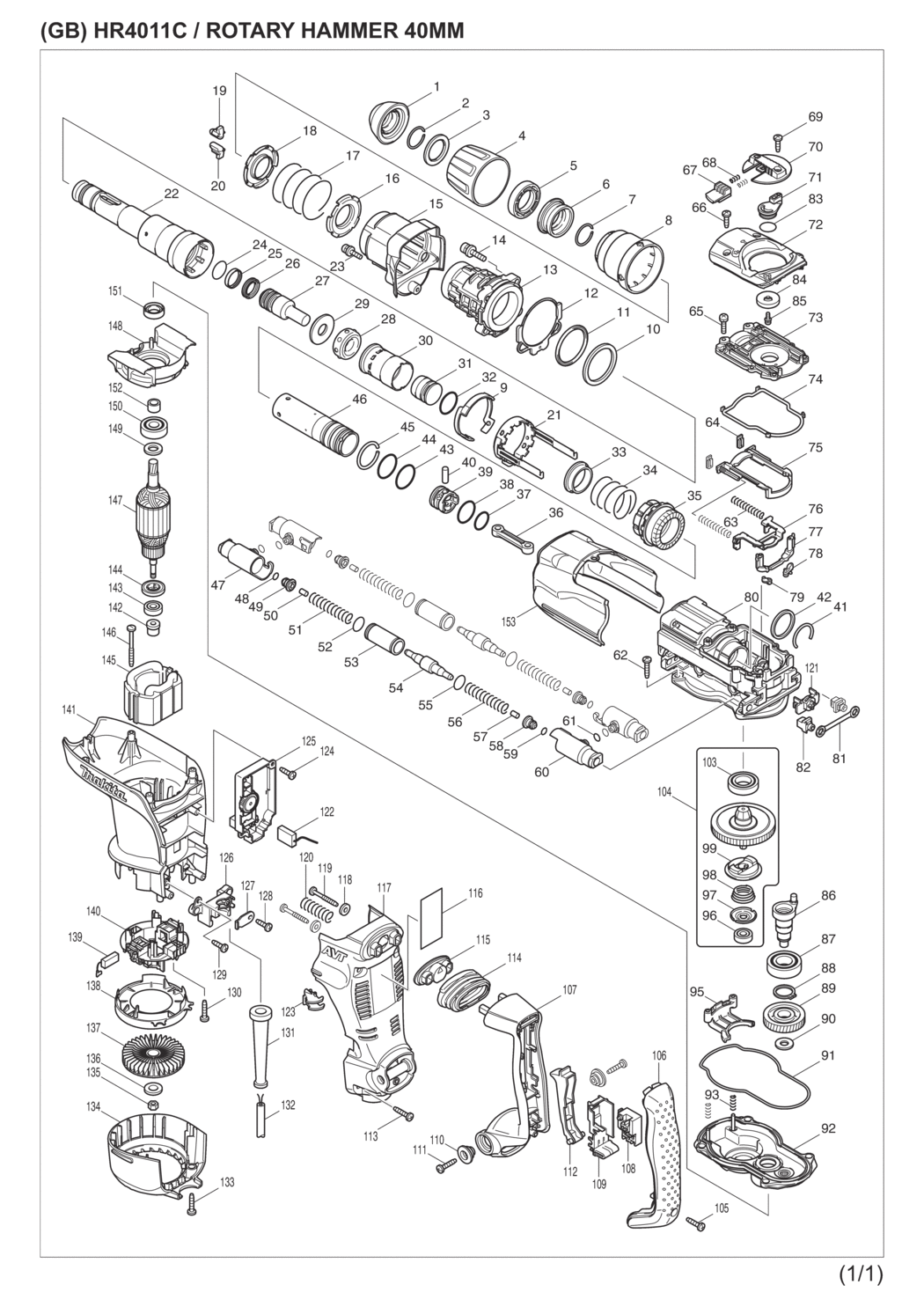

An exploded drawing and spare parts listing for the Makita HR4011C Rotary Hammer

	Ex VAT	Inc VAT
1-1 - TOOL HOLDER CAP HM11110/1111 MSP-286285-4.A3 286285-4	£2.34	£2.81
2 - RING SPRING 25 HR5001C/HM1202 MSP-231984-3.A10 231984-3	£1.44	£1.73
3 - FLAT WASHER 28 HM0860C MSP-267272-2.A4 267272-2	£2.65	£3.18
4 - CHUCK COVER HR4011C/4001C MSP-419015-0.A0 419015-0	£2.18	£2.62
5 - SPACER HR4011C/4001C/HR4511C MSP-419002-9.A1 419002-9	£1.44	£1.73
6 - CHUCK RING HR4011C/4001C MSP-324548-1.A0 324548-1	£7.64	£9.17
7 - RING SPRING 25 HR5001C/HM1202 MSP-231984-3.A9 231984-3	£1.44	£1.73
8 - RELEASE COVER HR4011C/4001C MSP-419016-8.A1 419016-8	£2.34	£2.81
9-1 - LOCK SLEEVE GUIDE HR4011C/400 MSP-419760-7.A1 419760-7	£5.92	£7.11
10-1 - FLAT WASHER 45 HR4011C/4001C MSP-267336-2.A1 267336-2	£2.34	£2.81
11 - URETHAN RING 45 HR4011C/4001C MSP-262116-1.A1 262116-1	£7.18	£8.61
12 - SEAL SHEET HR4011C/4001C MSP-421911-0.A0 421911-0	£1.44	£1.73
13 - BARREL HR4011C/4001C MSP-154621-1.A1 154621-1	£43.30	£51.96
14 - CAP HD SCREW M6X30 HM1810 MSP-922353-6.A23 922353-6	£1.44	£1.73
15 - LABEL/CAUTION HR4001CHR4011C MSP-810100-6.A0 810100-6	£1.44	£1.73
15 - BARREL COVER HR4011C MSP-154624-5.A1 154624-5	£4.68	£5.62
16 - SPRING GUIDE HR4011C/4001C MSP-345579-7.A1 345579-7	£1.44	£1.73
17 - COMPRESSION SPRING 48 HR4011C MSP-233431-0.A0 233431-0	£1.44	£1.73
18 - SPRING GUIDE HR4011C/4001C MSP-345579-7.A0 345579-7	£1.44	£1.73
19 - TOOL RETAINER HR4011C/4001C MSP-310161-1.A1 310161-1	£7.80	£9.36
20 - TOOL RETAINER HR4011C/4001C MSP-310161-1.A2 310161-1	£7.80	£9.36
21-2 - LOCK SLEEVE HR4011C/4001C MSP-165633-9.A0 165633-9	£31.68	£38.02
22 - TOOL HOLDER HR4011C/4001C MSP-324542-3.A1 324542-3	£123.94	£148.73
23 - HEX SOCKET BOLT M4X16 EH7500 MSP-922128-3.A24 922128-3	£1.44	£1.73
23-1 - HEX SOCKET BOLT M4X16 HR4001C MSP-266437-3.A10 266437-3	£1.44	£1.73
24 - O RING 20 HM1110/1111/HR4500C MSP-213317-4.A9 213317-4	£1.44	£1.73
25 - FLUORIDE RING 25 HM1110/1111 MSP-213392-0.A9 213392-0	£9.36	£11.23
26 - X RING 18 HM1110/HR4011C/4001 MSP-213281-9.A1 213281-9	£4.06	£4.87
27 - IMPACT BOLT HR4011C/4001C MSP-324569-3.A1 324569-3	£6.40	£7.68
28 - RUBBER RING 17 HR4011C/4001C MSP-421901-3.A1 421901-3	£7.02	£8.42
29 - RING 17 HR4011C/4001C MSP-324573-2.A0 324573-2	£7.64	£9.17
30 - SLIDE SLEEVE HR4011C/4001C MSP-419003-7.A1 419003-7	£1.44	£1.73
31 - STRIKER HR4011C/4001C MSP-324571-6.A1 324571-6	£2.81	£3.37
32 - O RING 22 HR4011C/4001C MSP-213962-5.A1 213962-5	£2.34	£2.81
33 - RING 33 HR4011C/4001C MSP-331709-6.A1 331709-6	£6.55	£7.86
34 - COMPRESSION SPRING 37 HR4011C MSP-233448-3.A1 233448-3	£1.44	£1.73
35-1 - STRAIGHT BEVEL GEAR 25 HR4011 MSP-227509-9.A1 227509-9	£35.86	£43.03
36 - CONNECTING ROD HR4011C/HR4001 MSP-419005-3.A1 419005-3	£2.73	£3.28
37 - O RING 21 AG125 MSP-213379-2.A0 213379-2	£1.44	£1.73
38 - O RING 22 HR4011C/4001C MSP-213962-5.A0 213962-5	£2.34	£2.81
39 - PISTON HR4011C/4001C MSP-419004-5.A0 419004-5	£1.44	£1.73
40 - PIN 7 JR3020/HR4000C MSP-256197-5.A5 256197-5	£1.44	£1.73
41 - RING SPRING 31 HR4011C/4001C MSP-233937-8.A1 233937-8	£1.44	£1.73
42 - RING 33 HR4011C/4001C MSP-257268-1.A1 257268-1	£3.74	£4.49
43 - O RING 30 VC3211M/HR5000/HM13 MSP-213406-5.A23 213406-5	£1.44	£1.73
44 - O RING 30 VC3211M/HR5000/HM13 MSP-213406-5.A26 213406-5	£1.44	£1.73
45 - RING SPRING 32 HR4011C/4001C MSP-233935-2.A0 233935-2	£1.44	£1.73
46 - CYLINDER 28.5 HR4011C/4001C MSP-324570-8.A0 324570-8	£40.03	£48.04
47 - PIPE HOLDER HR4011C MSP-317923-8.A0 317923-8	£19.58	£23.50
48 - O RING 8 BTM40/50/HM0871C MSP-213030-4.A5 213030-4	£1.44	£1.73
49 - SPRING GUIDE HM0871C/HR4011C MSP-419011-8.A2 419011-8	£1.44	£1.73
50 - RUBBER PIN 6 DUR/DHR/DTW/DG MSP-263005-3.A632 263005-3	£1.44	£1.73
51 - COMPRESSION SPRING 11 HR4011C MSP-233435-2.A0 233435-2	£1.44	£1.73
52 - *O RING 18 HM0871C/AN510/620 MSP-213275-4.A0 213275-4	£1.44	£1.73
53 - PIPE 16 HM0871C/HR4011C MSP-324572-4.A0 324572-4	£5.78	£6.93
54-1 - COUNTER WEIGHT HR4011C MSP-324574-0.A0 324574-0	£4.37	£5.24
54 - COUNTER WEIGHT HR4011C MSP-324574-0.A1 324574-0	£4.37	£5.24
55 - *O RING 18 HM0871C/AN510/620 MSP-213275-4.A1 213275-4	£1.44	£1.73
56 - COMPRESSION SPRING 11 HR4011C MSP-233435-2.A1 233435-2	£1.44	£1.73
57 - RUBBER PIN 6 DUR/DHR/DTW/DG MSP-263005-3.A631 263005-3	£1.44	£1.73
58 - SPRING GUIDE HM0871C/HR4011C MSP-419011-8.A1 419011-8	£1.44	£1.73
59 - O RING 8 BTM40/50/HM0871C MSP-213030-4.A6 213030-4	£1.44	£1.73
60 - PIPE HOLDER HR4011C MSP-317923-8.A1 317923-8	£19.58	£23.50
61 - O RING 8 BTM40/50/HM0871C MSP-213030-4.A7 213030-4	£1.44	£1.73
62 - PT SCREW 5X25 KP0810C KP0810 MSP-266041-8.A15 266041-8	£1.44	£1.73
63 - COMPRESSION SPRING 7 HR4011C MSP-233432-8.A1 233432-8	£1.44	£1.73
64 - SEAL PLATE HR4011C MSP-421910-2 421910-2	£1.44	£1.73
65 - PAN HD SCREW M4X18 KP0810C MSP-911133-5.A23 911133-5	£1.44	£1.73
66 - TAPPING SCREW 4X14 VC3211M MSP-266192-7.A104 266192-7	£1.44	£1.73
67 - LOCK BUTTON HR4011C/4001C MSP-419009-5.A2 419009-5	£1.44	£1.73
68 - COMPRESSION SPRING 3 HR4011C MSP-233436-0.A0 233436-0	£1.44	£1.73
69 - TAPPING SCREW 4X14 VC3211M MSP-266192-7.A103 266192-7	£1.44	£1.73
70 - CHANGE LEVER HR4011C/HR4001C MSP-419020-7.A0 419020-7	£4.52	£5.43
71 - CRANK LEVER HR4011C/4001C MSP-419007-9.A1 419007-9	£1.44	£1.73
72 - CRANK CAP COVER HR4011C MSP-317924-6 317924-6	£11.86	£14.23
73 - CRANK CAP HR4011C/4001C MSP-419030-4.A1 419030-4	£2.65	£3.18
74 - SEAL RING HR4011C /4001C MSP-421908-9.A1 421908-9	£1.44	£1.73
75 - LINK PLATE GUIDE HR4011C/4001 MSP-419019-2.A1 419019-2	£1.44	£1.73
76 - LINK PLATE HR4011C/4001C MSP-345582-8.A1 345582-8	£3.59	£4.31
77 - AIR PIPE HR4011C MSP-419012-6 419012-6	£1.44	£1.73
78 - AIR PIPE SEAL HR4011C MSP-421909-7.A0 421909-7	£1.44	£1.73
79 - AIR PIPE SEAL HR4011C MSP-421909-7.A1 421909-7	£1.44	£1.73
80 - CRANK HOUSING HR4011C MSP-154622-9 154622-9	£80.01	£96.01
80 - PLANE BEARING 51 HR4001C/11C MSP-214656-5.A1 214656-5	£3.28	£3.93
80 - RING 40 HR4001C/4011C MSP-324568-5.A0 324568-5	£8.42	£10.11
81 - CUSHION PLATE HM1110/HR4011C MSP-423345-3.A3 423345-3	£1.44	£1.73
82 - FIX GUIDE HR4011C/HM1110/1111 MSP-419008-7.A4 419008-7	£1.44	£1.73
83 - O RING 16 BFS440/AN942/BFR540 MSP-213262-3.A29 213262-3	£1.44	£1.73
84 - LINK LEVER HR4011C/4001C MSP-419006-1.A1 419006-1	£1.44	£1.73
85 - PAN HEAD SCREW M4X10 HR4011C MSP-911511-9.A1 911511-9	£1.44	£1.73
86 - CRANK SHAFT HR4011C/4001C MSP-324550-4.A0 324550-4	£12.63	£15.16
87 - BALL BEARING 6004LLU HR3000C MSP-211332-2.A5 211332-2	£5.92	£7.11
88 - EXT DIN 471 CIRCLIP-20 VC3211 MSP-961060-6.A7 961060-6	£1.44	£1.73
89 - HELICAL GEAR 38 HR4011C/4001C MSP-226605-0.A1 226605-0	£15.29	£18.35
90 - WASHER 10 6906/BO3710/3711 MSP-253180-3.A15 253180-3	£1.44	£1.73
91 - SEAL RING HR4011C/4001C MSP-421907-1.A0 421907-1	£1.44	£1.73
92 - PIN 4 HR4001C/4011C MSP-268136-3.A0 268136-3	£1.44	£1.73
92 - NEEDLE ROLLER BEARING 1010 HM MSP-212075-9.A0 212075-9	£3.28	£3.93
92 - GEAR HOUSING HR4011C MSP-154623-7.A0 154623-7	£57.55	£69.06
93 - COMPRESSION SPRING 5 HR4011C MSP-233433-6.A1 233433-6	£1.44	£1.73
95 - CHANGE PLATE HR4011C/4001C MSP-419018-4.A1 419018-4	£1.44	£1.73
96 - BALL BEARING 608DDW GA5020 MSP-210005-4.A89 210005-4	£8.42	£10.11
97 - CUP WASHER 8 HR4011C/4001C MSP-345581-0.A1 345581-0	£1.44	£1.73
98 - CONICAL SPRING HR4011C MSP-233936-0.A1 233936-0	£1.44	£1.73
99 - DRIVING FLANGE HR4011C/4001C MSP-324549-9.A1 324549-9	£7.64	£9.17
103 - BALL BEARING 6904LLU HR2000/H MSP-211323-3.A3 211323-3	£11.39	£13.67
104-1 - TORQUE LIMITER ASSY HR4011C MSP-135508-6.A1 135508-6	£165.96	£199.15
104-1 - THIN WASHER 38 FOR 135508-6 MSP-267456-2.A0 267456-2	£1.44	£1.73
105 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A270 265995-6	£1.44	£1.73
106 - HANDLE COVER HR4011C/4001C MSP-419036-2.A1 419036-2	£15.42	£18.51
107 - HANDLE HR4011C MSP-419038-8 419038-8	£7.49	£8.99
108-1 - SWITCH TG73B-1 HR4011C/4001C MSP-650676-9.A0 650676-9	£12.32	£14.79
109 - SWITCH HOLDER HR4011C/45 MSP-154626-1.A5 154626-1	£2.18	£2.62
109 - SPONGE SHEET HR4001C/4011C MSP-423344-5.A0 423344-5	£1.44	£1.73
110 - SHOULDER SLEEVE 6 HR4011C MSP-313124-6.A1 313124-6	£2.34	£2.81
111 - PT SCREW 5X25 KP0810C KP0810 MSP-266041-8.A75 266041-8	£1.44	£1.73
112 - SWITCH LEVER HR4011C/HR4511C MSP-419025-7.A4 419025-7	£2.18	£2.62
113 - PT SCREW 5X25 KP0810C KP0810 MSP-266041-8.A76 266041-8	£1.44	£1.73
114 - DUST COVER HR4011C/3210/3541 MSP-421912-8.A2 421912-8	£3.28	£3.93
115 - DUST COVER SUPPORT HR4011C MSP-419014-2.A0 419014-2	£1.44	£1.73
116 - NAME PLATE HR4011C MSP-861481-1 861481-1	£1.44	£1.73
117 - HANDLE BASE HR4011C MSP-419037-0 419037-0	£17.86	£21.43
118 - BLUE WASHER 5 HM0871C/6811D MSP-267066-5.A1 267066-5	£1.44	£1.73
119 - PT SCREW 5X40 M6600 MSP-266211-9.A12 266211-9	£1.44	£1.73
120 - COMPRESSION SPRING 11 HM0871C MSP-233434-4.A0 233434-4	£1.44	£1.73
121 - SPRING GUIDE HR4011C/HR4511C MSP-419013-4.A2 419013-4	£1.44	£1.73
122 - LEAD UNIT HR4011C/3210/3540/4 MSP-638406-8.A0 638406-8	£1.44	£1.73
123 - LENS HR4011C/4001C/HM1302 MSP-419010-0.A1 419010-0	£1.44	£1.73
124-1 - TAPPING SCREW 4X14 HR4011C MSP-266901-4.A18 266901-4	£1.44	£1.73
124 - TAPPING SCREW 4X14 VC3211M MSP-266192-7.A10 266192-7	£1.44	£1.73
125 - CONTROLLER 240V HR4011C/4001C MSP-631657-2.A1 631657-2	£50.02	£60.03
125 - CONTROLLER 110V HR4011C MSP-631656-4.A0 631656-4	£53.07	£63.68
126 - CORD CLAMP BASE HR5212C MSP-419024-9.A0 419024-9	£1.44	£1.73
127 - STRAIN RELIEF GA/GD/SG125 MSP-687169-3.A4 687169-3	£1.44	£1.73
128 - TAPPING SCREW 4X14 VC3211M MSP-266192-7.A113 266192-7	£1.44	£1.73
129 - TAPPING SCREW 4X14 VC3211M MSP-266192-7.A114 266192-7	£1.44	£1.73
129-1 - TAPPING SCREW 4X14 HR4011C MSP-266901-4.A17 266901-4	£1.44	£1.73
130 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A268 265995-6	£1.44	£1.73
131 - CORD GUARD 10 HM1317C/CB/HR30 MSP-682560-0.A24 682560-0	£2.34	£2.81
132 - POWER SUPPLY CORD 1.5-2-4.0 MSP-692623-4.A19 692623-4	£32.69	£39.23
133 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A269 265995-6	£1.44	£1.73
134 - REAR COVER HR4011C/4001C MSP-419032-0.A1 419032-0	£5.92	£7.11
135 - HEX NUT M6 9564/65CV/DZ&H MSP-931303-0.A6 931303-0	£1.44	£1.73
136 - WASHER 6 HR3000C/LF1000 MSP-253047-5.A4 253047-5	£1.44	£1.73
137 - FAN 76 HR4000C/5017RKB/4131 MSP-241876-8.A4 241876-8	£3.90	£4.68
138 - FAN GUIDE HR4011C/4001C MSP-419022-3.A1 419022-3	£1.44	£1.73
139 - CARBON BRUSH CB-350 HR4013C MSP-194160-9.A1 194160-9	£3.90	£4.68
140-1 - BRUSH HOLDER UNIT HR4011C MSP-638715-5.A1 638715-5	£9.20	£11.04
140 - PT SCREW 3X10 TRILOBULAR/MS248 MSP-266007-8.A34 266007-8	£1.44	£1.73
141 - MOTOR HOUSING HR4011 MSP-154619-8.A0 154619-8	£26.92	£32.31
141 - WASHER PLATE HR4001C HOUSING MSP-345650-7.A1 345650-7	£12.95	£15.54
142 - SHOULDER SLEEVE 6 HR4011C MSP-324390-0.A0 324390-0	£2.18	£2.62
143 - BALL BEARING 608DDW GA5020 MSP-210005-4.A88 210005-4	£8.42	£10.11
144 - INSULATION WASHER HM0870/71C MSP-681650-6.A1 681650-6	£6.55	£7.86
145-1 - FIELD 240V HR4011C/4001C MSP-625758-6.A2 625758-6	£26.92	£32.31
145-1 - FIELD 110V HM0870C/HM0871C MSP-625756-0.A2 625756-0	£26.92	£32.31
146 - PT SCREW 5X55 UC3530A/KP0810 MSP-266095-5.A20 266095-5	£1.44	£1.73
147 - ARMATURE ASSY 110V HR4011C MSP-513631-1.A0 513631-1	£55.97	£67.16
147 - ARMATURE ASSY 240V HR4011C MSP-513633-7.A1 513633-7	£55.97	£67.16
148 - BAFFLE PLATE HR4011C/HR4001C MSP-419021-5.A0 419021-5	£2.18	£2.62
149 - THIN WASHER 12 8419B/9565H MSP-253084-9.A6 253084-9	£1.44	£1.73
150 - BALL BEARING 6201LLU HM0860C MSP-211137-0.A5 211137-0	£4.99	£5.99
151 - OIL SEAL 15 BHR262/HM1203/BHR MSP-213231-4.A6 213231-4	£7.64	£9.17
152 - SLEEVE 12 HR4500C/4511C/BHR26 MSP-331596-3.A9 331596-3	£5.46	£6.55
153 - CRANK HOUSING COVER HR4011C MSP-419033-8 419033-8	£6.40	£7.68
154 - SPONGE SHEET HR4011C/4001C MSP-421939-8.A1 421939-8	£1.44	£1.73
155 - LABEL/CLEAR HR40104011 MSP-819361-5.A1 819361-5	£2.18	£2.62
A01 - HEX HD BOLT M8X150/HR5212C MSP-265439-6.A13 265439-6	£2.18	£2.62
A01 - SIDE HANLE 68 HR1110/111 MSP-151769-0.A5 151769-0	£14.82	£17.78
A01 - SIDE HANDLE ASSY HM1110/1111 MSP-134890-0.A5 134890-0	£44.88	£53.86
A01 - SIDE HANDLE CAM HR4511/5211C MSP-417002-3.A19 417002-3	£1.44	£1.73
A01 - SIDE HANDLE HR4500/4511/5211 MSP-417003-1.A5 417003-1	£12.32	£14.79
A01 - WING NUT M8 HM1100C/HM1200K MSP-252640-2.A13 252640-2	£5.92	£7.11
A02 - CUP SQUARE NECK BOLT M6X80 MSP-266163-4.A9 266163-4	£3.28	£3.93
A02 - PLATE HR3000C/4000C/5001C/354 MSP-344492-6.A1 344492-6	£1.44	£1.73
A02 - WING SCREW M6X14 HS7611 MSP-265701-9.A7 265701-9	£2.18	£2.62
A02 - DEPTH ROD HR3500/3820/HR3000C MSP-321248-4.A1 321248-4	£3.17	£3.80
A02 - HEX FULL NUT M6 LF1000/DST111 MSP-931302-2.A58 931302-2	£1.44	£1.73
A02 - SIDE GRIP BASE HR3540C/4511C MSP-416299-1.A7 416299-1	£8.89	£10.67
A02 - CUP SPRING 68 HR4000C/HR4511C MSP-344491-8.A6 344491-8	£7.49	£8.99
A02-1 - CUP SPRING 68 HR4000C/HR4511C MSP-344491-8.A7 344491-8	£7.49	£8.99
A02-1 - CUP SQUARE NECK BOLT M6X80 MSP-266163-4.A10 266163-4	£3.28	£3.93
A02-1 - GRIP 36 HR4511C/5211C/4010C/ MSP-158131-0.A1 158131-0	£6.41	£7.69
A03 - LATCH/PLASTIC CASE 824697-9 MSP-163467-4.A23 163467-4	£1.47	£1.76
A02-1 - DEPTH ROD HR3500/3820/HR3000C MSP-321248-4.A0 321248-4	£3.17	£3.80
A02-1 - GRIP 36 ASSY HR3540/3541/4001 MSP-135209-6.A3 135209-6	£13.82	£16.59
A03 - LATCH/PLASTIC CASE 150676-4) MSP-416401-6.A4 416401-6	£1.20	£1.44
A02-1 - PLATE HR3000C/4000C/5001C/354 MSP-344492-6.A0 344492-6	£1.44	£1.73
A02-1 - SIDE GRIP BASE HR3540C/4511C MSP-416299-1.A6 416299-1	£8.89	£10.67
A02-1 - WING SCREW M6X14 HS7611 MSP-265701-9.A8 265701-9	£2.18	£2.62
A02-1 - HEX FULL NUT M6 LF1000/DST111 MSP-931302-2.A59 931302-2	£1.44	£1.73
A03-3 - PLASTIC CASE HR4011C MSP-196185-9 196185-9	£90.38	£108.46
A04 - LABEL/CAUTION HR4001CHR4011C MSP-817105-7.A3 817105-7	£1.44	£1.73
A03-2 - LABEL/INDICATION HR4011C MSP-892401-4.A0 892401-4	£1.44	£1.73
A03-3 - LABEL/INDICATION HR4011C MSP-892401-4.A1 892401-4	£1.44	£1.73
A05 - CLOTH BHR262/HR4011C/4001C MSP-443122-7.A3 443122-7	£3.59	£4.31
A04-2 - GREASE VESSEL SET FOR HAMMERS MSP-198993-4.A21 198993-4	£6.86	£8.23
E02 - *NON INSULATED TERMINAL GD0801 MSP-654091-9.A196 654091-9	£1.44	£1.73

Attribute Name	Value
Brand	Makita

Reviews Write your own review!

There are currently no reviews of this product.

United Kingdom (Including N. Ireland)

On orders up to £40.00	Add £4.00 inc VAT (Royal Mail post)
On orders £40.00 to £130.00	Add £7.00 inc VAT (Courier)
On orders over £130.00	FREE (Courier)

For further delivery and international shipping information please click here
