Makita HR3541FC Combination Hammer Spare Parts

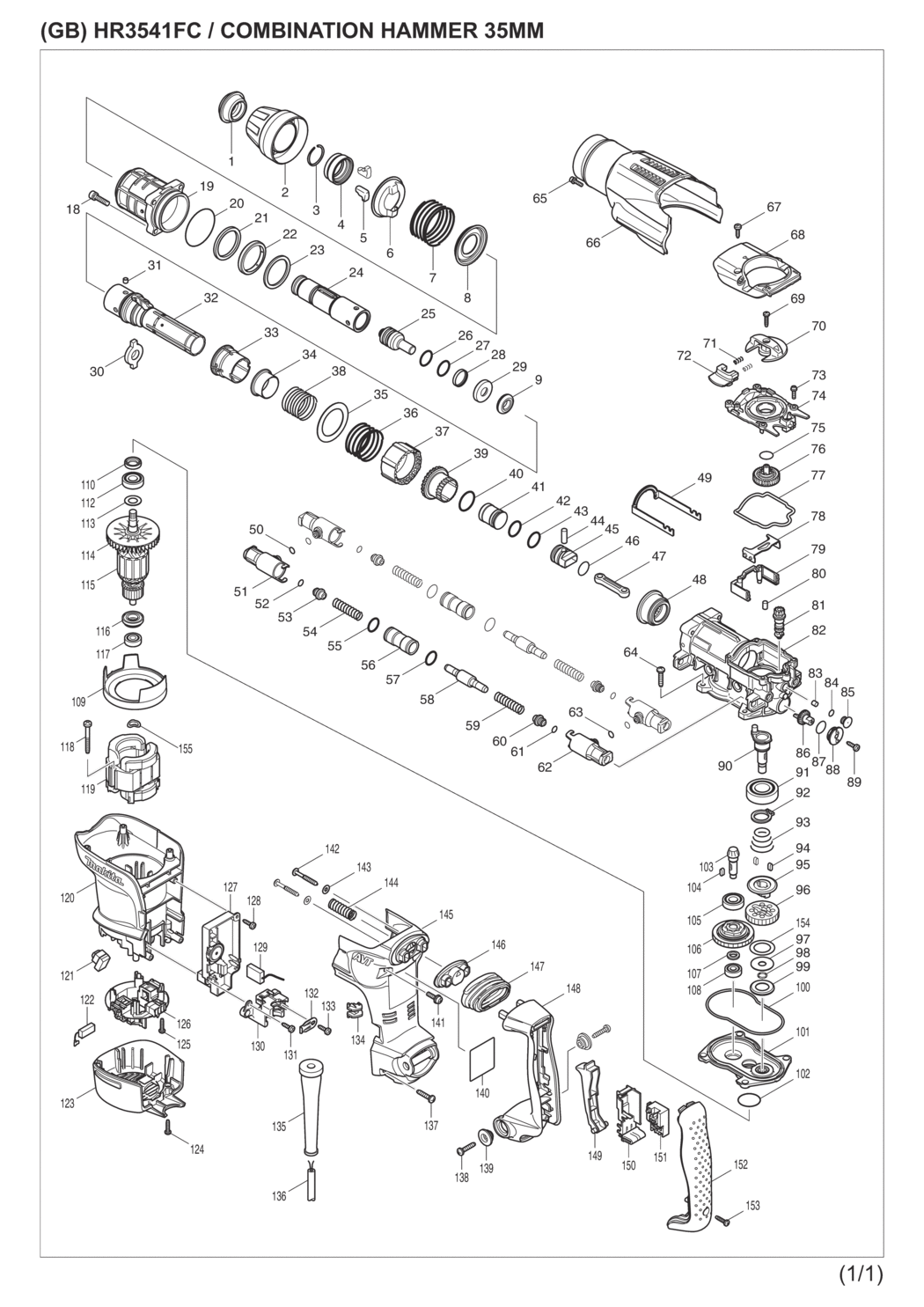

An exploded drawing and spare parts listing for the Makita HR3541FC Combination Hammer

	Ex VAT	Inc VAT
1 - TOOL HOLDER CAP HM0860C/HR354 MSP-286269-2.A2 286269-2	£1.44	£1.73
2 - CHUCK COVER HR3540/HR3541 MSP-450592-3.A0 450592-3	£3.90	£4.68
3 - RING SPRING 25 HR5001C/HM1202 MSP-231984-3.A6 231984-3	£1.44	£1.73
4 - CHUCK RING HR3540/3541 MSP-331823-8.A0 331823-8	£15.58	£18.70
5 - TOOL RETAINER HR3540/HR3541 MSP-310257-8.A0 310257-8	£6.55	£7.86
6 - SPRING GUIDE HR3540/HR3541 MSP-345928-8.A0 345928-8	£8.58	£10.30
7 - COMPRESSION SPRING 52 HR3540/ MSP-234063-6.A0 234063-6	£4.06	£4.87
8 - SPRING HOLDER HR3540/HR3541 MSP-345976-7.A1 345976-7	£3.90	£4.68
9 - RUBBER SPRING 13 HR3540/3541 MSP-424110-3.A0 424110-3	£8.89	£10.67
18 - CAP HD SCREW M6X25 HM0870/71C MSP-922341-3.A8 922341-3	£1.44	£1.73
19 - O RING 39 HR3450/HR3451 MSP-213533-8.A1 213533-8	£1.44	£1.73
19 - BARREL HR3540/HR3541 MSP-158674-2.A0 158674-2	£43.60	£52.32
19 - PLANE BEARING 38 HR3540/3541 MSP-214508-0.A1 214508-0	£5.92	£7.11
19 - OIL SEAL HR3540/3541 MSP-213498-4.A0 213498-4	£5.78	£6.93
20 - O RING 53 BO3710/3711/HM0860C MSP-213656-2.A16 213656-2	£1.44	£1.73
21 - RING 38 HR3540/3541 MSP-257294-0.A0 257294-0	£9.20	£11.04
22 - URETHANE RING 38 HR3540/3541 MSP-262143-8.A1 262143-8	£2.18	£2.62
23 - FLAT WAHSER 39 HR3540/3541 MSP-267381-7.A0 267381-7	£3.28	£3.93
24 - TOOL HOLDER HR3540/HR3541 MSP-324900-3.A1 324900-3	£64.89	£77.87
25 - IMPACT BOLT HR3540/3541 MSP-324901-1.A0 324901-1	£12.95	£15.54
26 - O RING 19 HK1800/HR3540X41 MSP-213309-3.A2 213309-3	£4.06	£4.87
27 - O RING 19 HK1800/HR3540X41 MSP-213309-3.A5 213309-3	£4.06	£4.87
28 - FLOURO CARBON RESIN RING 24 H MSP-213996-8.A0 213996-8	£6.71	£8.05
29 - RING 13 HR3540/3541 MSP-324899-2.A1 324899-2	£6.71	£8.05
30 - SLIDE PLATE HR3210/3540/3541 MSP-324838-2.A0 324838-2	£2.50	£3.00
31 - PIN 6 HR3210CT/FCT/HK1820/L MSP-256266-2.A0 256266-2	£1.44	£1.73
32 - CYLINDER 25 HR3540/HR3541 MSP-331822-0.A1 331822-0	£130.68	£156.82
33 - SLIDE SLEEVE HR3210/3540/354 MSP-450243-8.A2 450243-8	£1.44	£1.73
34 - RING 29 HR3210CT/FC MSP-331805-0.A2 331805-0	£9.98	£11.98
35 - FLAT WASHER 40 HR3210/3540/4 MSP-267360-5.A1 267360-5	£1.44	£1.73
36 - COMPRESSION SPRING 42 HR3210C MSP-234052-1.A2 234052-1	£2.65	£3.18
37 - LOCK SLEEVE HR3210/3540/3541 MSP-450236-5.A2 450236-5	£1.44	£1.73
38 - COMPRESSION SPRING 34 HR3210F MSP-234050-5.A1 234050-5	£2.50	£3.00
39 - DRIVING SLEEVE HR3210CT/3540 MSP-331795-7.A1 331795-7	£25.20	£30.24
40 - O RING 26 5621RD/HR3540X41 MSP-213434-0.A0 213434-0	£1.44	£1.73
41 - STRIKER HR3540/HR3541 MSP-324898-4.A0 324898-4	£7.64	£9.17
42 - O RING 18 HR3210CT/FCT/HK1800 MSP-213283-5.A3 213283-5	£2.18	£2.62
43 - O RING 18 HR3210CT/FCT/HK1800 MSP-213283-5.A8 213283-5	£2.18	£2.62
44 - PIN 7 HR3210CT/FCT/HK1820/L MSP-256087-2.A2 256087-2	£1.44	£1.73
45 - PISTON HR3210CT/3540/3541 MSP-324918-4.A2 324918-4	£19.58	£23.50
46 - O RING 16 BFS440/AN942/BFR540 MSP-213262-3.A18 213262-3	£1.44	£1.73
47 - CONNECTING ROD HR3210CT/3540 MSP-450235-7.A1 450235-7	£3.67	£4.40
48 - SPIRAL BEVEL GEAR 37 HR3210CT MSP-227531-6.A1 227531-6	£34.28	£41.13
49 - LINK ARM HR3210CT/3540/3541 MSP-345867-2.A2 345867-2	£5.78	£6.93
50 - O RING 8 BTM40/50/HM0871C MSP-213030-4.A3 213030-4	£1.44	£1.73
51 - PIPE HOLDER HR3210CT/3541 MSP-450248-8.A3 450248-8	£2.18	£2.62
52 - O RING 8 BTM40/50/HM0871C MSP-213030-4.A4 213030-4	£1.44	£1.73
53 - SPRING GUIDE HR3210CT/3541 MSP-450239-9.A1 450239-9	£1.44	£1.73
54 - COMPRESSION SPRING 10 HR3210C MSP-234048-2.A1 234048-2	£2.18	£2.62
55 - *O RING 18 HM0871C/AN510/620 MSP-213275-4.A2 213275-4	£1.44	£1.73
56 - PIPE 15 HR3210CT/HR3541 MSP-331800-0.A0 331800-0	£3.90	£4.68
57 - *O RING 18 HM0871C/AN510/620 MSP-213275-4.A3 213275-4	£1.44	£1.73
58 - COUNTER WEIGHT HR3210CT/3541 MSP-324862-5.A1 324862-5	£13.58	£16.29
59 - COMPRESSION SPRING 10 HR3210C MSP-234048-2.A0 234048-2	£2.18	£2.62
60 - SPRING GUIDE HR3210CT/3541 MSP-450239-9.A0 450239-9	£1.44	£1.73
61 - O RING 8 BTM40/50/HM0871C MSP-213030-4.A1 213030-4	£1.44	£1.73
62 - PIPE HOLDER HR3210CT/3541 MSP-450248-8.A2 450248-8	£2.18	£2.62
63 - O RING 8 BTM40/50/HM0871C MSP-213030-4.A2 213030-4	£1.44	£1.73
64 - PT SCREW 5X25 KP0810C KP0810 MSP-266041-8.A18 266041-8	£1.44	£1.73
65 - HEX SOCKET BOLT M4X16 EH7500 MSP-922128-3.A23 922128-3	£1.44	£1.73
66 - CRANK HOUSING COVER HR3541 MSP-450593-1 450593-1	£12.95	£15.54
67 - TAPPING SCREW 4X14 VC3211M MSP-266192-7.A96 266192-7	£1.44	£1.73
68 - CRANK CAP COVER HR3210CT/3440 MSP-318201-9.A0 318201-9	£12.01	£14.41
69 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A826 265995-6	£1.44	£1.73
70 - CHANGE LEVER HR3210CT/3450/3 MSP-450249-6.A1 450249-6	£2.81	£3.37
71 - COMPRESSION SPRING 3 HR4011C MSP-233436-0.A3 233436-0	£1.44	£1.73
72 - LOCK BUTTON HR3210/3540/3541 MSP-450250-1.A2 450250-1	£1.44	£1.73
73 - PAN HEAD SCREW M4X16 BHX2501 MSP-911128-8.A59 911128-8	£1.44	£1.73
74 - CRANK CAP HR3210CT/3540/41 MSP-450241-2.A1 450241-2	£3.28	£3.93
75 - O RING 16 9036/AG125/HR3540/4 MSP-213223-3.A4 213223-3	£1.44	£1.73
76 - SPUR GEAR 33 HR3210/3540 MSP-158437-6.A1 158437-6	£1.44	£1.73
77 - SEAL RING B HR3520CT/3540/354 MSP-424064-4.A2 424064-4	£1.44	£1.73
78 - LINK PLATE HR3210/3540/3541 MSP-345868-0.A1 345868-0	£1.44	£1.73
79 - *AIR PIPE HR3210/3540/3541 MSP-450247-0.A2 450247-0	£2.65	£3.18
79-1 - AIR PIPE HR3210/3540/3541 MSP-453866-1.A0 453866-1	£3.28	£3.93
80 - RUBBER PIN 6 DUR/DHR/DTW/DG MSP-263005-3.A633 263005-3	£1.44	£1.73
81-1 - GEAR SHAFT HR3210/3540/3541 MSP-452126-8.A1 452126-8	£2.81	£3.37
82 - O RING 44 HR3450/HR3451 MSP-213579-4.A0 213579-4	£1.44	£1.73
82-1 - GEAR HOUSING HR3210/3541 MSP-158712-0.A4 158712-0	£46.33	£55.60
82 - GEAR HOUSING HR3210/3541 MSP-158712-0.A5 158712-0	£46.33	£55.60
82-1 - O RING 44 HR3450/HR3451 MSP-213579-4.A1 213579-4	£1.44	£1.73
83 - FILTER HR3210CT/3540/3541 MSP-443138-2.A4 443138-2	£1.44	£1.73
84 - O RING 8 BTM40/50/HM0871C MSP-213030-4.A0 213030-4	£1.44	£1.73
85 - FILTER CAP HR3210/3540/3541 MSP-450238-1.A2 450238-1	£1.44	£1.73
86 - CRANK GEAR HR3210CT/3540/3541 MSP-450244-6.A1 450244-6	£1.44	£1.73
87 - O RING 16 9036/AG125/HR3540/4 MSP-213223-3.A5 213223-3	£1.44	£1.73
87-1 - O RING 14 VC3211M/AN942/HR321 MSP-213176-6.A0 213176-6	£1.44	£1.73
88 - CAP HOLDER HR3210CT/3450/345 MSP-450237-3.A1 450237-3	£1.44	£1.73
89 - TAPPING SCREW 4X14 VC3211M MSP-266192-7.A95 266192-7	£1.44	£1.73
90 - CRANK SHAFT HR3210/3540/3541 MSP-324839-0.A3 324839-0	£12.63	£15.16
91 - BALL BEARING 6004LLU HR3000C MSP-211332-2.A1 211332-2	£5.92	£7.11
92 - EXT DIN 471 CIRCLIP-20 VC3211 MSP-961060-6.A22 961060-6	£1.44	£1.73
93 - CONICAL SPRING 21-31 HR3 MSP-231991-6.A0 231991-6	£1.44	£1.73
94 - KEY 4 HR3000C MSP-254239-9.A5 254239-9	£1.44	£1.73
95 - CLUTCH HR3210CT/3540/3541 MSP-324848-9.A0 324848-9	£4.68	£5.62
96 - SPUR GEAR 33 HR3210CT/3540/4 MSP-227188-3.A0 227188-3	£16.28	£19.53
97 - FLAT WASHER 10 7104L/LF1000 MSP-253197-6.A7 253197-6	£1.44	£1.73
98 - RETAINING RING WR-10 HR3210/3 MSP-961036-3.A3 961036-3	£1.44	£1.73
99 - CUP WASHER 18 HR3210CT/3541 MSP-345869-8.A2 345869-8	£1.44	£1.73
100 - SEAL RING A HR3210/3540/3541 MSP-424063-6.A1 424063-6	£1.44	£1.73
101 - GEAR HOUSING HR3210/3540 MSP-158534-8.A3 158534-8	£12.79	£15.35
102 - O RING 28 HM1110/1111/1110C MSP-213415-4.A6 213415-4	£1.44	£1.73
103 - SPIRAL BEVEL GEAR 9 HR3210/35 MSP-227533-2.A2 227533-2	£17.13	£20.56
104 - KEY 4 HR3000C MSP-254239-9.A6 254239-9	£1.44	£1.73
105 - BALL BEARING 6001LLU PW5000C MSP-210105-0.A8 210105-0	£4.99	£5.99
106 - TORQUE LIMITER ASS HR3210CT/F MSP-125421-6.A2 125421-6	£53.07	£63.68
107 - RING 10 HR3210CT/FC MSP-257291-6.A1 257291-6	£1.44	£1.73
108 - BALL BEARING 608DDW GA5020 MSP-210005-4.A36 210005-4	£8.42	£10.11
109 - BAFFLE PLATE HR3210C/3540/354 MSP-450251-9.A1 450251-9	£2.50	£3.00
112 - BALL BEARING 6001LLU PW5000C MSP-210105-0.A7 210105-0	£4.99	£5.99
113 - THIN WASHER 12 8419B/9565H MSP-253084-9.A30 253084-9	£1.44	£1.73
114 - FAN HR3000C/JR3060T/3070/3540 MSP-241863-7.A6 241863-7	£2.18	£2.62
115 - ARMATURE ASSY 110V HR3210/354 MSP-513746-4.A0 513746-4	£61.25	£73.50
115 - ARMATURE ASSY 240V HR3210/354 MSP-513748-0.A3 513748-0	£61.25	£73.50
116 - INSULATION WASHER HM0870/71C MSP-681650-6.A12 681650-6	£6.55	£7.86
117 - BALL BEARING 608DDW GA5020 MSP-210005-4.A37 210005-4	£8.42	£10.11
118 - PT SCREW 5X45 9046/JR3070CT MSP-266056-5.A3 266056-5	£1.44	£1.73
119 - FIELD 110V HR3210CT/3540/41 MSP-625810-0.A0 625810-0	£21.89	£26.27
119 - FIELD 240V HR3210CT/3540/3541 MSP-625813-4.A3 625813-4	£21.89	£26.27
120 - MOTOR HOUSING HR3210/3541 MSP-450260-8.A1 450260-8	£23.62	£28.34
121 - LED CIRCUIT HR3210/3541 MSP-631785-3.A0 631785-3	£11.86	£14.23
122 - CARBON BRUSH CB-350 HR4013C MSP-195004-6.A8 195004-6	£3.90	£4.68
123 - REAR COVER HR3210CT/FCT MSP-450253-5.A1 450253-5	£6.08	£7.30
124 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A1178 265995-6	£1.44	£1.73
125 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A1271 265995-6	£1.44	£1.73
126-1 - BRUSH HOLDER UNIT HR3540/3541 MSP-638646-8.A0 638646-8	£10.77	£12.92
126 - BRUSH HOLDER UNIT HR3210CT/FC MSP-638519-5.A2 638519-5	£11.23	£13.48
127 - CONTROLLER 110V HR3210/3541 MSP-631781-1.A0 631781-1	£63.50	£76.20
127 - CONTROLLER 240V HR3210/3540 MSP-631783-7.A0 631783-7	£59.92	£71.91
128 - TAPPING SCREW 4X14 VC3211M MSP-266192-7.A68 266192-7	£1.44	£1.73
128-1 - TAPPING SCREW 4X14 HR4011C MSP-266901-4.A4 266901-4	£1.44	£1.73
129 - LEAD UNIT HR4011C/3210/3540/4 MSP-638406-8.A3 638406-8	£1.44	£1.73
130 - CORD CLAMP BASE HR3210CT/3540 MSP-450246-2.A0 450246-2	£1.44	£1.73
131-1 - TAPPING SCREW 4X14 HR4011C MSP-266901-4.A3 266901-4	£1.44	£1.73
131 - TAPPING SCREW 4X14 VC3211M MSP-266192-7.A67 266192-7	£1.44	£1.73
132 - STRAIN RELIEF GA/GD/SG125 MSP-687169-3.A49 687169-3	£1.44	£1.73
133 - TAPPING SCREW 4X14 VC3211M MSP-266192-7.A69 266192-7	£1.44	£1.73
134 - LENS HR3210CT/3540/3541 MSP-450240-4.A2 450240-4	£1.44	£1.73
135 - CORD GUARD 10 HM1317C/CB/HR30 MSP-682560-0.A9 682560-0	£2.34	£2.81
136 - POWER SUPPLY CORD 1.5-2-4.0 MSP-692623-4.A10 692623-4	£32.69	£39.23
137 - PT SCREW 5X25 KP0810C KP0810 MSP-266041-8.A95 266041-8	£1.44	£1.73
138 - PT SCREW 5X25 KP0810C KP0810 MSP-266041-8.A100 266041-8	£1.44	£1.73
139 - SHOULDER SLEEVE 6 HM0871C/HR MSP-450352-3.A3 450352-3	£1.44	£1.73
140 - NAME PLATE HR3541 MSP-865380-9 865380-9	£1.44	£1.73
141 - PAN HD SCREW M5X20 W/CP WASHE MSP-911233-1.A63 911233-1	£1.44	£1.73
142 - PT SCREW 5X40 M6600 MSP-266211-9.A5 266211-9	£1.44	£1.73
143 - BLUE WASHER 5 HM0871C/6811D MSP-267066-5.A6 267066-5	£1.44	£1.73
144 - COMPRESSION SPRING 11 HR3210C MSP-234051-3.A1 234051-3	£1.44	£1.73
145 - HANDLE BASE HR3210/3541 MSP-450255-1.A0 450255-1	£17.86	£21.43
146 - DUST COVER SUPPORT HR4011C MSP-419014-2.A3 419014-2	£1.44	£1.73
147 - DUST COVER HR4011C/3210/3541 MSP-421912-8.A1 421912-8	£3.28	£3.93
148 - HANDLE HR3541/HR3210CT/FCT MSP-450256-9.A2 450256-9	£8.58	£10.30
149 - SWITCH LEVER HR4011C/HR4511C MSP-419025-7.A0 419025-7	£2.18	£2.62
150 - SWITCH HOLDER HR4011C/45 MSP-154626-1.A4 154626-1	£2.18	£2.62
151-1 - SWITCH TG73B-1 HR4011C/4001C MSP-650676-9.A3 650676-9	£12.32	£14.79
152 - HANDLE COVER HR3210/3540/354 MSP-450257-7.A1 450257-7	£14.82	£17.78
153 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A1139 265995-6	£1.44	£1.73
154 - FLAT WASHER 22 HR3210C/FCT MSP-267383-3.A2 267383-3	£1.44	£1.73
155 - WAVE WAHER 15 HR3210CT/3540 MSP-267721-9.A2 267721-9	£1.44	£1.73
156 - O RING 9 HR3210 MSP-213083-3.A0 213083-3	£1.44	£1.73
A02 - DEPTH ROD HR3500/3820/HR3000C MSP-321248-4.A7 321248-4	£3.17	£3.80
A02 - HEX FULL NUT M6 LF1000/DST111 MSP-931302-2.A7 931302-2	£1.44	£1.73
A02 - PLATE HR3000C/4000C/5001C/354 MSP-344492-6.A11 344492-6	£1.44	£1.73
A02 - WING SCREW M6X14 HS7611 MSP-265701-9.A32 265701-9	£2.18	£2.62
A02 - CUP SQUARE NECK BOLT M6X80 MSP-266163-4.A1 266163-4	£3.28	£3.93
A02 - GRIP 36 ASSY HR3540/3541/4001 MSP-135209-6.A0 135209-6	£13.82	£16.59
A01-2 - GREASE VESSEL SET FOR HAMMERS MSP-198993-4.A12 198993-4	£6.86	£8.23
A02 - CUP SPRING 68 HR4000C/HR4511C MSP-344491-8.A1 344491-8	£7.49	£8.99
A02 - SIDE GRIP BASE HR3540C/4511C MSP-416299-1.A1 416299-1	£8.89	£10.67
A03 - LATCH/PLASTIC CASE 824697-9 MSP-163467-4.A4 163467-4	£1.47	£1.76
A03 - PLASTIC CASE HR3540/HR3541 MSP-824819-1.A0 824819-1	£42.49	£50.99
A03-1 - PLASTIC CASE HR3210CT/FCT MSP-824825-6.A0 824825-6	£47.12	£56.55
A04 - CLOTH BHR262/HR4011C/4001C MSP-443122-7.A15 443122-7	£3.59	£4.31
A03-1 - LATCH/PLASTIC CASE 824697-9 MSP-163467-4.A5 163467-4	£1.47	£1.76
A05 - CAUTION CARD HR3210CT/FC MSP-810409-6.A1 810409-6	£1.44	£1.73
E02 - *NON INSULATED TERMINAL GD0801 MSP-654091-9.A30 654091-9	£1.44	£1.73

Attribute Name	Value
Brand	Makita

Reviews Write your own review!

There are currently no reviews of this product.

Fill in the form below to add your review for Makita HR3541FC Combination Hammer Spare Parts

Your Review
Title Required!
Rating Required!
Your Review Required!
Your Details
Your Name Required!
Your Location Required!
Email Address Required!Invalid email!

United Kingdom (Including N. Ireland)

On orders up to £40.00	Add £4.00 inc VAT (Royal Mail post)
On orders £40.00 to £130.00	Add £7.00 inc VAT (Courier)
On orders over £130.00	FREE (Courier)
