Makita HR3540C Combination Hammer Spare Parts

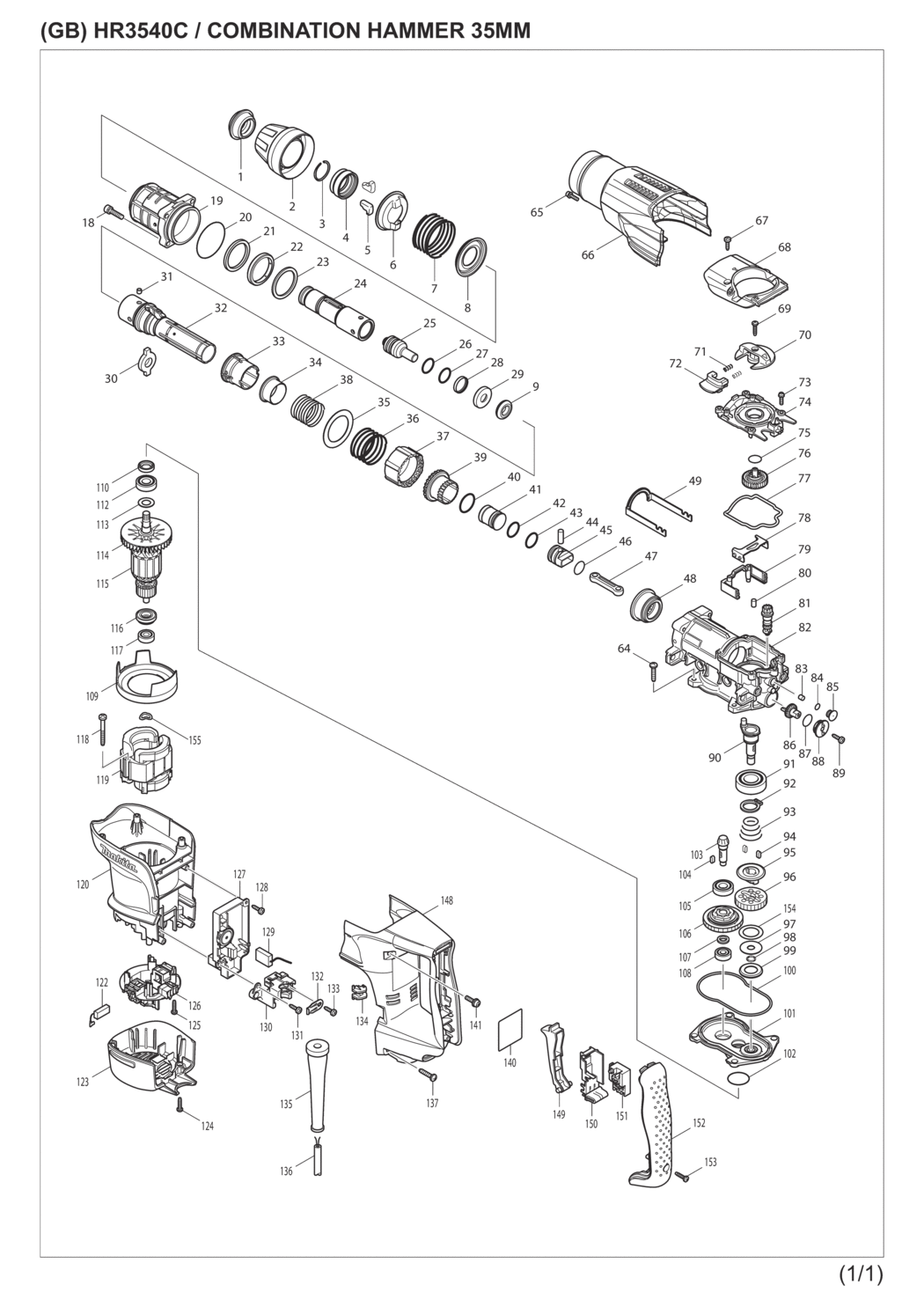

An exploded drawing and spare parts listing for the Makita HR3540C Combination Hammer

	Ex VAT	Inc VAT
1 - TOOL HOLDER CAP HM0860C/HR354 MSP-286269-2.A1 286269-2	£1.44	£1.73
2 - CHUCK COVER HR3540/HR3541 MSP-450592-3.A1 450592-3	£3.90	£4.68
3 - RING SPRING 25 HR5001C/HM1202 MSP-231984-3.A3 231984-3	£1.44	£1.73
4 - CHUCK RING HR3540/3541 MSP-331823-8.A1 331823-8	£15.58	£18.70
5 - TOOL RETAINER HR3540/HR3541 MSP-310257-8.A1 310257-8	£6.55	£7.86
6 - SPRING GUIDE HR3540/HR3541 MSP-345928-8.A1 345928-8	£8.58	£10.30
7 - COMPRESSION SPRING 52 HR3540/ MSP-234063-6.A1 234063-6	£4.06	£4.87
8 - SPRING HOLDER HR3540/HR3541 MSP-345976-7.A0 345976-7	£3.90	£4.68
9 - RUBBER SPRING 13 HR3540/3541 MSP-424110-3.A1 424110-3	£8.89	£10.67
18 - CAP HD SCREW M6X25 HM0870/71C MSP-922341-3.A9 922341-3	£1.44	£1.73
19 - O RING 39 HR3450/HR3451 MSP-213533-8.A0 213533-8	£1.44	£1.73
19 - BARREL HR3540/HR3541 MSP-158674-2.A1 158674-2	£43.60	£52.32
19 - OIL SEAL HR3540/3541 MSP-213498-4.A1 213498-4	£5.78	£6.93
19 - PLANE BEARING 38 HR3540/3541 MSP-214508-0.A0 214508-0	£5.92	£7.11
20 - O RING 53 BO3710/3711/HM0860C MSP-213656-2.A15 213656-2	£1.44	£1.73
21 - RING 38 HR3540/3541 MSP-257294-0.A1 257294-0	£9.20	£11.04
22 - URETHANE RING 38 HR3540/3541 MSP-262143-8.A0 262143-8	£2.18	£2.62
23 - FLAT WAHSER 39 HR3540/3541 MSP-267381-7.A1 267381-7	£3.28	£3.93
24 - TOOL HOLDER HR3540/HR3541 MSP-324900-3.A0 324900-3	£64.89	£77.87
25 - IMPACT BOLT HR3540/3541 MSP-324901-1.A1 324901-1	£12.95	£15.54
26 - O RING 19 HK1800/HR3540X41 MSP-213309-3.A3 213309-3	£4.06	£4.87
27 - O RING 19 HK1800/HR3540X41 MSP-213309-3.A4 213309-3	£4.06	£4.87
28 - FLOURO CARBON RESIN RING 24 H MSP-213996-8.A1 213996-8	£6.71	£8.05
29 - RING 13 HR3540/3541 MSP-324899-2.A0 324899-2	£6.71	£8.05
30 - SLIDE PLATE HR3210/3540/3541 MSP-324838-2.A1 324838-2	£2.50	£3.00
31 - PIN 6 HR3210CT/FCT/HK1820/L MSP-256266-2.A1 256266-2	£1.44	£1.73
32 - CYLINDER 25 HR3540/HR3541 MSP-331822-0.A0 331822-0	£130.68	£156.82
33 - SLIDE SLEEVE HR3210/3540/354 MSP-450243-8.A3 450243-8	£1.44	£1.73
34 - RING 29 HR3210CT/FC MSP-331805-0.A3 331805-0	£9.98	£11.98
35 - FLAT WASHER 40 HR3210/3540/4 MSP-267360-5.A2 267360-5	£1.44	£1.73
36 - COMPRESSION SPRING 42 HR3210C MSP-234052-1.A1 234052-1	£2.65	£3.18
37 - LOCK SLEEVE HR3210/3540/3541 MSP-450236-5.A3 450236-5	£1.44	£1.73
38 - COMPRESSION SPRING 34 HR3210F MSP-234050-5.A2 234050-5	£2.50	£3.00
39 - DRIVING SLEEVE HR3210CT/3540 MSP-331795-7.A2 331795-7	£25.20	£30.24
40 - O RING 26 5621RD/HR3540X41 MSP-213434-0.A1 213434-0	£1.44	£1.73
41 - STRIKER HR3540/HR3541 MSP-324898-4.A1 324898-4	£7.64	£9.17
42 - O RING 18 HR3210CT/FCT/HK1800 MSP-213283-5.A4 213283-5	£2.18	£2.62
43 - O RING 18 HR3210CT/FCT/HK1800 MSP-213283-5.A7 213283-5	£2.18	£2.62
44 - PIN 7 HR3210CT/FCT/HK1820/L MSP-256087-2.A1 256087-2	£1.44	£1.73
45 - PISTON HR3210CT/3540/3541 MSP-324918-4.A1 324918-4	£19.58	£23.50
46 - O RING 16 BFS440/AN942/BFR540 MSP-213262-3.A16 213262-3	£1.44	£1.73
47 - CONNECTING ROD HR3210CT/3540 MSP-450235-7.A0 450235-7	£3.67	£4.40
48 - SPIRAL BEVEL GEAR 37 HR3210CT MSP-227531-6.A2 227531-6	£34.28	£41.13
49 - LINK ARM HR3210CT/3540/3541 MSP-345867-2.A3 345867-2	£5.78	£6.93
64 - PT SCREW 5X25 KP0810C KP0810 MSP-266041-8.A20 266041-8	£1.44	£1.73
65 - HEX SOCKET BOLT M4X16 EH7500 MSP-922128-3.A25 922128-3	£1.44	£1.73
66 - CRANK HOUSING COVER HR3540 MSP-450594-9 450594-9	£12.79	£15.35
67 - TAPPING SCREW 4X14 VC3211M MSP-266192-7.A93 266192-7	£1.44	£1.73
68 - CRANK CAP COVER HR3210CT/3440 MSP-318201-9.A1 318201-9	£12.01	£14.41
69 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A823 265995-6	£1.44	£1.73
70 - CHANGE LEVER HR3210CT/3450/3 MSP-450249-6.A2 450249-6	£2.81	£3.37
71 - COMPRESSION SPRING 3 HR4011C MSP-233436-0.A4 233436-0	£1.44	£1.73
72 - LOCK BUTTON HR3210/3540/3541 MSP-450250-1.A1 450250-1	£1.44	£1.73
73 - PAN HEAD SCREW M4X16 BHX2501 MSP-911128-8.A58 911128-8	£1.44	£1.73
74 - CRANK CAP HR3210CT/3540/41 MSP-450241-2.A0 450241-2	£3.28	£3.93
75 - O RING 16 9036/AG125/HR3540/4 MSP-213223-3.A3 213223-3	£1.44	£1.73
76 - SPUR GEAR 33 HR3210/3540 MSP-158437-6.A2 158437-6	£1.44	£1.73
77 - SEAL RING B HR3520CT/3540/354 MSP-424064-4.A1 424064-4	£1.44	£1.73
78 - LINK PLATE HR3210/3540/3541 MSP-345868-0.A0 345868-0	£1.44	£1.73
79-1 - AIR PIPE HR3210/3540/3541 MSP-453866-1.A1 453866-1	£3.28	£3.93
79 - *AIR PIPE HR3210/3540/3541 MSP-450247-0.A1 450247-0	£2.65	£3.18
80 - RUBBER PIN 6 DUR/DHR/DTW/DG MSP-263005-3.A634 263005-3	£1.44	£1.73
81-1 - GEAR SHAFT HR3210/3540/3541 MSP-452126-8.A0 452126-8	£2.81	£3.37
82 - CRANK HOUSING CO HR3540 MSP-158713-8.A0 158713-8	£48.58	£58.29
82 - O RING 44 HR3450/HR3451 MSP-213579-4.A3 213579-4	£1.44	£1.73
82-1 - CRANK HOUSING CO HR3540 MSP-158713-8.A1 158713-8	£48.58	£58.29
82-1 - O RING 44 HR3450/HR3451 MSP-213579-4.A2 213579-4	£1.44	£1.73
83 - FILTER HR3210CT/3540/3541 MSP-443138-2.A5 443138-2	£1.44	£1.73
84 - O RING 8 BTM40/50/HM0871C MSP-213030-4.A8 213030-4	£1.44	£1.73
85 - FILTER CAP HR3210/3540/3541 MSP-450238-1.A3 450238-1	£1.44	£1.73
86 - CRANK GEAR HR3210CT/3540/3541 MSP-450244-6.A0 450244-6	£1.44	£1.73
87-1 - O RING 14 VC3211M/AN942/HR321 MSP-213176-6.A1 213176-6	£1.44	£1.73
87 - O RING 16 9036/AG125/HR3540/4 MSP-213223-3.A2 213223-3	£1.44	£1.73
88 - CAP HOLDER HR3210CT/3450/345 MSP-450237-3.A0 450237-3	£1.44	£1.73
89 - TAPPING SCREW 4X14 VC3211M MSP-266192-7.A94 266192-7	£1.44	£1.73
90 - CRANK SHAFT HR3210/3540/3541 MSP-324839-0.A2 324839-0	£12.63	£15.16
91 - BALL BEARING 6004LLU HR3000C MSP-211332-2.A2 211332-2	£5.92	£7.11
92 - EXT DIN 471 CIRCLIP-20 VC3211 MSP-961060-6.A24 961060-6	£1.44	£1.73
93 - CONICAL SPRING 21-31 HR3 MSP-231991-6.A1 231991-6	£1.44	£1.73
94 - KEY 4 HR3000C MSP-254239-9.A8 254239-9	£1.44	£1.73
95 - CLUTCH HR3210CT/3540/3541 MSP-324848-9.A1 324848-9	£4.68	£5.62
96 - SPUR GEAR 33 HR3210CT/3540/4 MSP-227188-3.A1 227188-3	£16.28	£19.53
97 - FLAT WASHER 10 7104L/LF1000 MSP-253197-6.A6 253197-6	£1.44	£1.73
98 - RETAINING RING WR-10 HR3210/3 MSP-961036-3.A2 961036-3	£1.44	£1.73
99 - CUP WASHER 18 HR3210CT/3541 MSP-345869-8.A3 345869-8	£1.44	£1.73
100 - SEAL RING A HR3210/3540/3541 MSP-424063-6.A2 424063-6	£1.44	£1.73
101 - GEAR HOUSING HR3210/3540 MSP-158534-8.A2 158534-8	£12.79	£15.35
102 - O RING 28 HM1110/1111/1110C MSP-213415-4.A5 213415-4	£1.44	£1.73
103 - SPIRAL BEVEL GEAR 9 HR3210/35 MSP-227533-2.A1 227533-2	£17.13	£20.56
104 - KEY 4 HR3000C MSP-254239-9.A7 254239-9	£1.44	£1.73
105 - BALL BEARING 6001LLU PW5000C MSP-210105-0.A6 210105-0	£4.99	£5.99
106 - TORQUE LIMITER ASS HR3210CT/F MSP-125421-6.A1 125421-6	£53.07	£63.68
107 - RING 10 HR3210CT/FC MSP-257291-6.A2 257291-6	£1.44	£1.73
108 - BALL BEARING 608DDW GA5020 MSP-210005-4.A34 210005-4	£8.42	£10.11
109 - BAFFLE PLATE HR3210C/3540/354 MSP-450251-9.A2 450251-9	£2.50	£3.00
112 - BALL BEARING 6001LLU PW5000C MSP-210105-0.A5 210105-0	£4.99	£5.99
113 - THIN WASHER 12 8419B/9565H MSP-253084-9.A31 253084-9	£1.44	£1.73
114 - FAN HR3000C/JR3060T/3070/3540 MSP-241863-7.A5 241863-7	£2.18	£2.62
115 - ARMATURE ASSY 240V HR3210/354 MSP-513748-0.A2 513748-0	£61.25	£73.50
115 - ARMATURE ASSY 110V HR3210/354 MSP-513746-4.A1 513746-4	£61.25	£73.50
116 - INSULATION WASHER HM0870/71C MSP-681650-6.A14 681650-6	£6.55	£7.86
117 - BALL BEARING 608DDW GA5020 MSP-210005-4.A33 210005-4	£8.42	£10.11
118 - PT SCREW 5X45 9046/JR3070CT MSP-266056-5.A2 266056-5	£1.44	£1.73
119 - FIELD 110V HR3210CT/3540/41 MSP-625810-0.A1 625810-0	£21.89	£26.27
119 - FIELD 240V HR3210CT/3540/3541 MSP-625813-4.A2 625813-4	£21.89	£26.27
120 - MOTOR HOUSING HR3210/3540 MSP-450252-7.A1 450252-7	£23.62	£28.34
122 - CARBON BRUSH CB-350 HR4013C MSP-195004-6.A6 195004-6	£3.90	£4.68
123 - REAR COVER HR3210CT/FCT MSP-450253-5.A0 450253-5	£6.08	£7.30
124 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A1193 265995-6	£1.44	£1.73
125 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A1256 265995-6	£1.44	£1.73
126 - BRUSH HOLDER UNIT HR3210CT/FC MSP-638519-5.A1 638519-5	£11.23	£13.48
126-1 - BRUSH HOLDER UNIT HR3540/3541 MSP-638646-8.A1 638646-8	£10.77	£12.92
127 - CONTROLLER 240V HR32103540 MSP-631784-5.A1 631784-5	£55.97	£67.16
127 - CONTROLLER 110V HR3010C/HR304 MSP-631782-9.A1 631782-9	£61.25	£73.50
128 - TAPPING SCREW 4X14 VC3211M MSP-266192-7.A91 266192-7	£1.44	£1.73
128-1 - TAPPING SCREW 4X14 HR4011C MSP-266901-4.A9 266901-4	£1.44	£1.73
129 - LEAD UNIT HR4011C/3210/3540/4 MSP-638406-8.A4 638406-8	£1.44	£1.73
130 - CORD CLAMP BASE HR3210CT/3540 MSP-450246-2.A2 450246-2	£1.44	£1.73
131-1 - TAPPING SCREW 4X14 HR4011C MSP-266901-4.A10 266901-4	£1.44	£1.73
131 - TAPPING SCREW 4X14 VC3211M MSP-266192-7.A90 266192-7	£1.44	£1.73
132 - STRAIN RELIEF GA/GD/SG125 MSP-687169-3.A29 687169-3	£1.44	£1.73
133 - TAPPING SCREW 4X14 VC3211M MSP-266192-7.A92 266192-7	£1.44	£1.73
134 - LENS HR3210CT/3540/3541 MSP-450240-4.A3 450240-4	£1.44	£1.73
135 - CORD GUARD 10 HM1317C/CB/HR30 MSP-682560-0.A20 682560-0	£2.34	£2.81
136 - POWER SUPPLY CORD 1.5-2-4.0 MSP-692623-4.A6 692623-4	£32.69	£39.23
137 - PT SCREW 5X25 KP0810C KP0810 MSP-266041-8.A19 266041-8	£1.44	£1.73
140 - NAME PLATE HR3540 MSP-865375-2 865375-2	£1.44	£1.73
141 - PAN HD SCREW M5X20 W/CP WASHE MSP-911233-1.A74 911233-1	£1.44	£1.73
148 - HANDLE HR3450 /3541 MSP-450262-4 450262-4	£5.78	£6.93
149 - SWITCH LEVER HR4011C/HR4511C MSP-419025-7.A3 419025-7	£2.18	£2.62
150 - SWITCH HOLDER HR4011C/45 MSP-154626-1.A1 154626-1	£2.18	£2.62
151-1 - SWITCH TG73B-1 HR4011C/4001C MSP-650676-9.A6 650676-9	£12.32	£14.79
152 - HANDLE COVER HR3210/3540/354 MSP-450257-7.A2 450257-7	£14.82	£17.78
153 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A822 265995-6	£1.44	£1.73
154 - FLAT WASHER 22 HR3210C/FCT MSP-267383-3.A0 267383-3	£1.44	£1.73
155 - WAVE WAHER 15 HR3210CT/3540 MSP-267721-9.A4 267721-9	£1.44	£1.73
156 - O RING 9 HR3210 MSP-213083-3.A2 213083-3	£1.44	£1.73
A02 - WING SCREW M6X14 HS7611 MSP-265701-9.A25 265701-9	£2.18	£2.62
A02 - CUP SPRING 68 HR4000C/HR4511C MSP-344491-8.A2 344491-8	£7.49	£8.99
A02 - DEPTH ROD HR3500/3820/HR3000C MSP-321248-4.A10 321248-4	£3.17	£3.80
A02 - HEX FULL NUT M6 LF1000/DST111 MSP-931302-2.A33 931302-2	£1.44	£1.73
A02 - SIDE GRIP BASE HR3540C/4511C MSP-416299-1.A5 416299-1	£8.89	£10.67
A02 - CUP SQUARE NECK BOLT M6X80 MSP-266163-4.A8 266163-4	£3.28	£3.93
A01-2 - GREASE VESSEL SET FOR HAMMERS MSP-198993-4.A3 198993-4	£6.86	£8.23
A02 - GRIP 36 ASSY HR3540/3541/4001 MSP-135209-6.A2 135209-6	£13.82	£16.59
A02 - PLATE HR3000C/4000C/5001C/354 MSP-344492-6.A9 344492-6	£1.44	£1.73
A03 - LATCH/PLASTIC CASE 824697-9 MSP-163467-4.A14 163467-4	£1.47	£1.76
A03 - PLASTIC CASE HR3540/HR3541 MSP-824819-1.A1 824819-1	£42.49	£50.99
A04 - CLOTH BHR262/HR4011C/4001C MSP-443122-7.A23 443122-7	£3.59	£4.31
A05 - CAUTION CARD HR3210CT/FC MSP-810409-6.A2 810409-6	£1.44	£1.73
E02 - *NON INSULATED TERMINAL GD0801 MSP-654091-9.A144 654091-9	£1.44	£1.73
