Makita HR2611FX2 Combination Hammer Spare Parts

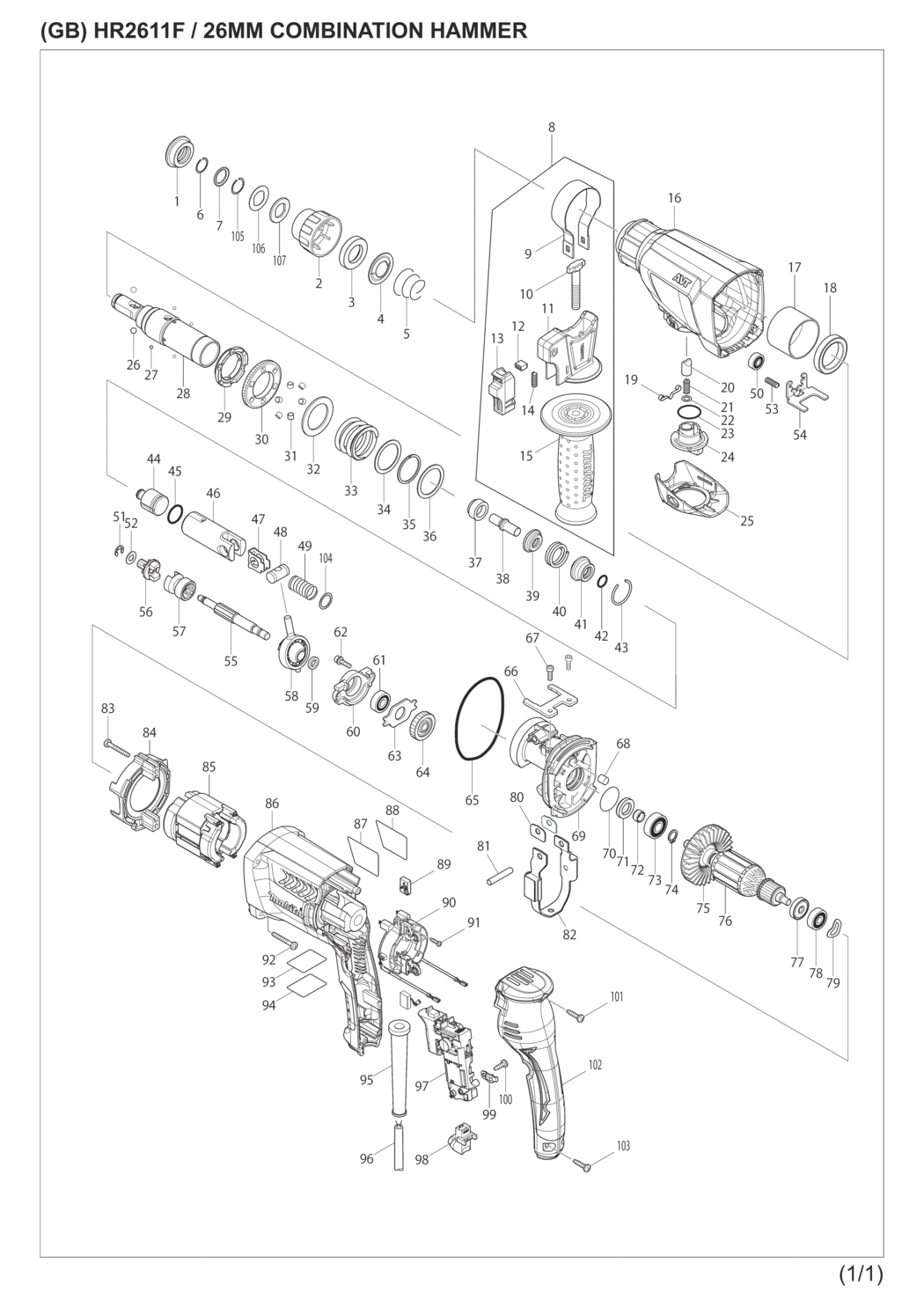

An exploded drawing and spare parts listing for the Makita HR2611FX2 Combination Hammer

	Ex VAT	Inc VAT
1 - CAP 35 HR2300/2600/2601/M8701 MSP-286288-8.A8 286288-8	£1.66	£1.99
2 - CHUCK COVER DHR242/HR2611F MSP-451533-2.A1 451533-2	£1.66	£1.99
3 - RING 21 HR2300/2600/2601/2630 MSP-325813-1.A19 325813-1	£1.44	£1.73
4 - GUIDE WASHER HR2300/2601/260 MSP-346177-0.A9 346177-0	£1.44	£1.73
5 - CONICAL SPRING 21-29 DHR MSP-233916-6.A50 233916-6	£1.66	£1.99
6 - RING SPRING 14 HR2300/2600/01 MSP-233989-9.A12 233989-9	£1.44	£1.73
7 - WASHER 16 DHR242/HR2611F MSP-346221-3.A8 346221-3	£1.44	£1.73
8 - GRIP ASSY HR2300/2600/2601 MSP-122878-2.A12 122878-2	£8.56	£10.27
9 - GRIP SPRING 50 HR2300/2600/26 MSP-346181-9.A9 346181-9	£2.50	£3.00
10 - SQUARE BOLT M8 6319/6339/634 MSP-266349-0.A2 266349-0	£2.50	£3.00
11 - GRIP BASE HR2300/26/2611 MSP-451539-0.A14 451539-0	£1.44	£1.73
12 - *RACK HR2300/26/2611F MSP-313179-1.A1 313179-1	£1.44	£1.73
13-1 - LOCK BUTTON CO HR2300/26/2611 MSP-141765-6.A9 141765-6	£1.44	£1.73
13 - *LOCK BUTTON HR2300/26/2611 MSP-451540-5.A1 451540-5	£1.44	£1.73
14 - COMPRESSION SPRING 4 MT240 MSP-233360-7.A23 233360-7	£1.44	£1.73
15 - GRIP 36 HR2300/2600/2601 MSP-154935-8.A3 154935-8	£3.64	£4.37
16 - LABEL/INDICATION HR2610T2611 MSP-816445-0.A6 816445-0	£1.44	£1.73
16 - GEAR HOUSING HR2611F MSP-140423-1.A0 140423-1	£12.17	£14.60
16 - OIL SEAL HR2610T/2611FT/HR263 MSP-213636-8.A15 213636-8	£6.55	£7.86
17 - CUP SLEEVE HR2300/26/2611 MSP-331890-3.A21 331890-3	£3.74	£4.49
18 - BALL BEARING 6806LLU HR2300 MSP-211294-4.A6 211294-4	£12.48	£14.98
19 - LEAF SPRING BJR181/6832 MSP-232152-1.A11 232152-1	£2.18	£2.62
20-1 - PUSH CORN HR2300/26/2611 MSP-326850-8.A15 326850-8	£1.66	£1.99
21 - COMPRESSION SPRING 5 HR2300 MSP-234147-0.A3 234147-0	£1.44	£1.73
22 - THIN WASHER 6 AN451/4300SB MSP-253308-3.A8 253308-3	£1.44	£1.73
23 - O RING 21 HR3511 MSP-213381-5.A18 213381-5	£3.74	£4.49
24 - CHANGE LEVER A HR2610T/2611FT MSP-451529-3.A3 451529-3	£1.74	£2.09
25 - CHANGE LEVER COVER A HR2610T/ MSP-451530-8.A3 451530-8	£1.44	£1.73
26 - STEEL BALL 7.0 M3601/M8701 MSP-216022-2.A32 216022-2	£1.66	£1.99
27 - STEEL BALL 3 HR1840/M8701 MSP-216019-1.A149 216019-1	£1.44	£1.73
28 - *TOOL HOLDER CO HR2601 MSP-140265-3.A5 140265-3	£33.41	£40.09
29-1 - DRIVING FLANGE *MODIFIED PART* USE WITH MSP-227360-7 MSP-332139-4.A28 332139-4	£5.62	£6.74
30-1 - SPUR GEAR 51 *MODIFIED PART* USE WITH MSP-332139-4 MSP-227360-7.A15 227360-7	£7.02	£8.42
31 - PIN 6 HK1820/L DHR242/DHR243 MSP-268226-2.A21 268226-2	£5.46	£6.55
33 - COMPRESSION SPRING 31 HR2300 MSP-234148-8.A25 234148-8	£2.02	£2.43
34 - FLAT WASHER 30 HR2300/2601/26 MSP-267153-0.A59 267153-0	£1.44	£1.73
35 - SPIRO LOCK WASHER 30 HR2300-1 MSP-257932-4.A5 257932-4	£4.83	£5.80
36 - FLAT WASHER 30 HR2300/2601/26 MSP-267153-0.A58 267153-0	£1.44	£1.73
37 - SLEEVE 9B HR2601/2610T/2611FT MSP-325783-4.A2 325783-4	£1.44	£1.73
38 - IMPACT BOLT HR2300/2600/2601 MSP-325789-2.A12 325789-2	£1.44	£1.73
39 - WASHER 10 HR2610T/2611FT MSP-325792-3.A19 325792-3	£1.96	£2.35
40 - COMPRESSION SPRING 20 HR2610T MSP-234149-6.A2 234149-6	£1.44	£1.73
41 - O RING CASE B HR2601/2611FT MSP-325793-1.A0 325793-1	£2.65	£3.18
42 - O RING 9 HR2020/2440/2450/243 MSP-213073-6.A54 213073-6	£1.44	£1.73
43 - RING SPRING 28 HR23/2600/2601 MSP-233979-2.A23 233979-2	£1.44	£1.73
44 - STRIKER HR2300/26/2611 MSP-325784-2.A14 325784-2	£3.28	£3.93
45 - O RING 17.5 HR2210/HR2630T MSP-213258-4.A17 213258-4	£2.34	£2.81
46 - PISTON CYLINDER HR2300/26/261 MSP-310345-1.A16 310345-1	£10.30	£12.36
47 - GUIDE PLATE BHR261/262/BHR262 MSP-346036-8.A25 346036-8	£1.44	£1.73
48 - PISTON JOINT HR2020/2440/2450 MSP-324215-8.A74 324215-8	£1.44	£1.73
49 - COMPRESSION SPRING 14 BHR261/ MSP-234098-7.A6 234098-7	£1.44	£1.73
50 - BALL BEARING 606ZZ HR2410/DH MSP-211012-0.A90 211012-0	£13.88	£16.66
50-1 - BALL BEARING 606ZZ MT431/CC30 MSP-210028-2.A28 210028-2	£3.23	£3.88
51 - EXT E-RING JIS JE-6 MSP-961012-7.A19 961012-7	£1.44	£1.73
51-1 - EXT E-RING JIS U-6J HR2630 MSP-257336-0.A6 257336-0	£1.44	£1.73
52-1 - THIN WASHER 7 HR160D/LF1000 MSP-253186-1.A13 253186-1	£1.44	£1.73
53 - COMPRESSION SPRING 4 MT240 MSP-233360-7.A24 233360-7	£1.44	£1.73
54 - LOCK PLATE HR2610T/2611FT MSP-346176-2.A3 346176-2	£1.44	£1.73
55 - CAM SHAFT HR2610T/2611FT MSP-325786-8.A1 325786-8	£5.92	£7.11
56 - SPUR GEAR 10 HR2610T/2611FT MSP-227231-8.A6 227231-8	£26.92	£32.31
57 - *CLUTCH CAM A HR2601T/2611FT MSP-331814-9.A14 331814-9	£5.78	£6.93
57-1 - CLUTCH CAM A HR2601T/2611FT MSP-326849-3.A0 326849-3	£5.92	£7.11
58 - SWASH BEARING 10 HR2300/2611 MSP-219020-5.A8 219020-5	£34.99	£41.99
59 - FLAT WASHER 8 HR2020/2440/245 MSP-267234-0.A41 267234-0	£1.44	£1.73
60 - BEARING BOX HR2300/26/2611 MSP-310344-3.A8 310344-3	£2.97	£3.56
61 - BALL BEARING 608ZZCNM/2A BUR1 MSP-211032-4.A122 211032-4	£9.05	£10.86
62 - HEX SOCKET BOLT M4X16 HR4001C MSP-266437-3.A16 266437-3	£1.44	£1.73
63 - BEARING RETAINER HR23/26/2611 MSP-285735-6.A10 285735-6	£1.44	£1.73
64 - HELICAL GEAR 26 HR23/26/2611F MSP-227719-8.A7 227719-8	£4.83	£5.80
65 - O RING 68 HR2630T/HR2630 MSP-213728-3.A25 213728-3	£1.44	£1.73
66 - PLATE HR2610T/2611FT MSP-346222-1.A3 346222-1	£1.44	£1.73
67 - HEX BOLT M4X12 4340/SMA400 MSP-265353-6.A9 265353-6	£1.44	£1.73
68 - FELT HR2300/2600/2601/2610/11 MSP-443153-6.A26 443153-6	£1.44	£1.73
69 - *INNDER HOUSING HR2601/2 MSP-140267-9.A4 140267-9	£14.20	£17.04
70 - O RING 26 3901/4101RH/HR2630T MSP-213407-3.A36 213407-3	£1.44	£1.73
71-1 - OIL SEAL 12 MT870/HR2601/2630 MSP-213678-2.A12 213678-2	£6.08	£7.30
72 - SLEEVE 9 HR2300/26/2611 MSP-262569-4.A4 262569-4	£1.44	£1.73
73 - BALL BEARING 6000LLB HIGH SPE MSP-211097-6.A6 211097-6	£7.18	£8.61
74 - EXT DIN 471 CIRCLIP-10 KP0810 MSP-961006-2.A8 961006-2	£1.44	£1.73
75 - FAN65 HR23/26/2601/2610/2611F MSP-240121-8.A10 240121-8	£1.44	£1.73
76 - ARMATURE ASSY 110V HR26/2610 MSP-518156-0.A14 518156-0	£39.17	£47.00
76 - ARMATURE ASSY 240V HR26/2610 MSP-515359-7.A7 515359-7	£39.17	£47.00
77 - INSULATION WASHER BO5041/M9203 MSP-681652-2.A20 681652-2	£1.44	£1.73
78 - BALL BEARING 627DDW MSP-210023-2.A78 210023-2	£3.59	£4.31
79 - WAVE WASHER 15 HR2230/2460/24 MSP-267804-5.A25 267804-5	£1.44	£1.73
80 - WEIGHT HOLDER GUIDE HR2601/FT MSP-346180-1.A3 346180-1	£1.44	£1.73
81 - PIN 6 LS1216/HR2630 MSP-256246-8.A8 256246-8	£1.44	£1.73
82 - COUNTER WEIGHT HR2601/2611FT MSP-165593-5.A5 165593-5	£7.18	£8.61
83 - TAPPING SCREW 4X30 BGA454/504 MSP-266361-0.A47 266361-0	£1.44	£1.73
84 - BAFFLE PLATE HR2300/26/2611 MSP-451527-7.A8 451527-7	£1.44	£1.73
85 - FIELD 110V HR2600/2601/2611 MSP-628185-6.A14 628185-6	£24.48	£29.38
85 - FIELD 240V HR2600/2610T/2611F MSP-626634-7.A3 626634-7	£24.48	£29.38
86 - MOTOR HOUSING HR2611FT MSP-451535-8.A5 451535-8	£11.39	£13.67
88 - *LABEL/CLEAR HR2300-HR2611FT MSP-819390-8.A2 819390-8	£1.44	£1.73
89 - CARBON BRUSH CB-325 9553-9555 MSP-194074-2.A37 194074-2	£4.94	£5.93
90 - BRUSH HOLDER UNIT HR2300-2611 MSP-638655-7.A1 638655-7	£9.67	£11.61
91 - TAPPING SCREW M3X12 CJ100Z MSP-266556-5.A2 266556-5	£1.44	£1.73
92 - TAPPING SCREW 4X30 BGA454/504 MSP-266361-0.A46 266361-0	£1.44	£1.73
93 - LABEL/HR2611F SERIAL NO MSP-867733-8.A1 867733-8	£1.44	£1.73
94 - *LABEL/CLEAR HR2300-HR2611FT MSP-819389-3.A13 819389-3	£1.44	£1.73
95 - CORD GUARD 10 GD0801C/GD0811C MSP-682566-8.A16 682566-8	£1.60	£1.92
96 - POWER SUPPLY CORD 1.0-2-4.0 MSP-665940-5.A29 665940-5	£12.95	£15.54
96 - POWER SUPPLY CORD 1.0-2-4.0 MSP-692502-6.A65 692502-6	£15.75	£18.90
97-1 - SWITCH TG853TB-3 HR2650/HR2651 MSP-651090-2.A10 651090-2	£21.89	£26.27
97 - *SWITCH HR2300/26/2611 MSP-651090-2.A23 651090-2	£21.89	£26.27
98 - LIGHT CIRCUIT 240V HR2611F MSP-631937-6.A6 631937-6	£8.42	£10.11
98 - LIGHT CIRCUIT HR2611FT MSP-631936-8.A1 631936-8	£11.39	£13.67
99 - STRAIN RELIEF JS1602/TM3000C MSP-687682-1.A4 687682-1	£1.44	£1.73
100 - TAPPING SCREW 4X14 M8701 MSP-266385-6.A7 266385-6	£1.44	£1.73
101 - TAPPING SCREW M4X18 EBH253/EB3 MSP-266326-2.A263 266326-2	£1.44	£1.73
102 - HANDLE COVER HR2300/26/2611 MSP-451528-5.A6 451528-5	£5.15	£6.18
103 - TAPPING SCREW M4X18 EBH253/EB3 MSP-266326-2.A264 266326-2	£1.44	£1.73
104 - FLAT WASHER 14 HR2300/2601/26 MSP-267447-3.A18 267447-3	£1.44	£1.73
105 - RING SPRING 15 HR2300/2600/01 MSP-233992-0.A12 233992-0	£1.44	£1.73
106 - FLAT WASHER 17 DHR242/HR2610F MSP-267437-6.A13 267437-6	£1.44	£1.73
107 - RUBBER WASHER 16 DHR242 MSP-424364-2.A6 424364-2	£1.44	£1.73
A01 - DEPTH GUIDE HR23/26/2601/2611 MSP-331886-4.A16 331886-4	£1.20	£1.44
A02 - HANDLE BTM40/50/BDF456/BHP456 MSP-451749-9.A28 451749-9	£1.20	£1.44
A02 - LABEL/INDICATION HR2610T2611 MSP-816938-7.A2 816938-7	£1.44	£1.73
A02 - LATCH FOR 140756-4 BTM40/50 MSP-162302-3.A17 162302-3	£1.20	£1.44
A02 - SHAFT BTP140/BTD132/144/BDF45 MSP-324207-7.A54 324207-7	£2.18	£2.62
A04 - SDS PLUS DRILL BIT SET 5PCS MSP-D-03888.A10 D-03888	£5.95	£7.14
A05 - SCALING CHISEL 40X250 SDS+ MSP-D-08735.A5 D-08735	£3.09	£3.71
E02 - *NON INSULATED TERMINAL GD0801 MSP-654091-9.A259 654091-9	£1.44	£1.73
