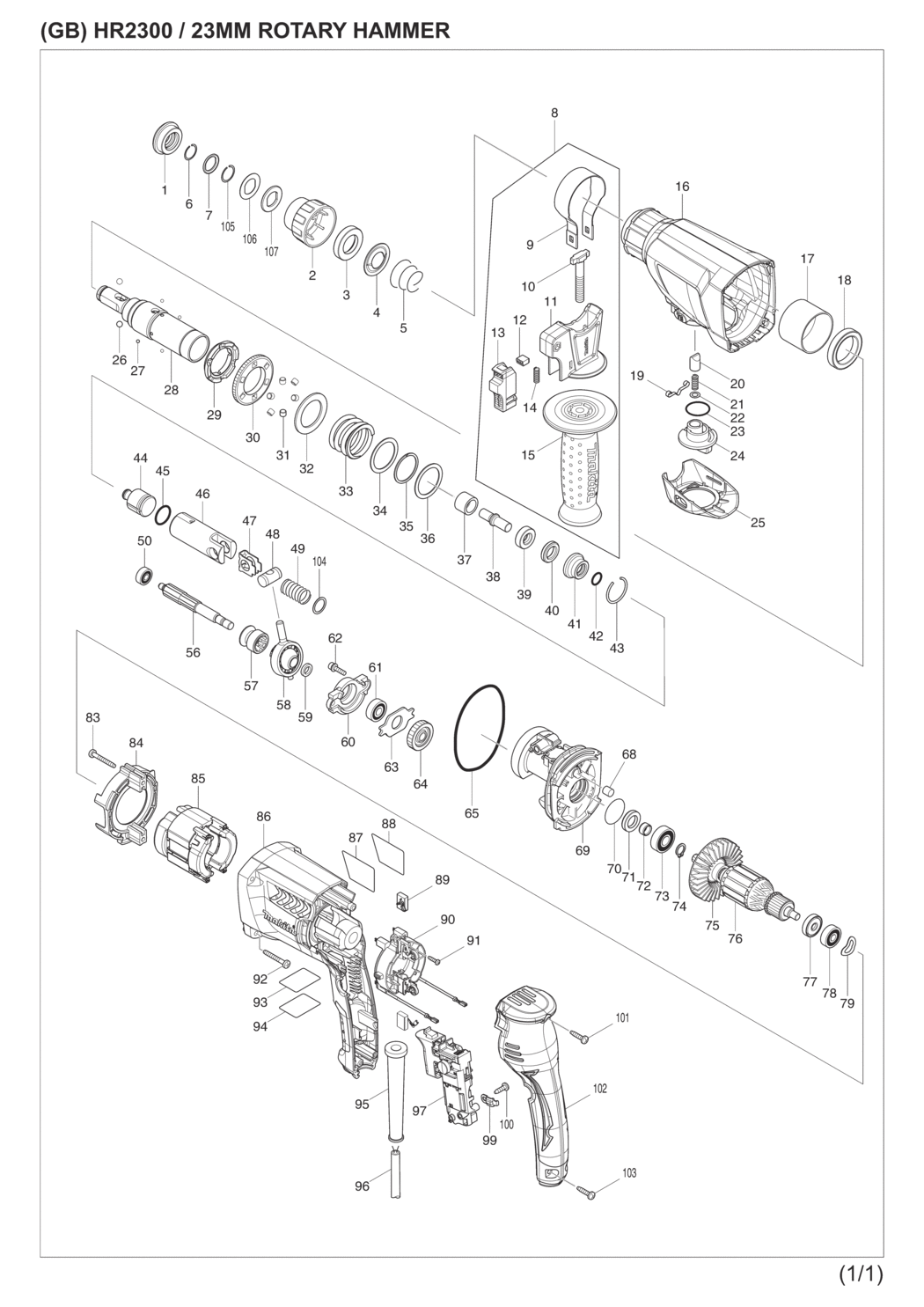

An exploded drawing and spare parts listing for the Makita HR2300 Rotary Hammer
Ex VAT Inc VAT
1 - CAP 35 HR2300/2600/2601/M8701 MSP-286288-8.A22 286288-8 £1.66 £1.99
2-1 - CHUCK COVER HR2630 MSP-455393-4.A9 455393-4 £1.66 £1.99
2 - CHUCK COVER DHR242/HR2611F MSP-451533-2.A13 451533-2 £1.66 £1.99
3 - RING 21 HR2300/2600/2601/2630 MSP-325813-1.A21 325813-1 £2.49 £2.99
4 - GUIDE WASHER HR2300/2601/260 MSP-346177-0.A31 346177-0 £1.66 £1.99
6 - RING SPRING 14 HR2300/2600/01 MSP-233989-9.A22 233989-9 £1.66 £1.99
7 - WASHER 16 DHR242/HR2611F MSP-346221-3.A16 346221-3 £1.66 £1.99
7-1 - WASHER 16 HR2630/HR2300/HR2600 MSP-346834-0.A12 346834-0 £1.66 £1.99
8 - GRIP ASSY HR2300/2600/2601 MSP-122878-2.A16 122878-2 £8.56 £10.27
9 - GRIP SPRING 50 HR2300/2600/26 MSP-346181-9.A16 346181-9 £2.49 £2.99
10 - SQUARE BOLT M8 6319/6339/634 MSP-266349-0.A32 266349-0 £2.49 £2.99
11 - GRIP BASE HR2300/26/2611 MSP-451539-0.A16 451539-0 £1.66 £1.99
12 - *RACK HR2300/26/2611F MSP-313179-1.A10 313179-1 £1.66 £1.99
13-1 - LOCK BUTTON CO HR2300/26/2611 MSP-141765-6.A16 141765-6 £1.66 £1.99
13 - *LOCK BUTTON HR2300/26/2611 MSP-451540-5.A10 451540-5 £1.66 £1.99
15 - GRIP 36 HR2300/2600/2601 MSP-154935-8.A42 154935-8 £3.64 £4.37
16 - GEAR HOUSING CO HR2300/2600 MSP-140270-0.A3 140270-0 £7.15 £8.58
17 - CUP SLEEVE HR2300/26/2611 MSP-331890-3.A29 331890-3 £2.49 £2.99
18 - BALL BEARING 6806LLU HR2300 MSP-211294-4.A33 211294-4 £10.40 £12.48
21 - COMPRESSION SPRING 5 HR2300 MSP-234147-0.A23 234147-0 £1.66 £1.99
22 - THIN WASHER 6 AN451/4300SB MSP-253308-3.A23 253308-3 £1.66 £1.99
23 - O RING 21 HR3511 MSP-213381-5.A24 213381-5 £2.49 £2.99
24 - CHANGE LEVER B HR23/2600/2601 MSP-451531-6.A4 451531-6 £1.66 £1.99
25 - CHANGE LEVER COVER B HR23/26/ MSP-451532-4.A4 451532-4 £1.66 £1.99
27 - STEEL BALL 3 HR1840/M8701 MSP-216019-1.A192 216019-1 £1.66 £1.99
28-1 - TOOL HOLDER HR2630 MSP-142973-2.A6 142973-2 £18.48 £22.18
29-1 - DRIVING FLANGE ***MODIFIED PART*** USE WITH MSP-227360-7 MSP-332139-4.A30 332139-4 £4.68 £5.62
30-1 - SPUR GEAR 51 ***MODIFIED PART*** USE WITH MSP-332139-4 MSP-227360-7.A40 227360-7 £5.85 £7.02
31 - PIN 6 HK1820/L DHR242/DHR243 MSP-268226-2.A23 268226-2 £4.55 £5.46
33 - COMPRESSION SPRING 31 HR2300 MSP-234148-8.A29 234148-8 £2.49 £2.99
34 - FLAT WASHER 30 HR2300/2601/26 MSP-267153-0.A62 267153-0 £1.66 £1.99
35 - SPIRO LOCK WASHER 30 HR2300-1 MSP-257932-4.A29 257932-4 £4.03 £4.84
37 - SLEEVE 9A HR2300/2600/M8701 MSP-325782-6.A9 325782-6 £2.49 £2.99
38 - IMPACT BOLT HR2300/2600/2601 MSP-325789-2.A20 325789-2 £1.66 £1.99
39 - RING 10A HR2300/HR2600/M8701 MSP-325794-9.A9 325794-9 £1.66 £1.99
40 - CUSHION RING 12 HR2601/10/T MSP-424267-0.A11 424267-0 £2.49 £2.99
41 - O RING CASE A HR2601/10/2610T MSP-325798-1.A11 325798-1 £2.49 £2.99
43 - RING SPRING 28 HR23/2600/2601 MSP-233979-2.A31 233979-2 £1.66 £1.99
44 - STRIKER HR2300/26/2611 MSP-325784-2.A19 325784-2 £2.49 £2.99
45 - O RING 17.5 HR2210/HR2630T MSP-213258-4.A33 213258-4 £2.49 £2.99
46 - PISTON CYLINDER HR2300/26/261 MSP-310345-1.A29 310345-1 £8.58 £10.30
47 - GUIDE PLATE BHR261/262/BHR262 MSP-346036-8.A42 346036-8 £1.66 £1.99
49 - COMPRESSION SPRING 14 BHR261/ MSP-234098-7.A40 234098-7 £1.66 £1.99
56 - SPUR GEAR 10 HR2300/2600/2601 MSP-227243-1.A4 227243-1 £6.37 £7.64
57 - CLUTCH CAM B HR2300/2600/2601 MSP-331815-7.A4 331815-7 £4.29 £5.15
58 - SWASH BEARING 10 HR2300/2611 MSP-219020-5.A21 219020-5 £26.73 £32.08
60 - BEARING BOX HR2300/26/2611 MSP-310344-3.A19 310344-3 £2.49 £2.99
62 - HEX SOCKET BOLT M4X16 HR4001C MSP-266437-3.A24 266437-3 £1.66 £1.99
63 - BEARING RETAINER HR23/26/2611 MSP-285735-6.A19 285735-6 £1.66 £1.99
64 - HELICAL GEAR 26 HR23/26/2611F MSP-227719-8.A16 227719-8 £4.03 £4.84
65 - O RING 68 HR2630T/HR2630 MSP-213728-3.A27 213728-3 £1.66 £1.99
68 - FELT HR2300/2600/2601/2610/11 MSP-443153-6.A29 443153-6 £1.66 £1.99
69-1 - INNER HOUSING CO HR2601/10/T MSP-141572-7.A0 141572-7 £10.14 £12.17
69-2 - INNER HOUSING CO HR2601/10/T MSP-141572-7.A1 141572-7 £10.14 £12.17
71-1 - OIL SEAL 12 MT870/HR2601/2630 MSP-213678-2.A21 213678-2 £5.07 £6.08
72 - SLEEVE 9 HR2300/26/2611 MSP-262569-4.A16 262569-4 £1.66 £1.99
73 - BALL BEARING 6000LLB HIGH SPE MSP-211097-6.A17 211097-6 £5.98 £7.18
75 - FAN65 HR23/26/2601/2610/2611F MSP-240121-8.A16 240121-8 £1.66 £1.99
76 - ARMATURE ASSY 110V HR2300 MSP-515351-3 515351-3 £29.92 £35.90
76 - ARMATURE ASSY 240V HR2300 MSP-515354-7 515354-7 £29.92 £35.90
84 - BAFFLE PLATE HR2300/26/2611 MSP-451527-7.A16 451527-7 £1.66 £1.99
85 - FIELD 110V HR2300 MSP-628184-8 628184-8 £18.70 £22.44
85 - FIELD 240V HR2300 MSP-626629-0 626629-0 £18.70 £22.44
86 - MOTOR HOUSING HR2300 MSP-451538-2 451538-2 £9.49 £11.39
87 - NAME PLATE HR2300 MSP-867653-6 867653-6 £1.66 £1.99
88 - *LABEL/CLEAR HR2300-HR2611FT MSP-819390-8.A16 819390-8 £1.66 £1.99
90 - BRUSH HOLDER UNIT HR2300-2611 MSP-638655-7.A16 638655-7 £8.06 £9.67
91 - TAPPING SCREW M3X12 CJ100Z MSP-266556-5.A16 266556-5 £1.66 £1.99
93 - LABEL/HR2300 SERIAL NO MSP-867656-0 867656-0 £1.66 £1.99
94 - *LABEL/CLEAR HR2300-HR2611FT MSP-819389-3.A16 819389-3 £1.66 £1.99
97-1 - SWITCH TG853TB-3 HR2650/HR2651 MSP-651090-2.A32 651090-2 £16.72 £20.06
97 - *SWITCH HR2300/26/2611 MSP-650625-6 650625-6 £13.64 £16.37
102 - HANDLE COVER HR2300/26/2611 MSP-451528-5.A16 451528-5 £4.29 £5.15
104 - FLAT WASHER 14 HR2300/2601/26 MSP-267447-3.A31 267447-3 £1.66 £1.99
105 - RING SPRING 15 HR2300/2600/01 MSP-233992-0.A22 233992-0 £1.66 £1.99
106 - FLAT WASHER 17 DHR242/HR2610F MSP-267437-6.A16 267437-6 £1.66 £1.99
106-1 - BLUE WASHER 17 RP0900/8412DWH MSP-267114-0.A17 267114-0 £1.66 £1.99
107 - RUBBER WASHER 16 DHR242 MSP-424364-2.A16 424364-2 £1.66 £1.99
A01 - DEPTH GUIDE HR23/26/2601/2611 MSP-331886-4.A18 331886-4 £1.20 £1.44
A02 - PLASTIC CASE HR2300/HR2600 MSP-821775-6.A5 821775-6 £19.93 £23.92
A02 - SHAFT BTP140/BTD132/144/BDF45 MSP-324207-7.A111 324207-7 £2.49 £2.99
