Makita DHR242RFEV Cordless Combination Hammer Spare Parts

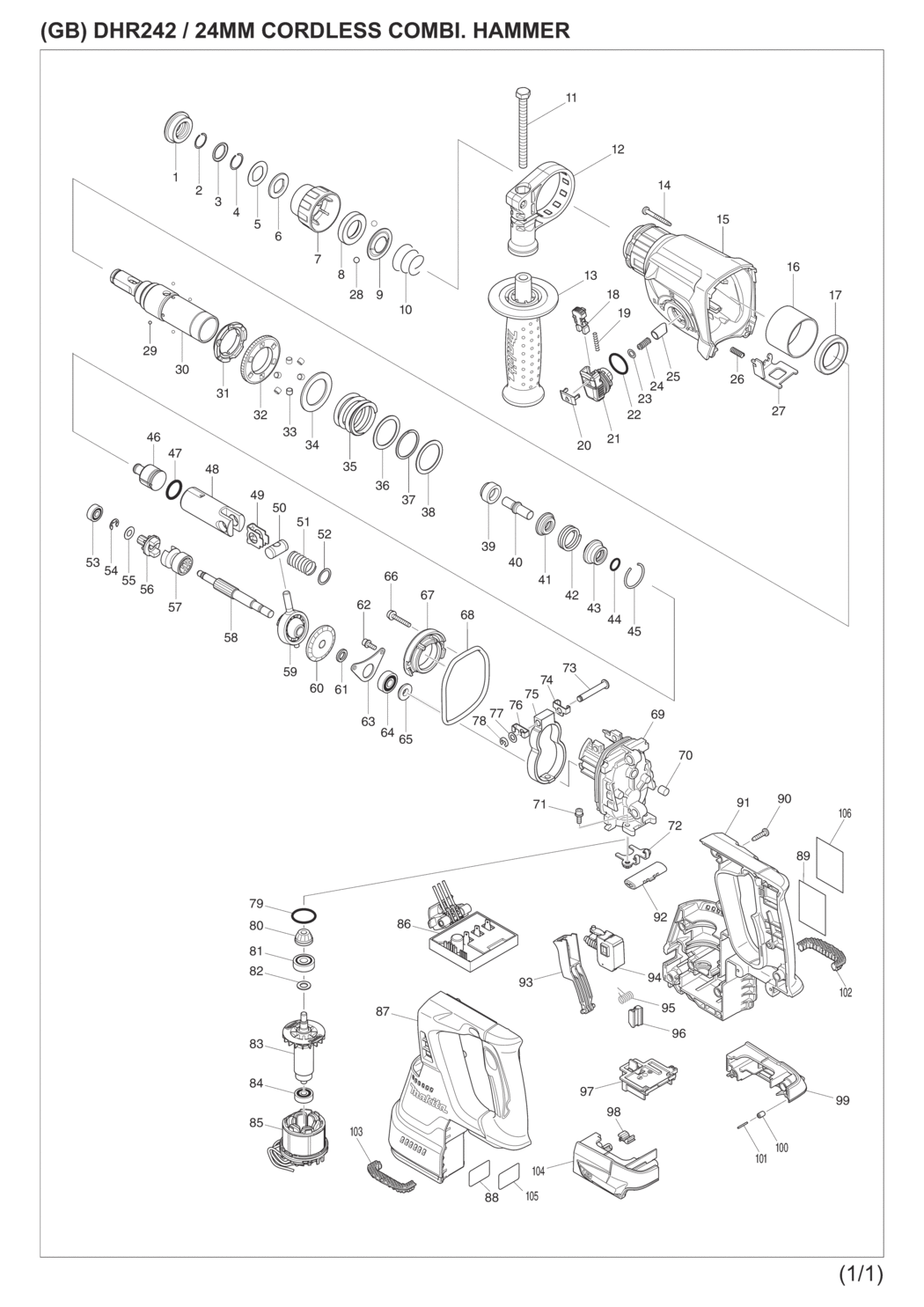

An exploded drawing and spare parts listing for the Makita DHR242RFEV Cordless Combination Hammer

	Ex VAT	Inc VAT
1 - CAP 35 HR2300/2600/2601/M8701 MSP-286288-8.A20 286288-8	£1.66	£1.99
2 - RING SPRING 14 HR2300/2600/01 MSP-233989-9.A17 233989-9	£1.44	£1.73
3 - WASHER 16 DHR242/HR2611F MSP-346221-3.A11 346221-3	£1.44	£1.73
4 - RING SPRING 15 HR2300/2600/01 MSP-233992-0.A17 233992-0	£1.44	£1.73
5 - FLAT WASHER 17 DHR242/HR2610F MSP-267437-6.A2 267437-6	£1.44	£1.73
6 - RUBBER WASHER 16 DHR242 MSP-424364-2.A11 424364-2	£1.44	£1.73
7 - CHUCK COVER DHR242/HR2611F MSP-451533-2.A11 451533-2	£1.66	£1.99
8 - RING 21 HR2300/2600/2601/2630 MSP-325813-1.A1 325813-1	£1.44	£1.73
9 - GUIDE WASHER HR2300/2601/260 MSP-346177-0.A24 346177-0	£1.44	£1.73
10 - CONICAL SPRING 21-29 DHR MSP-233916-6.A0 233916-6	£1.66	£1.99
11 - HEX BOLT M8X90 BHR242/243 MSP-266745-2.A9 266745-2	£1.44	£1.73
12 - GRIP BASE BHR242/243 MSP-453129-5.A1 453129-5	£1.44	£1.73
13 - GRIP 36 BHR262/DHR165/165 MSP-158057-6.A9 158057-6	£4.28	£5.13
14 - TAPPING SCREW 4X35 BHR262/HR2 MSP-266351-3.A2 266351-3	£1.44	£1.73
15-1 - GEAR HOUSING DHR242/D243 MSP-144354-6.A8 144354-6	£8.58	£10.30
15 - O RING 25 BHR240/BHR262 MSP-213345-9.A48 213345-9	£1.44	£1.73
15-1 - O RING 25 BHR240/BHR262 MSP-213345-9.A59 213345-9	£1.44	£1.73
16 - CUP SLEEVE HR2300/26/2611 MSP-331890-3.A7 331890-3	£3.74	£4.49
17 - BALL BEARING 6806LLU HR2300 MSP-211294-4.A18 211294-4	£12.48	£14.98
18 - LOCK BUTTON BHR242/243 MSP-454112-5.A9 454112-5	£1.44	£1.73
19 - COMPRESSION SPRING 3 BHR242/ MSP-234264-6.A3 234264-6	£1.44	£1.73
20 - CHANGE LEVER COVER BHR242/243 MSP-453131-8.A7 453131-8	£1.44	£1.73
21 - CHANGE LEVER BHR242/243 MSP-453125-3.A7 453125-3	£2.45	£2.94
22 - O RING 21 HR3511 MSP-213381-5.A7 213381-5	£3.74	£4.49
23 - THIN WASHER 6 AN451/4300SB MSP-253308-3.A19 253308-3	£1.44	£1.73
24 - COMPRESSION SPRING 5 HR2300 MSP-234147-0.A16 234147-0	£1.44	£1.73
25-1 - PUSH CORN HR2300/26/2611 MSP-326850-8.A7 326850-8	£1.66	£1.99
26 - COMPRESSION SPRING 4 MT240 MSP-233360-7.A28 233360-7	£1.44	£1.73
27 - LOCK PLATE BHR242/243 MSP-346537-6.A1 346537-6	£1.44	£1.73
28 - STEEL BALL 7.0 M3601/M8701 MSP-216022-2.A108 216022-2	£1.66	£1.99
29 - STEEL BALL 3 HR1840/M8701 MSP-216019-1.A21 216019-1	£1.44	£1.73
30 - *TOOL HOLDER CO HR2601 MSP-140265-3.A2 140265-3	£33.41	£40.09
31-1 - DRIVING FLANGE *MODIFIED PART* USE WITH MSP-227360-7 MSP-332139-4.A5 332139-4	£5.62	£6.74
32-1 - SPUR GEAR 51 *MODIFIED PART* USE WITH MSP-332139-4 MSP-227360-7.A23 227360-7	£7.02	£8.42
33 - PIN 6 HK1820/L DHR242/DHR243 MSP-268226-2.A3 268226-2	£5.46	£6.55
35 - COMPRESSION SPRING 31 HR2300 MSP-234148-8.A7 234148-8	£2.02	£2.43
36 - FLAT WASHER 30 HR2300/2601/26 MSP-267153-0.A15 267153-0	£1.44	£1.73
37 - SPIRO LOCK WASHER 30 HR2300-1 MSP-257932-4.A19 257932-4	£4.83	£5.80
38 - FLAT WASHER 30 HR2300/2601/26 MSP-267153-0.A14 267153-0	£1.44	£1.73
39 - SLEEVE 9B HR2601/2610T/2611FT MSP-325783-4.A20 325783-4	£1.44	£1.73
40 - IMPACT BOLT HR2300/2600/2601 MSP-325789-2.A4 325789-2	£1.44	£1.73
41 - WASHER 10 HR2610T/2611FT MSP-325792-3.A4 325792-3	£1.96	£2.35
42 - COMPRESSION SPRING 20 HR2610T MSP-234149-6.A14 234149-6	£1.44	£1.73
43 - O RING CASE B HR2601/2611FT MSP-325793-1.A15 325793-1	£2.65	£3.18
44 - O RING 9 HR2020/2440/2450/243 MSP-213073-6.A25 213073-6	£1.44	£1.73
45 - RING SPRING 28 HR23/2600/2601 MSP-233979-2.A6 233979-2	£1.44	£1.73
46 - STRIKER BHR242/243 MSP-326139-4.A4 326139-4	£4.83	£5.80
47 - O RING 17.5 HR2210/HR2630T MSP-213258-4.A20 213258-4	£2.34	£2.81
48 - PISTON CYLINDER HR2300/26/261 MSP-310345-1.A12 310345-1	£10.30	£12.36
49 - GUIDE PLATE BHR261/262/BHR262 MSP-346036-8.A11 346036-8	£1.44	£1.73
50 - PISTON JOINT HR2020/2440/2450 MSP-324215-8.A24 324215-8	£1.44	£1.73
51 - COMPRESSION SPRING 14 BHR261/ MSP-234098-7.A31 234098-7	£1.44	£1.73
52 - FLAT WASHER 14 HR2300/2601/26 MSP-267447-3.A9 267447-3	£1.44	£1.73
53 - BALL BEARING 606ZZ HR2410/DH MSP-211012-0.A44 211012-0	£13.88	£16.66
54 - EXT E-RING JIS U-6J HR2630 MSP-257336-0.A19 257336-0	£1.44	£1.73
55 - THIN WASHER 7 HR160D/LF1000 MSP-253186-1.A34 253186-1	£1.44	£1.73
56 - SPUR GEAR 10 HR2610T/2611FT MSP-227231-8.A15 227231-8	£26.92	£32.31
57-1 - CLUTCH CAM A HR2601T/2611FT MSP-326849-3.A11 326849-3	£5.92	£7.11
57 - *CLUTCH CAM A HR2601T/2611FT MSP-331814-9.A5 331814-9	£5.78	£6.93
58 - CAM SHAFT BHR242/243 MSP-326140-9.A5 326140-9	£7.18	£8.61
59 - SWASH BEARING 10 HR2300/2611 MSP-219020-5.A14 219020-5	£34.99	£41.99
60 - SPIRAL BEVEL GEAR 32 BHR242/2 MSP-227588-7.A3 227588-7	£7.96	£9.55
61 - RING 8BHR242/243 MSP-257323-9.A9 257323-9	£1.44	£1.73
62 - CAP HD SCREW M4X12 4300D MSP-922118-6.A3 922118-6	£1.44	£1.73
63 - BEARING RETAINER B BHR261/2/B MSP-346038-4.A7 346038-4	£1.44	£1.73
64 - BALL BEARING 608ZZCNM/2A BUR1 MSP-211032-4.A60 211032-4	£9.05	£10.86
65 - RING 8 HR2020/2440/2450/2432 MSP-324212-4.A21 324212-4	£5.92	£7.11
66 - CAP HD SCREW M4X25 MSP-922147-9.A1 922147-9	£1.44	£1.73
67 - INNER SUPPORT BHR242/243 MSP-141230-5.A6 141230-5	£4.37	£5.24
68 - O RING 75 BHR242/243 MSP-213767-3.A6 213767-3	£1.44	£1.73
69 - INNER HOUSING BHR242/243 MSP-318810-4.A8 318810-4	£21.89	£26.27
70 - FELT HR2300/2600/2601/2610/11 MSP-443153-6.A6 443153-6	£1.44	£1.73
71 - CAP HD SCREW M4X12 4300D MSP-922118-6.A2 922118-6	£1.44	£1.73
72 - BEARING RETAINER A BHR242/243 MSP-346536-8.A9 346536-8	£1.44	£1.73
73 - FLAT FILLISTER HD PIN 6 BHR24 MSP-256536-9.A10 256536-9	£1.44	£1.73
74 - WEIGHT HOLDER GUIDE BHR242/24 MSP-346538-4.A16 346538-4	£1.44	£1.73
75 - COUNTER WEIGHT BHR242/243 MSP-313224-2.A5 313224-2	£4.21	£5.05
76 - WEIGHT HOLDER GUIDE BHR242/24 MSP-346538-4.A17 346538-4	£1.44	£1.73
77 - HARD WASHER 6 JV2000/BFL080/1 MSP-253726-5.A25 253726-5	£1.44	£1.73
78 - EXT E-RING JIS JE-5 DLS714 MSP-961018-5.A15 961018-5	£1.64	£1.97
79 - O RING 22.4 HR140D/HR171D MSP-213008-7.A23 213008-7	£1.44	£1.73
80 - SPIRAL BEVEL GEAR 11 BHR MSP-141458-5.A2 141458-5	£6.24	£7.49
81 - BALL BEARING 608 2RS HR5001C MSP-210024-0.A21 210024-0	£3.28	£3.93
82 - FLAT WASHER 8 GA5020/GA5021 MSP-253835-0.A16 253835-0	£1.44	£1.73
83 - ROTOR BHR243 MSP-619293-4.A2 619293-4	£63.50	£76.20
84 - BALL BEARING 626DDW 9911/BHR MSP-210022-4.A54 210022-4	£3.59	£4.31
85-2 - STATOR ASSY DHR242/DHR243 MSP-529187-4.A4 529187-4	£18.14	£21.77
86 - CONTROLLER BHR242/243 MSP-620241-8.A7 620241-8	£135.00	£162.00
87-2 - HOUSING SET DHR242Z MSP-183C02-0.A16 183C02-0	£21.46	£25.75
88 - LABEL/SERIAL NO. DHR24 MSP-815B57-8.A4 815B57-8	£1.44	£1.73
89 - NAME PLATE DHR242 MSP-815A38-6.A0 815A38-6	£1.44	£1.73
90 - TAPPING SCREW M4X18 EBH253/EB3 MSP-266326-2.A322 266326-2	£1.44	£1.73
91-2 - HOUSING SET DHR242Z MSP-183C02-0.A17 183C02-0	£21.46	£25.75
92 - F/R CHANGE LEVER BHR242/243 MSP-453124-5.A1 453124-5	£1.44	£1.73
93 - SWITCH LEVER BHR242/243 MSP-453123-7.A8 453123-7	£1.44	£1.73
94 - SWITCH C3JW-1-P BHR242/243 MSP-650709-0.A3 650709-0	£16.99	£20.39
95 - TORSION SPRING 6 BHR242/243 MSP-233598-4.A10 233598-4	£1.44	£1.73
96 - OPENER BHR242/243 MSP-313226-8.A4 313226-8	£1.44	£1.73
97 - TERMINAL DUR182/DHR165/DKP180 MSP-644808-8.A99 644808-8	£4.28	£5.14
98 - CUSHION DHR242/243/DTW251 MSP-424476-1.A37 424476-1	£1.44	£1.73
99 - BATTERY HOUSING SET BHR242/24 MSP-187377-1.A11 187377-1	£8.42	£10.11
99 - RUBBER PIN 6 DUR/DHR/DTW/DG MSP-263005-3.A594 263005-3	£1.44	£1.73
100 - RUBBER PIN 5 BTD/DTM51/TW1001 MSP-263036-2.A12 263036-2	£1.44	£1.73
101 - PIN 1.5 BTD/BTM40/DTM51/DTW285 MSP-268184-2.A28 268184-2	£1.44	£1.73
102 - CUSHION RUBBER BTM40/50/BHR24 MSP-424473-7.A23 424473-7	£2.34	£2.81
103 - CUSHION RUBBER BTM40/50/BHR24 MSP-424473-7.A36 424473-7	£2.34	£2.81
104 - RUBBER PIN 6 DUR/DHR/DTW/DG MSP-263005-3.A593 263005-3	£1.44	£1.73
104 - BATTERY HOUSING SET BHR242/24 MSP-187377-1.A12 187377-1	£8.42	£10.11
105 - LABEL/CLEAR BHR262BHR262TBH MSP-893072-0.A4 893072-0	£1.44	£1.73
106 - LABEL/CLEAR BHR242243 MSP-890994-5.A2 890994-5	£1.44	£1.73
107 - SPONGE DHR242 MSP-424734-5.A7 424734-5	£1.44	£1.73
A01 - DEPTH GAUGE BHR262/HP1641/40/5 MSP-324219-0.A43 324219-0	£1.66	£1.99
A02 - DC18RC COMPACT CHARGER MSP-*DC18RC.A160 *DC18RC	-
A03 - *BATTERY BL1830 18V LI-ION MSP-194204-5.A0 194204-5	£42.91	£51.49
A04 - BATTERY COVER BDG800/DTW251 MSP-450128-8.A118 450128-8	£1.20	£1.44
A03-1 - *BATTERY BL1830 18V LI-ION MSP-194204-5.A1 194204-5	£42.91	£51.49
A05 - LATCH FOR HM1203/1203/1214 MSP-162271-8.A17 162271-8	£1.20	£1.44
A05 - PLASTIC CASE BHR242/243 MSP-141402-2.A1 141402-2	£32.44	£38.93
A05-1 - LATCH FOR HM1203/1203/1214 MSP-162271-8.A16 162271-8	£1.20	£1.44
A06-1 - LABEL/PLASTIC CASE DHR242RFE MSP-810L73-5 810L73-5	£1.44	£1.73
A08 - SEALING CAP DX01/DX02 MSP-424474-5.A1 424474-5	£1.44	£1.73
