Makita DHP343Z Cordless Hammer Driver Drill Spare Parts

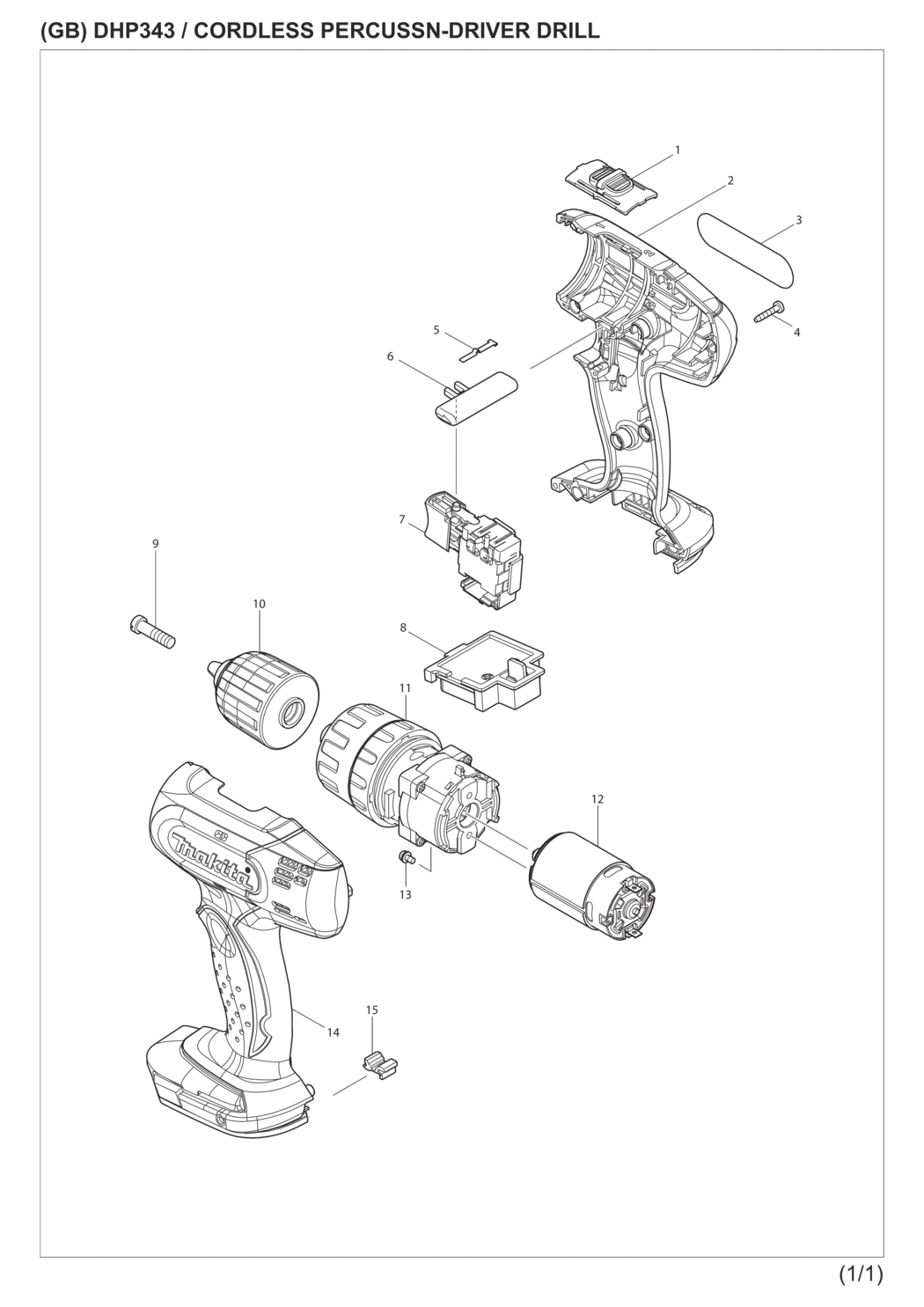

An exploded drawing and spare parts listing for the Makita DHP343Z Cordless Hammer Driver Drill

	Ex VAT	Inc VAT
1 - COMPRESSION SPRING 4 MSP-231433-0.A41 231433-0	£1.66	£1.99
1 - SPEED CHANGE LEVER ASSY DDF34 MSP-125310-5.A23 125310-5	£1.66	£1.99
2 - RUBBER PIN 6 DUR/DHR/DTW/DG MSP-263005-3.A678 263005-3	£1.66	£1.99
2 - HOUSING SET DHP343 MSP-187929-8.A3 187929-8	£12.21	£14.65
3 - NAME PLATE DHP343 MSP-815H52-4.A0 815H52-4	£1.66	£1.99
4 - TAPPING SCREW BIND 3 X 16 L14 MSP-266130-9.A218 266130-9	£1.66	£1.99
5 - LEAF SPRING DHP480/DDF480 MSP-232182-2.A51 232182-2	£1.66	£1.99
6 - F/R CHANGE LEVER DHP343/453 MSP-419250-0.A71 419250-0	£1.66	£1.99
7 - SWITCH DDF453/DHP453 MSP-632A24-0.A1 632A24-0	£26.18	£31.42
8 - TERMINAL DUR141/DUM166/DFS441 MSP-643854-8.A1 643854-8	£3.90	£4.68
9 - SPARE PART MSP-251468-5.A114 251468-5	£1.66	£1.99
10-1 - KEYLESS DRILL CHUCK 10 HP330D MSP-763229-6.A9 763229-6	£9.99	£11.99
11 - GEAR ASSY DF347D/HP347D MSP-126001-1.A3 126001-1	£38.06	£45.67
12 - DC MOTOR HP347D/DHP343 MSP-629900-1.A0 629900-1	£11.44	£13.73
13 - PAN HD SCREW M3X6 VC3211M/ MSP-911003-8.A37 911003-8	£1.66	£1.99
14 - RUBBER PIN 6 DUR/DHR/DTW/DG MSP-263005-3.A684 263005-3	£1.66	£1.99
14 - HOUSING SET DHP343 MSP-187929-8.A0 187929-8	£12.21	£14.65
15 - CUSHION DHR242/243/DTW251 MSP-424476-1.A81 424476-1	£1.66	£1.99

Attribute Name	Value
Brand	Makita
