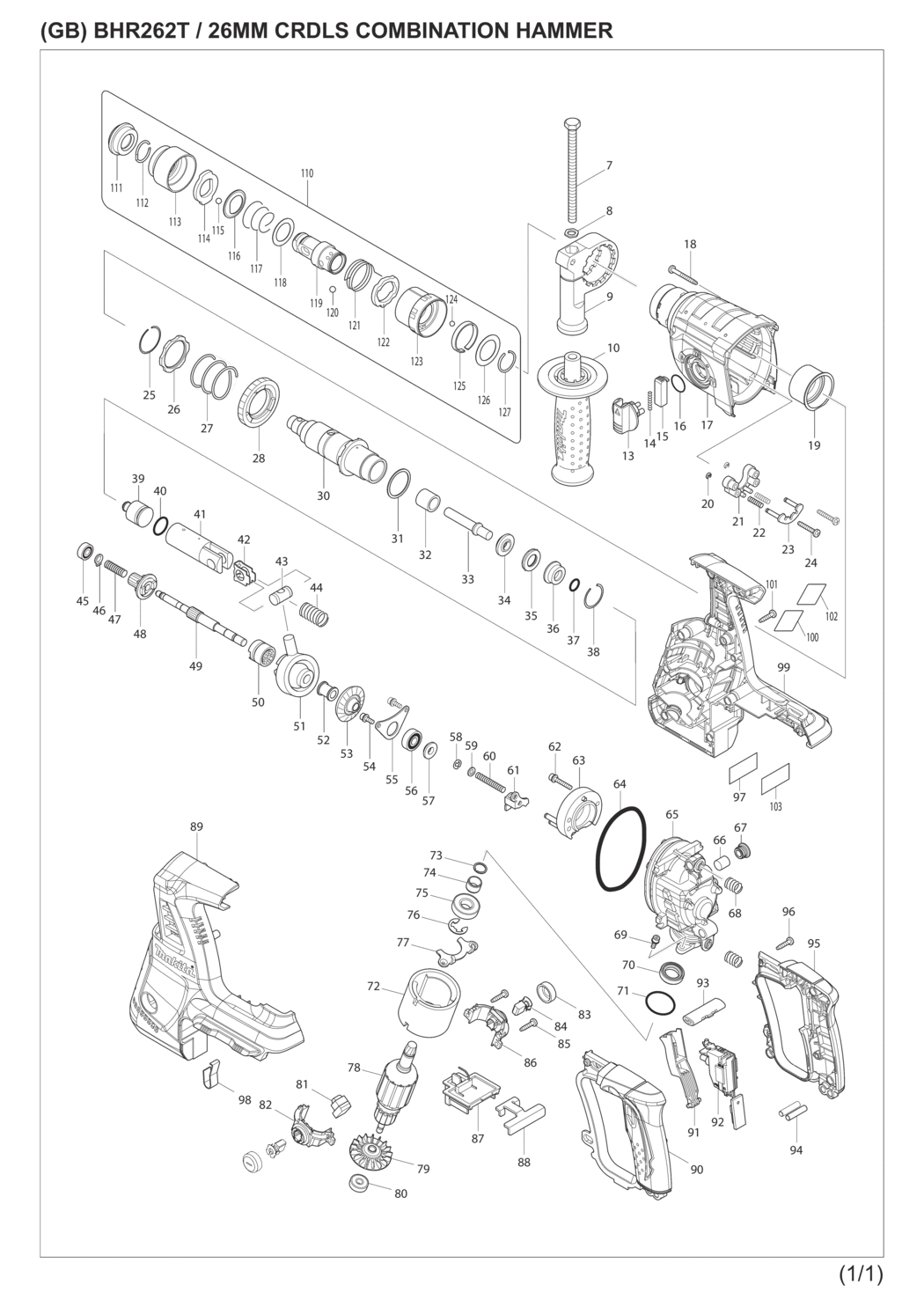

An exploded drawing and spare parts listing for the Makita BHR262TRDE Cordless Combination Hammer
Ex VAT Inc VAT
7 - *HEX BOLT M8X120 DHR164/DHR165 MSP-265583-9.A14 265583-9 £4.81 £5.77
8 - HEX WASHER BHR262/HP1641/51 MSP-345280-4.A29 345280-4 £1.66 £1.99
9 - GRIP BASE BHR262/HP1641/2450/ MSP-417630-4.A12 417630-4 £2.49 £2.99
10 - GRIP 36 BHR262/DHR165/165 MSP-158057-6.A45 158057-6 £4.28 £5.13
13 - CHANGE LEVER BHR261/262/BHR26 MSP-450980-4.A8 450980-4 £4.03 £4.84
14 - COMPRESSION SPRING 4 BHR262 MSP-233279-0.A25 233279-0 £1.66 £1.99
15 - LOCK BUTTON BHR262/BHR262T/BH MSP-453706-3.A0 453706-3 £1.66 £1.99
16 - O RING 17 DHR164/DHR165/2440 MSP-213278-8.A60 213278-8 £1.66 £1.99
17 - O RING 25 BHR240/BHR262 MSP-213345-9.A9 213345-9 £2.49 £2.99
17 - GEAR HOUSING BHR262/BHR2 MSP-158945-7.A0 158945-7 £12.87 £15.44
18 - TAPPING SCREW 4X35 BHR262/HR2 MSP-266351-3.A47 266351-3 £1.66 £1.99
19 - NEEDLE BEARNG CO BHR262/HR202 MSP-153290-5.A18 153290-5 £4.16 £4.99
20 - EXT E-RING JIS JE-3 BPJ140/81 MSP-961017-7.A31 961017-7 £1.66 £1.99
21 - GUIDE BASE BHR262/HR2450/HR24 MSP-417796-0.A32 417796-0 £1.66 £1.99
22 - COMPRESSION SPRING 4 BHR262/H MSP-233344-5.A12 233344-5 £1.66 £1.99
23 - LOCK PLATE BHR262/HR2450 MSP-163430-7.A27 163430-7 £2.49 £2.99
24 - TAPPING SCREW 4X25 M9001/TD022 MSP-266374-1.A19 266374-1 £1.66 £1.99
25 - RING SPRING BHR262/HR2450T/70 MSP-233929-7.A10 233929-7 £1.66 £1.99
26 - WASHER 31 BHR262/H2470/BHR202 MSP-267460-1.A13 267460-1 £1.66 £1.99
27 - COMPRESSION SPRING BHR262/HR2 MSP-233401-9.A10 233401-9 £2.49 £2.99
28 - SPUR GEAR 51 HR2450T/BHR262/ MSP-227109-5.A9 227109-5 £10.27 £12.32
30 - TOOL HOLDER GUIDE HR2470 MSP-158307-9.A4 158307-9 £27.39 £32.87
31 - FLAT WASHER 28 BHR262/HR2020/ MSP-267229-3.A41 267229-3 £1.66 £1.99
32 - SLEEVE 9 BHR262/HR2230/2460/7 MSP-331769-8.A8 331769-8 £2.49 £2.99
33 - IMPACT BOLT HR2811FT MSP-324796-2.A4 324796-2 £2.49 £2.99
34 - RING 10 HR2450T/BHR262/BHR262 MSP-324402-9.A4 324402-9 £1.66 £1.99
35 - CUSHION RING 13 BHR240/262/BH MSP-421955-0.A6 421955-0 £2.49 £2.99
36 - O RING CASE HR2020/2440/2450 MSP-324216-6.A7 324216-6 £5.46 £6.55
37 - O RING 9 HR2020/2440/2450/243 MSP-213073-6.A46 213073-6 £1.66 £1.99
38 - RING SPRING 28 HR2020/2440/24 MSP-233917-4.A21 233917-4 £1.66 £1.99
39 - STRIKER HR2020/2440/2450/2432 MSP-324214-0.A5 324214-0 £2.49 £2.99
40 - O RING 16 HK0500/HR2450/2432 MSP-213227-5.A16 213227-5 £1.66 £1.99
41 - PISTON CYLINDER HR2470/BHR202 MSP-318132-2.A24 318132-2 £11.96 £14.35
42 - GUIDE PLATE BHR261/262/BHR262 MSP-346036-8.A27 346036-8 £1.66 £1.99
43 - PISTON JOINT HR2020/2440/2450 MSP-324215-8.A59 324215-8 £2.49 £2.99
44 - COMPRESSION SPRING 14 BHR261/ MSP-234098-7.A1 234098-7 £1.66 £1.99
45 - BALL BEARING 606ZZ HR2410/DH MSP-211012-0.A108 211012-0 £11.57 £13.88
46 - EXT DIN 471 CIRCLIP-7 BTM50 MSP-961003-8.A41 961003-8 £1.66 £1.99
47 - COMPRESSION SPRING 7 BHR262 MSP-233343-7.A26 233343-7 £1.66 £1.99
48 - SPUR GEAR HR2470/BHR202/BHR26 MSP-227179-4.A24 227179-4 £15.51 £18.61
49 - CAM SHAFT BHR261/262/BHR262T/ MSP-325976-3.A2 325976-3 £8.58 £10.30
50 - CLUTCH CAM BHR262/BHR262T/BHR MSP-331992-5.A23 331992-5 £7.41 £8.89
51 - SWASH BEARING 10 BHR200S/HR20 MSP-219014-0.A23 219014-0 £38.61 £46.33
52 - SLEEVE 9 BHR261/262 MSP-325640-6.A8 325640-6 £1.66 £1.99
53 - SPIRAL BEVEL GEAR 26 BHR261/2 MSP-227549-7.A9 227549-7 £7.02 £8.42
54 - HEX S H BOLT M4X12 HR2020/244 MSP-266273-7.A38 266273-7 £1.66 £1.99
55 - BEARING RETAINER B BHR261/2/B MSP-346038-4.A15 346038-4 £1.66 £1.99
56 - BALL BEARING 608ZZCNM/2A BUR1 MSP-211032-4.A96 211032-4 £7.54 £9.05
57 - RING 8 HR2020/2440/2450/2432 MSP-324212-4.A46 324212-4 £4.94 £5.93
58 - EXT E-RING JIS E-4 EA3201 MSP-961011-9.A43 961011-9 £1.66 £1.99
59 - FLAT WASHER 5 DIN125-A/GN420 MSP-941102-2.A3 941102-2 £1.66 £1.99
60 - COMPRESSION SPRING 6 HR2450 MSP-233342-9.A8 233342-9 £1.66 £1.99
61 - CHANGE PLATE BHR261/2/BHR262T MSP-345220-2.A15 345220-2 £1.66 £1.99
62 - HEX SOCKET HD BOLT M4X25 HR52 MSP-922148-7.A5 922148-7 £1.66 £1.99
63 - INNER SUPPORT BHR261/2 B MSP-158944-9.A9 158944-9 £7.41 £8.89
64 - O RING 68 HR2630T/HR2630 MSP-213728-3.A21 213728-3 £1.66 £1.99
65 - INNER HOUSING BHR261/2/BHR262 MSP-318392-6.A1 318392-6 £18.04 £21.65
66 - FILTER BHR261/2/BHR262T/BHR26 MSP-443143-9.A8 443143-9 £1.66 £1.99
67 - CAP BHR261/2/BHR262T/BHR262TD MSP-424185-2.A8 424185-2 £1.66 £1.99
68 - COMPRESSION SPRING 10 BHR261/ MSP-234097-9.A8 234097-9 £1.66 £1.99
69 - HEX S H BOLT M4X12 HR2020/244 MSP-266273-7.A39 266273-7 £1.66 £1.99
70 - OIL SEAL 15 BHR262/HM1203/BHR MSP-213231-4.A2 213231-4 £6.37 £7.64
71 - O RING 28 AG125/BHR262 MSP-213437-4.A1 213437-4 £1.66 £1.99
72 - YOKE UNIT 5621RD/LS800DWB/BHR MSP-632828-4.A27 632828-4 £19.25 £23.10
73 - RETAINING RING WR12 BHR261/2 MSP-961082-6.A1 961082-6 £2.49 £2.99
74 - SLEEVE 12 HR4500C/4511C/BHR26 MSP-331596-3.A3 331596-3 £4.55 £5.46
75 - BALL BEARING 6001DDW HS7100 MSP-211131-2.A7 211131-2 £6.50 £7.80
76 - EXT E-RING JIS JE-10 BHR262 MSP-961016-9.A19 961016-9 £1.66 £1.99
77 - BEARING RETAINER A BHR261/2/B MSP-346037-6.A1 346037-6 £2.49 £2.99
78 - ARMATURE ASSY 36V BHR261/2/BH MSP-519235-7.A9 519235-7 £29.92 £35.90
79 - FAN 44 BHR261/2/BHR262T/BHR26 MSP-240037-7.A21 240037-7 £3.90 £4.68
80 - BALL BEARING 626DDW 9911/BHR MSP-210022-4.A0 210022-4 £2.49 £2.99
81 - LIGHT CIRCUIT BHR261/2/BHR262 MSP-631850-8.A1 631850-8 £11.18 £13.42
82 - LINEFILTER UK360/DHR164/UR180D MSP-688172-7.A17 688172-7 £1.66 £1.99
82 - LINE FILTER UK360/BUB360/TD12 MSP-688165-4.A80 688165-4 £1.66 £1.99
82 - BRUSH HOLDER BHR262/BHR2 MSP-638945-8.A13 638945-8 £12.22 £14.66
83 - HOLDER CAP BJR182/BSS611/BHR2 MSP-643829-7.A26 643829-7 £1.66 £1.99
84 - CARBON BRUSH CB-442 BUH550RD/ MSP-194928-3.A2 194928-3 £5.59 £6.71
85 - TAPPING SCREW M4X18 EBH253/EB3 MSP-266326-2.A179 266326-2 £1.66 £1.99
86 - LINE FILTER UK360/BUB360/TD12 MSP-688165-4.A81 688165-4 £1.66 £1.99
86 - BRUSH HOLDER BHR262/BHR2 MSP-638945-8.A14 638945-8 £12.22 £14.66
86 - LINEFILTER UK360/DHR164/UR180D MSP-688172-7.A16 688172-7 £1.66 £1.99
87 - TERMINAL UNIT BHR262/BHR262T/ MSP-638978-3.A0 638978-3 £6.37 £7.64
88 - SUPPORT PLATE BUH550RD/BUB360 MSP-346039-2.A4 346039-2 £1.66 £1.99
89 - HOUSING SET BHR261/2/BHR262T/ MSP-187231-9.A14 187231-9 £24.20 £29.04
89 - RUBBER PIN 6 DUR/DHR/DTW/DG MSP-263005-3.A22 263005-3 £1.66 £1.99
89 - RUBBER PIN BHR262/BUH550RD MSP-263025-7.A0 263025-7 £2.49 £2.99
90 - HANDLE SET BHR261/2/BHR262T/B MSP-188639-0.A3 188639-0 £9.49 £11.39
91 - SWITCH LEVER BHR261/2/BHR262T MSP-450981-2.A0 450981-2 £1.66 £1.99
92 - SWITCH C3HZ-2A-PBLM BHR262/BH MSP-650619-1.A1 650619-1 £44.22 £53.06
93 - F/R CHANGE LEVER BHR261/2/BHR MSP-450979-9.A0 450979-9 £1.66 £1.99
94 - PIN 6 BHR262 MSP-256261-2.A1 256261-2 £1.66 £1.99
95 - HANDLE SET BHR261/2/BHR262T/B MSP-188639-0.A2 188639-0 £9.49 £11.39
96 - TAPPING SCREW M4X18 EBH253/EB3 MSP-266326-2.A181 266326-2 £1.66 £1.99
98 - VIBRATION ISOLATOR PLATE BHR2 MSP-344903-1.A15 344903-1 £2.49 £2.99
99 - RUBBER PIN 6 DUR/DHR/DTW/DG MSP-263005-3.A21 263005-3 £1.66 £1.99
99 - HOUSING SET BHR261/2/BHR262T/ MSP-187231-9.A15 187231-9 £24.20 £29.04
99 - RUBBER PIN BHR262/BUH550RD MSP-263025-7.A1 263025-7 £2.49 £2.99
101 - TAPPING SCREW M4X18 EBH253/EB3 MSP-266326-2.A180 266326-2 £1.66 £1.99
102 - LABEL/CLEAR BHR262BHR262TBH MSP-893038-0.A2 893038-0 £1.66 £1.99
103 - LABEL/CLEAR BHR262BHR262TBH MSP-893072-0.A13 893072-0 £1.66 £1.99
110 - TOOL HOLDER SET HR MODELS BHR2 MSP-194080-7.A10 194080-7 £24.30 £29.16
111 - CAP 35 DHR164/DHR165/2440/245 MSP-286263-4.A21 286263-4 £1.66 £1.99
112 - RING SPRING 19 DHR164/165 HR MSP-233940-9.A6 233940-9 £1.66 £1.99
113 - CHUCK COVER HR2450T/HR2610T/1 MSP-418217-5.A12 418217-5 £1.66 £1.99
114 - STOPPER HR2450T/2601/2611FT/B MSP-345333-9.A8 345333-9 £1.66 £1.99
115 - STEEL BALL 7.0 M3601/M8701 MSP-216022-2.A58 216022-2 £1.66 £1.99
116 - GUIDE WASHER DHR164/DHR165 MSP-345187-4.A5 345187-4 £1.66 £1.99
117 - CONICAL SPRING 21-29 DHR MSP-233916-6.A38 233916-6 £1.66 £1.99
118 - FLAT WASHER 21 HR2450T/GA4540 MSP-267279-8.A20 267279-8 £1.66 £1.99
119 - TOOL HOLDER HR2450T/HR2610/F MSP-324355-2.A2 324355-2 £43.01 £51.61
120 - STEEL BALL 6 BHR262T/BHR MSP-216013-3.A11 216013-3 £1.66 £1.99
121 - TORSION SPRING HR2450T/HR281 MSP-231669-1.A17 231669-1 £1.66 £1.99
122 - CHANGE RING HR2450T/HR2811FT MSP-345334-7.A9 345334-7 £1.66 £1.99
123 - CHANGE COVER HR2450T/HR2811F MSP-418218-3.A5 418218-3 £1.66 £1.99
124 - STEEL BALL 5.0 HP1641/6796 MSP-216018-3.A30 216018-3 £1.66 £1.99
125 - LEAF SPRING HR2450T/HR2811FT MSP-345335-5.A9 345335-5 £1.66 £1.99
126 - FLAT WASHER 24 HR2450T/HR281 MSP-267270-6.A7 267270-6 £1.66 £1.99
127 - RING SPRING 21 HR2450T/HR281 MSP-233924-7.A9 233924-7 £1.66 £1.99
A01 - SPACER FOR 194079-2/BHR262T/ MSP-418216-7.A6 418216-7 £2.49 £2.99
A01 - QUICK CHANGE DRILL CHUCK HR245 MSP-194079-2.A10 194079-2 £60.26 £72.31
A01 - CHUCK HOLDER FOR 194079-2/BHR MSP-324353-6.A19 324353-6 £1.66 £1.99
A01 - SCREW M6X22 DP4700/6013BR MSP-251425-3.A8 251425-3 £1.66 £1.99
A01-1 - CHUCK HOLDER FOR 194079-2/BHR MSP-324353-6.A18 324353-6 £1.66 £1.99
A01-1 - QUICK CHANGE DRILL CHUCK HR245 MSP-194079-2.A11 194079-2 £60.26 £72.31
A01-1 - SPACER FOR 194079-2/BHR262T/ MSP-418216-7.A7 418216-7 £2.49 £2.99
A03 - DEPTH GAUGE BHR262/HP1641/40/5 MSP-324219-0.A7 324219-0 £1.66 £1.99
A02-1 - GREASE VESSEL SET FOR HAMMERS MSP-198993-4.A16 198993-4 £6.86 £8.23
A04 - CLOTH BHR262/HR4011C/4001C MSP-443122-7.A5 443122-7 £2.49 £2.99
A06 - BATTERY COVER FOR 194873-2 MSP-451153-2.A1 451153-2 £2.49 £2.99
A07 - DC36RA 25.2V-36V CHARGER LI-IO MSP-***DC36RA.A2 ***DC36RA -
A08 - HANDLE HM1203/DKP180 MSP-450990-1.A8 450990-1 £2.49 £2.99
A08 - LATCH FOR HM1203/1203/1214 MSP-162271-8.A22 162271-8 £1.20 £1.44
A08 - PLASTIC CASE BHR262T MSP-141407-2.A0 141407-2 £57.86 £69.43
A08 - SHAFT BHR261 MSP-325636-7.A4 325636-7 £2.49 £2.99
