Makita HS300DWE Cordless Circular Saw Spare Parts

Home Details Reviews Delivery

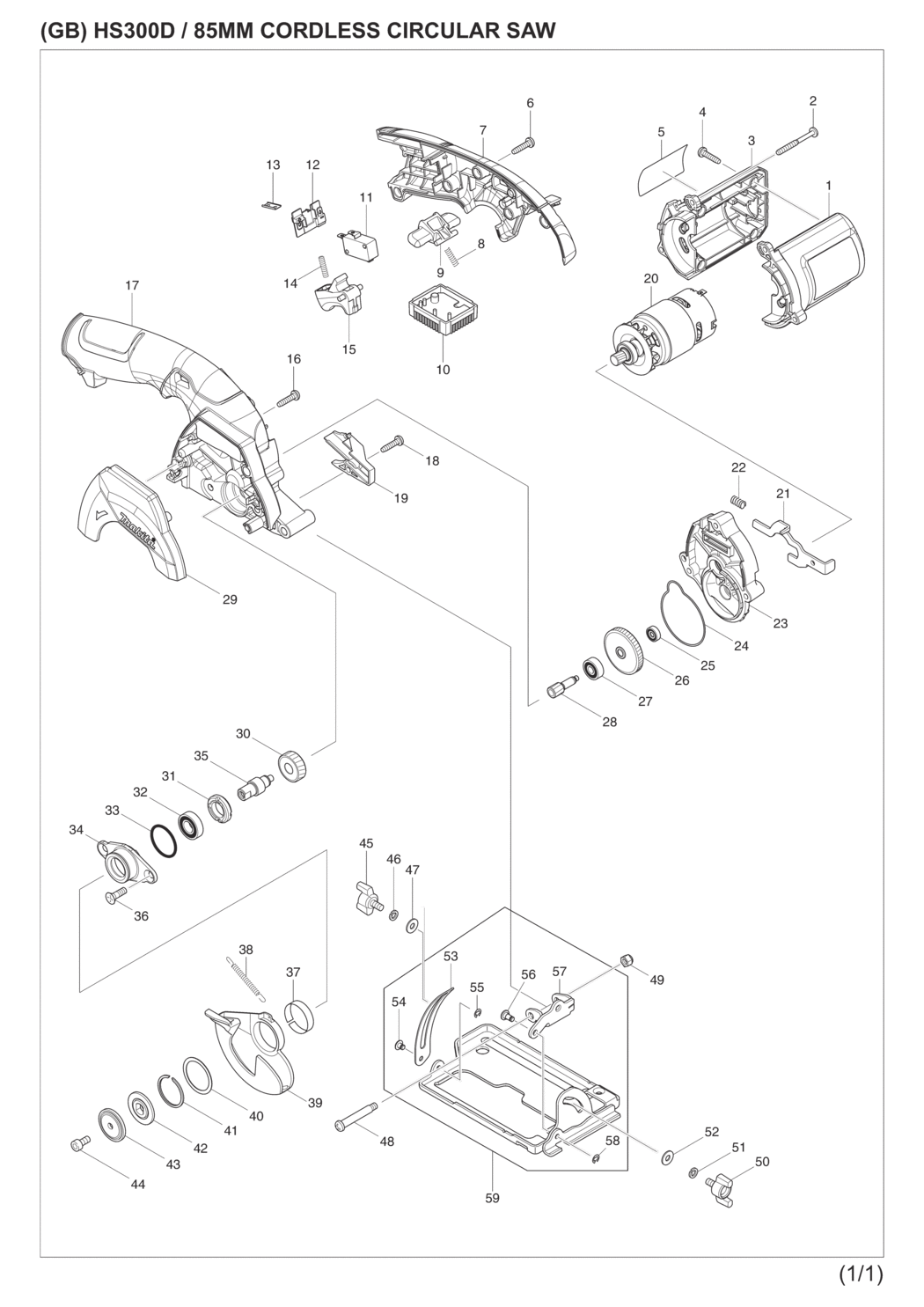

An exploded drawing and spare parts listing for the Makita HS300DWE Cordless Circular Saw

	Ex VAT	Inc VAT
1 - MOTOR HOUSING SET CC300D/HS30 MSP-188941-1.A7 188941-1	£3.90	£4.68
2 - TAPPING SCREW 4X40 CC300D MSP-266560-4.A6 266560-4	£1.66	£1.99
3 - MOTOR HOUSING SET CC300D/HS30 MSP-188941-1.A6 188941-1	£3.90	£4.68
4 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A263 265995-6	£1.66	£1.99
5 - NAME PLATE HS300 MSP-868568-0.A2 868568-0	£1.66	£1.99
6 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A264 265995-6	£1.66	£1.99
7 - HANDLE SET HS300D MSP-188966-5.A3 188966-5	£12.35	£14.82
7 - RUBBER PIN 4 GA7050/9050/5021 MSP-263002-9.A231 263002-9	£1.66	£1.99
7 - RUBBER PIN 6 DUR/DHR/DTW/DG MSP-263005-3.A411 263005-3	£1.66	£1.99
8 - COMPRESSION SPRING 4/PM7651H MSP-231469-9.A23 231469-9	£1.66	£1.99
9 - LOCK OFF LEVER BCS550/DKP180 MSP-419664-3.A18 419664-3	£1.66	£1.99
10-1 - CONTROLER ASSY CC300D/HS300D MSP-638867-2.A4 638867-2	£29.92	£35.90
10 - CONTROLER ASSY HS300D MSP-539192-3.A1 539192-3	£28.05	£33.66
10-2 - LINE FILTER BTD/DTM51/DVC861L MSP-688161-2.A101 688161-2	£1.66	£1.99
10 - LINE FILTER BTD/DTM51/DVC861L MSP-688161-2.A102 688161-2	£1.66	£1.99
10-1 - LINE FILTER BTD/DTM51/DVC861L MSP-688161-2.A110 688161-2	£1.66	£1.99
11 - SWITCH V-15-3A6 DUM166/168/DU MSP-651891-8.A7 651891-8	£2.49	£2.99
12 - TERMINAL TW100D/TD090D/DF330D MSP-643830-2.A14 643830-2	£1.66	£1.99
13 - SET PLATE TW100D/UM16/CC300D MSP-345998-7.A18 345998-7	£1.66	£1.99
14 - COMPRESSION SPRING 4/PM7651H MSP-231469-9.A22 231469-9	£1.66	£1.99
15 - SWITCH LEVER BHS630/DCS550/DK MSP-419665-1.A20 419665-1	£1.66	£1.99
16 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A573 265995-6	£1.66	£1.99
17 - HANDLE SET HS300D MSP-188966-5.A2 188966-5	£12.35	£14.82
17 - RUBBER PIN 6 DUR/DHR/DTW/DG MSP-263005-3.A14 263005-3	£1.66	£1.99
17 - RUBBER PIN 4 GA7050/9050/5021 MSP-263002-9.A329 263002-9	£1.66	£1.99
18 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A574 265995-6	£1.66	£1.99
19 - DUCT CC300D/HS300D/HS301 MSP-452234-5.A4 452234-5	£1.66	£1.99
20 - DC MOTOR CC300D/HS300D/HS301 MSP-629885-1.A6 629885-1	£31.13	£37.36
21 - SHAFT LOCK CC300D/HS300D MSP-346337-4.A2 346337-4	£1.66	£1.99
22 - COMPRESSION SPRING 6 BHS630/P MSP-233117-6.A34 233117-6	£1.66	£1.99
23 - GEAR HOUSING CC300D/HS30 MSP-140625-9.A5 140625-9	£2.49	£2.99
23 - O RING 19 CC300/CC301 MSP-213325-5.A11 213325-5	£1.66	£1.99
24 - PACKING CC300D/HS300D/HS301 MSP-424358-7.A7 424358-7	£1.66	£1.99
25 - BALL BEARING 604ZZ CC300D/BCS MSP-210036-3.A9 210036-3	£2.49	£2.99
26 - HELICAL GEAR 47 CC300D/HS300D MSP-227737-6.A5 227737-6	£3.90	£4.68
27 - BALL BEARING 606ZZ MT431/CC30 MSP-210028-2.A31 210028-2	£2.49	£2.99
28 - HELICAL GEAR 9B HS300D/CC300D MSP-227735-0.A5 227735-0	£3.38	£4.06
29 - *BLADE COVER HS300D/CC300D MSP-452243-4.A1 452243-4	£2.49	£2.99
30 - HELICAL GEAR 28 HS300D/CC300D MSP-227736-8.A3 227736-8	£2.49	£2.99
31 - BEARING RETAINER 14-23 BHS630 MSP-285847-5.A14 285847-5	£3.90	£4.68
32 - BALL BEARING 6900DDW BHS630 MSP-210069-8.A22 210069-8	£5.46	£6.55
33 - O RING 26 CC300D/HR3000/BSS50 MSP-213435-8.A6 213435-8	£1.66	£1.99
34 - BEARING BOX HS300D/CC300D MSP-318660-7.A4 318660-7	£2.49	£2.99
35 - SPINDLE HS300D/CC300D/HS301 MSP-325983-6.A8 325983-6	£2.49	£2.99
36 - COUNTERSUNK HD SCREW M5X16 MSP-265034-2.A32 265034-2	£1.66	£1.99
37 - THICKNESS RING BHS630/DCS550 MSP-345470-9.A12 345470-9	£1.66	£1.99
38 - TENSION SPRING 4 HS300D/HS301 MSP-231867-7.A2 231867-7	£1.66	£1.99
39 - SAFETY COVER HS300D/HS301 MSP-452236-1.A2 452236-1	£1.66	£1.99
40 - NARROW BLUE WASHER 26 BHS630 MSP-267127-1.A20 267127-1	£1.66	£1.99
41 - RETAINING RING WR-26 (EXT) MSP-257938-2.A9 257938-2	£1.66	£1.99
42 - INNER FLANGE HS300D/CC300D MSP-224435-3.A6 224435-3	£2.49	£2.99
43 - OUTER FLANGE 28 CC300D/5093DW MSP-224177-9.A2 224177-9	£1.66	£1.99
44 - CAP HD SCREW M5X12 AN620/CC30 MSP-922212-4.A13 922212-4	£1.66	£1.99
45 - THUMB SCREW M5X10 CC300D MSP-265760-3.A9 265760-3	£1.66	£1.99
46 - M5 SPRING RING DIN128 CC300D MSP-253427-5.A31 253427-5	£1.66	£1.99
47 - *FLAT WASHER 5 DIN125-B RP0900 MSP-941101-4.A87 941101-4	£1.66	£1.99
48 - SHOULDER SCREW M5 CC300D/BSS5 MSP-265056-2.A13 265056-2	£1.66	£1.99
49 - HEX LOCK NUT M5-8 BO3710/3711 MSP-252103-8.A72 252103-8	£1.66	£1.99
50 - THUMB SCREW M5X10 CC300D MSP-265760-3.A8 265760-3	£1.66	£1.99
51 - M5 SPRING RING DIN128 CC300D MSP-253427-5.A30 253427-5	£1.66	£1.99
52 - *FLAT WASHER 5 DIN125-B RP0900 MSP-941101-4.A86 941101-4	£1.66	£1.99
53 - DEPTH GUIDE HS300D/HS301 MSP-346338-2.A3 346338-2	£1.66	£1.99
54 - CLEVIS PIN 4 5093D/HS301 MSP-268004-0.A4 268004-0	£2.49	£2.99
55 - EXT E-RING JIS JE-3 BPJ140/81 MSP-961017-7.A56 961017-7	£1.66	£1.99
56 - CLEVIS PIN 5 5093D/HS301 MSP-268028-6.A11 268028-6	£2.49	£2.99
57 - ANGULAR GUIDE HS300D/HS301 MSP-346339-0.A1 346339-0	£1.66	£1.99
58 - EXT E-RING JIS JE-3 BPJ140/81 MSP-961017-7.A57 961017-7	£1.66	£1.99
59 - BASE ASSY HS300D/HS301 MSP-135416-1.A3 135416-1	£7.54	£9.05
A01 - HEX WRENCH 4 DUR/X360/DBC260L MSP-783202-0.A1 783202-0	£1.20	£1.44
A03 - DC10WA CHARGER LI-ION 194589-9 MSP-*DC10WA.A20 *DC10WA	-
A04 - BATTERY BL1013 10.8V SET TW100 MSP-194550-6.A7 194550-6	£53.12	£63.74
A05 - HANDLE AN510/DDF453/501 MSP-419360-3.A40 419360-3	£1.66	£1.99
A05 - LATCH AN510/BDF453/BUC121/2 MSP-163455-1.A1 163455-1	£2.49	£2.99
A05 - PLASTIC CASE HS300D MSP-824961-8 824961-8	£21.55	£25.86
A07 - DUST NOZZLE HS300/HS301 MSP-452237-9.A2 452237-9	£1.20	£1.44
A08 - PAN HEAD SCREW M4X16 BHX2501 MSP-911128-8.A80 911128-8	£1.66	£1.99
