Makita HR5211C Rotary Hammer Spare Parts

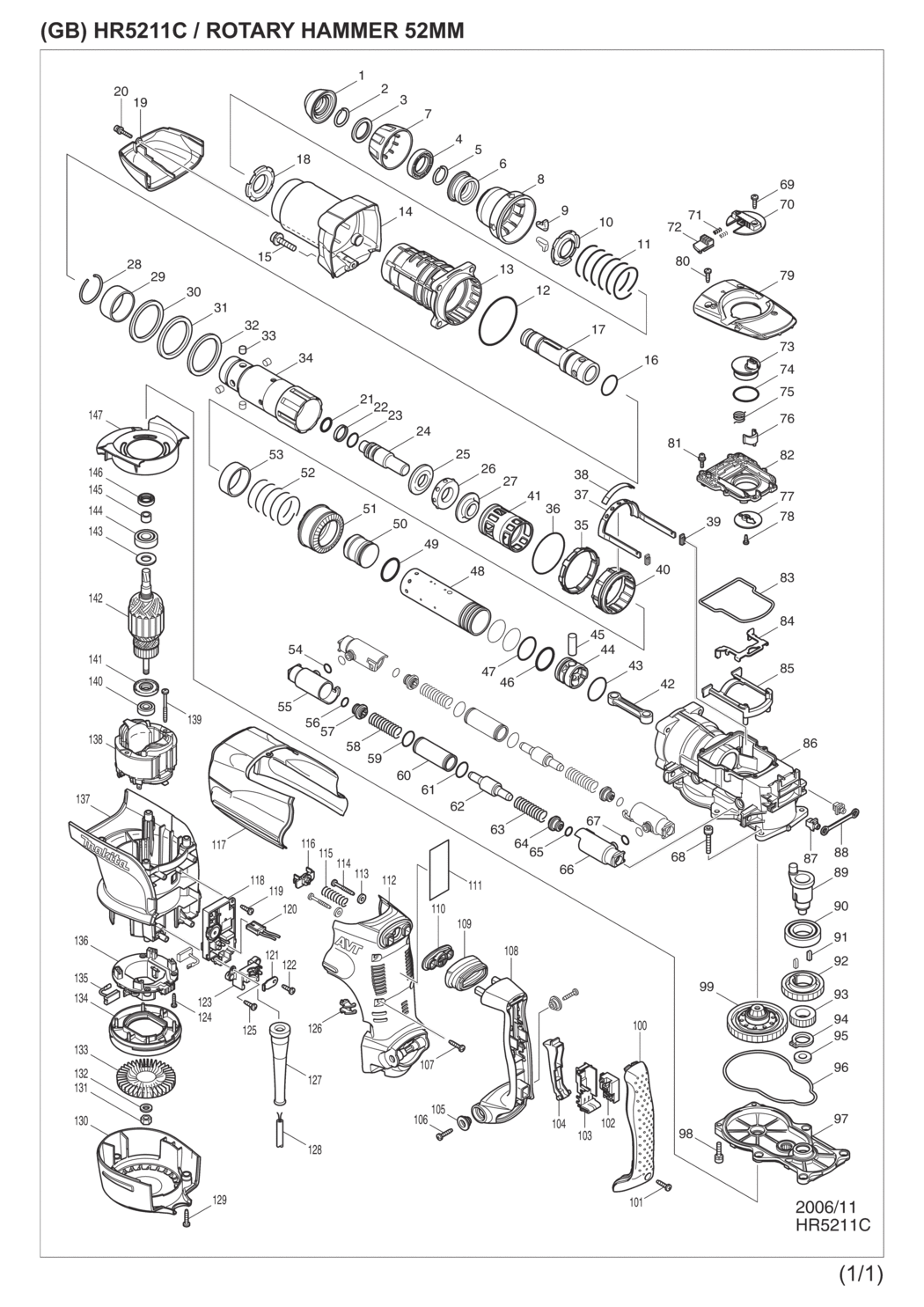

An exploded drawing and spare parts listing for the Makita HR5211C Rotary Hammer

	Ex VAT	Inc VAT
1-1 - TOOL HOLDER CAP HM11110/1111 MSP-286285-4.A4 286285-4	£2.34	£2.81
2 - RING SPRING 25 HM1110/1111 MSP-233948-3.A0 233948-3	£1.44	£1.73
3 - RING 28 HR5211C/4511C MSP-257280-1.A0 257280-1	£5.62	£6.74
4 - SPACER HR4011C/4001C/HR4511C MSP-419002-9.A2 419002-9	£1.44	£1.73
5 - RING SPRING 25 HM1110/1111 MSP-233948-3.A1 233948-3	£1.44	£1.73
6 - CHUCK RING HR5211C/HM1110/111 MSP-324752-2.A2 324752-2	£21.89	£26.27
7 - CHUCK COVER HR5211C MSP-419778-8 419778-8	£2.34	£2.81
8 - RELEASE COVER HR5211C MSP-419779-6 419779-6	£4.06	£4.87
9 - TOOL RETAINER HM1110/HR5212C MSP-310178-4.A0 310178-4	£7.49	£8.99
10 - SPRING GUIDE HR5211C/HM1110/1 MSP-345804-6.A1 345804-6	£1.44	£1.73
11 - COMPRESSION SPRING 49 HR5211C MSP-233496-2.A1 233496-2	£2.50	£3.00
12 - O RING 78 HR5211C/HR5212C MSP-213766-5.A0 213766-5	£2.18	£2.62
13 - PLANE BEARING 52 HR4511/HR5201 MSP-214657-3 214657-3	£6.08	£7.30
13 - OIL SEAL 45 HR4511C/HR5201C MSP-213576-0 213576-0	£5.92	£7.11
13 - BARREL HR5211C MSP-158175-0 158175-0	£53.07	£63.68
14 - BARREL COVER HR5211C MSP-158179-2 158179-2	£14.35	£17.22
15 - HEX SOCKET HD BOLT M8 X 35 HR MSP-922456-6.A3 922456-6	£1.44	£1.73
16 - O RING 32 HM1110/1111.HR5211C MSP-213492-6.A4 213492-6	£2.50	£3.00
17 - TOOL HOLDER A HR5211C MSP-324740-9 324740-9	£75.60	£90.72
18 - SPRING GUIDE HR5211C/HM1110/1 MSP-345804-6.A0 345804-6	£1.44	£1.73
19 - GEAR HOUSING COVER HR5211C MSP-419791-6 419791-6	£5.46	£6.55
20 - HEX SOCKET HD BOLT M4X25 HR52 MSP-922148-7.A16 922148-7	£1.44	£1.73
22 - FLUORIDE RING 25 HM1110/1111 MSP-213392-0.A10 213392-0	£9.36	£11.23
23 - O RING 20 HM1110/1111/HR4500C MSP-213317-4.A10 213317-4	£1.44	£1.73
24 - IMPACT BOLT HR5211C MSP-324753-0 324753-0	£14.35	£17.22
25 - RING 20 HR5211C MSP-324756-4 324756-4	£8.27	£9.92
26 - RUBBER RING 24 HR5211C MSP-424000-0 424000-0	£6.08	£7.30
27 - COLLAR SLEEVE 20 HR5211C MSP-324757-2 324757-2	£7.80	£9.36
28 - RING SPRING 44 HR5211C MSP-233949-1 233949-1	£1.44	£1.73
29 - RING 47 HR5211C MSP-257282-7 257282-7	£42.48	£50.98
30 - FLAT WASHER 57 HR5211C MSP-267287-9.A1 267287-9	£1.44	£1.73
31 - URETHAN RING 57 HR5211C MSP-262122-6 262122-6	£14.20	£17.04
32 - FLAT WASHER 57 HR5211C MSP-267287-9.A0 267287-9	£1.44	£1.73
33 - PIN 10 HR5001C/5211C MSP-256265-4.A1 256265-4	£2.65	£3.18
34 - TOOL HOLDER B HR5211C MSP-324741-7 324741-7	£121.22	£145.46
35 - LOCK SLEEVE HR5211C MSP-419776-2 419776-2	£1.44	£1.73
36 - O RING 60 HM1110/1110/AN942 MSP-213654-6.A8 213654-6	£2.18	£2.62
37 - RINK ARM HR5211C MSP-165459-9 165459-9	£20.30	£24.36
38 - LINK ARM GUIDE HR5211C MSP-419775-4 419775-4	£1.44	£1.73
39 - SEAL PLATE HR5211C/HR4511C MSP-424024-6.A1 424024-6	£1.44	£1.73
40 - DRIVING SLEEVE HR5211C MSP-313138-5 313138-5	£21.89	£26.27
41-1 - SLIDE SLEEVE HR5211C/HR4511C MSP-419780-1.A0 419780-1	£2.50	£3.00
41 - SLIDE SLEEVE HR5211C/HR4511C MSP-419780-1.A1 419780-1	£2.50	£3.00
42-1 - CONNECTING ROD HR5211C MSP-451516-2 451516-2	£8.42	£10.11
43 - O RING 35 HM1303B/LS800DWB/HR MSP-213460-9.A33 213460-9	£2.18	£2.62
44 - PISTON HR5211C MSP-419771-2 419771-2	£2.65	£3.18
46 - O RING 34 HR5001C MSP-213482-9.A2 213482-9	£1.44	£1.73
46-1 - O RING 34 MSP-213296-6.A0 213296-6	£3.59	£4.31
47 - O RING 36 AN510/HR2010/HM1202 MSP-213510-0.A11 213510-0	£1.44	£1.73
48 - CYLINDER 40 HR5211C MSP-331748-6 331748-6	£68.54	£82.25
49-1 - O RING 34 MSP-213296-6.A1 213296-6	£3.59	£4.31
49 - O RING 34 HR5001C MSP-213482-9.A3 213482-9	£1.44	£1.73
50 - STRIKER HR5211C MSP-324754-8 324754-8	£11.39	£13.67
51 - STRAIGHT BEVEL GEAR 33 HR5211 MSP-227511-2 227511-2	£48.58	£58.29
52 - COMPRESSION SPRING 46 HR5211C MSP-233498-8 233498-8	£4.06	£4.87
53 - RING 45 HR5211C MSP-257281-9 257281-9	£7.02	£8.42
54 - O RING 12 AN504/HM1203/HM1213 MSP-213118-0.A5 213118-0	£1.44	£1.73
55 - PIPE HOLDER HR5211C MSP-318124-1.A0 318124-1	£14.67	£17.60
56 - O RING 12 AN504/HM1203/HM1213 MSP-213118-0.A6 213118-0	£1.44	£1.73
57 - SPRING GUIDE HR5211C/HM1203/1 MSP-419773-8.A0 419773-8	£1.44	£1.73
58 - COMPRESSION SPRING 15 HR5211C MSP-233497-0.A1 233497-0	£1.44	£1.73
59 - O RING 24 HR2430/DHR164/DHR16 MSP-213953-6.A8 213953-6	£1.44	£1.73
61 - O RING 24 HR2430/DHR164/DHR16 MSP-213953-6.A9 213953-6	£1.44	£1.73
62 - COUNTER WEIGHT HR5211C MSP-324755-6.A0 324755-6	£20.30	£24.36
62-1 - COUNTER WEIGHT HR5211C MSP-324755-6.A1 324755-6	£20.30	£24.36
63 - COMPRESSION SPRING 15 HR5211C MSP-233497-0.A0 233497-0	£1.44	£1.73
64 - SPRING GUIDE HR5211C/HM1203/1 MSP-419773-8.A1 419773-8	£1.44	£1.73
65 - O RING 12 AN504/HM1203/HM1213 MSP-213118-0.A3 213118-0	£1.44	£1.73
66 - PIPE HOLDER HR5211C MSP-318124-1.A1 318124-1	£14.67	£17.60
67 - O RING 12 AN504/HM1203/HM1213 MSP-213118-0.A4 213118-0	£1.44	£1.73
68 - CAP HD SCREW M6X40 HR5211C MSP-922361-7.A5 922361-7	£1.44	£1.73
69 - TAPPING SCREW 4X14 VC3211M MSP-266192-7.A106 266192-7	£1.44	£1.73
70 - CHANGE LEVER HR4011C/HR4001C MSP-419020-7.A1 419020-7	£4.52	£5.43
71 - COMPRESSION SPRING 3 HR4011C MSP-233436-0.A1 233436-0	£1.44	£1.73
72 - LOCK BUTTON HR5211C MSP-419777-0 419777-0	£1.44	£1.73
73-1 - CRANK LEVER HR4511C/5211C MSP-450687-2.A0 450687-2	£2.81	£3.37
74-1 - O RING 36 HR5211C MSP-213534-6.A0 213534-6	£1.44	£1.73
75 - TORSION SPRING 16 HR4511C MSP-233506-5.A1 233506-5	£1.44	£1.73
76 - LINK LEVER HR4511C MSP-310207-3.A1 310207-3	£7.02	£8.42
77 - RETAINER PLATE HR4511C MSP-345778-1.A0 345778-1	£3.74	£4.49
78-1 - +PH SCREW M4X12 HR4511C/5211C MSP-265014-8.A0 265014-8	£1.44	£1.73
78 - PT SCREW 4X12 BUR181/BUR141 MSP-266020-6.A10 266020-6	£1.44	£1.73
79 - CRANK CAP COVER HR5211C MSP-318129-1 318129-1	£18.72	£22.46
80 - TAPPING SCREW 4X14 VC3211M MSP-266192-7.A105 266192-7	£1.44	£1.73
81 - PAN HD SCREW M4X18 KP0810C MSP-911133-5.A22 911133-5	£1.44	£1.73
82 - CRANK CAP HR5211C MSP-419789-3 419789-3	£4.99	£5.99
83 - SEAL RING HR5211C MSP-421998-2 421998-2	£2.18	£2.62
84 - LINK PLATE HR5211C MSP-345779-9 345779-9	£4.52	£5.43
85 - LINK PLATE GUIDE HR5211C MSP-419781-9 419781-9	£1.44	£1.73
86 - CRANK HOUSING HR5211C MSP-158176-8 158176-8	£92.86	£111.43
87 - FIX GUIDE HR4011C/HM1110/1111 MSP-419008-7.A0 419008-7	£1.44	£1.73
89 - CRANK SHAFT HR5211C MSP-324739-4 324739-4	£29.38	£35.25
90 - BALL BEARING 6006LLU HR4500C MSP-211418-2.A2 211418-2	£11.23	£13.48
91 - KEY 5 HR4000C/LC1230/HR5211C MSP-254229-2.A3 254229-2	£1.44	£1.73
92 - HELICAL GEAR 47 HR5211C MSP-226646-6 226646-6	£20.30	£24.36
93 - SPUR GEAR 24 HR5211C MSP-227176-0 227176-0	£9.36	£11.23
94 - EXT DIN 471 CIRCLIP-22 HR5211 MSP-961102-6.A0 961102-6	£1.44	£1.73
95 - FLAT WASHER 12 LC1230/2710 MSP-253843-1.A1 253843-1	£1.44	£1.73
96 - SEAL RING HR5211C MSP-421999-0 421999-0	£3.28	£3.93
97 - GEAR HOUSING HR5211C MSP-158178-4 158178-4	£48.58	£58.29
98 - CAP HD SCREW M6X25 HM0870/71C MSP-922341-3.A5 922341-3	£1.44	£1.73
99 - TORQUE LIMITER ASSY HR5211C MSP-125374-9 125374-9	£125.75	£150.90
100 - HANDLE COVER HR4511C MSP-419796-6.A0 419796-6	£15.91	£19.09
101 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A881 265995-6	£1.44	£1.73
102-1 - SWITCH TG73B-1 HR4011C/4001C MSP-650676-9.A5 650676-9	£12.32	£14.79
103 - SWITCH HOLDER HR4011C/45 MSP-154626-1.A2 154626-1	£2.18	£2.62
104 - SWITCH LEVER HR4011C/HR4511C MSP-419025-7.A2 419025-7	£2.18	£2.62
105 - SHOULDER SLEEVE 6 HR4011C MSP-313124-6.A2 313124-6	£2.34	£2.81
106 - PT SCREW 5X25 KP0810C KP0810 MSP-266041-8.A97 266041-8	£1.44	£1.73
107 - PT SCREW 5X25 KP0810C KP0810 MSP-266041-8.A98 266041-8	£1.44	£1.73
108 - HANDLE HR4511C MSP-419798-2.A0 419798-2	£12.79	£15.35
109 - DUST COVER HR5211C/HM1111C MSP-424001-8.A1 424001-8	£2.81	£3.37
110 - DUST COVER SUPPORT HR5211/HM1 MSP-419783-5.A0 419783-5	£1.44	£1.73
111 - NAME PLATE HR5211C MSP-863353-6 863353-6	£1.44	£1.73
112 - HANDLE BASE HR5211C MSP-419797-4 419797-4	£29.38	£35.25
113 - *THIN BLUE WASHER 5 BO3710/11 MSP-267066-5.A30 267066-5	£1.44	£1.73
114 - PT SCREW 5X40 M6600 MSP-266211-9.A0 266211-9	£1.44	£1.73
115 - COMPRESSION SPRING 11 HM0871C MSP-233434-4.A4 233434-4	£1.44	£1.73
116 - SPRING GUIDE HR4011C/HR4511C MSP-419013-4.A0 419013-4	£1.44	£1.73
117 - CRANK HOUSING COVER HR5211C MSP-419793-2 419793-2	£14.20	£17.04
118 - CONTROLLER 110V HR5211C MSP-631726-9 631726-9	£64.94	£77.93
118 - CONTROLLER 240V HR5211C MSP-631727-7 631727-7	£55.97	£67.16
119-1 - TAPPING SCREW 4X14 HR4011C MSP-266901-4.A8 266901-4	£1.44	£1.73
119 - TAPPING SCREW 4X14 VC3211M MSP-266192-7.A83 266192-7	£1.44	£1.73
120 - LEAD UNIT HR4511C MSP-638510-3.A0 638510-3	£2.34	£2.81
121 - STRAIN RELIEF GA/GD/SG125 MSP-687169-3.A42 687169-3	£1.44	£1.73
122 - TAPPING SCREW 4X14 VC3211M MSP-266192-7.A84 266192-7	£1.44	£1.73
123 - CORD CLAMP BASE HR5212C MSP-419024-9.A4 419024-9	£1.44	£1.73
124 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A882 265995-6	£1.44	£1.73
125-1 - TAPPING SCREW 4X14 HR4011C MSP-266901-4.A7 266901-4	£1.44	£1.73
125 - TAPPING SCREW 4X14 VC3211M MSP-266192-7.A85 266192-7	£1.44	£1.73
126 - LENS HR4511C MSP-419774-6.A0 419774-6	£1.44	£1.73
127 - CORD GUARD 10 HM1317C/CB/HR30 MSP-682560-0.A21 682560-0	£2.34	£2.81
128 - POWER SUPPLY CORD 1.5-2-4.0 MSP-692623-4.A7 692623-4	£32.69	£39.23
129 - PT SCREW 5X25 KP0810C KP0810 MSP-266041-8.A3 266041-8	£1.44	£1.73
130 - REAR COVER HR5211C MSP-419790-8 419790-8	£15.91	£19.09
131 - HEX NUT M8-12 4112HS/HR5211C MSP-252178-7.A1 252178-7	£1.44	£1.73
132 - WASHER 8 6904/LF1000/HR5211C MSP-253165-9.A4 253165-9	£1.44	£1.73
133 - FAN 90 HR5001C/4500C/HR4511C MSP-240016-5.A3 240016-5	£8.73	£10.48
134 - FAN GUIDE HR4511C MSP-419782-7.A0 419782-7	£2.34	£2.81
135-1 - CARBON BRUSH CB-175 MSP-195844-2.A1 195844-2	£9.67	£11.61
136-1 - BRUSH HOLDER UNIT HR1317C-CB/ MSP-632D00-2.A2 632D00-2	£9.67	£11.61
137 - MOTOR HOUSING HR5211C MSP-419795-8 419795-8	£34.28	£41.13
138 - FIELD 240V HR5211C/HM1314C MSP-636303-2.A1 636303-2	£32.69	£39.23
138 - FIELD 110V HR5211C/HM1214 MSP-636301-6.A0 636301-6	£32.69	£39.23
139 - PT SCREW 5X55 UC3530A/KP0810 MSP-266095-5.A4 266095-5	£1.44	£1.73
140 - BALL BEARING 6000DDW 2RDCM MSP-210059-1.A25 210059-1	£3.74	£4.49
141 - INSULATION WASHER HM1317C-CB/ MSP-681642-5.A6 681642-5	£10.77	£12.92
142 - ARMATURE 240V HR5211C MSP-516993-6 516993-6	£102.82	£123.38
142 - ARMATURE 110V HR5211C MSP-516990-2 516990-2	£102.82	£123.38
143 - THIN BLUE WASHER 15 6911D MSP-267025-9.A2 267025-9	£1.44	£1.73
144 - BALL BEARING 6202LLU HM1202C MSP-211238-4.A0 211238-4	£10.14	£12.17
145 - SLEEVE 12 HR4500C/4511C/BHR26 MSP-331596-3.A15 331596-3	£5.46	£6.55
146 - OIL SEAL 15 BHR262/HM1203/BHR MSP-213231-4.A16 213231-4	£7.64	£9.17
147 - BAFFLE PLATE HR5211C MSP-419788-5 419788-5	£2.50	£3.00
148 - LABEL/CLEAR HR4511C5211C MSP-819362-3.A1 819362-3	£1.44	£1.73
148-1 - LABEL/CLEAR HR4511C5211C MSP-819362-3.A2 819362-3	£1.44	£1.73
A01 - GRIP 36 HR4511C/5211C/4010C/ MSP-158131-0.A3 158131-0	£6.41	£7.69
A02 - LATCH/PLASTIC CASE 824697-9 MSP-163467-4.A17 163467-4	£1.47	£1.76
A02-2 - LABEL/INDICATION HR4511C MSP-892400-6.A2 892400-6	£3.74	£4.49
A02-3 - PLASTIC CASE HR4511C MSP-196188-3.A0 196188-3	£91.92	£110.31
A02-1 - LABEL/INDICATION HR4511C MSP-892400-6.A1 892400-6	£3.74	£4.49
A02-3 - LATCH FOR HM1203/1203/1214 MSP-162271-8.A12 162271-8	£1.20	£1.44
A03 - LABEL/CAUTION HR4001CHR4011C MSP-817105-7.A1 817105-7	£1.44	£1.73
A02-3 - LABEL/INDICATION HR4511C MSP-892400-6.A0 892400-6	£3.74	£4.49
A02-2 - LATCH FOR HM1203/1203/1214 MSP-162271-8.A13 162271-8	£1.20	£1.44
A04 - SIDE HANDLE HR4500/4511/5211 MSP-417003-1.A10 417003-1	£12.32	£14.79
A04 - SPRING PIN 5-24 HM1202C/LC123 MSP-951166-8.A4 951166-8	£1.44	£1.73
A04 - HEX HD BOLT M8X150/HR5212C MSP-265439-6.A3 265439-6	£2.18	£2.62
A04 - WING NUT M8 HM1100C/HM1200K MSP-252640-2.A5 252640-2	£5.92	£7.11
A04 - SIDE HANDLE CAM HR4511/5211C MSP-417002-3.A9 417002-3	£1.44	£1.73
A05 - WING SCREW M6X14 HS7611 MSP-265701-9.A20 265701-9	£2.18	£2.62
A04-1 - SIDE HANDLE CAM HR4511/5211C MSP-417002-3.A8 417002-3	£1.44	£1.73
A04-1 - SIDE HANDLE HR4500/4511/5211 MSP-417003-1.A11 417003-1	£12.32	£14.79
A04-1 - WING NUT M8 HM1100C/HM1200K MSP-252640-2.A6 252640-2	£5.92	£7.11
A04-1 - HEX HD BOLT M8X150/HR5212C MSP-265439-6.A2 265439-6	£2.18	£2.62
A04-1 - SPRING PIN 5-24 HM1202C/LC123 MSP-951166-8.A3 951166-8	£1.44	£1.73
A04-1 - SIDE HANDLE BASE 82A HM1203/1 MSP-318505-9.A0 318505-9	£15.58	£18.70
A04-1 - SIDE HANDLE BASE 82B HM1203/1 MSP-318506-7.A1 318506-7	£17.86	£21.43
A06 - CUP SQUARE NECK BOLT M6X80 MSP-266163-4.A3 266163-4	£3.28	£3.93
A07 - DEPTH ROD HR3500/3820/HR3000C MSP-321248-4.A14 321248-4	£3.17	£3.80
A08 - PLATE HR3000C/4000C/5001C/354 MSP-344492-6.A10 344492-6	£1.44	£1.73
A09 - GRIP SPRING 82 HR5211C MSP-345780-4 345780-4	£9.98	£11.98
A10 - SIDE GRIP BASE 82 HR4511C MSP-419792-4 419792-4	£3.09	£3.71
A11 - CLOTH BHR262/HR4011C/4001C MSP-443122-7.A22 443122-7	£3.59	£4.31
A12 - HEX FULL NUT M6 LF1000/DST111 MSP-931302-2.A57 931302-2	£1.44	£1.73
A13-1 - LABEL/MODEL NO HR5211C MSP-892065-4 892065-4	£1.44	£1.73
A15 - GRIP 36 ASSY HR5211C MSP-135380-6 135380-6	£23.95	£28.74
E02 - *NON INSULATED TERMINAL GD0801 MSP-654091-9.A198 654091-9	£1.44	£1.73

Attribute Name	Value
Brand	Makita

Reviews Write your own review!

There are currently no reviews of this product.

Fill in the form below to add your review for Makita HR5211C Rotary Hammer Spare Parts

Your Review
Title Required!
Rating Required!
Your Review Required!
Your Details
Your Name Required!
Your Location Required!
Email Address Required!Invalid email!

United Kingdom (Including N. Ireland)

On orders up to £40.00	Add £4.00 inc VAT (Royal Mail post)
On orders £40.00 to £130.00	Add £7.00 inc VAT (Courier)
On orders over £130.00	FREE (Courier)
