Makita GA7040S Angle Grinder Spare Parts

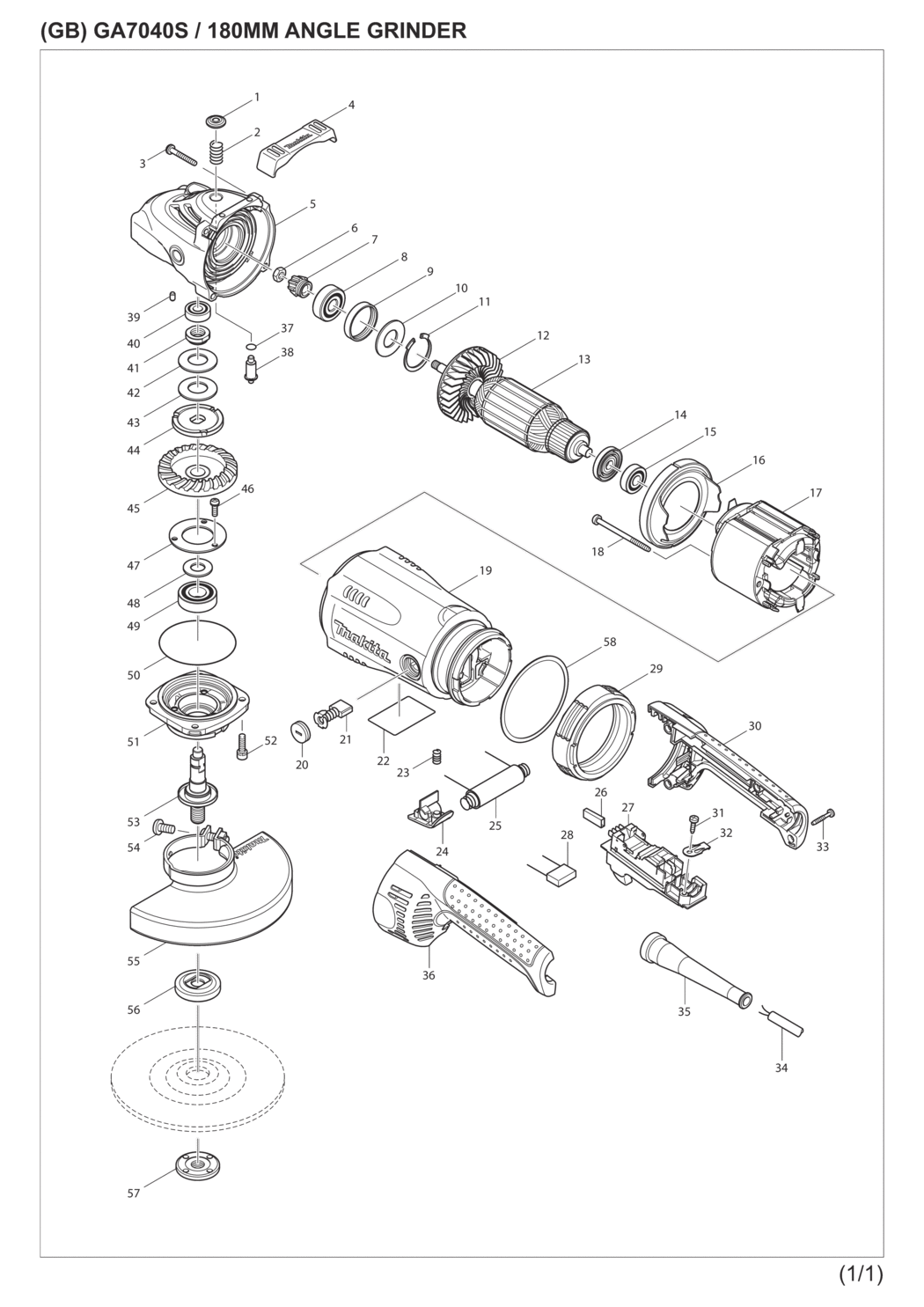

An exploded drawing and spare parts listing for the Makita GA7040S Angle Grinder

	Ex VAT	Inc VAT
1 - PIN CAP GA9020S/SMA910/MT903 MSP-419133-4.A0 419133-4	£1.66	£1.99
2 - COMPRESSION SPRING 12 GA7050/ MSP-233292-8.A16 233292-8	£1.44	£1.73
3 - PT SCREW 5X35 HR160D MSP-266012-5.A5 266012-5	£1.44	£1.73
4 - BUMPER GA9020S MSP-419144-9.A2 419144-9	£1.44	£1.73
5-2 - FELT RING 18 GA9020S MSP-262118-7.A8 262118-7	£1.44	£1.73
5-3 - FELT RING 18 GA9020S MSP-262118-7.A15 262118-7	£1.44	£1.73
5-3 - GEAR HOUSING GA9020S MSP-142754-4.A3 142754-4	£22.47	£26.96
5 - FELT RING 18 GA9020S MSP-262118-7.A7 262118-7	£1.44	£1.73
5-1 - FELT RING 18 GA9020S MSP-262118-7.A16 262118-7	£1.44	£1.73
6 - HEX NUT M8 UK360D/GA9020S/SMA MSP-252194-9.A10 252194-9	£1.44	£1.73
7 - SPIRAL BEVEL GEAR 16 GA7020 MSP-227488-1.A1 227488-1	£5.62	£6.74
8 - BALL BEARING 6301DDW MSP-211132-0.A5 211132-0	£9.98	£11.98
9 - RUBBER RING 38 9079SF/SMA910 MSP-262085-6.A1 262085-6	£1.44	£1.73
10 - FLAT WASHER 20 VC3211M/GA9020 MSP-267299-2.A11 267299-2	£1.44	£1.73
11 - RETAINING RING R-42 HR3000C MSP-962211-4.A15 962211-4	£1.44	£1.73
12 - FAN 80 GA9020S/SMA910/M9001 MSP-240081-4.A3 240081-4	£2.65	£3.18
13-1 - ARMATURE ASSY 110V GA9040/704 MSP-517830-7.A0 517830-7	£63.50	£76.20
13-1 - ARMATURE ASSY 240V GA9040/704 MSP-517834-9.A1 517834-9	£63.50	£76.20
14 - INSULATION WASHER 9029/SMA910 MSP-681630-2.A8 681630-2	£1.44	£1.73
15-1 - BALL BEARING VC3211M/KP0810/C MSP-211087-9.A13 211087-9	£9.67	£11.61
16 - BAFFLE PLATE GA9020S/SMA910 MSP-419135-0.A5 419135-0	£1.44	£1.73
17-1 - FIELD ASSY 110V GA9040/7040S MSP-520072-4.A1 520072-4	£61.38	£73.66
17 - TERMINAL RING CONNECTOR 2.00 MSP-654502-4.A70 654502-4	£1.44	£1.73
17-1 - RING TERMINAL SMA910/5143R/M9 MSP-654197-3.A6 654197-3	£1.44	£1.73
17-1 - FIELD ASSY 220V GA9040/7040S MSP-526198-0.A0 526198-0	£60.59	£72.71
17 - RING TERMINAL SMA910/5143R/M9 MSP-654197-3.A4 654197-3	£1.44	£1.73
17-1 - TERMINAL RING CONNECTOR 2.00 MSP-654502-4.A72 654502-4	£1.44	£1.73
18 - PT SCREW 5X75 2414B MSP-266059-9.A4 266059-9	£1.44	£1.73
19 - BRUSH HOLDER 9079SF/LW1401 MSP-643712-8.A8 643712-8	£9.05	£10.86
19 - MOTOR HOUSING GA9040/704 MSP-154786-9.A0 154786-9	£20.30	£24.36
20 - BRUSH HOLDER CAP 7-18 GA7050/ MSP-643700-5.A37 643700-5	£1.44	£1.73
21 - CARBON BRUSH CB-204/M9001 MSP-191957-7.A12 191957-7	£14.82	£17.78
22 - NAME PLATE GA7040S MSP-862127-2 862127-2	£1.44	£1.73
23 - COMPRESSION SPRING 7 GA9040S/ MSP-233375-4.A1 233375-4	£1.44	£1.73
24 - LOCK BUTTON GA9040S/7040S MSP-419260-7.A0 419260-7	£1.44	£1.73
25-1 - RESISTER GA9020/40 110V MSP-646787-6.A0 646787-6	£4.83	£5.80
25-1 - RESISTOR GA9020/40 240V MSP-646788-4.A2 646788-4	£4.83	£5.80
26 - RECEPTACLE SLEEVE GA7060/9020 MSP-686036-9.A1 686036-9	£1.44	£1.73
27 - SWITCH 1362.0113 GA9020S/2 MSP-651179-6.A7 651179-6	£29.38	£35.25
27-1 - SWITCH 1362.0113 GA9020S/2 MSP-651179-6.A8 651179-6	£29.38	£35.25
28 - NOISE SUPPRESSOR GS5000/6000 MSP-645088-9.A3 645088-9	£2.32	£2.78
29 - VIBRATION PROOF RUBBER GA9040 MSP-421936-4.A0 421936-4	£1.44	£1.73
30 - HANDLE SET GA9040S/7040S MSP-188123-5.A0 188123-5	£12.95	£15.54
30 - SPONGE SHEET GA9020S MSP-423350-0.A0 423350-0	£1.44	£1.73
31 - TAPPING SCREW 4X14 VC3211M MSP-266192-7.A58 266192-7	£1.44	£1.73
32 - STRAIN RELIEF GA/GD/SG125 MSP-687169-3.A61 687169-3	£1.44	£1.73
32 - STRAIN RELIEF GA9020&40 110V MSP-687678-2.A2 687678-2	£2.34	£2.81
33 - PT SCREW 4X25 VC3211M/BSS500 MSP-265999-8.A17 265999-8	£1.44	£1.73
34 - POWER SUPPLY CORD 1.5-2-4.0 MSP-692623-4.A13 692623-4	£32.69	£39.23
34 - POWER SUPPLY CORD 2.5-2-4.00 MSP-665558-2.A2 665558-2	£29.38	£35.25
35 - CORD GUARD 10 HM1317C/CB/HR30 MSP-682560-0.A1 682560-0	£2.34	£2.81
35 - CORD GUARD 11.5 HM1202C 9069S MSP-682561-8.A4 682561-8	£1.44	£1.73
36 - SPONGE SHEET GA9020S MSP-423350-0.A1 423350-0	£1.44	£1.73
36 - HANDLE SET GA9040S/7040S MSP-188123-5.A1 188123-5	£12.95	£15.54
37 - O RING 9 BSR730S/DHS680 MSP-213062-1.A0 213062-1	£1.44	£1.73
38 - SHOULDER PIN 5 GA9020S/SMA910 MSP-256491-5.A0 256491-5	£2.30	£2.76
39 - RUBBER PIN 4 GA7050/9050/5021 MSP-263002-9.A155 263002-9	£1.44	£1.73
40-1 - BALL BEARING 6000LLB BTW200 MSP-211061-7.A39 211061-7	£8.73	£10.48
40 - BALL BEARING 6000ZZ MT431/SMA MSP-210067-2.A38 210067-2	£4.19	£5.03
41 - NUT M15-23 GA9040S/7040S MSP-252429-8.A1 252429-8	£1.44	£1.73
42 - CUP SPRING 20 9047/9049 MSP-232163-6.A0 232163-6	£2.34	£2.81
43 - CUP SPRING 20 9047/9049 MSP-232163-6.A5 232163-6	£2.34	£2.81
44 - LOCK WASHER GA9040S/7040S MSP-267798-4.A0 267798-4	£3.90	£4.68
45 - SPIRAL BEVEL GEAR 53D GA7040S MSP-227493-8 227493-8	£11.39	£13.67
46 - PAN HEAD SCREW M5X16 MT852/M9 MSP-265120-9.A2 265120-9	£1.44	£1.73
47 - BEARING RETAINER 50 GA9020S MSP-285724-1.A5 285724-1	£1.44	£1.73
48 - BLUE WASHER 15 9047 MSP-267167-9.A0 267167-9	£1.44	£1.73
49-1 - BALL BEARING 6203DDW RP0900/9 MSP-211278-2.A21 211278-2	£10.30	£12.36
49 - BALL BEARING 6203DDW M9001 MSP-211285-5.A6 211285-5	£6.25	£7.50
50 - O RING 78 HR2010/GA9060/R/61 MSP-213760-7.A10 213760-7	£1.44	£1.73
51-1 - BEARING BOX GA9020S MSP-318377-2.A4 318377-2	£6.55	£7.86
52 - HEX SOCKET HD BOLT M6X22 GA90 MSP-265541-5.A2 265541-5	£1.44	£1.73
53 - SPINDLE GA9040S/7040 MSP-154777-0.A1 154777-0	£6.71	£8.05
54-1 - SPARE PART MSP-265198-2.A2 265198-2	£1.44	£1.73
55-1 - O RING 6 GA7050/AN611/M9001 MSP-213017-6.A7 213017-6	£1.44	£1.73
55-1 - WHEEL COVER 180 GA7050 MSP-122889-7.A5 122889-7	£12.17	£14.60
57 - WHEEL LOCK NUT 14-45 GA7050/ MSP-224543-0.A4 224543-0	£3.75	£4.50
58 - NYLON WASHER 89 GA9040S/7040S MSP-261131-2.A0 261131-2	£1.44	£1.73
59-1 - LABEL/CLEAR GA4540R/GA7090S MSP-804Y42-4.A12 804Y42-4	£1.44	£1.73
A01 - GRIP 36 GA7050/SMA910 MSP-152539-0.A4 152539-0	£3.84	£4.61
A02-1 - LOCK NUT WRENCH 35 SMA910/M90 MSP-197610-3.A30 197610-3	£3.42	£4.11
