Makita 9565CVL Angle Grinder Spare Parts

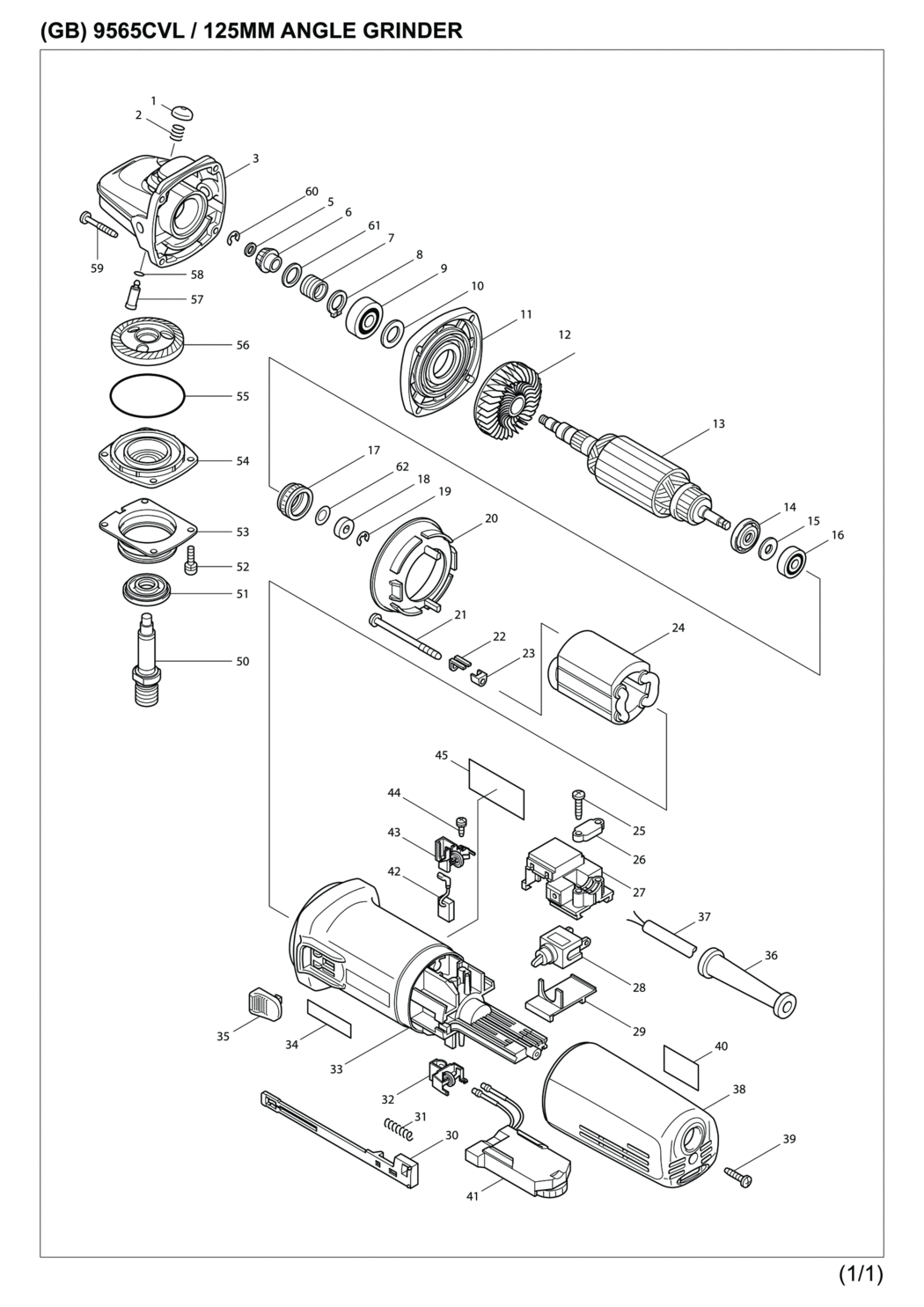

An exploded drawing and spare parts listing for the Makita 9565CVL Angle Grinder

	Ex VAT	Inc VAT
1-1 - PIN CAP 9564/65CV/DZ/H/9565CV MSP-418067-8.A8 418067-8	£1.44	£1.73
2 - COMPRESSION SPRING 8 BGA450 MSP-233072-2.A2 233072-2	£1.71	£2.05
3-3 - GEAR HOUSING 9564/65CV/D MSP-153488-4.A4 153488-4	£29.38	£35.25
5 - BLUE WASHER 5 4302C MSP-267034-8.A1 267034-8	£1.44	£1.73
6 - SPIRAL BEVEL GEAR 7 9565CVL MSP-226796-7 226796-7	£11.39	£13.67
7 - LOCK SPRING 12 GD0801C/GD0811 MSP-233901-9.A8 233901-9	£3.90	£4.68
8 - EXT DIN 471 CIRCLIP-12 EM2651 MSP-961052-5.A145 961052-5	£1.44	£1.73
9 - BALL BEARING 6001LLB 9565H/CV MSP-211142-7.A5 211142-7	£6.08	£7.30
10 - THIN WASHER 12 8419B/9565H MSP-253084-9.A12 253084-9	£1.44	£1.73
11 - GEAR HOUSING COVER BO6040/956 MSP-317359-1.A7 317359-1	£5.62	£6.74
12 - FAN 57 9564/65CV/DZ&H/SG1250 MSP-240033-5.A8 240033-5	£4.68	£5.62
13-1 - ARMATURE ASSY 240V 9565CVL MSP-515238-9 515238-9	£62.83	£75.40
13-1 - ARMATURE ASSY 110V 9565CVL MSP-515340-8 515340-8	£104.20	£125.04
14 - INSULATION WASHER/PO6000C MSP-681656-4.A24 681656-4	£1.44	£1.73
15 - THIN BLUE WASHER BHS630/JS160 MSP-253823-7.A48 253823-7	£1.44	£1.73
16 - BALL BEARING 627DDW BO6040 MSP-210027-4.A26 210027-4	£3.28	£3.93
17 - LABYRINTH RUBBER RING 22 BO60 MSP-421738-8.A6 421738-8	£9.05	£10.86
18 - MAGNET SLEEVE GD0801C/GD0811 MSP-688117-5.A25 688117-5	£4.18	£5.02
19-1 - SELF LOCK 6 GD0801C/811C MSP-259039-2.A16 259039-2	£1.44	£1.73
20 - BAFFLE PLATE GD0800C/810C/BO6 MSP-413076-2.A8 413076-2	£1.44	£1.73
21 - TAPPING SCREW 4X70 9564/65CV& MSP-266258-3.A23 266258-3	£1.44	£1.73
22 - RETAINER GD0801C/811C/MT814 MSP-344871-8.A12 344871-8	£1.44	£1.73
23 - INSULATION COVER MT814/GD080 MSP-417237-6.A9 417237-6	£1.44	£1.73
24 - FIELD 110V SG1250/9565CVL MSP-626501-6.A5 626501-6	£46.33	£55.60
25 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A57 265995-6	£1.44	£1.73
26A - STRAIN RELIEF 110V UK360/HS61 MSP-687053-2.A15 687053-2	£1.44	£1.73
26A - STRAIN RELIEF HS7100/BO5041 MSP-687052-4.A12 687052-4	£1.44	£1.73
27 - SWITCH BLOCK GD0800C/810C/BO6 MSP-632945-0.A7 632945-0	£9.82	£11.79
28 - SWITCH ST115A-40 GA4540/5450R MSP-651418-4.A23 651418-4	£9.82	£11.79
29 - COVER GD0800C/810C/BO6040/956 MSP-687113-0.A10 687113-0	£1.44	£1.73
30 - SWITCH LEVER 9564/65CV/DZ&H MSP-417186-7.A6 417186-7	£1.44	£1.73
31 - COMPRESSION SPRING 4 9542 MSP-233071-4.A24 233071-4	£1.44	£1.73
32-1 - BRUSH HOLDER BO6040/GD0801C MSP-643760-7.A16 643760-7	£3.28	£3.93
33-3 - MOTOR HOUSING 9564/9565 MSP-418512-3.A2 418512-3	£17.86	£21.43
33-5 - MOTOR HOUSING 9564CV-9566CV MSP-453276-2.A4 453276-2	£25.20	£30.24
35-1 - SWITCH KNOB 9564/65Z&H/SG1250 MSP-417813-6.A6 417813-6	£1.44	£1.73
36-1 - CORD GUARD 10 GD0801C/GD0811C MSP-682566-8.A46 682566-8	£1.60	£1.92
37 - POWER SUPPLY CORD HS6100/7100 MSP-695217-4.A11 695217-4	£12.48	£14.98
37 - LEAD WIRE HS7100/GD0801C/HP16 MSP-692527-0.A119 692527-0	£29.38	£35.25
38 - REAR COVER GD0800C/810C/BO604 MSP-417185-9.A2 417185-9	£9.20	£11.04
39 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A56 265995-6	£1.44	£1.73
40-1 - LABEL/INDICATION 9565CVL MSP-816505-8 816505-8	£5.62	£6.74
41 - CONTROLLER 110V 9564/65CV/CVL MSP-631383-3.A1 631383-3	£87.07	£104.48
41 - CONTROLLER 240V 9564/65CV/CVL MSP-631384-1.A1 631384-1	£87.07	£104.48
42-1 - CARBON BRUSH CB-318 AC/PO6000C MSP-191978-9.A5 191978-9	£10.92	£13.10
43-1 - BRUSH HOLDER BO6040/GD0801C MSP-643760-7.A17 643760-7	£3.28	£3.93
44 - PT SCREW 3X10 W. CAPTIVE WASH MSP-266256-7.A4 266256-7	£1.44	£1.73
45-1 - NAME PLATE 9565CVL MSP-864371-7.A0 864371-7	£1.44	£1.73
45-2 - NAME PLATE 9565CVL MSP-864371-7.A1 864371-7	£1.44	£1.73
50-1 - SPINDLE 9564/65CV/DZ&H/9565CV MSP-324035-0.A1 324035-0	£11.39	£13.67
51 - LABYRINTH RING 9540/9541/9565 MSP-415300-9.A5 415300-9	£1.44	£1.73
52-1 - HEX SOCKET HD BOLT M4X16 MSP-265490-6.A12 265490-6	£1.44	£1.73
54-2 - BEARING BOX 9 SG1250/SG1251J MSP-318302-3.A8 318302-3	£4.83	£5.80
54-3 - BEARING BOX 9564/65CV/DZ&H MSP-318334-0.A7 318334-0	£38.30	£45.96
55 - O RING 52 9564/65CV/DZ&H/SG12 MSP-213673-2.A6 213673-2	£1.44	£1.73
56 - SPIRAL BEVEL GEAR 37 9565CVL MSP-226797-5 226797-5	£17.86	£21.43
57 - PIN 9564/65CV/DZ&H/SG1251J MSP-256459-1.A12 256459-1	£1.44	£1.73
58 - O RING 6 9564/65CV/DZ&H/1251 MSP-213048-5.A8 213048-5	£1.44	£1.73
59 - TAPPING SCREW 4X28 VC3211M/95 MSP-266257-5.A5 266257-5	£1.44	£1.73
60-1 - RETAININIG RING S-5 9565CVL MSP-961008-8.A2 961008-8	£1.44	£1.73
61 - NARROW THIN WASHER 12 TW100D MSP-253052-2.A2 253052-2	£1.44	£1.73
62 - WAVE WASHER TM3000C/9564&65CV MSP-267756-0.A16 267756-0	£1.44	£1.73
63 - BEARING RETAINER 9564/65CV/DZ MSP-285841-7.A12 285841-7	£1.44	£1.73
64 - BALL BEARING 6201DDW BPJ140/8 MSP-211129-9.A91 211129-9	£10.14	£12.17
A02 - WHEEL COVER 9015B/9528NB PB MSP-165055-3.A2 165055-3	£15.75	£18.90
A01-1 - GRIP 36 BGA450/9553-9558 MSP-153489-2.A48 153489-2	£3.42	£4.11
A02-2 - WHEEL COVER 9555/GA MODELS MSP-123099-9.A5 123099-9	£8.73	£10.48
A02-2 - PAN HD SCREW M5X16 GA5021/955 MSP-911224-2.A7 911224-2	£1.44	£1.73
A02-1 - O RING 4 DGA463-DGA517/KP0810 MSP-213009-5.A76 213009-5	£1.44	£1.73
A02-2 - O RING 4 DGA463-DGA517/KP0810 MSP-213009-5.A107 213009-5	£1.44	£1.73
A02-1 - PAN HD SCREW M5X16 GA5021/955 MSP-911224-2.A6 911224-2	£1.44	£1.73
A04 - LOCKNUT PC5000/01C/GA5020/21 MSP-224554-5.A25 224554-5	£5.50	£6.60
A05 - PAN HEAD SCREW M5X16 9540/954 MSP-251391-4.A6 251391-4	£1.44	£1.73
A06 - SPARE PART MSP-265083-9.A0 265083-9	£1.44	£1.73
A07-1 - HEAD COVER PW5000C.9565CVL MSP-417322-5.A0 417322-5	£3.87	£4.64
A09 - PAD 125 9565CVL/SA5040C MSP-743060-6.A0 743060-6	£20.30	£24.36
A08-1 - LOCK NUT WRENCH 35 GA5020/9554 MSP-782423-1.A2 782423-1	£3.54	£4.25
E02 - *NON INSULATED TERMINAL GD0801 MSP-654091-9.A184 654091-9	£1.44	£1.73
