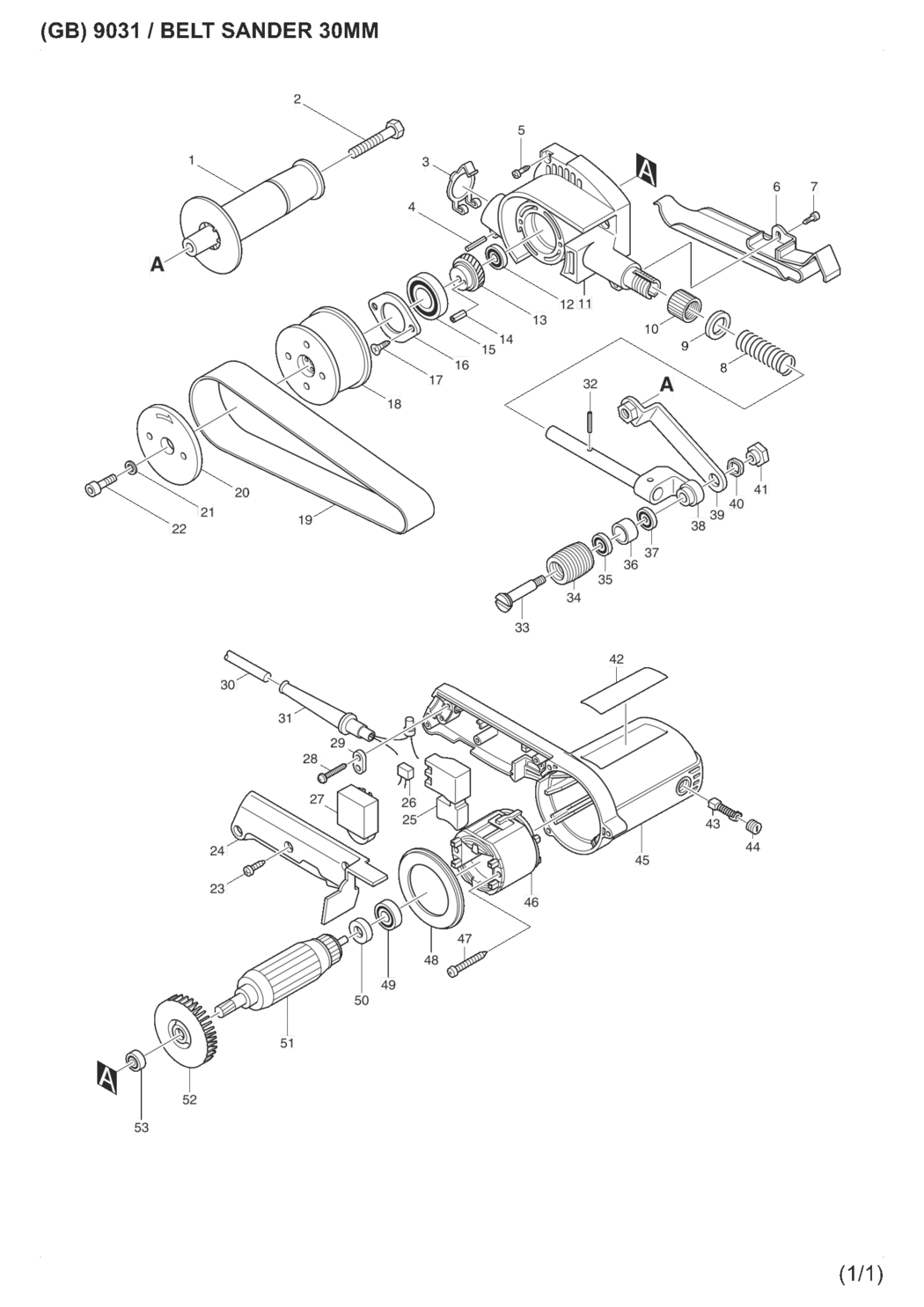

An exploded drawing and spare parts listing for the Makita 9031 Belt Sander
Ex VAT Inc VAT
3 - CAP 30 9031 MSP-286241-4 286241-4 £2.49 £2.99
4 - TENSION PIN 4-20 DIN 1481 903 MSP-951116-3.A2 951116-3 £1.66 £1.99
5-1 - PT SCREW 4X25 VC3211M/BSS500 MSP-265999-8.A118 265999-8 £1.66 £1.99
5 - TF SCREW 4X25 TRILOBULAR 9031 MSP-265924-9 265924-9 £1.66 £1.99
6 - FLAT SHOE 9030/9031 MSP-342152-4 342152-4 £4.94 £5.93
7 - CT SCREW M5X12 9031 MSP-266035-3.A2 266035-3 £1.66 £1.99
8 - COMPRESSION SPRING 13 MSP-231056-4 231056-4 £1.66 £1.99
9 - NARROW THIN WASHER 12 TW100D MSP-253052-2.A24 253052-2 £1.66 £1.99
10 - NUT M16 9030/9031 MSP-252605-4 252605-4 £2.49 £2.99
11 - RUBBER PIN 4 GA7050/9050/5021 MSP-263002-9.A66 263002-9 £1.66 £1.99
11 - *GEAR HOUSING 9031 MSP-144743-5.A0 144743-5 £60.16 £72.19
11-1 - RUBBER PIN 4 GA7050/9050/5021 MSP-263002-9.A63 263002-9 £1.66 £1.99
12 - BALL BEARING 607LB 9540/9541/ MSP-211023-5 211023-5 £6.37 £7.64
13 - HELICAL GEAR 35 9031 MSP-226435-9 226435-9 £23.65 £28.38
14 - SPRING PIN 9031 MSP-258009-8 258009-8 £1.66 £1.99
15 - BALL BEARING 6904DDW 9031 MSP-211331-4 211331-4 £14.96 £17.95
16 - BEARING RETAINER 44 9031 MSP-285830-2 285830-2 £2.49 £2.99
17 - COUNTERSUNK SCREW M4X12 9031 MSP-266058-1.A4 266058-1 £1.66 £1.99
18 - PULLEY 33-64 9031 MSP-222129-4 222129-4 £30.58 £36.70
20 - PULLEY LINER 9031 MSP-415624-3 415624-3 £4.55 £5.46
21 - *FLAT WASHER 5 DIN125-B RP0900 MSP-941101-4.A16 941101-4 £1.66 £1.99
22 - CAP HD SCREW M5X20 L.THR 9031 MSP-266067-0 266067-0 £1.66 £1.99
23 - TF SCREW 4X18 TRILOBULAR 9005 MSP-265941-9.A0 265941-9 £1.66 £1.99
23-1 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A592 265995-6 £1.66 £1.99
24 - HANDLE COVER 9031/9032 MSP-415635-8.A1 415635-8 £8.97 £10.76
25 - SWITCH SGEL206C 9031/9032 MSP-651263-7.A1 651263-7 £7.28 £8.74
26C1 - NOISE SUPPRESSOR 4100KB HS7611 MSP-645141-1.A47 645141-1 £1.66 £1.99
26B - NOISE SUPPRESSOR 4100KB HS7611 MSP-645141-1.A48 645141-1 £1.66 £1.99
27-2 - CONTROLLER 110V 9031/9032 MSP-631676-8.A0 631676-8 £14.30 £17.16
27A2 - CONTROLLER 240V 9031/9032/430 MSP-631677-6.A1 631677-6 £13.64 £16.37
28 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A593 265995-6 £1.66 £1.99
29B1 - STRAIN RELIEF HS7100/BO5041 MSP-687052-4.A102 687052-4 £1.66 £1.99
29B - STRAIN RELIEF UH4570/55/5580/ MSP-687063-9.A24 687063-9 £1.66 £1.99
30D1 - LEAD WIRE HS7100/GD0801C/HP16 MSP-692527-0.A1 692527-0 £22.44 £26.93
30D - POWER SUPPLY CORD 1.0-2-2.5 MSP-692021-2.A58 692021-2 £7.54 £9.05
30C - POWER SUPPLY CORD 1.00-2-2.5 MSP-663926-3.A12 663926-3 £10.14 £12.17
30C1 - POWER SUPPLY CORD 1.0-2-2.5 MSP-665918-8.A30 665918-8 £10.01 £12.01
31A - CORD GUARD 8-85 3707/N1923B MSP-682502-4.A57 682502-4 £1.66 £1.99
31A1 - CORD GUARD 9.3-85 MT814/815 MSP-682516-3.A25 682516-3 £1.66 £1.99
32 - TENSION PIN 4-20 DIN 1481 903 MSP-951116-3.A4 951116-3 £1.66 £1.99
33 - TOP PULLEY SHAFT 9031 MSP-322746-1 322746-1 £5.98 £7.18
34 - PULLEY 30-25 9031 MSP-222130-9 222130-9 £28.60 £34.32
35 - BALL BEARING 688DDW 9031 MSP-210211-1.A0 210211-1 £3.90 £4.68
36 - SLEEVE 12 9031 MSP-331450-1 331450-1 £2.49 £2.99
37 - BALL BEARING 688DDW 9031 MSP-210211-1.A1 210211-1 £3.90 £4.68
38 - ANGLE STAY 9031 MSP-154417-0 154417-0 £46.64 £55.97
39 - ARM 9031 MSP-165110-1 165110-1 £3.38 £4.06
40 - WAVE WASHER 12 9031 MSP-253904-7 253904-7 £1.66 £1.99
41 - HEX NUT M6-17 9031 MSP-252138-9 252138-9 £2.49 £2.99
42 - NAME PLATE 9031 MSP-857678-8 857678-8 £1.66 £1.99
43A - CARBON BRUSH CB-411 TD0101F/S MSP-191940-4.A1 191940-4 £2.49 £2.99
44 - BRUSH HOLDER CAP CB-9-14-17/N MSP-643550-8.A1 643550-8 £1.66 £1.99
45 - BRUSH HOLDER 6X9 6837 MSP-643932-4.A1 643932-4 £2.49 £2.99
45 - MOTOR HOUSING 9031 MSP-159747-4.A0 159747-4 £32.45 £38.94
46G - CONNECTOR P-1.25 MT582/CA5000 MSP-654501-6.A81 654501-6 £1.66 £1.99
46E - RING TERMINAL 9031/9307/DS401 MSP-654100-4.A35 654100-4 £1.66 £1.99
46E2 - RING TERMINAL 9031/9307/DS401 MSP-654100-4.A38 654100-4 £1.66 £1.99
46E1 - CONNECTOR P-1.25 MT582/CA5000 MSP-654501-6.A122 654501-6 £1.66 £1.99
46E2 - CONNECTOR P-1.25 MT582/CA5000 MSP-654501-6.A143 654501-6 £1.66 £1.99
46G2 - CONNECTOR P-1.25 MT582/CA5000 MSP-654501-6.A148 654501-6 £1.66 £1.99
46E1 - FIELD ASSY 110V 9031 MSP-599327-8.A0 599327-8 £21.12 £25.34
46E - CONNECTOR P-1.25 MT582/CA5000 MSP-654501-6.A123 654501-6 £1.66 £1.99
46G1 - CONNECTOR P-1.25 MT582/CA5000 MSP-654501-6.A142 654501-6 £1.66 £1.99
46G1 - RING TERMINAL 9031/9307/DS401 MSP-654100-4.A9 654100-4 £1.66 £1.99
46E - FIELD ASSY 110V 9031 MSP-599327-8.A1 599327-8 £21.12 £25.34
46E1 - RING TERMINAL 9031/9307/DS401 MSP-654100-4.A34 654100-4 £1.66 £1.99
46G - RING TERMINAL 9031/9307/DS401 MSP-654100-4.A39 654100-4 £1.66 £1.99
46G2 - RING TERMINAL 9031/9307/DS401 MSP-654100-4.A45 654100-4 £1.66 £1.99
47-1 - PT SCREW 4X60 TRILOBULAR HR24 MSP-266052-3.A25 266052-3 £1.66 £1.99
47 - TAPP SCREW BIND BT 4X60 9031 MSP-265988-3 265988-3 £1.66 £1.99
48 - BAFFLE PLATE 9031/9032 MSP-415634-0.A0 415634-0 £2.49 £2.99
49 - BALL BEARING 627LB/HP1641/903 MSP-211028-5.A7 211028-5 £9.49 £11.39
50 - INSULATION WASHER 627/N1923BD MSP-681614-0.A11 681614-0 £1.66 £1.99
51A - ARMATURE ASSY 110V 9031 MSP-517146-0 517146-0 £67.28 £80.74
51D - ARMATURE ASSY 240V 9031 MSP-517149-4 517149-4 £67.28 £80.74
52 - FAN 60 TW0350 MSP-241884-9.A1 241884-9 £2.49 £2.99
53 - BALL BEARING 608DDW GA5020 MSP-210005-4.A23 210005-4 £7.02 £8.42
E01 - CLAMP WASHER 1902/9046 MSP-652259-1.A1 652259-1 £1.66 £1.99
E03 - *NON INSULATED TERMINAL GD0801 MSP-654091-9.A87 654091-9 £1.66 £1.99
E04 - INSULATED TERMINAL FV2-M3 MSP-654077-3.A1 654077-3 £2.49 £2.99
E07 - FRONT COVER 9031 MSP-344571-0 344571-0 £2.49 £2.99
E08 - *EARTH TERMINAL 1902/UH4500 MSP-654051-1.A2 654051-1 £1.66 £1.99
