Makita GN420CSE Cordless Concrete Nailer Spare Parts

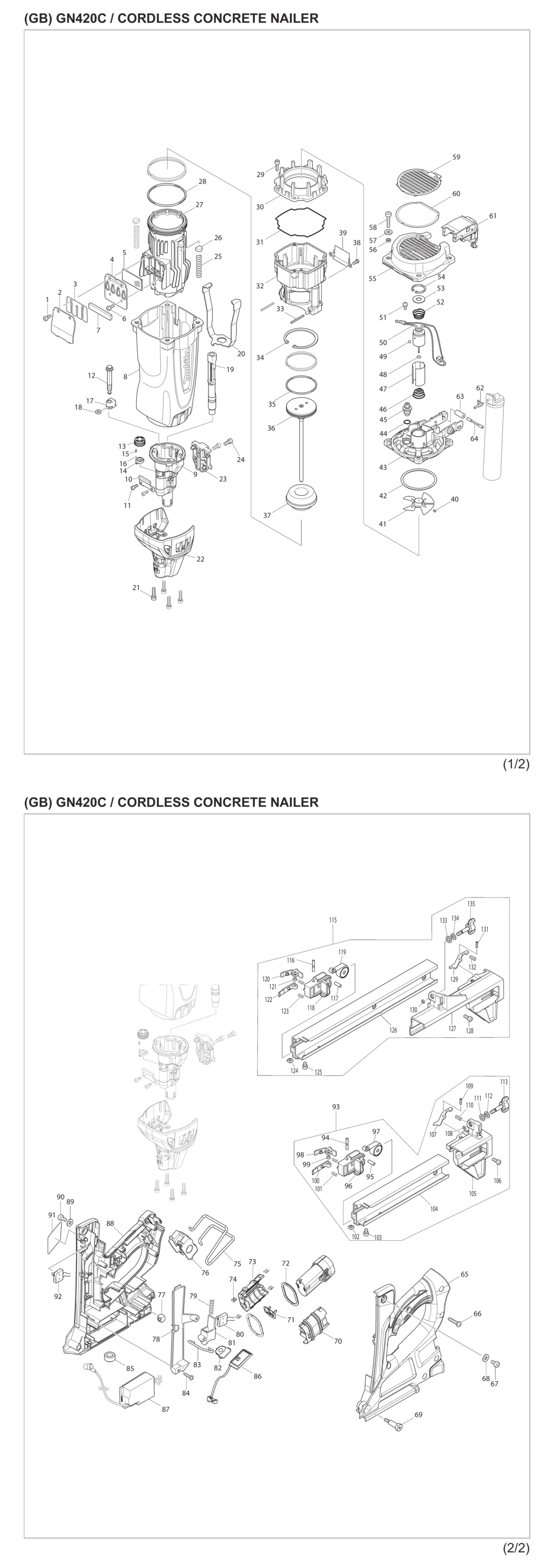

An exploded drawing and spare parts listing for the Makita GN420CSE Cordless Concrete Nailer

	Ex VAT	Inc VAT
1 - CAP HD SCREW M4X10 BHX2501/43 MSP-922112-8.A4 922112-8	£1.44	£1.73
2 - EXHAUST COVER GN900 MSP-345984-8.A1 345984-8	£5.78	£6.93
3 - EXHAUST VALVE GN900 MSP-345982-2.A1 345982-2	£1.44	£1.73
4 - EXHAUST PLATE GN900 MSP-345983-0.A0 345983-0	£4.06	£4.87
5 - PUNCHING METAL GN900/GN420 MSP-352008-3.A1 352008-3	£2.34	£2.81
6 - CAP HD SCREW M4X10 BHX2501/43 MSP-922112-8.A3 922112-8	£1.44	£1.73
7 - SILENCER GN900/GN420 MSP-352009-1.A0 352009-1	£4.37	£5.24
9 - DRIVER GUIDE GN420C MSP-310517-8 310517-8	£222.36	£266.83
10 - NAIL PLATE GN420C MSP-310524-1 310524-1	£15.42	£18.51
11 - HEX SOCKET HD BOLT M4X10 AN9 MSP-266167-6.A2 266167-6	£1.44	£1.73
12 - ADJUSTER ROD GN420C MSP-326246-3 326246-3	£7.02	£8.42
13 - ADJUSTER ROD GN420C MSP-453806-9 453806-9	£7.80	£9.36
14 - ADJUSTER GUIDE GN420C MSP-453807-7.A0 453807-7	£6.08	£7.30
15 - COMPRESSION SPRING 2 GN420C MSP-234254-9.A0 234254-9	£2.34	£2.81
16 - STEEL BALL 2.3 AN610H/DUP361 MSP-216031-1.A2 216031-1	£1.44	£1.73
17 - ADJUSTER BLOCK GN420C MSP-310519-4 310519-4	£12.32	£14.79
18 - RUBBER RING 5 GN420C MSP-262164-0 262164-0	£1.44	£1.73
19 - CONTACT TOP GN420C MSP-331996-7 331996-7	£75.98	£91.17
20 - ARM GN420C MSP-346613-6 346613-6	£7.80	£9.36
21 - HEX SOCKET HD BOLT M5X20 HM18 MSP-266464-0.A1 266464-0	£1.44	£1.73
22 - DUST COVER GN420C MSP-141611-3 141611-3	£40.47	£48.56
23-1 - UNDER DRIVER GUIDE GN420C MSP-142683-1 142683-1	£48.58	£58.29
23 - *UNDER DRIVER GUIDE GN420C MSP-141608-2 141608-2	£46.99	£56.39
24 - CAP HD SCREW M5X12 AN620/CC30 MSP-922212-4.A1 922212-4	£1.44	£1.73
25 - COMPRESSION SPRING 8 GN420C MSP-234255-7 234255-7	£1.44	£1.73
26 - STOP RUBBER GN900/GN420 MSP-424138-1.A1 424138-1	£1.44	£1.73
27 - CYLINDER GN420C MSP-318902-9 318902-9	£164.04	£196.85
28 - CYLINDER RING GN900 MSP-324973-6.A1 324973-6	£11.08	£13.29
29 - HEX SOCKET HD BOLT M4X16 MSP-922127-5.A6 922127-5	£1.44	£1.73
30 - CHAMBER TOP GN900 MSP-318322-7.A1 318322-7	£7.49	£8.99
31 - CHAMBER SEAL RING GN900/GN420 MSP-424139-9.A0 424139-9	£3.59	£4.31
32 - CHAMBER GN900 MSP-318320-1.A0 318320-1	£12.95	£15.54
33 - SPRING PIN AN510/620/711/AN635 MSP-951078-5.A0 951078-5	£1.44	£1.73
34 - RETAINING RING R-58 GN900SE MSP-962254-6.A0 962254-6	£3.90	£4.68
35 - PISTON RING GN900SE MSP-324972-8.A1 324972-8	£9.82	£11.79
36 - DRIVER GN420C MSP-141606-6 141606-6	£207.96	£249.55
37 - FRONT CUSHION GN900SE/GN420 MSP-424137-3.A1 424137-3	£4.06	£4.87
38 - PAN HD SCREW M4X10 1050D MSP-265069-3.A2 265069-3	£1.44	£1.73
39 - TRIGGER LOCK PLATE GN900SE MSP-345985-6.A1 345985-6	£2.50	£3.00
40 - SET SCREW (CUP POINT) M3X4 MSP-913904-6.A1 913904-6	£1.44	£1.73
41 - FAN 60 GN900SE MSP-241674-0.A0 241674-0	£11.08	£13.29
42 - O RING 60 GN900SE MSP-213679-0.A1 213679-0	£11.23	£13.48
43 - CYLINDER HEAD GN900SE MSP-318321-9.A1 318321-9	£54.65	£65.58
44 - O RING 10 GN900SE/HR3000C MSP-213070-2.A2 213070-2	£1.44	£1.73
45 - SPARK PLUG GN900SE MSP-162269-5.A1 162269-5	£7.49	£8.99
46 - COMPRESSION SPRING 12-18 GN90 MSP-233969-5.A0 233969-5	£1.44	£1.73
47 - MOTOR SLEEVE GN900SE/GN420 MSP-454002-2.A2 454002-2	£2.65	£3.18
48 - EPOXY WASHER 2 GN900SE MSP-261141-9.A1 261141-9	£1.44	£1.73
49 - STEEL BALL 3 HR1840/M8701 MSP-216019-1.A90 216019-1	£1.44	£1.73
50 - DC MOTOR GN900SE/GN420 MSP-629860-7.A0 629860-7	£122.64	£147.17
51 - NICKELED PAN HD SCREW M4X8 MSP-652014-1.A6 652014-1	£1.44	£1.73
52 - COMPRESSION SPRING 12-18 GN90 MSP-233969-5.A3 233969-5	£1.44	£1.73
53 - FLAT WASHER 10 LS1013/LF1000 MSP-253024-7.A46 253024-7	£1.44	£1.73
54 - RETAINING RING R-24 AN620 MSP-962103-7.A6 962103-7	£1.44	£1.73
55 - TOP CAP GN900SE/GN420 MSP-450730-7.A0 450730-7	£6.40	£7.68
56 - SLEEVE 5 GN900SE MSP-257672-4.A1 257672-4	£1.44	£1.73
57 - *FLAT WASHER 5 DIN125-B RP0900 MSP-941101-4.A3 941101-4	£1.44	£1.73
58 - CAP HD SCREW M5X25 GN900 HR35 MSP-922242-5.A0 922242-5	£1.44	£1.73
59 - FILTER COVER GN900SE/GN420 MSP-450733-1.A1 450733-1	£2.50	£3.00
60 - FILTER GN900SE MSP-162270-0.A1 162270-0	£9.20	£11.04
61 - ACTUATOR GN900SE/GN420 MSP-454202-4.A0 454202-4	£6.55	£7.86
62 - STEM ADAPTER GN900SE/GN420 MSP-454003-0.A1 454003-0	£2.18	£2.62
63 - RUBBER SLEEVE 9 GN900SE/GN420 MSP-422044-4.A1 422044-4	£1.44	£1.73
64 - SHOULDER PIN 4 GN900SE MSP-324976-0.A0 324976-0	£1.44	£1.73
65 - LABEL/CAUTIOIN GN420C MSP-898794-7.A1 898794-7	£8.58	£10.30
65 - HANDLE SET GN420C MSP-187560-0.A1 187560-0	£126.02	£151.22
66 - PT SCREW 5X25 KP0810C KP0810 MSP-266041-8.A34 266041-8	£1.44	£1.73
67 - HEX SOCKET HD BOLT M5X10 AN50 MSP-265907-9.A6 265907-9	£1.44	£1.73
68 - FLAT WASHER 5 DIN125-A/GN420 MSP-941102-2.A59 941102-2	£1.44	£1.73
69 - HEX SOCKET HD SHOULDER BOLT M MSP-266780-0 266780-0	£9.36	£11.23
70 - BATTERY CASE SET GN900SE MSP-188598-8.A2 188598-8	£4.68	£5.62
71 - TERMINAL GN900SE/UM164D/CL070 MSP-643817-4.A1 643817-4	£1.44	£1.73
72 - RUBBER RING 40 GN900SE/GN420 MSP-424152-7.A1 424152-7	£1.44	£1.73
73 - BATTERY CASE SET GN900SE MSP-188598-8.A3 188598-8	£4.68	£5.62
74 - SET PLATE TD020DSE/DF010D/GN9 MSP-345749-8.A5 345749-8	£1.44	£1.73
75 - HOOK GN900SE MSP-324953-2.A1 324953-2	£6.40	£7.68
76 - HOOK HOLDER GN900SE MSP-318338-2.A0 318338-2	£6.40	£7.68
77 - SQUARE NUT M6 SG1250/SG1251J MSP-252185-0.A2 252185-0	£1.44	£1.73
78 - LEAD WIRE COVER GN900SE MSP-450740-4.A1 450740-4	£2.50	£3.00
79 - COMPRESSION SPRING 5 GN900 MSP-234113-7.A1 234113-7	£1.44	£1.73
80 - SWITCH UNIT GN900SE/EB7650TH MSP-638642-6.A4 638642-6	£13.42	£16.10
81 - TRIGGER GN900SE/GN420 MSP-450736-5.A0 450736-5	£2.18	£2.62
82 - SWITCH PLATE GN420C MSP-141610-5 141610-5	£21.74	£26.09
83 - CHAMBER LOCK BAR GN900SE MSP-324974-4.A0 324974-4	£1.44	£1.73
84 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A1109 265995-6	£1.44	£1.73
85 - LINE FILTER VC3211M/TD0101F MSP-688131-1.A45 688131-1	£1.44	£1.73
86 - LIGHT CIRCUIT GN420C MSP-620160-8 620160-8	£27.65	£33.18
87 - SPARK UNIT GN420C MSP-620159-3 620159-3	£186.60	£223.92
88 - LABEL/CAUTIOIN GN420C MSP-898794-7.A0 898794-7	£8.58	£10.30
88 - HANDLE SET GN420C MSP-187560-0.A0 187560-0	£126.02	£151.22
89 - FLAT WASHER 5 DIN125-A/GN420 MSP-941102-2.A60 941102-2	£1.44	£1.73
90 - HEX SOCKET HD BOLT M5X10 AN50 MSP-265907-9.A5 265907-9	£1.44	£1.73
91 - NAME PLATE GN420C MSP-814A21-0 814A21-0	£1.44	£1.73
92 - SWITCH UNIT GN900SE/EB7650TH MSP-638642-6.A3 638642-6	£13.42	£16.10
93 - *MAGAZINE ASSY GN420C MSP-126251-8 126251-8	£266.16	£319.39
94 - PIN 4 GN420C MSP-268280-6 268280-6	£5.78	£6.93
95 - PIN 5 GF600/2107/DPB180 MSP-268225-4.A4 268225-4	£1.44	£1.73
96 - PUSH HOLDER GN420C MSP-453808-5 453808-5	£12.95	£15.54
97 - SPIRAL SPRING GN420C MSP-141609-0 141609-0	£42.57	£51.08
98 - PUSHER GN420C MSP-310520-9 310520-9	£24.05	£28.86
99 - URETHANE RING 3 AN510/711 MSP-262120-0.A1 262120-0	£1.44	£1.73
100 - *LOCK PLATE GN420C MSP-310521-7 310521-7	£13.88	£16.66
101 - COMPRESSION SPRING 5 GN420C MSP-233037-4 233037-4	£1.44	£1.73
102 - SQUARE NUT M5-8 GN420C/HT2360D MSP-264050-1.A3 264050-1	£1.44	£1.73
103 - HEX SOCKET HD BOLT M5X8 6837 MSP-265480-9 265480-9	£1.44	£1.73
104 - MAGAZINE GN420C MSP-331997-5 331997-5	£85.68	£102.82
105 - MAGAZINE CAP GN420C MSP-453805-1 453805-1	£99.16	£118.99
106 - HEX SOCKET HD BOLT M5X14 BHX2 MSP-922217-4.A3 922217-4	£1.44	£1.73
108 - O RING 4 DGA463-DGA517/KP0810 MSP-213009-5.A42 213009-5	£1.44	£1.73
109 - TENSION PIN 3-12 DIN 1481 MSP-951057-3.A6 951057-3	£1.44	£1.73
110 - COMPRESSION SPRING 6 AN510 MSP-234012-3.A1 234012-3	£2.81	£3.37
111 - FLAT WASHER 6 DIN125-B BHS630 MSP-941151-9.A1 941151-9	£1.44	£1.73
112 - M6 SPRING RING DIN128 BHS630 MSP-253428-3.A42 253428-3	£1.44	£1.73
A01 - SAFETY GOGGLE HR2450/AN MODELS MSP-195246-2.A46 195246-2	£2.55	£3.06
A02 - HEX WRENCH 4 GN900/GN420 MSP-783230-5.A1 783230-5	£1.47	£1.76
A03 - LATCH AN510/BDF453/BUC121/2 MSP-163455-1.A62 163455-1	£1.20	£1.44
A03 - PLASTIC CASE GN420C MSP-821512-8 821512-8	£53.38	£64.06
A05-1 - DC10WA CHARGER LI-ION 194589-9 MSP-*DC10WA.A7 *DC10WA	-
A06-2 - BATTERY BL0715 SET MSP-198000-3.A5 198000-3	£36.90	£44.28
