Makita DTM50RFX3 Cordless Multi Tool Spare Parts

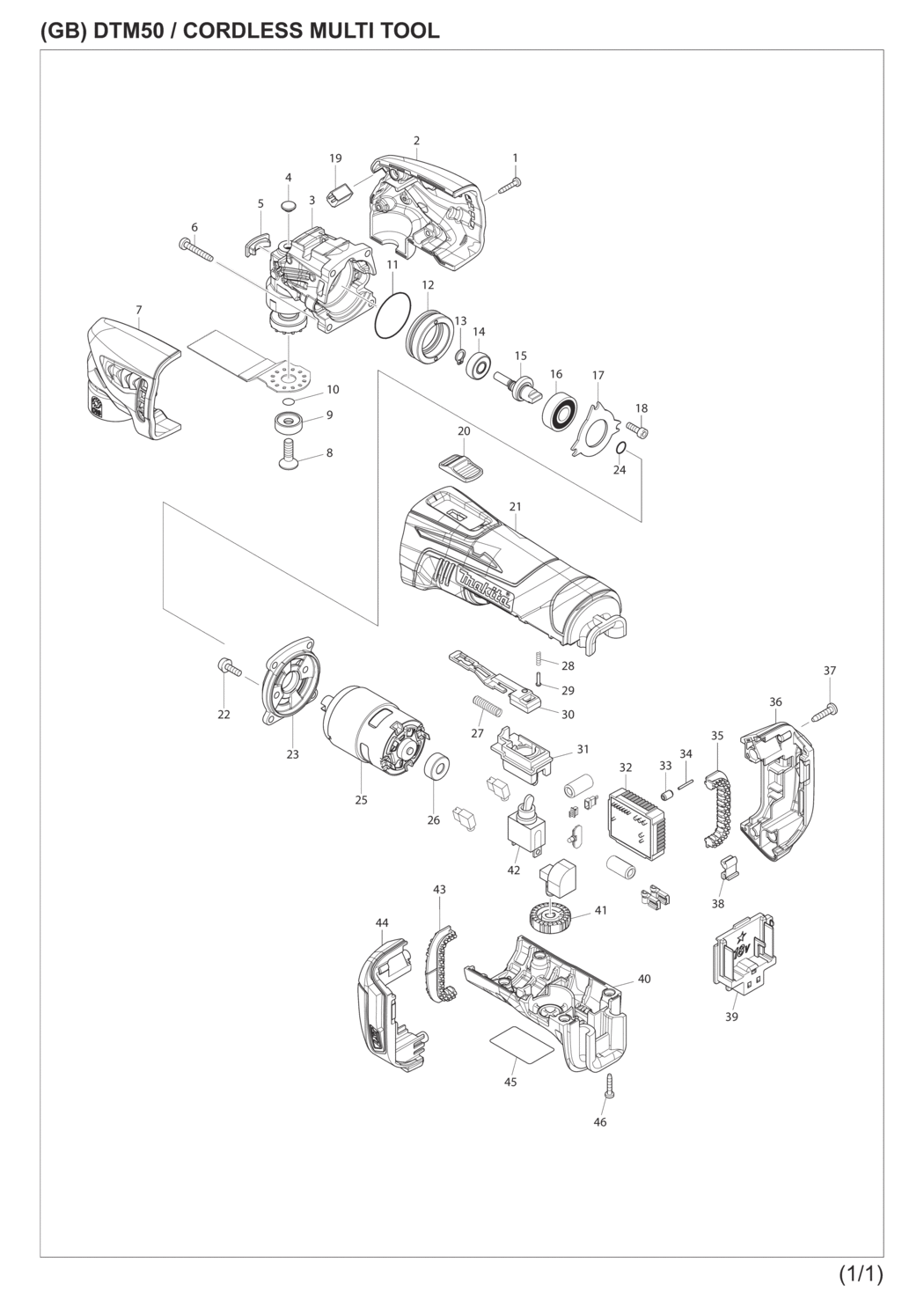

An exploded drawing and spare parts listing for the Makita DTM50RFX3 Cordless Multi Tool

	Ex VAT	Inc VAT
1 - TAPPING SCREW 3X16 TD126/DUM MSP-266429-2.A102 266429-2	£1.44	£1.73
2 - HEAD COVER SET BTM40/50 MSP-187346-2.A8 187346-2	£8.89	£10.67
3 - CRANK HOUSING BTM40/50 MSP-142400-9.A0 142400-9	£58.48	£70.17
4 - CRANK HOUSING CAP B BTM40/50 MSP-424511-5.A5 424511-5	£1.44	£1.73
5 - CRANK HOUSING CAP A BTM40/50 MSP-424510-7.A2 424510-7	£1.44	£1.73
6 - TAPPING SCREW 4X25 M9001/TD022 MSP-266374-1.A17 266374-1	£1.44	£1.73
7 - HEAD COVER SET BTM40/50 MSP-187346-2.A9 187346-2	£8.89	£10.67
8 - HEX SOCKET C.S.H SCREW M6X20 MSP-265674-6.A4 265674-6	£2.55	£3.06
9 - OUTER FLANGE 22 BTM40/50/TM MSP-265674-6.A17 265674-6	£2.55	£3.06
10 - O RING 5 BTM40/50/620/711/DLS MSP-213021-5.A3 213021-5	£1.44	£1.73
11 - O RING 33 BTM40/50/TM3000C MSP-213479-8.A6 213479-8	£1.44	£1.73
12 - BEARING BOX BTM40/50 MSP-326187-3.A5 326187-3	£7.96	£9.55
13 - EXT DIN 471 CIRCLIP-7 BTM50 MSP-961003-8.A47 961003-8	£1.44	£1.73
14 - *SPHERE BEARING 706 BTM40/50 MSP-210164-4.A7 210164-4	£2.58	£3.09
15 - CRANK SHAFT BTM40/50 MSP-326186-5.A2 326186-5	£10.61	£12.73
16 - BALL BEARING 6000DDW 2RDCM MSP-210059-1.A43 210059-1	£3.74	£4.49
17 - BEARING RETAINER BTM40/50 MSP-285856-4.A4 285856-4	£1.44	£1.73
18 - CAP HD SCREW M4X12 BTM40/50 MSP-922117-8.A14 922117-8	£1.44	£1.73
19 - LED CIRCUIT BTM40/50 MSP-620146-2.A5 620146-2	£13.42	£16.10
20 - SWITCH KNOB BTM40/50/TM3000C MSP-453761-5.A8 453761-5	£1.44	£1.73
21 - MOTOR HOUSING BTM40/50 MSP-453755-0.A7 453755-0	£15.29	£18.35
22 - PAN HD SCREW M 4X12 BTM40/50 MSP-911516-9.A2 911516-9	£1.44	£1.73
23 - HOUSING COVER BTM40/50 MSP-453762-3.A0 453762-3	£3.28	£3.93
24 - O RING 8 BTM40/50/HM0871C MSP-213030-4.A34 213030-4	£1.44	£1.73
25 - DC MOTOR BTM50 MSP-629956-4.A3 629956-4	£28.51	£34.21
26 - CAP BTM40/50 MSP-424520-4.A0 424520-4	£1.44	£1.73
27 - COMPRESSION SPRING 5 BTM40/50 MSP-234263-8.A5 234263-8	£1.44	£1.73
28 - COMPRESSION SPRING 3 DTM51 MSP-233002-3.A8 233002-3	£1.44	£1.73
29 - SOLID RIVET 2-9 BTM40/DTM51 MSP-255058-6.A14 255058-6	£1.44	£1.73
30 - SWITCH LEVER BTM40/50 MSP-453757-6.A7 453757-6	£1.44	£1.73
31 - SWITCH CASE BTM40/50 MSP-453760-7.A0 453760-7	£1.44	£1.73
32 - CONTROLLER UNIT BTM50 MSP-632A01-2.A2 632A01-2	£82.91	£99.49
32 - LINE FILTER BTD/DTM51/DVC861L MSP-688161-2.A1 688161-2	£1.44	£1.73
33 - RUBBER PIN 5 BTD/DTM51/TW1001 MSP-263036-2.A50 263036-2	£1.44	£1.73
34 - PIN 1.5 BTD/BTM40/DTM51/DTW285 MSP-268184-2.A17 268184-2	£1.44	£1.73
35 - CUSHION RUBBER BTM40/50/BHR24 MSP-424473-7.A2 424473-7	£2.34	£2.81
36 - RUBBER PIN 6 DUR/DHR/DTW/DG MSP-263005-3.A96 263005-3	£1.44	£1.73
36 - BATTERY HOUSING SET BTM50 MSP-187610-1.A6 187610-1	£7.64	£9.17
37 - TAPPING SCREW M4X18 EBH253/EB3 MSP-266326-2.A164 266326-2	£1.44	£1.73
38 - CUSHION DHR242/243/DTW251 MSP-424476-1.A9 424476-1	£1.44	£1.73
39 - TERMINAL BUR181/BUM168/BTD146 MSP-643852-2.A36 643852-2	£3.90	£4.68
40 - HANDLE COVER BTM40/50 MSP-453756-8.A0 453756-8	£5.15	£6.18
41 - DIAL 28 BTM40/50/DTM51 MSP-271617-8.A5 271617-8	£2.34	£2.81
42 - SWITCH BTM/3707F/3708F/DTM51 MSP-651423-1.A13 651423-1	£11.39	£13.67
43 - CUSHION RUBBER BTM40/50/BHR24 MSP-424473-7.A1 424473-7	£2.34	£2.81
44 - RUBBER PIN 6 DUR/DHR/DTW/DG MSP-263005-3.A99 263005-3	£1.44	£1.73
44 - BATTERY HOUSING SET BTM50 MSP-187610-1.A5 187610-1	£7.64	£9.17
45 - NAME PLATE DTM50 MSP-815M77-8.A2 815M77-8	£1.44	£1.73
46 - TAPPING SCREW 3X16 TD126/DUM MSP-266429-2.A103 266429-2	£1.44	£1.73
A01 - HEX WRENCH 5 BTM40/50 MSP-783233-9.A3 783233-9	£1.46	£1.75
A02 - DC18RC COMPACT CHARGER MSP-*DC18RC.A31 *DC18RC	-
A03 - *BATTERY BL1830 18V LI-ION MSP-194204-5.A78 194204-5	£42.91	£51.49
A03-1 - *BATTERY BL1830 18V LI-ION MSP-194204-5.A131 194204-5	£42.91	£51.49
A05 - HANDLE BTM40/50/BDF456/BHP456 MSP-451749-9.A23 451749-9	£1.20	£1.44
A05 - PLASTIC CASE BTM40/50 MSP-141562-0.A2 141562-0	£28.42	£34.11
A05 - SHAFT BTM40/50/HR2230/2460 MSP-324319-6.A7 324319-6	£1.20	£1.44
A05 - LATCH FOR 140756-4 BTM40/50 MSP-162302-3.A12 162302-3	£1.20	£1.44
A07 - DUST ATTACHMENT SET BTM40/50 MSP-195965-0.A2 195965-0	£8.58	£10.29
A08 - *UNIVERSAL ADAPTOR A DTM51 MSP-196271-6.A3 196271-6	£4.25	£5.10
A09 - SEGMENT SAW BLADE 85 TMA003 MSP-B-21294.A1 B-21294	£22.79	£27.35
A10 - SEGMENT SAW BLADE 85 TM006 MSP-B-21325.A1 B-21325	£17.77	£21.32
A11 - PLUNGE CUT SAW BLADE 32 TMA010 MSP-B-21369.A1 B-21369	£16.22	£19.47
A12 - PLUNGE CUT SAW BLADE 32 TMA015 MSP-B-21412.A2 B-21412	£14.68	£17.61
A13 - SCRAPER 52 RIGID TMA018 MSP-B-21440.A0 B-21440	£9.27	£11.12
A14 - SCRAPER 52 FLEXIBLE TMA018 MSP-B-21456.A2 B-21456	£9.27	£11.12
A15 - HM SEG SAW BLADE 65 TMA024 MSP-B-21509.A0 B-21509	£22.40	£26.88
A16 - HM SANDING PLATE 78 TMA025 MSP-B-21515.A2 B-21515	£23.56	£28.27
A17 - DELTA RED 60G 10PC MSP-B-21624.A0 B-21624	£2.55	£3.06
A18 - DELTA RED 180G 10PC MSP-B-21652.A6 B-21652	£2.55	£3.06
A19 - DELTA RED 80G 10PC MSP-B-21630.A6 B-21630	£2.55	£3.06
A20 - DELTA RED 120G 10PC MSP-B-21646.A1 B-21646	£2.55	£3.06
A21-1 - SANDING PAD MSP-B-65115.A5 B-65115	£10.29	£12.35
A22 - TOOL BOX FOR 196145-1 MSP-821538-0.A2 821538-0	£4.09	£4.91
