Makita BTP130SFE Cordless 4 Mode Impact Driver Spare Parts

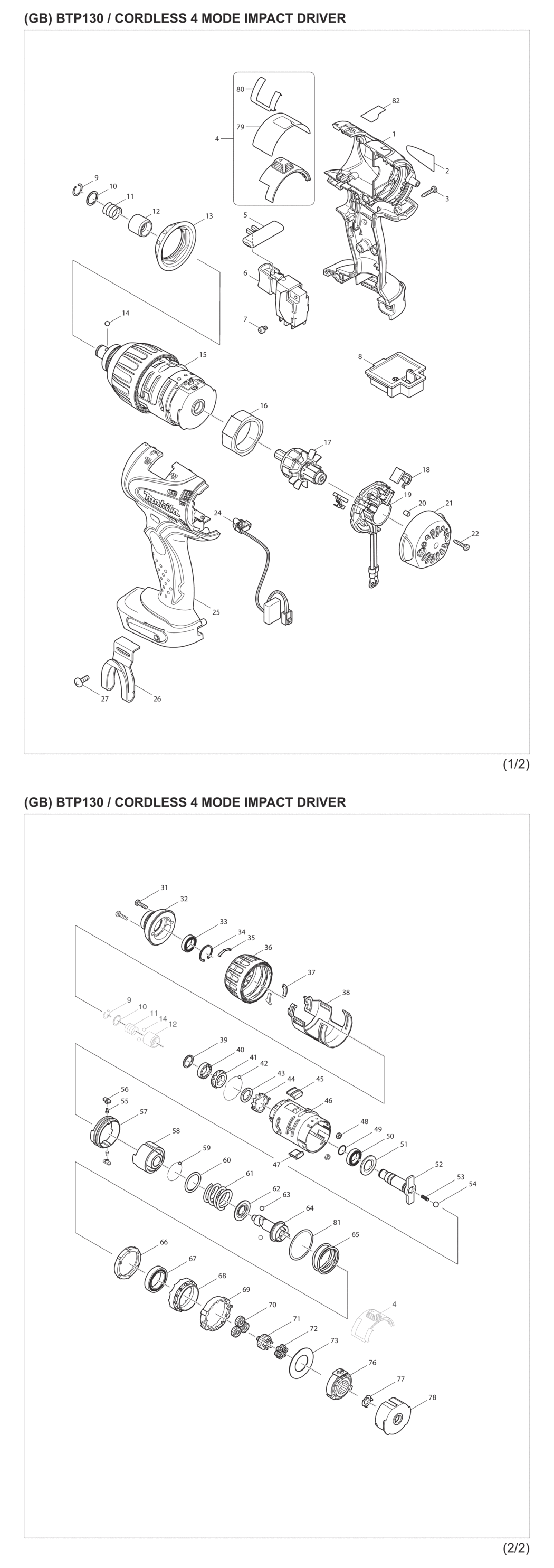

An exploded drawing and spare parts listing for the Makita BTP130SFE Cordless 4 Mode Impact Driver

	Ex VAT	Inc VAT
1 - HOUSING SET BTP130 MSP-188082-3.A1 188082-3	£33.66	£40.39
2 - NAME PLATE BTP130 MSP-862289-6.A1 862289-6	£1.66	£1.99
3 - TAPPING SCREW BIND 3 X 16 L14 MSP-266130-9.A97 266130-9	£1.66	£1.99
4-1 - MODE CHANGE LEVER ASSY BTP130 MSP-125329-4.A2 125329-4	£3.77	£4.52
4 - MODE CHANGE LEVER ASSY BTP130 MSP-125329-4.A5 125329-4	£3.77	£4.52
5 - F/R CHANGE LEVER BTD043/063/1 MSP-419041-9.A51 419041-9	£1.66	£1.99
6 - SWITCH TG553FSB-2 BTP130 MSP-650568-2.A1 650568-2	£30.58	£36.70
7 - PANHD SCREW M3.5X5 BTD134/146 MSP-652045-0.A10 652045-0	£1.66	£1.99
8 - *TERMINAL 14.4V MODELS ONLY MSP-643811-6.A6 643811-6	£3.38	£4.06
9 - RING SPRING 11 BTD/TD126/TL064 MSP-231951-8.A63 231951-8	£1.66	£1.99
10 - NARROW WASHER 12 TD126/DTD154 MSP-267085-1.A51 267085-1	£1.66	£1.99
11 - COMPRESSION SPRING 13 TD126 MSP-233005-7.A14 233005-7	£1.66	£1.99
12 - SLEEVE 6916FD-6980FD/TD126 MSP-324420-7.A17 324420-7	£2.49	£2.99
14 - STEEL BALL 3.5 BPJ/DTD154/TL06 MSP-216001-0.A32 216001-0	£1.66	£1.99
15-3 - IMPACT ASSEMBLY BTP130/140 MSP-125515-7.A0 125515-7	£198.32	£237.99
16 - YOKE UNIT BTD043/063/103 MSP-638396-5.A21 638396-5	£11.77	£14.12
17-1 - *ARMATURE BTP130 MSP-619245-5.A1 619245-5	£19.25	£23.10
17-2 - ARMATURE BTP130 MSP-619381-7.A1 619381-7	£26.84	£32.21
18-1 - CARBON BRUSH CB-440 BTD043/06 MSP-194427-5.A87 194427-5	-
18-2 - CARBON BRUSH CB-440 BTD043/06 MSP-194427-5.A130 194427-5	-
19 - TORSION SPRING L BFS440/BTD13 MSP-231697-6.A15 231697-6	£1.66	£1.99
19-1 - LINE FILTER BTD/DTM51/DVC861L MSP-688161-2.A31 688161-2	£1.66	£1.99
19-1 - TORSION SPRING R BFS440/BTD13 MSP-231696-8.A40 231696-8	£1.66	£1.99
19 - TORSION SPRING R BFS440/BTD13 MSP-231696-8.A49 231696-8	£1.66	£1.99
19-1 - BRUSH HOLDER BHP440/BTP1 MSP-638857-5.A7 638857-5	£9.88	£11.86
19-1 - TORSION SPRING L BFS440/BTD13 MSP-231697-6.A18 231697-6	£1.66	£1.99
20 - RUBBER PIN 4 BTD043/063/103 MSP-263032-0.A36 263032-0	£1.66	£1.99
21 - REAR COVER BDF450/BHP450/BTD1 MSP-418981-8.A18 418981-8	£6.50	£7.80
22 - TAPPING SCREW BIND 3 X 16 L14 MSP-266130-9.A94 266130-9	£1.66	£1.99
24 - LIGHT CIRCUIT BTD130F/BTP130 MSP-631631-0.A11 631631-0	£13.64	£16.37
25 - HOUSING SET BTP130 MSP-188082-3.A0 188082-3	£33.66	£40.39
26-2 - HOOK BTD136/147/BFS441/451/ MSP-346317-0.A133 346317-0	£1.93	£2.32
27 - SPECIAL PAN HD SCREW M4X12 MSP-251314-2.A75 251314-2	£1.66	£1.99
31-1 - PAN HD SCREW M4X16 BTP130/140 MSP-265178-8.A5 265178-8	£1.66	£1.99
32 - HAMMER CASE BTD062Z/BTP1 MSP-318011-4.A2 318011-4	£11.55	£13.86
33-1 - BALL BEARING 6802LLB DSC162/R MSP-211233-4.A5 211233-4	£10.27	£12.32
34 - RETAINING RING R-24 BTP130/14 MSP-962113-4.A3 962113-4	£1.66	£1.99
35 - LEAF SPRING BTP130/140 MSP-232227-6.A0 232227-6	£2.49	£2.99
36 - CHANGE RING BTP130/140 MSP-419372-6.A3 419372-6	£4.16	£4.99
37 - PLATE A BTP130/140 MSP-345688-2.A0 345688-2	£1.66	£1.99
38 - CHANGE CASE BTP130/140 MSP-419370-0.A3 419370-0	£3.38	£4.06
39 - RETAINING RING WR-15 BTP130/1 MSP-961085-0.A1 961085-0	£1.66	£1.99
40-1 - CAM A BTP130/140 MSP-223161-1.A3 223161-1	£2.49	£2.99
40 - CAM A BTP130/140 MSP-223161-1.A4 223161-1	£2.49	£2.99
41 - CAM B BTP130/140 MSP-223162-9.A3 223162-9	£2.49	£2.99
42 - STEEL BALL 3.5 BPJ/DTD154/TL06 MSP-216001-0.A176 216001-0	£1.66	£1.99
43 - FLAT WASHER 15 BTP130/140 MSP-267318-4.A3 267318-4	£1.66	£1.99
44 - HAMMER CHANGE LEVER BTP130/14 MSP-324655-0.A3 324655-0	£16.72	£20.06
45 - PUSHER U BTP130/140 MSP-419374-2.A1 419374-2	£1.66	£1.99
46 - GEAR CASE BTP130/140 MSP-419369-5.A0 419369-5	£4.16	£4.99
47 - PUSHER L BTP130/140 MSP-419375-0.A2 419375-0	£1.66	£1.99
48 - HEX FULL NUT M4 DUR181/ML123 MSP-931102-0.A2 931102-0	£1.66	£1.99
49 - OIL SEAL 12.5 TD0101F/BTP130/ MSP-213166-9.A1 213166-9	£1.66	£1.99
50-1 - BALL BEARING 6802LLB DSC162/R MSP-211233-4.A3 211233-4	£10.27	£12.32
51 - NYLON WASHER 15 BTP130/140 MSP-261130-4.A5 261130-4	£1.66	£1.99
53 - COMPRESSION SPRING 4 9523NB MSP-233285-5.A9 233285-5	£1.66	£1.99
54 - STEEL BALL 7.1 6906/HR160DWH- MSP-216009-4.A12 216009-4	£1.66	£1.99
55 - SHOULDER PIN 3-6 BTP140 MSP-256495-7.A1 256495-7	£1.66	£1.99
56 - GUIDE BTP130/140 MSP-419376-8.A1 419376-8	£1.66	£1.99
57 - RING 40 BTP130/140 MSP-257276-2.A0 257276-2	£52.36	£62.83
58 - HAMMER BTP130/140 MSP-324658-4.A3 324658-4	£15.51	£18.61
59 - STEEL BALL 3.5 BPJ/DTD154/TL06 MSP-216001-0.A177 216001-0	£1.66	£1.99
60 - FLAT WASHER 24 HR1840/HR1841F MSP-267175-0.A30 267175-0	£1.66	£1.99
61 - COMPRESSION SPRING 24 BTD134/ MSP-233430-2.A9 233430-2	£2.49	£2.99
61-1 - COMPRESSION SPRING 24 BTD130F MSP-234080-6.A0 234080-6	£1.66	£1.99
62 - CUP WASHER 14 BTP130/TD126 MSP-267766-7.A1 267766-7	£1.66	£1.99
63 - STEEL BALL 5.6/DTW285 MSP-216041-8.A64 216041-8	£1.66	£1.99
64 - SPINDLE BTP130/140 MSP-154856-4.A1 154856-4	£19.25	£23.10
65 - COMPRESSION SPRING 41 BTP130/ MSP-233462-9.A3 233462-9	£2.49	£2.99
66 - CLUTCH CAM BTP130/140 MSP-223163-7.A0 223163-7	£2.49	£2.99
67-1 - BALL BEARING VC3211M/BHR162/ MSP-211375-4.A73 211375-4	£14.96	£17.95
68 - INTERNAL GEAR 50 BTP130/140 MSP-227162-1.A3 227162-1	£5.59	£6.71
69 - CLUTCH CHANGE LEVER BTP130/14 MSP-324656-8.A0 324656-8	£36.08	£43.30
70 - SPUR GEAR 22 BTP130/140 MSP-227159-0.A3 227159-0	£1.66	£1.99
71-1 - SPUR GEAR 7 BTP130/140 MSP-158553-4.A1 158553-4	£16.72	£20.06
72 - SPUR GEAR 10 BTP130/140 MSP-227160-5.A0 227160-5	£2.49	£2.99
73 - FLAT WASHER 25 BTP130/140 MSP-267317-6.A0 267317-6	£2.49	£2.99
76 - SPEED CHANGE RING BTP130 MSP-158106-9.A2 158106-9	£15.51	£18.61
77 - WASHER 10 BTP130/140 MSP-267799-2.A2 267799-2	£1.66	£1.99
78 - MOTOR BRACKET BTP130/140 MSP-419371-8.A1 419371-8	£2.49	£2.99
79 - PLATE B BTP130/140 MSP-345689-0.A3 345689-0	£1.66	£1.99
80 - PLATE C BTP130/140 MSP-345690-5.A0 345690-5	£1.66	£1.99
81 - FLAT WASHER 40 BTP130/140 MSP-267337-0.A0 267337-0	£1.66	£1.99
A03 - HANDLE HP1641/BTD140/DTW251 MSP-419216-0.A10 419216-0	£2.49	£2.99
A03 - PLASTIC CASE LID BST221/BTP13 MSP-419215-2.A17 419215-2	£5.98	£7.18
A03 - SHAFT BTP140/BTD132/144/BDF45 MSP-324207-7.A0 324207-7	£2.49	£2.99
A03 - PLATE BST221/BTD140SFE/BHR162 MSP-413098-2.A28 413098-2	£1.66	£1.99
A03 - LATCH FOR 824650-5 PL CASE MSP-417724-5.A142 417724-5	£1.88	£2.25
A03-1 - LATCH FOR 824650-5 PL CASE MSP-417724-5.A155 417724-5	£1.88	£2.25
A03-1 - PLASTIC CASE LID BST221/BTP13 MSP-419215-2.A18 419215-2	£5.98	£7.18
A03-2 - PLATE BST221/BTD140SFE/BHR162 MSP-413098-2.A51 413098-2	£1.66	£1.99
A03-3 - PLATE BST221/BTD140SFE/BHR162 MSP-413098-2.A76 413098-2	£1.66	£1.99
A03-3 - SHAFT BTP140/BTD132/144/BDF45 MSP-324207-7.A1 324207-7	£2.49	£2.99
A03-2 - HANDLE HP1641/BTD140/DTW251 MSP-419216-0.A11 419216-0	£2.49	£2.99
A03-2 - LATCH FOR 824650-5 PL CASE MSP-417724-5.A47 417724-5	£1.88	£2.25
A03-3 - PLASTIC CASE LID BST221/BTP13 MSP-419215-2.A16 419215-2	£5.98	£7.18
A03-2 - SHAFT BTP140/BTD132/144/BDF45 MSP-324207-7.A2 324207-7	£2.49	£2.99
A03-1 - HANDLE HP1641/BTD140/DTW251 MSP-419216-0.A94 419216-0	£2.49	£2.99
A03-3 - HANDLE HP1641/BTD140/DTW251 MSP-419216-0.A99 419216-0	£2.49	£2.99
A04 - LABEL/PLASTIC CASE BTP130SFE MSP-804222-2 804222-2	£1.66	£1.99
A03-3 - LATCH FOR 824650-5 PL CASE MSP-417724-5.A48 417724-5	£1.88	£2.25
A03-2 - PLASTIC CASE LID BST221/BTP13 MSP-419215-2.A15 419215-2	£5.98	£7.18
A03-1 - PLATE BST221/BTD140SFE/BHR162 MSP-413098-2.A29 413098-2	£1.66	£1.99
A03-1 - SHAFT BTP140/BTD132/144/BDF45 MSP-324207-7.A3 324207-7	£2.49	£2.99
A06 - BATTERY COVER BDG800/DTW251 MSP-450128-8.A172 450128-8	£1.20	£1.44
