Dewalt D21620K Type 1 Mag Drill Stand Spare Parts

Home Details Reviews Delivery

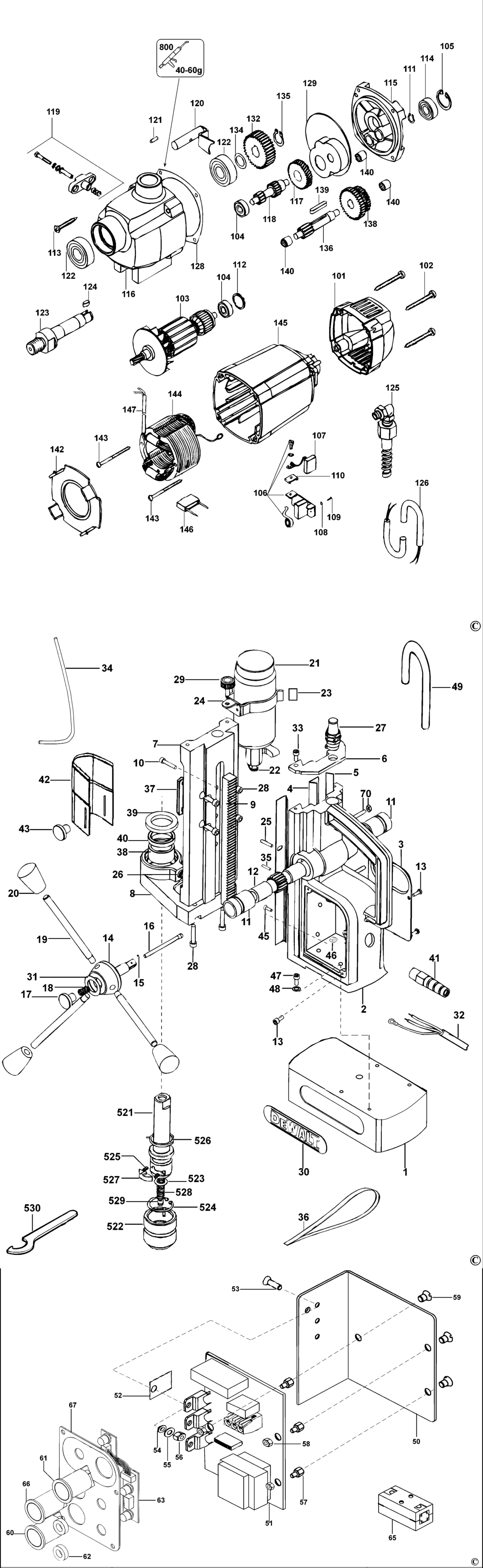

An exploded drawing and spare parts listing for the Dewalt D21620K Type 1 Mag Drill Stand

	Ex VAT	Inc VAT
1 - ELECTRO MAGNET LX BDE-596930-00.A0 596930-00	£426.12	£511.34
1 - ELECTRO MAGNET GB BDE-596930-00.A1 596930-00	£426.12	£511.34
2 - NO LONGER AVAILABLE BDE-000000-00.A26417 000000-00	-
3 - COVERPLATE LX BDE-596932-00 596932-00	-
3 - COVERPLATE GB BDE-596933-00 596933-00	-
4 - GUIDE BDE-596935-00 596935-00	£15.63	£18.76
5 - GLIDE STRIP BDE-596936-00 596936-00	£11.87	£14.24
6 - PLATE BDE-596937-00 596937-00	£29.32	£35.18
7 - SLIDER BDE-596938-00 596938-00	£328.22	£393.86
8 - SUPPORT BRACKET BDE-596939-00 596939-00	-
9 - RACK BDE-596940-00 596940-00	£116.32	£139.59
10 - SCREW BDE-596941-00 596941-00	£1.66	£1.99
11 - BUSH BDE-596942-00 596942-00	£17.03	£20.44
12 - PINION BDE-596943-00 596943-00	£131.95	£158.34
13 - SCREW BDE-596944-00 596944-00	£1.78	£2.13
14 - BOSS BDE-596945-00 596945-00	-
15 - BALLCATCH BDE-596946-00 596946-00	£1.66	£1.99
16 - NO LONGER AVAILABLE BDE-000000-00.A26421 000000-00	-
17 - LOCKING KNOB BDE-596948-00 596948-00	-
18 - SPRING COMPRESSION BDE-596949-00 596949-00	-
19 - HANDLE BDE-596950-00 596950-00	£14.19	£17.03
20 - END CAP BDE-596951-00 596951-00	£7.01	£8.41
21 - TANK BDE-596952-00 596952-00	-
22 - INSERT BDE-596953-00 596953-00	-
23 - BRACKET SA BDE-1004016-00.A0 1004016-00	-
24 - BRACKET SA BDE-1004016-00.A1 1004016-00	-
25 - GRUB SCREW BDE-596956-00 596956-00	£2.71	£3.25
26 - INSERT BDE-596957-00 596957-00	-
27 - GLAND BDE-596958-00 596958-00	£19.40	£23.28
28 - SCREW BDE-596959-00 596959-00	£1.66	£1.99
29 - THUMBSCREW BDE-596960-00 596960-00	-
30 - BRAND LABEL BDE-596961-00 596961-00	-
31 - LABEL BDE-596962-00 596962-00	£9.17	£11.00
32 - CABLE & PLUG LX BDE-596963-00 596963-00	-
32 - CABLE & PLUG GB BDE-596964-00 596964-00	-
33 - SCREW BDE-596966-00 596966-00	£1.66	£1.99
34 - PIPE BDE-596967-00 596967-00	-
35 - SPIROL PIN BDE-596968-00 596968-00	£1.66	£1.99
36 - STRAP BDE-597020-00 597020-00	-
37 - NO LONGER AVAILABLE BDE-000000-00.A26422 000000-00	-
38 - BEARING BUSH BDE-596972-00 596972-00	£15.63	£18.76
39 - SEAL BDE-596973-00 596973-00	£19.40	£23.28
40 - SEAL BDE-596974-00 596974-00	£19.40	£23.28
41 - GLAND BDE-596975-00 596975-00	£59.41	£71.29
42 - NO LONGER AVAILABLE BDE-000000-00.A26423 000000-00	-
43 - THUMBSCREW BDE-596977-00 596977-00	£11.87	£14.24
45 - SCREW BDE-597006-00 597006-00	-
46 - NUT BDE-597007-00 597007-00	£1.66	£1.99
47 - SCREW BDE-597008-00 597008-00	£1.66	£1.99
48 - WASHER SPRING BDE-597009-00 597009-00	£1.66	£1.99
49 - SLEEVE BDE-596934-00 596934-00	-
50 - SUPPORT PLATE BDE-596987-00 596987-00	-
51 - NO LONGER AVAILABLE LX BDE-000000-00.A125942 000000-00	-
51 - PCB SA GB BDE-596988-01 596988-01	£600.18	£720.21
52 - HEATSINK BDE-596990-00 596990-00	£2.71	£3.25
53 - NO LONGER AVAILABLE BDE-000000-00.A125940 000000-00	-
54 - BUSH BDE-596992-00 596992-00	£2.71	£3.25
55 - WASHER BDE-596993-00 596993-00	£1.66	£1.99
56 - NUT BDE-596994-00 596994-00	-
57 - SUPPORT BDE-596995-00 596995-00	£7.01	£8.41
58 - NUT M4 BDE-596996-00 596996-00	£1.66	£1.99
59 - SCREW BDE-596997-00 596997-00	£1.66	£1.99
60 - SWITCH BDE-596998-00 596998-00	£11.87	£14.24
61 - SWITCH BDE-596999-00 596999-00	£11.87	£14.24
62 - GROMMET BDE-597000-00 597000-00	£1.66	£1.99
63 - NEON SA BDE-597001-00 597001-00	£72.28	£86.73
65 - SUPPRESSOR BDE-597003-00 597003-00	£45.88	£55.06
66 - SWITCH BDE-597004-00 597004-00	£11.87	£14.24
67 - COVERPLATE BDE-597005-00 597005-00	-
70 - KIT BDE-1002874-00 1002874-00	£17.03	£20.44
101 - BRUSH COVER BDE-596818-00 596818-00	£40.21	£48.25
102 - SCREW BDE-596819-00 596819-00	£3.22	£3.86
103 - ARMATURE 230V GB BDE-596821-00 596821-00	£784.14	£940.97
103 - NO LONGER AVAILABLE LX BDE-000000-00.A125941 000000-00	-
104 - BEARING BDE-596822-00 596822-00	£33.13	£39.76
105 - CLIP BDE-596823-00 596823-00	-
106 - BRUSH HOLDER BDE-596824-00 596824-00	£44.00	£52.80
107 - BRUSH PAIR BDE-596825-00 596825-00	£40.21	£48.25
108 - WASHER BDE-596826-00 596826-00	£3.22	£3.86
109 - SCREW BDE-596827-00 596827-00	£3.22	£3.86
110 - CONTACT PLATE BDE-596828-00 596828-00	-
111 - CIRCLIP BDE-596829-00 596829-00	-
112 - O RING BDE-596830-00 596830-00	£3.22	£3.86
113 - SCREW BDE-596831-00 596831-00	£7.01	£8.41
114 - BEARING BDE-596832-00 596832-00	£40.21	£48.25
115 - GEARCASE COVER BDE-596833-00 596833-00	-
116 - GEARCASE BDE-596834-00 596834-00	-
117 - GEAR BDE-596835-00 596835-00	£110.21	£132.25
118 - INTERSHAFT BDE-596836-00 596836-00	-
119 - CHANGE LEVER SA BDE-596837-00 596837-00	-
120 - LEVER BDE-596838-00 596838-00	-
121 - PIN BDE-596839-00 596839-00	£3.22	£3.86
122 - BEARING BDE-596840-00 596840-00	-
123 - SPINDLE BDE-596841-00 596841-00	£178.78	£214.54
124 - KEY BDE-596842-00 596842-00	£3.22	£3.86
125 - PROTECTOR BDE-596843-00 596843-00	£19.40	£23.28
126 - CABLE BDE-596844-00 596844-00	-
128 - GASKET BDE-596845-00 596845-00	£11.87	£14.24
129 - NO LONGER AVAILABLE BDE-000000-00.A125943 000000-00	-
132 - GEAR BDE-596847-00 596847-00	£204.32	£245.18
134 - SHIM BDE-596848-00 596848-00	£3.22	£3.86
135 - CIRCLIP BDE-596849-00 596849-00	-
136 - SHAFT BDE-596850-00 596850-00	£153.22	£183.86
138 - GEAR SA BDE-596851-00 596851-00	£251.60	£301.92
139 - KEY BDE-596852-00 596852-00	-
140 - BEARING NEEDLE BDE-596853-00 596853-00	£43.02	£51.63
142 - BAFFLE FAN BDE-596854-00 596854-00	£19.40	£23.28
143 - SCREW BDE-596855-00 596855-00	£7.01	£8.41
144 - FIELD 230V GB BDE-596857-00 596857-00	-
144 - NO LONGER AVAILABLE LX BDE-000000-00.A125963 000000-00	-
145 - HOUSING MOTOR BDE-596858-00 596858-00	£153.22	£183.86
146 - SUPPRESSOR BDE-596859-00 596859-00	£29.32	£35.18
147 - SLEEVE BDE-596860-00 596860-00	£3.22	£3.86
521 - ARBOR SA BDE-596978-00 596978-00	£510.76	£612.91
522 - COLLAR BDE-596979-00 596979-00	£110.21	£132.25
523 - O RING BDE-596980-00 596980-00	£1.66	£1.99
524 - CIRCLIP BDE-596981-00 596981-00	£9.17	£11.00
525 - SPRING BDE-596982-00 596982-00	£7.01	£8.41
526 - SPRING COMPRESSION BDE-596983-00 596983-00	£19.40	£23.28
527 - LOCKING DEVICE BDE-596984-00 596984-00	-
528 - SPRING COMPRESSION BDE-596985-00 596985-00	-
529 - PLUG BDE-596986-00 596986-00	£7.01	£8.41
530 - SPANNER SPECIAL BDE-1004117-00 1004117-00	-
800 - GREASE 90 GMS BDE-870889-02.A620 870889-02	£8.08	£9.70

Attribute Name	Value
Brand	Dewalt
