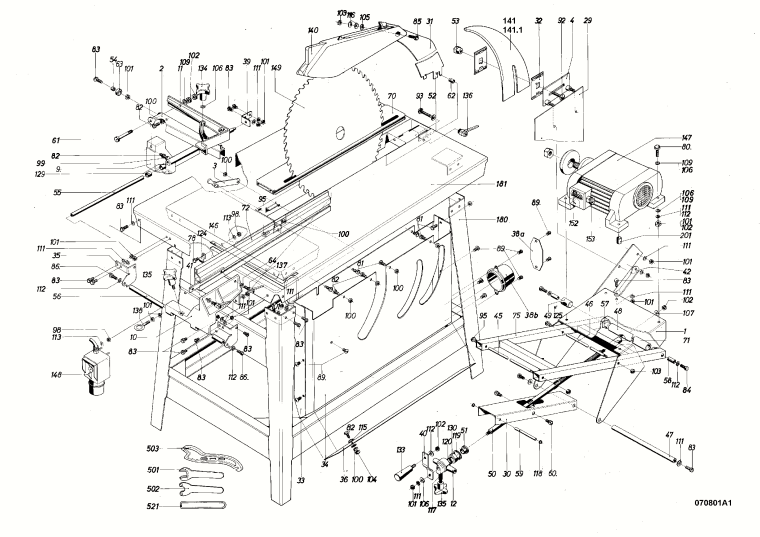

1 - MOTOR SUPPORT, CPL.
MAF-038729.A0
038729
|
-
|
|
|
|
2 - PIVOTING ARM
MAF-038730.A2
038730
|
-
|
|
|
|
3 - LOCKING LEVER
MAF-038743.A1
038743
|
-
|
|
|
|
4 - CHAIN BAR, CPL.
MAF-038715.A1
038715
|
-
|
|
|
|
9 - SUPPORT FENCE GUIDE W
MAF-038732.A1
038732
|
-
|
|
|
|
10 - SUPPORT FENCE GUIDE P
MAF-039235.A0
039235
|
-
|
|
|
|
11 - CROSS AND MITRE CUT FENCE
MAF-028627.A1
028627
|
-
|
|
|
|
12 - PIVOTING BEARING
MAF-038704.A0
038704
|
-
|
|
|
|
29 - GUARD PLATE
MAF-038745.A2
038745
|
-
|
|
|
|
30 - SUPPORT
MAF-038746.A2
038746
|
-
|
|
|
|
31 - SAW GUARD SUPPORT
MAF-038762.A0
038762
|
-
|
|
|
|
32 - GUIDE PLATE
MAF-036644.A4
036644
|
-
|
|
|
|
33 - PART NAME NOT AVAILABLE
MAF-038749.A1
038749
|
-
|
|
|
|
34 - PART NAME NOT AVAILABLE
MAF-038750.A0
038750
|
-
|
|
|
|
35 - HOLDING ANGLE
MAF-038756.A1
038756
|
-
|
|
|
|
36 - LOCKING PLATE
MAF-038707.A2
038707
|
-
|
|
|
|
38A - COVERING PLATE
MAF-039241.A0
039241
|
-
|
|
|
|
38B - HOSE CONNECTOR
MAF-038702.A2
038702
|
-
|
|
|
|
39 - HOLDING ANGLE
MAF-038733.A2
038733
|
-
|
|
|
|
40 - CRANK ARM
MAF-034834.A1
034834
|
-
|
|
|
|
41 - LEDGE
MAF-039233.A0
039233
|
-
|
|
|
|
42 - STRUT
MAF-039002.A2
039002
|
-
|
|
|
|
45 - STRUT
MAF-038719.A1
038719
|
-
|
|
|
|
46 - STRUT
MAF-038718.A2
038718
|
-
|
|
|
|
47 - ROD
MAF-038763.A0
038763
|
-
|
|
|
|
48 - TUBE
MAF-038725.A2
038725
|
-
|
|
|
|
49 - INTERMEDIATE PIECE
MAF-038717.A0
038717
|
-
|
|
|
|
50 - SPINDLE
MAF-038701.A0
038701
|
-
|
|
|
|
51 - BUSH
MAF-038713.A2
038713
|
-
|
|
|
|
52 - WASHER
MAF-035426.A2
035426
|
-
|
|
|
|
53 - NUT
MAF-038722.A1
038722
|
-
|
|
|
|
54 - SLEEVE
MAF-038721.A2
038721
|
-
|
|
|
|
55 - GUIDE BAR
MAF-200332.A2
200332
|
-
|
|
|
|
56 - GUIDE BAR
MAF-038755.A0
038755
|
-
|
|
|
|
57 - MOUNTING DISK
MAF-031225.A2
031225
|
-
|
|
|
|
58 - GUIDE SLEEVE
MAF-031223.A0
031223
|
-
|
|
|
|
59 - BOLT
MAF-038754.A0
038754
|
-
|
|
|
|
60 - SHOULDER SCREW
MAF-038752.A1
038752
|
-
|
|
|
|
61 - ARBOR
MAF-039278.A0
039278
|
-
|
|
|
|
62 - SLEEVE
MAF-038764.A1
038764
|
-
|
|
|
|
63 - ROLLER
MAF-037626.A1
037626
|
-
|
|
|
|
64 - WASHER
MAF-061108.A2
061108
|
-
|
|
|
|
70 - TABLE INSERT
MAF-038712.A2
038712
|
-
|
|
|
|
71 - SPACER TUBE
MAF-039279.A1
039279
|
-
|
|
|
|
72 - GUIDE FENCE EXTENSION
MAF-039239.A0
039239
|
-
|
|
|
|
75 - ROCKER
MAF-038726.A1
038726
|
-
|
|
|
|
78 - HEXAGON-HEAD SCREW
MAF-005677.A2
005677
|
£1.32
|
£1.58
|
|
|
80 - HEXAGON-HEAD SCREW
MAF-005670.A2
005670
|
-
|
|
|
|
81 - HEXAGON-HEAD SCREW
MAF-005632.A1
005632
|
-
|
|
|
|
82 - HEXAGON-HEAD SCREW
MAF-005697.A2
005697
|
-
|
|
|
|
83 - HEXAGON-HEAD SCREW
MAF-005645.A4
005645
|
-
|
|
|
|
84 - HEXAGON-HEAD SCREW
MAF-005670.A4
005670
|
-
|
|
|
|
85 - HEXAGON-HEAD SCREW
MAF-005609.A0
005609
|
-
|
|
|
|
86 - HEXAGON-HEAD SCREW
MAF-005650.A1
005650
|
-
|
|
|
|
89 - SELF-TAPPING SCREW
MAF-055120.A5
055120
|
-
|
|
|
|
92 - TRUSS-HEAD SCREW
MAF-057006.A4
057006
|
-
|
|
|
|
93 - TRUSS-HEAD SCREW
MAF-005723.A0
005723
|
-
|
|
|
|
95 - SPIRAL-SHAPED SCREW
MAF-055135.A0
055135
|
-
|
|
|
|
98 - HEXAGONAL NUT
MAF-005915.A3
005915
|
-
|
|
|
|
99 - HEXAGONAL NUT
MAF-005911.A1
005911
|
-
|
|
|
|
100 - HEXAGONAL NUT
MAF-005939.A1
005939
|
-
|
|
|
|
101 - HEXAGONAL NUT
MAF-005920.A20
005920
|
-
|
|
|
|
102 - HEXAGONAL NUT
MAF-005924.A25
005924
|
£1.67
|
£2.00
|
|
|
103 - LOCKING NUT
MAF-005983.A0
005983
|
-
|
|
|
|
104 - CAP NUT
MAF-005934.A5
005934
|
-
|
|
|
|
105 - WASHER
MAF-006104.A1
006104
|
-
|
|
|
|
106 - WASHER
MAF-006102.A1
006102
|
-
|
|
|
|
107 - WASHER
MAF-061088.A2
061088
|
-
|
|
|
|
109 - WASHER
MAF-006130.A4
006130
|
-
|
|
|
|
111 - LOCKING WASHER
MAF-006114.A15
006114
|
-
|
|
|
|
112 - LOCKING WASHER
MAF-006183.A7
006183
|
-
|
|
|
|
113 - LOCKING WASHER
MAF-006179.A13
006179
|
£1.53
|
£1.84
|
|
|
115 - CUP SPRING
MAF-006675.A2
006675
|
£2.41
|
£2.89
|
|
|
116 - CUP SPRING
MAF-006681.A0
006681
|
-
|
|
|
|
117 - PRESSURE SPRING
MAF-066073.A0
066073
|
-
|
|
|
|
118 - RETAINING RING
MAF-006173.A7
006173
|
-
|
|
|
|
119 - RETAINING RING
MAF-061008.A1
061008
|
-
|
|
|
|
120 - RETAINING RING
MAF-007163.A1
007163
|
-
|
|
|
|
124 - FIXING CLIP
MAF-008668.A0
008668
|
-
|
|
|
|
125 - RIBBED NAIL
MAF-005892.A0
005892
|
-
|
|
|
|
129 - SLIDING BEARING
MAF-062056.A0
062056
|
-
|
|
|
|
130 - GROOVED BALL BEARING
MAF-062018.A20
062018
|
£26.06
|
£31.27
|
|
|
133 - CYLINDRICAL HANDLE
MAF-079045.A2
079045
|
-
|
|
|
|
134 - STAR-SHAPED HANDLE
MAF-079046.A2
079046
|
-
|
|
|
|
135 - STAR-SHAPED HANDLE SCREW
MAF-079047.A2
079047
|
-
|
|
|
|
136 - CLAMPING LEVER
MAF-007196.A2
007196
|
-
|
|
|
|
137 - CLAMPING LEVER
MAF-071000.A0
071000
|
-
|
|
|
|
138 - EYE BOLT
MAF-038175.A4
038175
|
-
|
|
|
|
140 - PROTECTIVE COVER
MAF-035410.A4
035410
|
-
|
|
|
|
141 - RIVING KNIFE/SPLITTER
MAF-034845.A3
034845
|
-
|
|
|
|
146 - SKALE
MAF-077600.A0
077600
|
-
|
|
|
|
147 - MOTOR WITH BRAKE
MAF-087727.A
087727
|
-
|
|
|
|
148 - PART NAME NOT AVAILABLE
MAF-087706.A4
087706
|
-
|
|
|
|
149 - TCT SAW BLADE
MAF-092513.A0
092513
|
-
|
|
|
|
152 - PART NAME NOT AVAILABLE
MAF-038052.A0
038052
|
-
|
|
|
|
153 - SCREW-TYPE CABLE CLAMP
MAF-007828.A4
007828
|
-
|
|
|
|
180 - SUPPORTING FRAME
MAF-038709.A0
038709
|
-
|
|
|
|
181 - TABLE TOP
MAF-038751.A0
038751
|
-
|
|
|
|
501 - SINGLE-END SPANNER
MAF-093061.A4
093061
|
-
|
|
|
|
502 - PIN SPANNER
MAF-093248.A2
093248
|
-
|
|
|
|
503 - PUSH STICK
MAF-034901.A6
034901
|
-
|
|
|
|
521 - PIN SPANNER
MAF-093251.A0
093251
|
-
|
|
|
