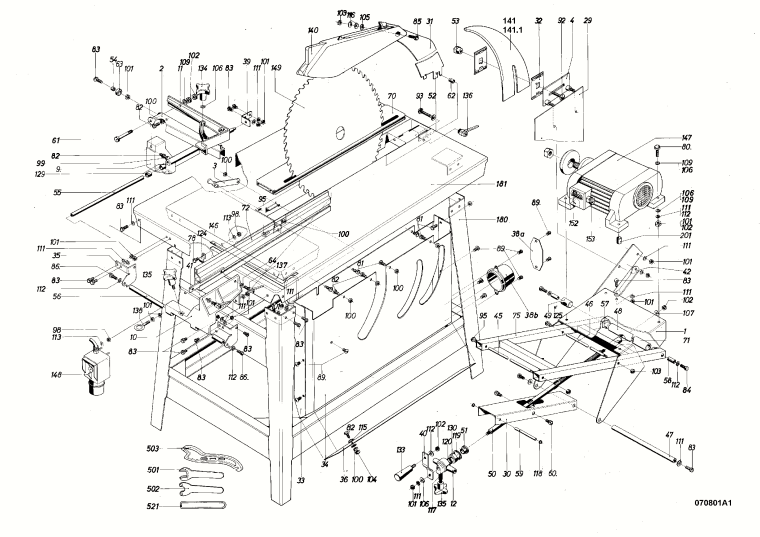

1 - MOTOR SUPPORT, CPL.
MAF-038729.A1
038729
|
-
|
|
|
|
2 - PIVOTING ARM
MAF-038730.A1
038730
|
-
|
|
|
|
3 - LOCKING LEVER
MAF-038743.A0
038743
|
-
|
|
|
|
4 - CHAIN BAR, CPL.
MAF-038715.A0
038715
|
-
|
|
|
|
9 - SUPPORT FENCE GUIDE W
MAF-038732.A0
038732
|
-
|
|
|
|
10 - SUPPORT FENCE GUIDE P
MAF-039235.A2
039235
|
-
|
|
|
|
11 - CROSS AND MITRE CUT FENCE
MAF-028627.A0
028627
|
-
|
|
|
|
12 - PIVOTING BEARING
MAF-038704.A1
038704
|
-
|
|
|
|
29 - GUARD PLATE
MAF-038745.A0
038745
|
-
|
|
|
|
30 - SUPPORT
MAF-038746.A0
038746
|
-
|
|
|
|
31 - SAW GUARD SUPPORT
MAF-038762.A2
038762
|
-
|
|
|
|
32 - GUIDE PLATE
MAF-036644.A1
036644
|
-
|
|
|
|
33 - PART NAME NOT AVAILABLE
MAF-038749.A2
038749
|
-
|
|
|
|
34 - PART NAME NOT AVAILABLE
MAF-038750.A1
038750
|
-
|
|
|
|
35 - HOLDING ANGLE
MAF-038756.A0
038756
|
-
|
|
|
|
36 - LOCKING PLATE
MAF-038707.A0
038707
|
-
|
|
|
|
38A - COVERING PLATE
MAF-039241.A2
039241
|
-
|
|
|
|
38B - HOSE CONNECTOR
MAF-038702.A3
038702
|
-
|
|
|
|
39 - HOLDING ANGLE
MAF-038733.A1
038733
|
-
|
|
|
|
40 - CRANK ARM
MAF-034834.A2
034834
|
-
|
|
|
|
41 - LEDGE
MAF-039233.A2
039233
|
-
|
|
|
|
42 - STRUT
MAF-039002.A1
039002
|
-
|
|
|
|
45 - STRUT
MAF-038719.A2
038719
|
-
|
|
|
|
46 - STRUT
MAF-038718.A0
038718
|
-
|
|
|
|
47 - ROD
MAF-038763.A1
038763
|
-
|
|
|
|
48 - TUBE
MAF-038725.A1
038725
|
-
|
|
|
|
49 - INTERMEDIATE PIECE
MAF-038717.A2
038717
|
-
|
|
|
|
50 - SPINDLE
MAF-038701.A2
038701
|
-
|
|
|
|
51 - BUSH
MAF-038713.A1
038713
|
-
|
|
|
|
52 - WASHER
MAF-035426.A3
035426
|
-
|
|
|
|
53 - NUT
MAF-038722.A2
038722
|
-
|
|
|
|
54 - SLEEVE
MAF-038721.A1
038721
|
-
|
|
|
|
55 - GUIDE BAR
MAF-200332.A1
200332
|
-
|
|
|
|
56 - GUIDE BAR
MAF-038755.A1
038755
|
-
|
|
|
|
57 - MOUNTING DISK
MAF-031225.A1
031225
|
-
|
|
|
|
58 - GUIDE SLEEVE
MAF-031223.A1
031223
|
-
|
|
|
|
59 - BOLT
MAF-038754.A1
038754
|
-
|
|
|
|
60 - SHOULDER SCREW
MAF-038752.A0
038752
|
-
|
|
|
|
61 - ARBOR
MAF-039278.A1
039278
|
-
|
|
|
|
62 - SLEEVE
MAF-038764.A0
038764
|
-
|
|
|
|
63 - ROLLER
MAF-037626.A0
037626
|
-
|
|
|
|
64 - WASHER
MAF-061108.A0
061108
|
-
|
|
|
|
70 - TABLE INSERT
MAF-038712.A1
038712
|
-
|
|
|
|
71 - SPACER TUBE
MAF-039279.A0
039279
|
-
|
|
|
|
72 - GUIDE FENCE EXTENSION
MAF-039239.A2
039239
|
-
|
|
|
|
75 - ROCKER
MAF-038726.A0
038726
|
-
|
|
|
|
78 - HEXAGON-HEAD SCREW
MAF-005677.A1
005677
|
£1.38
|
£1.66
|
|
|
80 - HEXAGON-HEAD SCREW
MAF-005670.A3
005670
|
-
|
|
|
|
81 - HEXAGON-HEAD SCREW
MAF-005632.A5
005632
|
-
|
|
|
|
82 - HEXAGON-HEAD SCREW
MAF-005697.A4
005697
|
-
|
|
|
|
83 - HEXAGON-HEAD SCREW
MAF-005645.A1
005645
|
-
|
|
|
|
84 - HEXAGON-HEAD SCREW
MAF-005670.A0
005670
|
-
|
|
|
|
85 - HEXAGON-HEAD SCREW
MAF-005609.A2
005609
|
-
|
|
|
|
86 - HEXAGON-HEAD SCREW
MAF-005650.A2
005650
|
-
|
|
|
|
89 - SELF-TAPPING SCREW
MAF-055120.A0
055120
|
-
|
|
|
|
92 - TRUSS-HEAD SCREW
MAF-057006.A2
057006
|
-
|
|
|
|
93 - TRUSS-HEAD SCREW
MAF-005723.A2
005723
|
-
|
|
|
|
95 - SPIRAL-SHAPED SCREW
MAF-055135.A3
055135
|
-
|
|
|
|
98 - HEXAGONAL NUT
MAF-005915.A11
005915
|
-
|
|
|
|
99 - HEXAGONAL NUT
MAF-005911.A2
005911
|
-
|
|
|
|
100 - HEXAGONAL NUT
MAF-005939.A10
005939
|
-
|
|
|
|
101 - HEXAGONAL NUT
MAF-005920.A30
005920
|
-
|
|
|
|
102 - HEXAGONAL NUT
MAF-005924.A24
005924
|
£1.75
|
£2.10
|
|
|
103 - LOCKING NUT
MAF-005983.A1
005983
|
-
|
|
|
|
104 - CAP NUT
MAF-005934.A4
005934
|
-
|
|
|
|
105 - WASHER
MAF-006104.A2
006104
|
-
|
|
|
|
106 - WASHER
MAF-006102.A6
006102
|
-
|
|
|
|
107 - WASHER
MAF-061088.A1
061088
|
-
|
|
|
|
109 - WASHER
MAF-006130.A0
006130
|
-
|
|
|
|
111 - LOCKING WASHER
MAF-006114.A6
006114
|
-
|
|
|
|
112 - LOCKING WASHER
MAF-006183.A0
006183
|
£2.11
|
£2.53
|
|
|
113 - LOCKING WASHER
MAF-006179.A2
006179
|
£1.61
|
£1.93
|
|
|
115 - CUP SPRING
MAF-006675.A0
006675
|
£2.52
|
£3.03
|
|
|
116 - CUP SPRING
MAF-006681.A2
006681
|
-
|
|
|
|
117 - PRESSURE SPRING
MAF-066073.A3
066073
|
-
|
|
|
|
118 - RETAINING RING
MAF-006173.A4
006173
|
-
|
|
|
|
119 - RETAINING RING
MAF-061008.A0
061008
|
-
|
|
|
|
120 - RETAINING RING
MAF-007163.A4
007163
|
-
|
|
|
|
124 - FIXING CLIP
MAF-008668.A2
008668
|
-
|
|
|
|
125 - RIBBED NAIL
MAF-005892.A1
005892
|
-
|
|
|
|
129 - SLIDING BEARING
MAF-062056.A2
062056
|
-
|
|
|
|
130 - GROOVED BALL BEARING
MAF-062018.A1
062018
|
£27.36
|
£32.83
|
|
|
133 - CYLINDRICAL HANDLE
MAF-079045.A3
079045
|
-
|
|
|
|
134 - STAR-SHAPED HANDLE
MAF-079046.A1
079046
|
-
|
|
|
|
135 - STAR-SHAPED HANDLE SCREW
MAF-079047.A0
079047
|
-
|
|
|
|
136 - CLAMPING LEVER
MAF-007196.A0
007196
|
-
|
|
|
|
137 - CLAMPING LEVER
MAF-071000.A1
071000
|
-
|
|
|
|
138 - EYE BOLT
MAF-038175.A2
038175
|
-
|
|
|
|
140 - PROTECTIVE COVER
MAF-035410.A2
035410
|
-
|
|
|
|
141 - RIVING KNIFE/SPLITTER
MAF-034845.A4
034845
|
-
|
|
|
|
146 - SKALE
MAF-077600.A2
077600
|
-
|
|
|
|
147 - MOTOR WITH BRAKE
MAF-087726.A
087726
|
-
|
|
|
|
148 - PART NAME NOT AVAILABLE
MAF-087706.A0
087706
|
-
|
|
|
|
149 - TCT SAW BLADE
MAF-092513.A3
092513
|
-
|
|
|
|
152 - PART NAME NOT AVAILABLE
MAF-038052.A1
038052
|
-
|
|
|
|
153 - SCREW-TYPE CABLE CLAMP
MAF-007828.A0
007828
|
-
|
|
|
|
180 - SUPPORTING FRAME
MAF-038709.A2
038709
|
-
|
|
|
|
181 - TABLE TOP
MAF-038751.A1
038751
|
-
|
|
|
|
501 - SINGLE-END SPANNER
MAF-093061.A3
093061
|
-
|
|
|
|
502 - PIN SPANNER
MAF-093248.A1
093248
|
-
|
|
|
|
503 - PUSH STICK
MAF-034901.A9
034901
|
-
|
|
|
|
521 - PIN SPANNER
MAF-093251.A2
093251
|
-
|
|
|
