Mafell 917804 Multi-Cutter MF 26 cc / 400 in carrying case Spare Parts

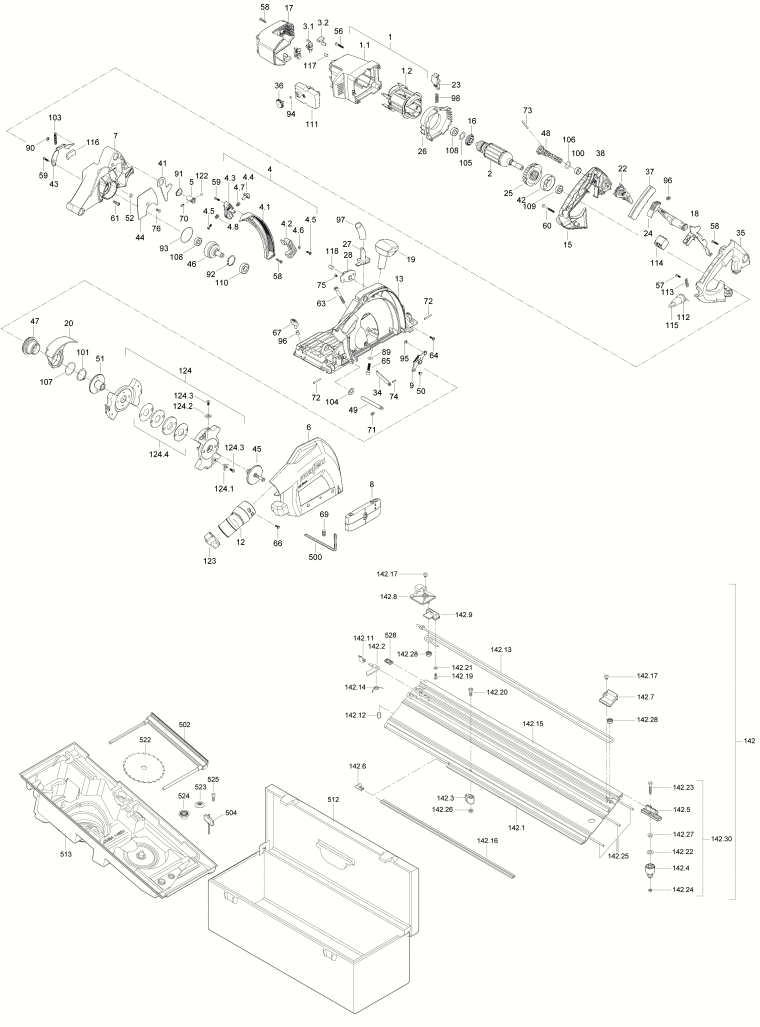

An exploded drawing and spare parts listing for the Mafell 917804 Multi-Cutter MF 26 cc / 400 in carrying case

	Ex VAT	Inc VAT
1 - MOTOR CASING WITH INDUCTOR 230 V MAF-084620.A3 084620	£181.70	£218.04
1.1 - MOTOR CASING, EMPTY MAF-204506.A2 204506	£56.42	£67.71
1.2 - INDUCTOR WITH COIL 230 V MAF-084618.A0 084618	£106.72	£128.07
2 - ARMATURE MAF-088224.A5 088224	-
3.1 - BRUSH HOLDER MAF-063160.A3 063160	£10.07	£12.08
3.2 - CARBON BRUSH WITH AUTOMATIC CUT-OFF MAF-063164.A3 063164	£12.41	£14.89
4 - DEPTH STOP MAF-205801.A2 205801	-
4.1 - DEPTH SETTING MAF-206027.A1 206027	-
4.2 - INDICATOR MAF-204497.A5 204497	£12.29	£14.75
4.3 - SLIDING COVER MAF-204511.A4 204511	£2.27	£2.72
4.4 - INDICATOR MAF-204520.A0 204520	£9.00	£10.80
4.5 - CYLINDRICAL OVAL-HEAD SCREW MAF-055233.A3 055233	£1.71	£2.05
4.6 - WASHER MAF-061015.A5 061015	-
4.7 - PRESSURE SPRING MAF-066043.A13 066043	£3.04	£3.65
4.8 - PRESSURE SPRING MAF-006691.A4 006691	-
5 - LOCK MAF-204488.A1 204488	£32.18	£38.61
6 - PROTECTIVE COVER MAF-205822.A0 205822	-
7 - GEAR CASING MAF-205825.A5 205825	-
8 - GLIDER MAF-205817.A0 205817	-
9 - FRAME MAF-205819.A0 205819	-
12 - HOSE CONNECTOR MAF-206069.A1 206069	-
13 - BASE PLATE MAF-205816.A 205816	-
15 - HANDLE SHELL MAF-204486.A4 204486	£28.81	£34.57
16 - INSULATING DISK MAF-204492.A4 204492	£8.58	£10.30
17 - MOTOR COVER MAF-204493.A4 204493	£23.70	£28.44
18 - SWITCH TRIGGER MAF-204494.A5 204494	£12.29	£14.75
19 - HANDLE MAF-205308.A0 205308	£14.92	£17.91
20 - PROTECTIVE COVER MAF-205807.A2 205807	-
22 - LOCKING LEVER MAF-204507.A1 204507	£10.30	£12.36
23 - LOCKING LEVER MAF-204509.A0 204509	£8.07	£9.68
24 - LOCK-OFF BUTTON MAF-204510.A5 204510	£11.48	£13.77
25 - FAN MAF-204517.A0 204517	£12.33	£14.80
26 - AIR CONDUCTING RING MAF-204518.A2 204518	£16.33	£19.60
27 - SPRING GUIDE MAF-204519.A5 204519	£10.72	£12.87
28 - INSERT MAF-205818.A0 205818	-
34 - STOP CLIP MAF-204868.A0 204868	-
35 - HANDLE SHELL MAF-204490.A4 204490	-
36 - SETTING WHEEL MAF-203729.A6 203729	-
37 - HANDLE INSERT MAF-203877.A3 203877	£19.14	£22.97
38 - HANDLE SHELL COVER MAF-204513.A2 204513	£11.76	£14.11
41 - CLICK-IN METAL SHEET MAF-205814.A3 205814	-
42 - BRAKE DRUM MAF-201452.A5 201452	£13.66	£16.39
43 - BRAKE LEVER MAF-202347.A3 202347	£6.25	£7.50
44 - COVER MAF-206061.A4 206061	-
45 - FLANGE MAF-206079.A 206079	-
46 - SAW SHAFT MAF-205804.A3 205804	-
47 - BEARING COVER MAF-205831.A5 205831	-
48 - PUSH-BUTTON MAF-204516.A2 204516	£30.69	£36.83
49 - BOLT MAF-204528.A1 204528	-
50 - BOLT MAF-205823.A2 205823	-
51 - FLANGE MAF-205828.A 205828	-
52 - SPACER SLEEVE MAF-206065.A5 206065	-
56 - OVAL-HEAD SCREW MAF-055069.A2 055069	£2.16	£2.59
57 - CYLINDRICAL OVAL-HEAD SCREW MAF-055233.A25 055233	£1.71	£2.05
58 - CYLINDRICAL OVAL-HEAD SCREW MAF-055061.A3 055061	£1.71	£2.05
59 - SELF-TAPPING SCREW MAF-055230.A3 055230	-
60 - OVAL-HEAD SCREW MAF-055257.A3 055257	-
61 - CYLINDRICAL OVAL-HEAD SCREW MAF-055188.A10 055188	-
63 - CYLINDER-HEAD SCREW MAF-055263.A0 055263	-
64 - CYLINDER-HEAD SCREW MAF-055203.A5 055203	-
65 - CYLINDER-HEAD SCREW MAF-055113.A1 055113	£2.64	£3.17
66 - CYLINDRICAL OVAL-HEAD SCREW MAF-055162.A11 055162	-
67 - WING SCREW MAF-079091.A3 079091	-
69 - PRESSURE BIT MAF-005293.A4 005293	-
70 - THREADED PIN MAF-052016.A5 052016	-
71 - THREADED PIN MAF-005279.A0 005279	-
72 - SPIRAL DOWEL SLEEVE MAF-058191.A2 058191	-
73 - RIBBED PIN MAF-058219.A2 058219	-
74 - SPIRAL DOWEL SLEEVE MAF-058186.A0 058186	-
75 - FLAT-HEAD SCREW MAF-053031.A9 053031	£1.72	£2.07
76 - FLAT-HEAD SCREW MAF-005383.A12 005383	£2.68	£3.22
89 - WASHER MAF-006101.A38 006101	£1.54	£1.85
90 - LOCKING WASHER MAF-061069.A5 061069	£1.49	£1.79
91 - RETAINING RING MAF-007163.A3 007163	-
92 - RETAINING RING MAF-061021.A3 061021	-
93 - SEALING RING MAF-065057.A3 065057	-
94 - SEALING RING MAF-065004.A15 065004	£1.63	£1.96
95 - LOCKING WASHER MAF-061135.A9 061135	-
96 - PRESSURE SPRING MAF-066043.A50 066043	£3.04	£3.65
97 - PRESSURE SPRING MAF-066166.A5 066166	£3.58	£4.30
98 - PRESSURE SPRING MAF-066154.A5 066154	-
100 - PRESSURE SPRING MAF-066096.A0 066096	£4.25	£5.10
101 - RETAINING RING MAF-006192.A6 006192	-
103 - RETRACTING SPRING MAF-066092.A2 066092	£4.98	£5.97
104 - CUP SPRING MAF-006693.A1 006693	-
105 - FEDERSCHEIBE MAF-061132.A5 061132	-
106 - SHIM RING MAF-006160.A24 006160	£1.65	£1.98
107 - WASHER MAF-061167.A1 061167	£51.32	£61.59
108 - GROOVED BALL BEARING MAF-006282.A6 006282	£14.68	£17.62
109 - GROOVED BALL BEARING MAF-006288.A0 006288	£8.82	£10.58
110 - GROOVED BALL BEARING MAF-006280.A8 006280	£13.65	£16.38
111 - CONTROL MODULE MAF-077671.A0 077671	£70.80	£84.96
112 - CABLE PROTECTING SLEEVE MAF-086064.A11 086064	£3.37	£4.04
113 - CABLE CLAMP MAF-029584.A28 029584	-
114 - 2-POLE SWITCH MAF-087851.A3 087851	£18.18	£21.82
115 - MAINS CABLE 4 M (13.1 FT) MAF-087323.A12 087323	£39.41	£47.29
116 - BRAKE LINING MAF-202429.A5 202429	-
117 - PRESSURE BIT MAF-202378.A4 202378	-
118 - STOP BUFFER MAF-204009.A6 204009	-
122 - STEEL BALL MAF-062104.A2 062104	-
123 - HOOK-AND-LOOP FASTENER BELT MAF-205049.A3 205049	£5.39	£6.47
124 - EXPANDING GROOVE CUTTER MF-VN 25 MAF-206074.A 206074	£480.32	£576.39
124.1 - CHAMFER KNIVE MAF-201930.A4 201930	-
124.2 - REVERSIBLE KNIFE MAF-206064.A 206064	-
124.3 - FLAT-HEAD SCREW MAF-055268.A0 055268	-
124.4 - SPACER DISK MAF-206123.A 206123	-
142 - GUIDE TRACK 400 MAF-206118.A 206118	-
142.1 - GUIDE TRACK MAF-205500.A0 205500	-
142.2 - RATCHET MAF-203989.A0 203989	-
142.3 - STOP BOLT MAF-204014.A0 204014	£13.08	£15.69
142.4 - STOP PLATE MAF-203988.A0 203988	£4.72	£5.67
142.5 - INDICATOR MAF-203987.A0 203987	£10.91	£13.09
142.6 - EDGE PROTECTION MAF-203986.A0 203986	£4.94	£5.93
142.7 - STOP PLATE MAF-204005.A0 204005	-
142.8 - COVER MAF-203990.A0 203990	-
142.9 - SPRING GUIDE MAF-203992.A0 203992	-
142.11 - HANDLE MAF-204007.A0 204007	-
142.12 - STOP BUFFER MAF-204009.A0 204009	-
142.13 - POLYETHYLENE CABLE MAF-205586.A0 205586	-
142.14 - LEG SPRING MAF-066155.A0 066155	-
142.15 - SKALE MAF-203993.A0 203993	-
142.16 - SPLINTER GUARD F-SS 3,4M MAF-204375.A0 204375	£21.99	£26.39
142.17 - CYLINDRICAL OVAL-HEAD SCREW MAF-055187.A19 055187	£1.92	£2.30
142.19 - CYLINDRICAL OVAL-HEAD SCREW MAF-055233.A18 055233	£1.71	£2.05
142.20 - CYLINDER-HEAD SCREW MAF-055041.A8 055041	£1.65	£1.98
142.21 - WASHER MAF-061015.A11 061015	-
142.22 - WASHER MAF-006102.A18 006102	-
142.23 - HEXAGON-HEAD SCREW MAF-005688.A0 005688	-
142.24 - HEXAGONAL NUT MAF-005915.A6 005915	-
142.25 - NON-SLIP PROFILE F-HP 6,8 M MAF-204376.A0 204376	£21.08	£25.29
142.26 - HEXAGONAL NUT MAF-005939.A12 005939	-
142.27 - SLEEVE MAF-204237.A0 204237	-
142.28 - GROOVED BALL BEARING MAF-062090.A0 062090	-
142.30 - STOP PLATE MAF-205442.A0 205442	£24.26	£29.11
500 - COMBINATION SCREW DRIVER MAF-093005.A0 093005	-
502 - PARALLEL GUIDE FENCE MAF-206038.A5 206038	-
504 - SCREW DRIVER MAF-093293.A0 093293	-
512 - CARRYING CASE MAF-095093.A0 095093	£140.80	£168.96
513 - PLASTIC TRAY MAF-205384.A0 205384	-
522 - TCT SAW BLADE MAF-092558.A2 092558	£41.24	£49.49
523 - FLANGE MAF-204388.A0 204388	£16.58	£19.90
524 - FLANGE MAF-205827.A1 205827	-
525 - CYLINDER-HEAD SCREW MAF-055096.A6 055096	£2.11	£2.53
528 - REPEAT STOP MAF-206026.A 206026	-
