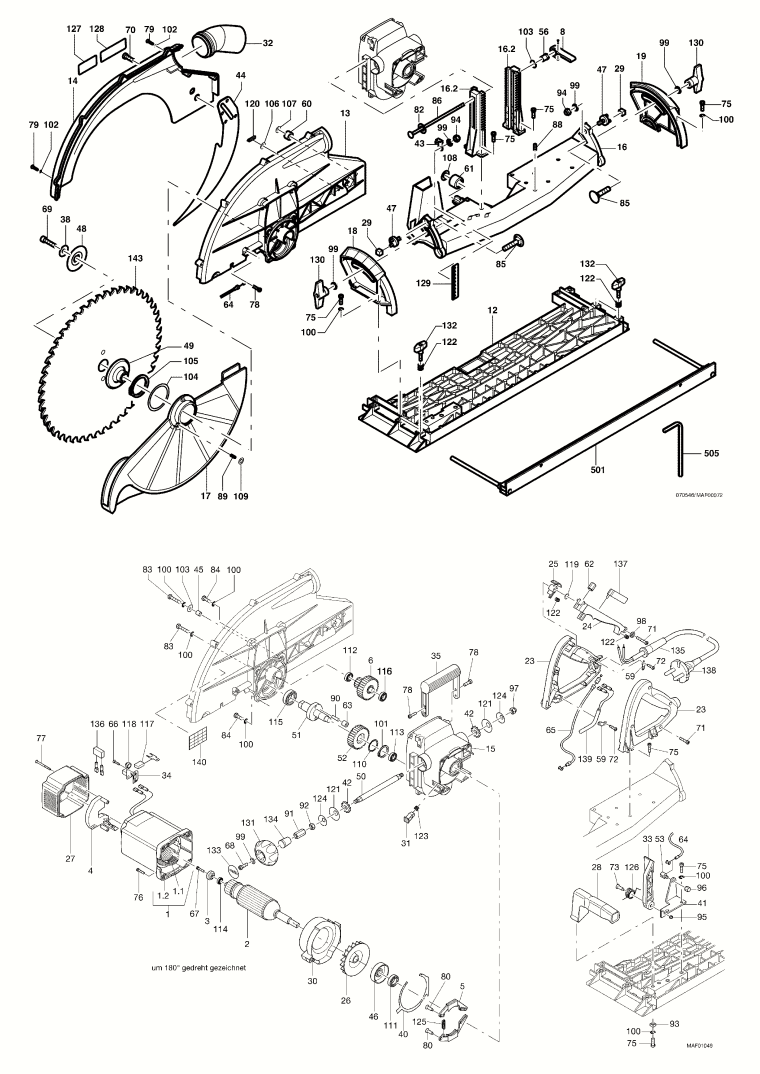

1 - MOTOR CASING WITH INDUCTOR
MAF-084507.A2
084507
|
-
|
|
|
|
1.1 - INDUCTOR WITH COIL
MAF-084508.A2
084508
|
£261.93
|
£314.32
|
|
|
1.2 - MOTOR CASING, EMPTY
MAF-203635.A24
203635
|
£96.30
|
£115.56
|
|
|
2 - ARMATURE, BALANCED
MAF-088153.A4
088153
|
-
|
|
|
|
3 - TACHOMETER CARRIER
MAF-038975.A51
038975
|
£20.14
|
£24.17
|
|
|
4 - CONTROL MODULE
MAF-077142.A7
077142
|
£181.20
|
£217.44
|
|
|
5 - BRAKE LEVER, CPL.
MAF-201122.A33
201122
|
-
|
|
|
|
6 - GEAR SHAFT, CPL.
MAF-202514.A1
202514
|
-
|
|
|
|
8 - TENSIONING LEVER
MAF-039806.A13
039806
|
£7.43
|
£8.92
|
|
|
12 - BASE PLATE
MAF-202180.A3
202180
|
-
|
|
|
|
13 - CASING
MAF-202521.A0
202521
|
-
|
|
|
|
14 - CASING COVER
MAF-202184.A7
202184
|
-
|
|
|
|
15 - GEAR CASING
MAF-202522.A1
202522
|
-
|
|
|
|
16 - TILTING SUPPORT, ASSEMBLED
MAF-202188.A11
202188
|
£347.60
|
£417.12
|
|
|
16.2 - VERTICAL GUIDEWAY
MAF-202189.A8
202189
|
£78.20
|
£93.84
|
|
|
17 - PROTECTIVE COVER
MAF-202511.A3
202511
|
-
|
|
|
|
18 - SEGMENT FOR TILTING, FRONT
MAF-202194.A2
202194
|
-
|
|
|
|
19 - SEGMENT FOR TILTING, REAR
MAF-202196.A10
202196
|
-
|
|
|
|
23 - HANDLE SHELLS (PAIR)
MAF-202518.A17
202518
|
-
|
|
|
|
24 - SWITCH LEVER
MAF-201114.A24
201114
|
£13.23
|
£15.88
|
|
|
25 - LOCKING LEVER
MAF-201745.A28
201745
|
£6.02
|
£7.22
|
|
|
26 - FAN
MAF-039182.A26
039182
|
£18.52
|
£22.23
|
|
|
27 - MOTOR COVER
MAF-039174.A11
039174
|
-
|
|
|
|
28 - HANDLE
MAF-033468.A28
033468
|
-
|
|
|
|
29 - SLIDING BLOCK
MAF-201129.A6
201129
|
-
|
|
|
|
30 - AIR CONDUCTING RING
MAF-202201.A3
202201
|
-
|
|
|
|
31 - LOCKING BOLT
MAF-202202.A21
202202
|
-
|
|
|
|
32 - HOSE CONNECTOR
MAF-202203.A16
202203
|
-
|
|
|
|
33 - LEVER
MAF-202204.A5
202204
|
-
|
|
|
|
34 - PAD
MAF-201872.A79
201872
|
-
|
|
|
|
35 - BOW HANDLE
MAF-202224.A15
202224
|
£18.55
|
£22.26
|
|
|
38 - WASHER
MAF-034731.A3
034731
|
-
|
|
|
|
40 - COVERING RING
MAF-202205.A10
202205
|
-
|
|
|
|
41 - FIXTURE
MAF-202206.A15
202206
|
-
|
|
|
|
42 - ROUE DENTÉE
MAF-202207.A3
202207
|
-
|
|
|
|
43 - INDICATOR
MAF-202208.A15
202208
|
-
|
|
|
|
44 - RIVING KNIFE/SPLITTER
MAF-202513.A5
202513
|
-
|
|
|
|
45 - DISTANCE SLEEVE
MAF-035272.A15
035272
|
-
|
|
|
|
46 - BRAKE DRUM
MAF-201138.A24
201138
|
-
|
|
|
|
47 - GUIDE PIECE
MAF-201149.A6
201149
|
-
|
|
|
|
48 - FLANGE, FRONT
MAF-202215.A9
202215
|
-
|
|
|
|
49 - FLANGE, REAR
MAF-202216.A13
202216
|
-
|
|
|
|
50 - ARBOR
MAF-202217.A17
202217
|
-
|
|
|
|
51 - SAW SHAFT
MAF-202222.A1
202222
|
£102.21
|
£122.65
|
|
|
52 - ROUE DENTÉE
MAF-202223.A5
202223
|
-
|
|
|
|
53 - SHOULDER BOLT
MAF-202227.A0
202227
|
-
|
|
|
|
56 - PART NAME NOT AVAILABLE
MAF-203835.A9
203835
|
-
|
|
|
|
59 - CABLE CLAMP
MAF-029584.A121
029584
|
-
|
|
|
|
60 - STOP BUFFER
MAF-034209.A42
034209
|
-
|
|
|
|
61 - BUFFER
MAF-037764.A16
037764
|
-
|
|
|
|
62 - HEXAGONAL NUT
MAF-201147.A25
201147
|
£7.42
|
£8.91
|
|
|
63 - SLEEVE
MAF-202225.A14
202225
|
-
|
|
|
|
64 - BOWDEN CABLE, CPL. (BLADE GUARD)
MAF-205494.A4
205494
|
£44.83
|
£53.80
|
|
|
65 - BOWDEN CABLE, CPL. (BRAKE)
MAF-202228.A7
202228
|
£48.03
|
£57.64
|
|
|
66 - COUNTER-SUNK OVAL-HEAD SCREW
MAF-053020.A99
053020
|
£2.01
|
£2.41
|
|
|
67 - CYLINDER-HEAD SCREW
MAF-005505.A34
005505
|
-
|
|
|
|
68 - CYLINDER-HEAD SCREW
MAF-005501.A10
005501
|
-
|
|
|
|
69 - CYLINDER-HEAD SCREW
MAF-055038.A27
055038
|
£2.64
|
£3.17
|
|
|
70 - CYLINDER-HEAD SCREW
MAF-055044.A13
055044
|
-
|
|
|
|
71 - CYLINDRICAL OVAL-HEAD SCREW
MAF-055061.A226
055061
|
£1.71
|
£2.05
|
|
|
72 - SELF-TAPPING OVAL-HEAD SCREW
MAF-055062.A77
055062
|
-
|
|
|
|
73 - SHOULDER SCREW
MAF-055063.A19
055063
|
-
|
|
|
|
75 - OVAL-HEAD SCREW
MAF-055101.A64
055101
|
£2.04
|
£2.45
|
|
|
76 - OVAL-HEAD SCREW
MAF-055114.A15
055114
|
-
|
|
|
|
77 - SELF-TAPPING OVAL-HEAD SCREW
MAF-055124.A42
055124
|
-
|
|
|
|
78 - OVAL-HEAD SCREW
MAF-055129.A36
055129
|
-
|
|
|
|
79 - OVAL-HEAD SCREW
MAF-055068.A21
055068
|
-
|
|
|
|
80 - SHOULDER SCREW
MAF-055118.A56
055118
|
£2.41
|
£2.89
|
|
|
82 - SHIM RING
MAF-061152.A13
061152
|
-
|
|
|
|
83 - HEXAGON-HEAD SCREW
MAF-005683.A13
005683
|
-
|
|
|
|
84 - HEXAGON-HEAD SCREW
MAF-005697.A16
005697
|
-
|
|
|
|
85 - TRUSS-HEAD SCREW
MAF-005726.A4
005726
|
-
|
|
|
|
86 - TRUSS-HEAD SCREW
MAF-057042.A6
057042
|
-
|
|
|
|
88 - THREADED PIN
MAF-005230.A5
005230
|
-
|
|
|
|
89 - RIBBED PIN
MAF-005881.A4
005881
|
-
|
|
|
|
90 - CYLINDRICAL PIN
MAF-058021.A19
058021
|
-
|
|
|
|
91 - HEXAGONAL NUT
MAF-059003.A3
059003
|
-
|
|
|
|
92 - HEXAGONAL NUT
MAF-005920.A63
005920
|
-
|
|
|
|
93 - SQUARE NUT
MAF-005953.A58
005953
|
-
|
|
|
|
94 - LOCKING NUT
MAF-005970.A21
005970
|
-
|
|
|
|
95 - LOCKING NUT
MAF-005999.A46
005999
|
-
|
|
|
|
96 - CAP NUT
MAF-005934.A15
005934
|
-
|
|
|
|
97 - CAP NUT
MAF-005946.A6
005946
|
-
|
|
|
|
99 - WASHER
MAF-006102.A62
006102
|
-
|
|
|
|
100 - LOCKING WASHER
MAF-006113.A35
006113
|
£1.92
|
£2.31
|
|
|
101 - RETAINING RING
MAF-006167.A4
006167
|
-
|
|
|
|
102 - LOCKING WASHER
MAF-006184.A53
006184
|
£1.50
|
£1.80
|
|
|
103 - WASHER
MAF-061044.A60
061044
|
£1.65
|
£1.98
|
|
|
104 - SHIM RING
MAF-061071.A0
061071
|
-
|
|
|
|
105 - RETAINING RING
MAF-061072.A9
061072
|
-
|
|
|
|
106 - LOCKING WASHER
MAF-061073.A50
061073
|
-
|
|
|
|
107 - LOCKING WASHER
MAF-061005.A25
061005
|
-
|
|
|
|
108 - LOCKING WASHER
MAF-061145.A13
061145
|
-
|
|
|
|
109 - LOCKING WASHER
MAF-061069.A47
061069
|
£1.49
|
£1.79
|
|
|
110 - SHIM RING
MAF-061164.A10
061164
|
-
|
|
|
|
111 - GROOVED BALL BEARING
MAF-006260.A50
006260
|
£18.15
|
£21.78
|
|
|
112 - GROOVED BALL BEARING
MAF-006280.A79
006280
|
£13.65
|
£16.38
|
|
|
113 - GROOVED BALL BEARING
MAF-006269.A23
006269
|
-
|
|
|
|
114 - GROOVED BALL BEARING
MAF-062073.A95
062073
|
£14.28
|
£17.14
|
|
|
115 - GROOVED BALL BEARING
MAF-062018.A43
062018
|
£26.06
|
£31.27
|
|
|
116 - GROOVED BALL BEARING
MAF-006294.A11
006294
|
£15.13
|
£18.16
|
|
|
117 - CARBON BRUSH WITH AUTOMATIC CUT-OFF
MAF-063147.A46
063147
|
£14.72
|
£17.67
|
|
|
118 - BRUSH HOLDER
MAF-063148.A55
063148
|
£10.30
|
£12.36
|
|
|
120 - RETRACTING SPRING
MAF-035025.A7
035025
|
-
|
|
|
|
121 - CUP SPRING
MAF-066132.A6
066132
|
-
|
|
|
|
122 - PRESSURE SPRING
MAF-066043.A133
066043
|
£3.04
|
£3.65
|
|
|
123 - PRESSURE SPRING
MAF-066053.A42
066053
|
£2.54
|
£3.05
|
|
|
124 - CUP SPRING
MAF-066021.A3
066021
|
-
|
|
|
|
125 - RETRACTING SPRING
MAF-066112.A32
066112
|
£5.52
|
£6.63
|
|
|
126 - TORSION SPRING
MAF-066122.A3
066122
|
-
|
|
|
|
127 - ADHESIVE LABEL
MAF-070669.A12
070669
|
-
|
|
|
|
128 - ADHESIVE LABEL
MAF-070559.A2
070559
|
-
|
|
|
|
129 - DEPTH SCALE
MAF-077408.A1
077408
|
-
|
|
|
|
130 - WING NUT
MAF-065023.A10
065023
|
-
|
|
|
|
131 - HANDLE
MAF-038970.A44
038970
|
£8.36
|
£10.03
|
|
|
132 - WING SCREW
MAF-079070.A23
079070
|
-
|
|
|
|
133 - NAME PLATE
MAF-201166.A39
201166
|
£8.13
|
£9.76
|
|
|
134 - SLEEVE
MAF-202717.A1
202717
|
-
|
|
|
|
135 - CABLE PROTECTING SLEEVE
MAF-086065.A78
086065
|
£3.46
|
£4.15
|
|
|
136 - INTERFERENCE SUPPRESSION CAPACITOR
MAF-087816.A6
087816
|
£17.15
|
£20.58
|
|
|
137 - 2-POLE SWITCH
MAF-087599.A28
087599
|
£50.76
|
£60.91
|
|
|
138 - MAINS CABLE 10 M (32.8 FT.)
MAF-087612.A40
087612
|
£72.48
|
£86.98
|
|
|
139 - CONNECTING CABLE
MAF-087798.A3
087798
|
-
|
|
|
|
140 - PART NAME NOT AVAILABLE
MAF-070666.A0
070666
|
-
|
|
|
|
143 - TCT SAW BLADE
MAF-092526.A1
092526
|
£163.16
|
£195.79
|
|
|
501 - PARALLEL GUIDE FENCE
MAF-202523.A5
202523
|
-
|
|
|
|
505 - ALLEN KEY
MAF-093081.A5
093081
|
-
|
|
|
