Mafell 919002 Portable Circular Saw K 65 cc in T-MAX Spare Parts

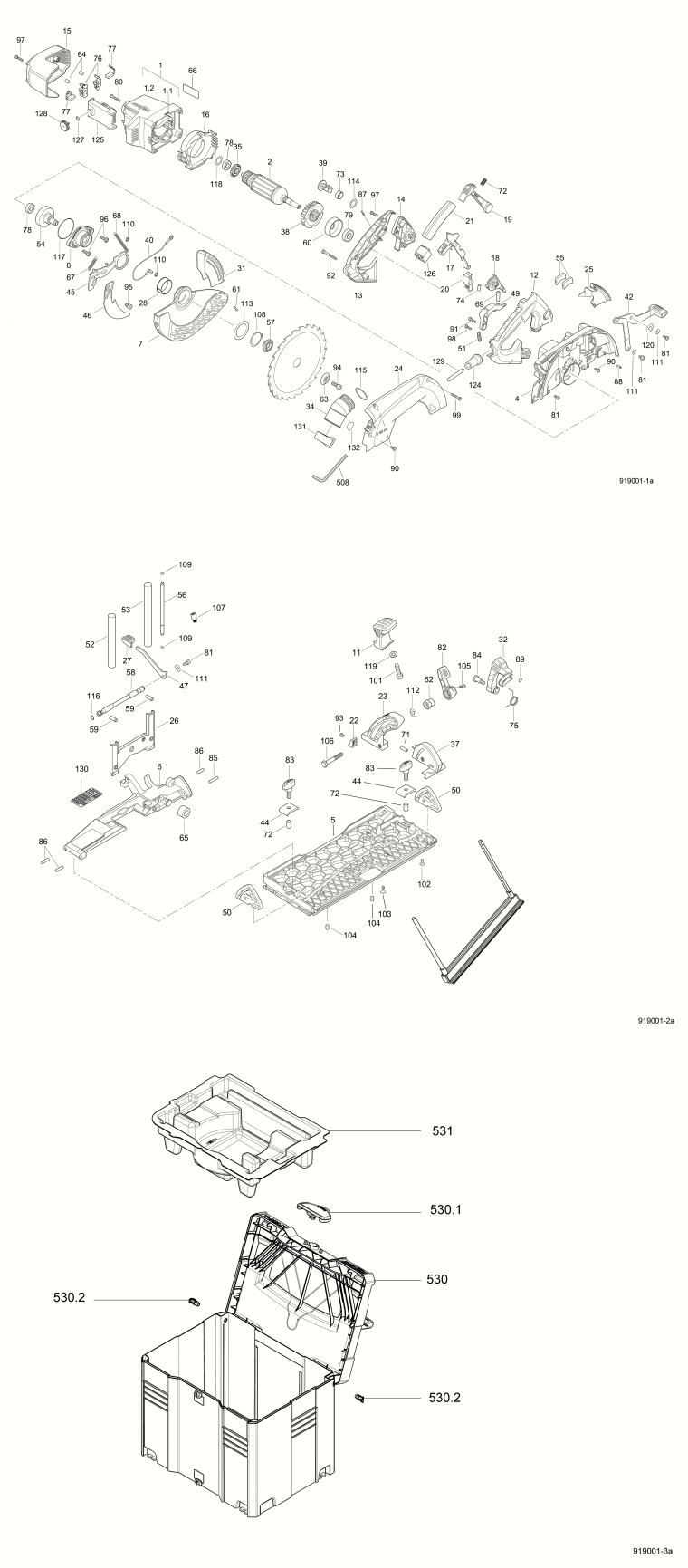

An exploded drawing and spare parts listing for the Mafell 919002 Portable Circular Saw K 65 cc in T-MAX

	Ex VAT	Inc VAT
1 - MOTOR CASING MAF-084660.A6 084660	-
1.1 - INDUCTOR MAF-084658.A4 084658	-
1.2 - MOTOR CASING, EMPTY MAF-204506.A20 204506	£56.42	£67.71
2 - ARMATURE MAF-088232.A4 088232	-
4 - GEAR CASING MAF-205849.A4 205849	-
5 - BASE PLATE MAF-206285.A0 206285	-
6 - TILTING SUPPORT MAF-205863.A6 205863	£90.64	£108.77
7 - PROTECTIVE COVER MAF-205845.A7 205845	£69.88	£83.85
8 - BEARING COVER MAF-205847.A8 205847	-
11 - HANDLE MAF-206278.A7 206278	-
12 - HANDLE SHELL MAF-204490.A19 204490	-
13 - HANDLE SHELL MAF-204486.A22 204486	£28.81	£34.57
14 - HANDLE SHELL COVER MAF-204513.A25 204513	£11.76	£14.11
15 - MOTOR COVER MAF-204493.A19 204493	£23.70	£28.44
16 - AIR CONDUCTING RING MAF-206283.A5 206283	-
17 - SWITCH TRIGGER MAF-204494.A21 204494	£12.29	£14.75
18 - LOCKING LEVER MAF-205158.A7 205158	-
19 - LOCK-OFF BUTTON MAF-206239.A4 206239	-
20 - LOCKING LEVER MAF-204509.A21 204509	£8.07	£9.68
21 - HANDLE INSERT MAF-203877.A33 203877	£19.14	£22.97
22 - INDICATOR MAF-206236.A8 206236	£4.56	£5.47
23 - SEGMENT FOR TILTING MAF-206286.A7 206286	-
24 - PROTECTIVE COVER MAF-206263.A0 206263	-
25 - CHIP DEFLECTOR MAF-205886.A8 205886	-
26 - COVER MAF-205871.A7 205871	-
27 - HANDLE MAF-206237.A8 206237	-
28 - SLEEVE MAF-206228.A7 206228	-
31 - PROTECTIVE DISK MAF-205897.A7 205897	-
32 - LEVER MAF-206243.A7 206243	-
34 - HOSE CONNECTOR MAF-205290.A12 205290	£18.18	£21.82
35 - INSULATING DISK MAF-204492.A24 204492	£8.58	£10.30
37 - INDICATOR MAF-206193.A6 206193	-
38 - FAN MAF-204517.A19 204517	£12.33	£14.80
39 - PUSH-BUTTON MAF-205890.A4 205890	-
40 - BOWDEN CABLE MAF-205881.A6 205881	£8.12	£9.74
42 - LEVER JOINT MAF-206232.A7 206232	-
44 - CLAMPING CLAWS MAF-200050.A54 200050	£4.32	£5.18
45 - RIVING KNIFE/SPLITTER SUPPORT MAF-205856.A7 205856	-
46 - RIVING KNIFE/SPLITTER MAF-205857.A6 205857	-
47 - CLAMPING LEVER MAF-201433.A17 201433	£7.90	£9.48
49 - BRAKE LEVER MAF-206573.A5 206573	-
50 - SEGMENT MAF-206190.A6 206190	-
51 - CABLE CLAMP MAF-029584.A138 029584	-
52 - GUIDE COLUMN MAF-205861.A8 205861	-
53 - GUIDE COLUMN MAF-205862.A8 205862	-
54 - SAW SHAFT MAF-205854.A7 205854	£66.21	£79.45
55 - BRAKE LINING MAF-202429.A35 202429	-
56 - STOP PLATE MAF-205153.A12 205153	-
57 - FLANGE MAF-203999.A22 203999	£16.18	£19.41
58 - ECCENTRIC ARBOR MAF-206204.A8 206204	-
59 - PRESSURE BOLT MAF-200034.A16 200034	-
60 - BRAKE DRUM MAF-206574.A6 206574	-
61 - RUBBER BUFFER MAF-206287.A6 206287	-
62 - SHOULDER NUT MAF-205294.A11 205294	-
63 - FLANGE MAF-204388.A23 204388	£16.58	£19.90
64 - PRESSURE BIT MAF-202378.A36 202378	-
65 - STOP BUFFER MAF-205579.A8 205579	-
66 - STICKER MAF-170221.A13 170221	-
67 - RETRACTING SPRING MAF-206290.A6 206290	-
68 - RETRACTING SPRING MAF-066181.A6 066181	-
69 - PRESSURE SPRING MAF-006645.A10 006645	-
71 - PRESSURE SPRING (EACH) MAF-066143.A16 066143	£3.35	£4.02
72 - PRESSURE SPRING MAF-066043.A154 066043	£3.04	£3.65
73 - PRESSURE SPRING MAF-066096.A35 066096	£4.25	£5.10
74 - PRESSURE SPRING MAF-066154.A22 066154	-
75 - LEG SPRING MAF-206244.A8 206244	-
76 - BRUSH HOLDER MAF-063160.A47 063160	£10.07	£12.08
77 - CARBON BRUSH WITH AUTOMATIC CUT-OFF MAF-063164.A52 063164	£12.41	£14.89
78 - GROOVED BALL BEARING MAF-006282.A88 006282	£14.68	£17.62
79 - GROOVED BALL BEARING MAF-006280.A68 006280	£13.65	£16.38
80 - OVAL-HEAD SCREW MAF-055069.A37 055069	£2.16	£2.59
81 - CYLINDER-HEAD SCREW MAF-055055.A35 055055	-
82 - LEVER MAF-205884.A8 205884	£11.71	£14.05
83 - WING SCREW MAF-079082.A17 079082	-
84 - SHOULDER SCREW MAF-055063.A15 055063	-
85 - CYLINDRICAL PIN MAF-058228.A10 058228	£2.27	£2.72
86 - CYLINDRICAL PIN MAF-058046.A26 058046	£2.83	£3.40
87 - RIBBED PIN MAF-058219.A26 058219	-
88 - SPRING DOWEL SLEEVE MAF-058229.A11 058229	-
89 - RETAINING RING MAF-007160.A6 007160	-
90 - SELF-TAPPING SCREW MAF-055232.A53 055232	£1.68	£2.02
91 - SELF-TAPPING SCREW MAF-055230.A67 055230	-
92 - OVAL-HEAD SCREW MAF-055257.A30 055257	-
93 - CYLINDER-HEAD SCREW MAF-055043.A10 055043	-
94 - CYLINDER-HEAD SCREW MAF-055096.A47 055096	£2.11	£2.53
95 - CYLINDER-HEAD SCREW MAF-055234.A39 055234	£1.19	£1.43
96 - CYLINDER-HEAD SCREW MAF-055229.A28 055229	-
97 - CYLINDRICAL OVAL-HEAD SCREW MAF-055061.A217 055061	£1.71	£2.05
98 - CYLINDRICAL OVAL-HEAD SCREW MAF-055233.A90 055233	£1.71	£2.05
99 - CYLINDRICAL OVAL-HEAD SCREW MAF-055139.A22 055139	-
101 - CYLINDER-HEAD SCREW MAF-055060.A13 055060	-
102 - FLAT-HEAD SCREW MAF-053031.A39 053031	£1.72	£2.07
103 - FLAT-HEAD SCREW MAF-053029.A36 053029	£2.84	£3.41
104 - THREADED PIN MAF-005284.A72 005284	-
105 - COUNTER-SUNK OVAL-HEAD SCREW MAF-053020.A95 053020	£2.01	£2.41
106 - HEXAGON-HEAD SCREW MAF-056031.A10 056031	-
107 - THREADED PIN MAF-206587.A4 206587	-
108 - RETAINING RING MAF-061138.A27 061138	£2.29	£2.75
109 - SNAP RING MAF-061160.A13 061160	-
110 - LOCKING WASHER MAF-061069.A46 061069	£1.49	£1.79
111 - WASHER MAF-061013.A110 061013	-
112 - WASHER MAF-061172.A35 061172	-
113 - WASHER MAF-061179.A8 061179	-
114 - SHIM RING MAF-006160.A52 006160	£1.65	£1.98
115 - SEALING RING MAF-078173.A20 078173	-
116 - SEALING RING MAF-065042.A29 065042	£1.63	£1.96
117 - SEALING RING MAF-065063.A13 065063	-
118 - FEDERSCHEIBE MAF-061132.A39 061132	-
119 - WASHER MAF-006101.A93 006101	£1.54	£1.85
120 - CUP SPRING MAF-066016.A31 066016	-
124 - CABLE PROTECTING SLEEVE MAF-086064.A107 086064	£3.37	£4.04
125 - CONTROL MODULE MAF-077682.A4 077682	-
126 - 2-POLE SWITCH MAF-087851.A25 087851	£18.18	£21.82
127 - SEALING RING MAF-065004.A53 065004	£1.63	£1.96
128 - SETTING WHEEL MAF-203729.A38 203729	-
129 - MAINS CABLE 4 M (13.1 FT) MAF-087323.A51 087323	£39.41	£47.29
130 - LABEL SELECTION OF SAW BLADES MAF-206575.A5 206575	-
131 - HOOK-AND-LOOP FASTENER BELT MAF-205049.A30 205049	£5.39	£6.47
132 - GLUE DOT Ø 20 MM DOUBLE SIDED MAF-170249.A6 170249	-
508 - ALLEN KEY MAF-093034.A64 093034	-
530 - CARRYING CASE T-MAX GR. IV MAF-095181.A7 095181	£79.74	£95.69
530.1 - LATCH T-MAX MAF-095183.A10 095183	-
530.2 - PIVOT MAF-095201.A9 095201	-
531 - PLASTIC TRAY FOR TK MAX MAF-095169.A 095169	-
