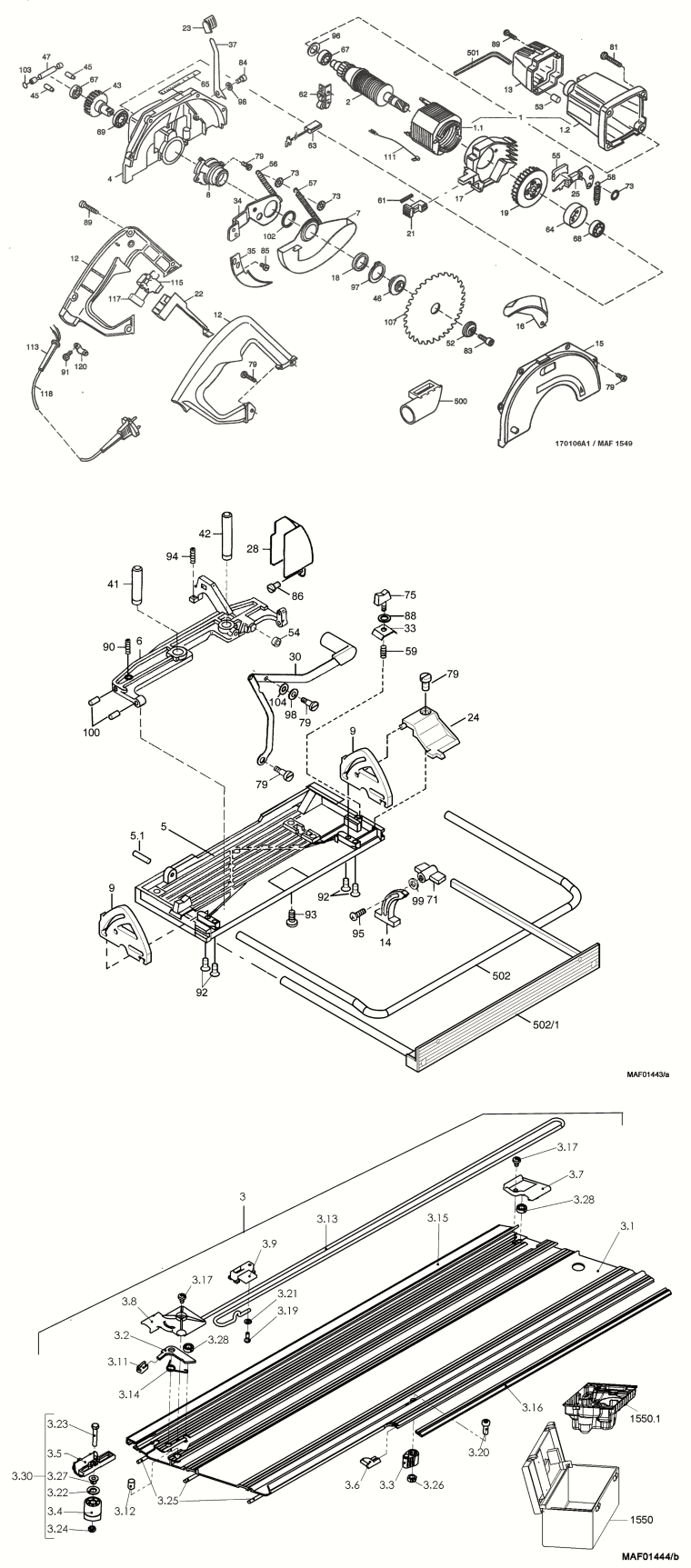

1 - MOTOR CASING WITH INDUCTOR 230 V
MAF-084640.A0
084640
|
£166.83
|
£200.20
|
|
|
1.1 - INDUCTOR WITH COIL
MAF-084540.A9
084540
|
£87.14
|
£104.57
|
|
|
1.2 - MOTOR CASING, EMPTY
MAF-202045.A13
202045
|
-
|
|
|
|
2 - ARMATURE, BALANCED
MAF-088150.A3
088150
|
£135.58
|
£162.69
|
|
|
3 - GUIDE TRACK AS OPTIONAL ACCESSORY
MAF-204010.A1
204010
|
-
|
|
|
|
3.1 - GUIDE TRACK
MAF-205500.A1
205500
|
-
|
|
|
|
3.2 - RATCHET
MAF-203989.A7
203989
|
-
|
|
|
|
3.3 - STOP BOLT
MAF-204014.A5
204014
|
£13.08
|
£15.69
|
|
|
3.4 - STOP PLATE
MAF-203988.A4
203988
|
£4.72
|
£5.67
|
|
|
3.5 - INDICATOR
MAF-203987.A3
203987
|
£9.24
|
£11.09
|
|
|
3.6 - EDGE PROTECTION
MAF-203986.A7
203986
|
£4.94
|
£5.93
|
|
|
3.7 - STOP PLATE
MAF-204005.A4
204005
|
-
|
|
|
|
3.8 - COVER
MAF-203990.A5
203990
|
-
|
|
|
|
3.9 - SPRING GUIDE
MAF-203992.A2
203992
|
-
|
|
|
|
3.11 - HANDLE
MAF-204007.A1
204007
|
-
|
|
|
|
3.12 - STOP BUFFER
MAF-204009.A17
204009
|
-
|
|
|
|
3.13 - POLYETHYLENE CABLE
MAF-205586.A3
205586
|
-
|
|
|
|
3.14 - LEG SPRING
MAF-066155.A2
066155
|
-
|
|
|
|
3.15 - SKALE
MAF-203993.A6
203993
|
-
|
|
|
|
3.16 - SPLINTER GUARD F-SS 3,4M
MAF-204375.A6
204375
|
£21.99
|
£26.39
|
|
|
3.17 - CYLINDRICAL OVAL-HEAD SCREW
MAF-055187.A33
055187
|
£1.92
|
£2.30
|
|
|
3.19 - CYLINDRICAL OVAL-HEAD SCREW
MAF-055233.A45
055233
|
£1.71
|
£2.05
|
|
|
3.20 - CYLINDER-HEAD SCREW
MAF-055041.A25
055041
|
£1.65
|
£1.98
|
|
|
3.21 - WASHER
MAF-061015.A37
061015
|
-
|
|
|
|
3.22 - WASHER
MAF-006102.A48
006102
|
-
|
|
|
|
3.23 - HEXAGON-HEAD SCREW
MAF-005688.A1
005688
|
-
|
|
|
|
3.24 - HEXAGONAL NUT
MAF-005915.A31
005915
|
-
|
|
|
|
3.25 - NON-SLIP PROFILE F-HP 6,8 M
MAF-204376.A8
204376
|
£21.08
|
£25.29
|
|
|
3.26 - HEXAGONAL NUT
MAF-005939.A32
005939
|
-
|
|
|
|
3.27 - SLEEVE
MAF-204237.A12
204237
|
-
|
|
|
|
3.28 - GROOVED BALL BEARING
MAF-062090.A7
062090
|
-
|
|
|
|
3.30 - STOP PLATE
MAF-205442.A9
205442
|
£24.26
|
£29.11
|
|
|
4 - GEAR CASING
MAF-201438.A6
201438
|
£138.16
|
£165.79
|
|
|
5 - BASE PLATE
MAF-203995.A0
203995
|
£126.12
|
£151.35
|
|
|
5.1 - SPRING DOWEL SLEEVE
MAF-005816.A8
005816
|
-
|
|
|
|
6 - TILTING SUPPORT
MAF-203994.A4
203994
|
-
|
|
|
|
7 - PROTECTIVE COVER
MAF-204011.A0
204011
|
£97.02
|
£116.42
|
|
|
8 - GEAR CASING COVER
MAF-200035.A3
200035
|
-
|
|
|
|
9 - SEGMENT
MAF-203996.A4
203996
|
-
|
|
|
|
12 - HANDLE SHELLS (PAIR)
MAF-202741.A7
202741
|
-
|
|
|
|
13 - MOTOR COVER
MAF-200183.A8
200183
|
-
|
|
|
|
14 - SEGMENT FOR TILTING
MAF-203997.A5
203997
|
-
|
|
|
|
15 - PROTECTIVE COVER
MAF-204013.A2
204013
|
-
|
|
|
|
16 - COVER
MAF-200078.A7
200078
|
-
|
|
|
|
17 - AIR CONDUCTING RING
MAF-200013.A4
200013
|
-
|
|
|
|
18 - SLEEVE
MAF-200048.A7
200048
|
-
|
|
|
|
19 - FAN
MAF-200015.A6
200015
|
£7.85
|
£9.42
|
|
|
21 - LOCKING BOLT
MAF-202436.A12
202436
|
-
|
|
|
|
22 - SWITCH TRIGGER
MAF-201434.A6
201434
|
-
|
|
|
|
23 - CAP
MAF-202345.A7
202345
|
£5.74
|
£6.89
|
|
|
24 - TRACING POINTER
MAF-204002.A5
204002
|
-
|
|
|
|
25 - BRAKE LEVER
MAF-202347.A9
202347
|
£6.25
|
£7.50
|
|
|
28 - SHEET METAL DEFLECTOR
MAF-204012.A6
204012
|
-
|
|
|
|
30 - LEVER JOINT
MAF-201442.A7
201442
|
£13.08
|
£15.69
|
|
|
33 - CLAMPING CLAWS
MAF-200050.A1
200050
|
£4.32
|
£5.18
|
|
|
34 - RIVING KNIFE/SPLITTER SUPPORT
MAF-201441.A7
201441
|
-
|
|
|
|
35 - RIVING KNIFE/SPLITTER
MAF-202580.A4
202580
|
£10.26
|
£12.31
|
|
|
37 - CLAMPING LEVER
MAF-201433.A0
201433
|
-
|
|
|
|
41 - GUIDE COLUMN, SHORT
MAF-202435.A4
202435
|
-
|
|
|
|
42 - GUIDE COLUMN, LONG
MAF-202434.A15
202434
|
£20.25
|
£24.30
|
|
|
43 - SAW SHAFT
MAF-204001.A1
204001
|
-
|
|
|
|
45 - PRESSURE BOLT
MAF-200034.A12
200034
|
-
|
|
|
|
46 - FLANGE
MAF-203999.A1
203999
|
£15.57
|
£18.68
|
|
|
47 - ECCENTRIC ARBOR
MAF-202433.A3
202433
|
£28.24
|
£33.89
|
|
|
52 - FLANGE
MAF-203998.A0
203998
|
£15.57
|
£18.68
|
|
|
53 - PRESSURE BIT
MAF-202378.A13
202378
|
-
|
|
|
|
54 - STOP BUFFER
MAF-034209.A16
034209
|
-
|
|
|
|
55 - BRAKE LINING
MAF-202429.A18
202429
|
-
|
|
|
|
56 - RETRACTING SPRING
MAF-066090.A19
066090
|
-
|
|
|
|
57 - RETRACTING SPRING
MAF-066091.A0
066091
|
-
|
|
|
|
58 - RETRACTING SPRING
MAF-066092.A17
066092
|
-
|
|
|
|
59 - PRESSURE SPRING
MAF-066043.A87
066043
|
£3.04
|
£3.65
|
|
|
61 - PRESSURE SPRING
MAF-006657.A6
006657
|
-
|
|
|
|
62 - BRUSH HOLDER
MAF-063160.A30
063160
|
£10.07
|
£12.08
|
|
|
63 - CARBON BRUSH WITH AUTOMATIC CUT-OFF
MAF-063164.A27
063164
|
£11.43
|
£13.72
|
|
|
64 - BRAKE DRUM
MAF-201452.A8
201452
|
£13.66
|
£16.39
|
|
|
65 - SKALE
MAF-204003.A2
204003
|
-
|
|
|
|
67 - GROOVED BALL BEARING
MAF-006282.A55
006282
|
£14.68
|
£17.62
|
|
|
68 - GROOVED BALL BEARING
MAF-006288.A26
006288
|
£8.82
|
£10.58
|
|
|
69 - GROOVED BALL BEARING
MAF-006280.A46
006280
|
£13.65
|
£16.38
|
|
|
71 - WING NUT
MAF-079078.A0
079078
|
-
|
|
|
|
73 - LOCKING WASHER
MAF-061069.A17
061069
|
£1.49
|
£1.79
|
|
|
75 - WING SCREW
MAF-079077.A31
079077
|
-
|
|
|
|
79 - SELF-TAPPING SCREW
MAF-055232.A26
055232
|
£1.68
|
£2.02
|
|
|
81 - SELF-TAPPING SCREW
MAF-055230.A55
055230
|
-
|
|
|
|
83 - CYLINDER-HEAD SCREW
MAF-055096.A15
055096
|
£2.11
|
£2.53
|
|
|
84 - CYLINDER-HEAD SCREW
MAF-055055.A0
055055
|
-
|
|
|
|
85 - CYLINDER-HEAD SCREW
MAF-055234.A28
055234
|
£1.19
|
£1.43
|
|
|
86 - OVAL-HEAD SCREW
MAF-055143.A17
055143
|
-
|
|
|
|
88 - WASHER
MAF-006101.A75
006101
|
-
|
|
|
|
89 - CYLINDRICAL OVAL-HEAD SCREW
MAF-055061.A111
055061
|
£1.71
|
£2.05
|
|
|
90 - THREADED PIN
MAF-005279.A13
005279
|
-
|
|
|
|
91 - CYLINDRICAL OVAL-HEAD SCREW
MAF-055233.A37
055233
|
£1.71
|
£2.05
|
|
|
92 - FLAT-HEAD SCREW
MAF-053031.A27
053031
|
£1.72
|
£2.07
|
|
|
93 - FLAT-HEAD SCREW
MAF-053029.A2
053029
|
£2.84
|
£3.41
|
|
|
94 - THREADED PIN
MAF-005284.A26
005284
|
-
|
|
|
|
95 - TRUSS-HEAD SCREW
MAF-005718.A7
005718
|
-
|
|
|
|
96 - FEDERSCHEIBE
MAF-061132.A24
061132
|
-
|
|
|
|
97 - RETAINING RING
MAF-061138.A6
061138
|
£2.29
|
£2.75
|
|
|
98 - WASHER
MAF-061013.A26
061013
|
-
|
|
|
|
99 - WASHER
MAF-061172.A27
061172
|
-
|
|
|
|
100 - CYLINDRICAL PIN
MAF-058046.A11
058046
|
£2.83
|
£3.40
|
|
|
102 - WASHER
MAF-061167.A6
061167
|
£51.32
|
£61.59
|
|
|
103 - SEALING RING
MAF-065042.A8
065042
|
£1.63
|
£1.96
|
|
|
104 - CUP SPRING
MAF-066093.A2
066093
|
-
|
|
|
|
107 - TCT SAW BLADE
MAF-092552.A3
092552
|
£27.49
|
£32.99
|
|
|
111 - PART NAME NOT AVAILABLE
MAF-085178.A2
085178
|
-
|
|
|
|
113 - CABLE PROTECTING SLEEVE
MAF-086064.A74
086064
|
£3.37
|
£4.04
|
|
|
115 - 2-POLE SWITCH WITH LOCK-OFF BUTTON
MAF-087828.A7
087828
|
£21.78
|
£26.14
|
|
|
117 - INTERFERENCE SUPPRESSION CAPACITOR
MAF-076973.A7
076973
|
-
|
|
|
|
118 - MAINS CABLE 4 M (13.1 FT)
MAF-087323.A41
087323
|
£39.41
|
£47.29
|
|
|
120 - CABLE CLAMP
MAF-029584.A94
029584
|
-
|
|
|
|
500 - HOSE CONNECTOR
MAF-200042.A4
200042
|
£14.96
|
£17.95
|
|
|
501 - ALLEN KEY
MAF-093034.A48
093034
|
-
|
|
|
|
502 - GUIDE BOW
MAF-203208.A0
203208
|
-
|
|
|
|
502/1 - PARALLEL GUIDE FENCE
MAF-201436.A8
201436
|
£50.20
|
£60.24
|
|
|
1550 - CARRYING CASE 785X320X285 MM
MAF-204240.A0
204240
|
-
|
|
|
|
1550.1 - PLASTIC TRAY
MAF-204239.A1
204239
|
-
|
|
|
