Mafell 925201 Carpentry Planing Machine ZH 205 Ec up to machine no. 1104306 Spare Parts

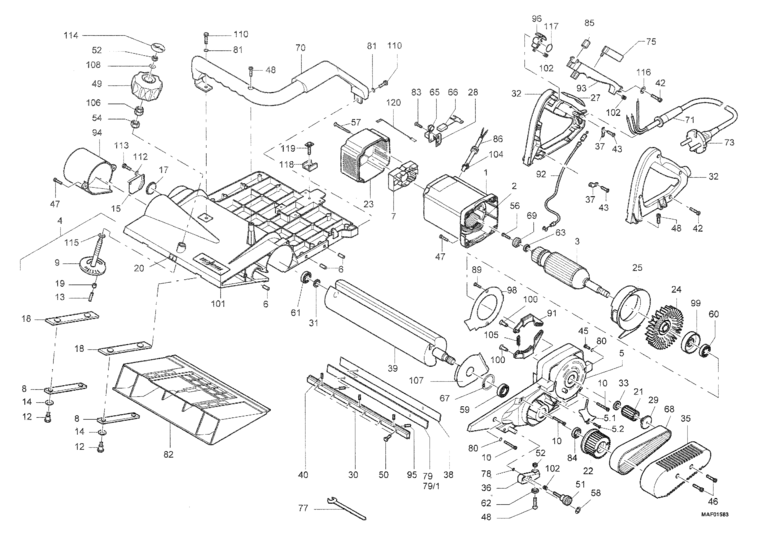

An exploded drawing and spare parts listing for the Mafell 925201 Carpentry Planing Machine ZH 205 Ec up to machine no. 1104306

	Ex VAT	Inc VAT
1 - MOTOR CASING WITH INDUCTOR 230 V MAF-084606.A2 084606	-
2 - MOTOR CASING MAF-204443.A1 204443	£123.07	£147.68
3 - ARMATURE, BALANCED MAF-088203.A1 088203	£407.49	£488.99
4 - PART NAME NOT AVAILABLE MAF-203322.A1 203322	-
5 - END PLATE MAF-202302.A6 202302	£316.42	£379.70
5.1 - COVERING PLATE MAF-202288.A3 202288	£6.61	£7.93
5.2 - FLAT-HEAD SCREW MAF-005399.A35 005399	£1.33	£1.60
6 - CENTERING SLEEVE MAF-036054.A2 036054	-
7 - CONTROL MODULE MAF-077165.A3 077165	£113.32	£135.99
8 - CLAMPING BAR MAF-035152.A6 035152	-
9 - CAM DISK MAF-203317.A1 203317	£57.20	£68.64
10 - CYLINDRICAL OVAL-HEAD SCREW MAF-055100.A1 055100	-
12 - SHOULDER SCREW MAF-036853.A8 036853	£9.31	£11.17
13 - CYLINDRICAL PIN MAF-058125.A3 058125	£3.00	£3.60
14 - CUP SPRING MAF-066027.A5 066027	£1.84	£2.21
15 - COVER MAF-202297.A4 202297	-
17 - LID MAF-036034.A5 036034	-
18 - GUIDE RAIL MAF-036854.A0 036854	-
19 - JACKET MAF-036861.A9 036861	£21.92	£26.31
20 - ADHESIVE LABEL MAF-077651.A12 077651	-
21 - DRIVING WHEEL, SMALL MAF-202287.A3 202287	-
22 - DRIVING WHEEL, LARGE MAF-202286.A4 202286	-
23 - MOTOR COVER MAF-204037.A1 204037	-
24 - FAN MAF-035138.A5 035138	£13.75	£16.50
25 - AIR CONDUCTING RING MAF-035139.A4 035139	-
27 - HANDLE INSERT MAF-203860.A2 203860	-
28 - PAD MAF-201872.A48 201872	-
29 - BOUNDARY DISK MAF-200680.A9 200680	-
30 - CLAMPING DEVICE MAF-203325.A1 203325	-
31 - SPACER DISK MAF-035994.A4 035994	-
32 - PART NAME NOT AVAILABLE MAF-204217.A4 204217	-
33 - SPACER RING MAF-038484.A2 038484	-
35 - PROTECTIVE COVER MAF-035140.A0 035140	£50.40	£60.48
36 - LEVER MAF-035147.A10 035147	-
37 - CABLE CLAMP MAF-029584.A67 029584	-
38 - KNIFE SUPPORT MAF-091797.A0 091797	-
39 - CUTTER HEAD MAF-203324.A2 203324	-
40 - THREADED PIN MAF-005284.A46 005284	-
42 - CYLINDRICAL OVAL-HEAD SCREW MAF-055061.A147 055061	£1.79	£2.15
43 - SELF-TAPPING OVAL-HEAD SCREW MAF-055062.A59 055062	-
45 - CYLINDRICAL OVAL-HEAD SCREW MAF-055091.A18 055091	-
46 - OVAL-HEAD SCREW MAF-055082.A12 055082	£1.94	£2.33
47 - CYLINDRICAL OVAL-HEAD SCREW MAF-055086.A41 055086	-
48 - OVAL-HEAD SCREW MAF-055101.A21 055101	£2.14	£2.57
49 - HANDLE MAF-038970.A31 038970	£8.78	£10.53
50 - HEXAGON-HEAD SCREW MAF-035103.A7 035103	£3.10	£3.72
51 - KNURLED KNOB MAF-065029.A5 065029	£9.67	£11.61
52 - LOCKING NUT MAF-005979.A38 005979	£2.67	£3.20
54 - HEXAGONAL NUT MAF-005924.A29 005924	£1.75	£2.10
56 - CYLINDER-HEAD SCREW MAF-005505.A21 005505	-
57 - SELF-TAPPING OVAL-HEAD SCREW MAF-055124.A23 055124	-
58 - LOCKING WASHER MAF-061078.A5 061078	-
59 - GROOVED BALL BEARING MAF-006260.A34 006260	£19.06	£22.87
60 - GROOVED BALL BEARING MAF-006268.A12 006268	£16.07	£19.28
61 - GROOVED BALL BEARING MAF-006280.A30 006280	£14.33	£17.20
62 - GROOVED BALL BEARING MAF-006282.A60 006282	£15.42	£18.50
63 - GROOVED BALL BEARING MAF-062073.A41 062073	£15.00	£18.00
65 - BRUSH HOLDER MAF-063157.A1 063157	-
66 - CARBON BRUSH WITH AUTOMATIC CUT-OFF MAF-063180.A1 063180	£15.98	£19.17
67 - RETAINING RING MAF-007141.A5 007141	£3.73	£4.48
68 - TOOTHED BELT MAF-076488.A0 076488	£43.75	£52.50
69 - TACHOMETER CARRIER MAF-038975.A38 038975	£21.15	£25.38
70 - BOW HANDLE MAF-203316.A0 203316	-
71 - CABLE PROTECTING SLEEVE MAF-086065.A38 086065	£3.63	£4.36
73 - PART NAME NOT AVAILABLE MAF-087378.A2 087378	-
75 - 2-POLE SWITCH MAF-087599.A7 087599	£53.30	£63.96
77 - SINGLE-END SPANNER MAF-093258.A5 093258	£9.90	£11.88
78 - SEALING RING MAF-065004.A49 065004	£1.72	£2.06
79 - REVERSIBLE KNIVES MAF-091897.A0 091897	£25.98	£31.17
79/1 - REVERSIBLE KNIVES MAF-091898.A1 091898	£72.18	£86.61
80 - WASHER MAF-061015.A39 061015	-
81 - WASHER MAF-006101.A65 006101	£1.80	£2.16
82 - PART NAME NOT AVAILABLE MAF-203342.A0 203342	£420.22	£504.26
83 - COUNTER-SUNK OVAL-HEAD SCREW MAF-053020.A52 053020	£2.11	£2.53
84 - SPACER RING MAF-039007.A1 039007	-
85 - HEXAGONAL NUT MAF-201147.A9 201147	£7.80	£9.36
86 - CONNECTING CABLE MAF-087800.A7 087800	-
89 - FLAT-HEAD SCREW MAF-005399.A17 005399	£1.33	£1.60
91 - BRAKE LEVER, CPL. MAF-201122.A9 201122	£23.68	£28.41
92 - BOWDEN CABLE, CPL. MAF-202301.A6 202301	-
93 - SWITCH LEVER MAF-204216.A1 204216	-
94 - CHIP EJECTOR MAF-202290.A2 202290	-
95 - SPRING DOWEL SLEEVE MAF-058144.A0 058144	£2.22	£2.67
96 - LOCKING LEVER MAF-201745.A24 201745	£6.32	£7.58
98 - INTERMEDIATE PLATE MAF-202289.A1 202289	-
99 - BRAKE DRUM MAF-202296.A3 202296	-
100 - SHOULDER SCREW MAF-055118.A27 055118	£2.52	£3.03
101 - STICKER MAF-077308.A12 077308	-
102 - PRESSURE SPRING MAF-066043.A104 066043	£3.19	£3.83
104 - CABLE BINDER MAF-076492.A4 076492	-
105 - RETRACTING SPRING MAF-066112.A9 066112	£5.80	£6.96
106 - HEXAGONAL NUT MAF-202403.A9 202403	-
107 - SHEET METAL AIR DEFLECTOR MAF-202299.A2 202299	-
108 - WASHER MAF-061028.A8 061028	-
110 - HEXAGON-HEAD SCREW MAF-005697.A12 005697	-
112 - WASHER MAF-006100.A42 006100	£2.11	£2.53
113 - HEXAGON-HEAD SCREW MAF-005677.A8 005677	£1.38	£1.66
114 - NAME PLATE MAF-201166.A35 201166	£8.54	£10.25
115 - SHIM RING MAF-006169.A9 006169	-
116 - WASHER MAF-061013.A36 061013	-
117 - SEALING RING MAF-006591.A18 006591	£1.73	£2.08
118 - CLIP CONNECTOR MAF-006172.A6 006172	-
119 - LOCKING SCREW WITH WASHER MAF-055155.A15 055155	-
120 - CONNECTING CABLE MAF-085133.A3 085133	-
