Mafell 924201 Chain Mortiser LS 103/40 Ec complete with chain set 28 x 40 x 100 mm (1 1/8 x 1 9/16 x 3 15/16 in.) Spare Parts

Mafell 924201 Chain Mortiser LS 103/40 Ec complete with chain set 28 x 40 x 100 mm ʁ 1/8 x 1 9/16 x 3 15/16 in.) Spare Parts

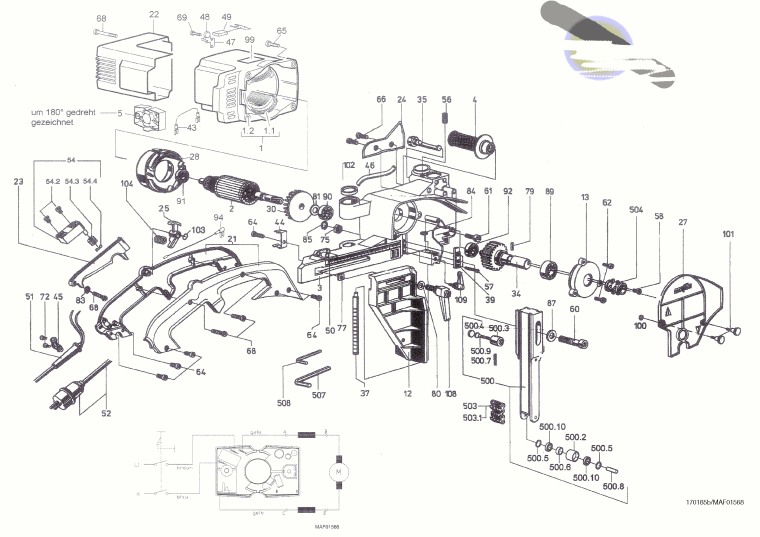

An exploded drawing and spare parts listing for the Mafell 924201 Chain Mortiser LS 103/40 Ec complete with chain set 28 x 40 x 100 mm (1 1/8 x 1 9/16 x 3 15/16 in.)

	Ex VAT	Inc VAT
1 - MOTOR CASING WITH INDUCTOR 230 V MAF-084608.A4 084608	£263.72	£316.47
1.1 - INDUCTOR WITH COIL 230 V MAF-084577.A1 084577	£242.77	£291.32
1.2 - MOTOR CASING, EMPTY MAF-203849.A1 203849	£102.66	£123.19
2 - ARMATURE, BALANCED MAF-088205.A4 088205	£295.12	£354.14
3 - GEAR CASING MAF-200952.A11 200952	£525.01	£630.01
4 - HANDLE MAF-203387.A6 203387	£57.02	£68.42
5 - CONTROL MODULE MAF-077E06.A2 077E06	£149.74	£179.69
12 - STOP PLATE MAF-200954.A1 200954	£127.97	£153.56
13 - BEARING COVER MAF-200956.A2 200956	£63.40	£76.08
21 - HANDLE SHELLS (PAIR) MAF-200960.A14 200960	£37.76	£45.31
22 - MOTOR COVER MAF-204643.A3 204643	£38.68	£46.41
23 - SWITCH LEVER MAF-201114.A6 201114	£13.89	£16.67
24 - COVER MAF-200962.A12 200962	£5.58	£6.69
25 - LOCKING LEVER MAF-201745.A13 201745	£6.32	£7.58
27 - CHAIN GUARD MAF-200961.A5 200961	£23.44	£28.13
28 - AIR CONDUCTING RING MAF-204743.A4 204743	-
30 - FAN, UPPER MAF-032355.A12 032355	£13.12	£15.75
34 - GEAR SHAFT MAF-200959.A2 200959	£225.28	£270.34
35 - LOCKING BOLT MAF-200963.A5 200963	£38.34	£46.01
37 - DEPTH STOP MAF-200964.A14 200964	-
39 - GUIDE PIECE MAF-200965.A3 200965	£68.77	£82.53
43 - CONNECTING CABLE MAF-085176.A0 085176	£7.03	£8.44
44 - RETAINING SPRING MAF-200977.A4 200977	£13.74	£16.49
45 - CABLE CLAMP MAF-029584.A15 029584	-
47 - PAD MAF-201872.A4 201872	-
48 - BRUSH HOLDER MAF-063148.A15 063148	£10.82	£12.98
49 - CARBON BRUSH WITH AUTOMATIC CUT-OFF MAF-063176.A2 063176	£17.38	£20.86
50 - SKALE MAF-077087.A3 077087	£9.98	£11.98
51 - CABLE PROTECTING SLEEVE MAF-086065.A16 086065	£3.63	£4.36
52 - MAINS CABLE 10 M (32.8 FT.) MAF-087612.A18 087612	£76.11	£91.33
54 - 2-POLE SWITCH MAF-087878.A9 087878	£57.18	£68.61
54.2 - CHEESE-HEAD SCREW MAF-005521.A2 005521	-
54.3 - PRESSURE SPRING MAF-066078.A14 066078	-
54.4 - RETAINING CLIP MAF-201155.A6 201155	-
56 - THREADED PIN MAF-005284.A11 005284	-
57 - FLAT-HEAD SCREW MAF-005371.A9 005371	£2.42	£2.91
58 - FLAT-HEAD SCREW MAF-005372.A9 005372	£2.08	£2.50
60 - CYLINDER-HEAD SCREW MAF-055214.A8 055214	£1.91	£2.29
61 - CYLINDER-HEAD SCREW MAF-055074.A5 055074	£2.23	£2.68
62 - CYLINDER-HEAD SCREW MAF-055041.A9 055041	£1.73	£2.08
64 - CYLINDRICAL OVAL-HEAD SCREW MAF-055079.A24 055079	£1.38	£1.66
65 - OVAL-HEAD SCREW MAF-055258.A4 055258	£1.73	£2.08
66 - CYLINDRICAL OVAL-HEAD SCREW MAF-055187.A1 055187	£2.02	£2.42
68 - CYLINDRICAL OVAL-HEAD SCREW MAF-055061.A44 055061	£1.79	£2.15
69 - COUNTER-SUNK OVAL-HEAD SCREW MAF-053020.A17 053020	£2.11	£2.53
72 - SELF-TAPPING OVAL-HEAD SCREW MAF-055062.A7 055062	-
75 - HEXAGONAL NUT MAF-005924.A18 005924	£1.75	£2.10
77 - SQUARE NUT MAF-005972.A12 005972	£2.03	£2.44
79 - CYLINDRICAL PIN MAF-058153.A6 058153	£3.73	£4.48
80 - WASHER MAF-061128.A4 061128	£1.72	£2.06
81 - SHIM RING MAF-006160.A13 006160	£1.73	£2.08
83 - WASHER MAF-061013.A11 061013	-
84 - LOCKING WASHER MAF-061073.A12 061073	-
85 - RETAINING RING MAF-061163.A16 061163	-
87 - WASHER MAF-061047.A8 061047	£2.60	£3.12
89 - GROOVED BALL BEARING MAF-062018.A13 062018	£27.36	£32.83
90 - GROOVED BALL BEARING MAF-006260.A21 006260	£19.06	£22.87
91 - GROOVED BALL BEARING MAF-062073.A19 062073	£15.00	£18.00
92 - GROOVED BALL BEARING MAF-006288.A5 006288	£9.26	£11.11
94 - CONNECTING CABLE YELLOW MAF-085183.A5 085183	£6.83	£8.20
99 - STICKER MAF-070644.A1 070644	-
100 - SEALING RING MAF-065015.A4 065015	£3.16	£3.79
101 - KNURLED KNOB MAF-065034.A5 065034	£15.72	£18.86
102 - FELT RING MAF-065035.A9 065035	-
103 - SEALING RING MAF-006591.A5 006591	£1.73	£2.08
104 - PRESSURE SPRING MAF-066043.A17 066043	£3.19	£3.83
108 - CLAMPING LEVER MAF-007193.A4 007193	£13.77	£16.52
109 - CLAMPING LEVER MAF-007192.A7 007192	£15.90	£19.08
500 - CHAIN BARS MAF-091010.A1 091010	£528.40	£634.08
500.2 - ROLLER MAF-203381.A0 203381	£34.72	£41.67
500.3 - CHAIN TENSIONING PIECE MAF-200974.A14 200974	£30.62	£36.74
500.4 - PRESSURE BIT MAF-200976.A0 200976	£3.45	£4.14
500.5 - SHIM RING MAF-006131.A4 006131	£2.89	£3.47
500.6 - SPACER DISK MAF-203537.A0 203537	£13.57	£16.28
500.7 - THREADED PIN MAF-005276.A0 005276	£1.90	£2.28
500.8 - CYLINDRICAL PIN MAF-058202.A11 058202	£4.22	£5.06
500.9 - FLAT-HEAD SCREW MAF-005383.A18 005383	£2.82	£3.38
500.10 - GROOVED BALL BEARING MAF-062010.A7 062010	£15.24	£18.29
503 - MORTISING CHAIN MAF-091230.A3 091230	£475.47	£570.56
503.1 - REPLACEMENT CHAIN LINKS + RIVETS MAF-091279.A5 091279	£99.11	£118.93
504 - SPROCKET MAF-091683.A10 091683	£104.99	£125.99
507 - ALLEN KEY MAF-093070.A10 093070	£13.58	£16.29
508 - ALLEN KEY MAF-093074.A6 093074	£3.10	£3.72
