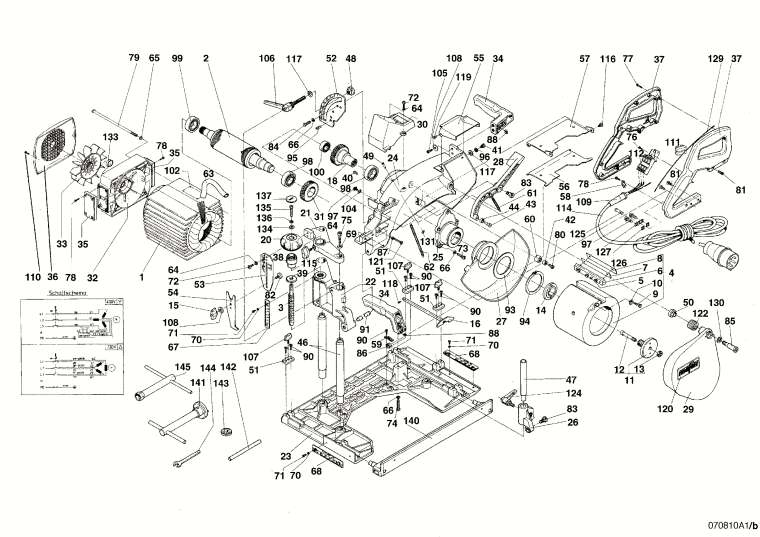

1 - STATOR
MAF-082111.A0
082111
|
-
|
|
|
|
2 - ROTOR PACKAGED
MAF-038909.A0
038909
|
-
|
|
|
|
3 - LIFTING SPINDLE
MAF-201390.A1
201390
|
-
|
|
|
|
4 - PART NAME NOT AVAILABLE
MAF-091427.A0
091427
|
-
|
|
|
|
5 - HEXAGON-HEAD SCREW
MAF-005693.A0
005693
|
-
|
|
|
|
6 - CLAMPING DEVICE
MAF-037300.A1
037300
|
-
|
|
|
|
7 - REVERSIBLE KNIVES, 3 PIECES
MAF-091893.A1
091893
|
-
|
|
|
|
8 - KNIFE SUPPORT
MAF-037301.A0
037301
|
-
|
|
|
|
9 - FLAT-HEAD GAUGE SCREW
MAF-035257.A1
035257
|
-
|
|
|
|
10 - REVERSIBLE KNIVES TCT
MAF-034907.A2
034907
|
-
|
|
|
|
11 - CLAMPING FLANGE
MAF-093211.A1
093211
|
-
|
|
|
|
12 - EXPANDING BOLT, ASSEMBLED
MAF-024462.A0
024462
|
-
|
|
|
|
13 - HEXAGONAL NUT
MAF-005920.A15
005920
|
-
|
|
|
|
14 - FLANGE, REAR, CPL.
MAF-036918.A5
036918
|
-
|
|
|
|
15 - WING NUT
MAF-007988.A1
007988
|
-
|
|
|
|
16 - TRACING POINTER, CPL.
MAF-036951.A2
036951
|
-
|
|
|
|
18 - GEAR SHAFT
MAF-038919.A0
038919
|
-
|
|
|
|
20 - HANDLE
MAF-038970.A13
038970
|
£8.78
|
£10.53
|
|
|
21 - BRIDGE
MAF-036875.A0
036875
|
-
|
|
|
|
22 - VERTICAL GUIDEWAY
MAF-036877.A1
036877
|
-
|
|
|
|
23 - BASE PLATE
MAF-036881.A1
036881
|
-
|
|
|
|
24 - GEAR CASING
MAF-038915.A0
038915
|
-
|
|
|
|
25 - BEARING COVER
MAF-038911.A1
038911
|
-
|
|
|
|
26 - SETTING RING
MAF-039285.A2
039285
|
-
|
|
|
|
27 - PROTECTIVE COVER
MAF-200359.A0
200359
|
-
|
|
|
|
28 - LEVER
MAF-036905.A2
036905
|
-
|
|
|
|
29 - FRONT GUARD
MAF-200364.A1
200364
|
-
|
|
|
|
30 - SWITCH CASING
MAF-038913.A1
038913
|
-
|
|
|
|
31 - ROUE DENTÉE
MAF-038918.A0
038918
|
-
|
|
|
|
32 - END PLATE
MAF-037919.A3
037919
|
-
|
|
|
|
33 - FAN
MAF-037908.A2
037908
|
-
|
|
|
|
34 - HANDLE
MAF-033468.A4
033468
|
-
|
|
|
|
35 - COVER
MAF-038921.A1
038921
|
-
|
|
|
|
36 - FAN COVER
MAF-037922.A0
037922
|
-
|
|
|
|
37 - HANDLE SHELLS (PAIR)
MAF-038419.A0
038419
|
-
|
|
|
|
38 - SPINDLE NUT
MAF-201391.A3
201391
|
-
|
|
|
|
39 - SUPPORTING DISK
MAF-201392.A1
201392
|
-
|
|
|
|
40 - WOODRUFF KEY
MAF-007803.A5
007803
|
-
|
|
|
|
41 - SHOULDER SCREW
MAF-028893.A4
028893
|
-
|
|
|
|
42 - SLEEVE
MAF-034210.A4
034210
|
-
|
|
|
|
43 - BOLT
MAF-035480.A0
035480
|
-
|
|
|
|
44 - ROLLER
MAF-035481.A1
035481
|
-
|
|
|
|
46 - GUIDE COLUMN
MAF-036879.A0
036879
|
-
|
|
|
|
47 - COLUMN, FRONT
MAF-036889.A2
036889
|
-
|
|
|
|
48 - CLAMPING NUT
MAF-037042.A0
037042
|
-
|
|
|
|
49 - BOLT
MAF-035129.A1
035129
|
-
|
|
|
|
50 - SHOULDER DISK
MAF-200361.A1
200361
|
-
|
|
|
|
51 - CLAMPING PLATE
MAF-033933.A3
033933
|
£7.16
|
£8.59
|
|
|
52 - SEGMENT
MAF-037043.A1
037043
|
-
|
|
|
|
53 - DEPTH INDICATOR GUIDE
MAF-037046.A2
037046
|
-
|
|
|
|
54 - DEPTH INDICATOR
MAF-037047.A0
037047
|
-
|
|
|
|
55 - CHIP DEFLECTOR
MAF-037048.A0
037048
|
-
|
|
|
|
56 - SAFETY GUARD
MAF-037044.A1
037044
|
-
|
|
|
|
57 - SAFETY GUARD
MAF-037045.A2
037045
|
-
|
|
|
|
58 - CABLE CLAMP
MAF-006566.A1
006566
|
-
|
|
|
|
59 - CABLE CLAMP
MAF-029584.A41
029584
|
-
|
|
|
|
60 - STOP BUFFER
MAF-034209.A2
034209
|
-
|
|
|
|
61 - RETRACTING SPRING II
MAF-035026.A0
035026
|
-
|
|
|
|
62 - RETRACTING SPRING I
MAF-066032.A5
066032
|
£3.47
|
£4.16
|
|
|
63 - PROTECTIVE TUBE
MAF-201250.A4
201250
|
-
|
|
|
|
64 - LOCKING WASHER
MAF-006184.A11
006184
|
£1.58
|
£1.89
|
|
|
65 - LOCKING WASHER
MAF-006179.A3
006179
|
£1.61
|
£1.93
|
|
|
66 - LOCKING WASHER
MAF-006113.A2
006113
|
£2.02
|
£2.43
|
|
|
67 - DEPTH SCALE
MAF-077403.A5
077403
|
-
|
|
|
|
68 - TRACING SCALE
MAF-077402.A0
077402
|
-
|
|
|
|
69 - LOCKING WASHER
MAF-006114.A11
006114
|
-
|
|
|
|
70 - WASHER
MAF-007114.A5
007114
|
-
|
|
|
|
71 - CHEESE-HEAD SCREW
MAF-005571.A1
005571
|
-
|
|
|
|
72 - OVAL-HEAD SCREW
MAF-055068.A7
055068
|
-
|
|
|
|
73 - CYLINDER-HEAD SCREW
MAF-055041.A20
055041
|
£1.73
|
£2.08
|
|
|
74 - CYLINDER-HEAD SCREW
MAF-005526.A2
005526
|
-
|
|
|
|
75 - CYLINDER-HEAD SCREW
MAF-055038.A0
055038
|
£2.78
|
£3.33
|
|
|
76 - SELF-TAPPING OVAL-HEAD SCREW
MAF-055058.A6
055058
|
-
|
|
|
|
77 - CYLINDRICAL OVAL-HEAD SCREW
MAF-055061.A31
055061
|
£1.79
|
£2.15
|
|
|
78 - SELF-TAPPING OVAL-HEAD SCREW
MAF-055062.A33
055062
|
-
|
|
|
|
79 - COLLAR SCREW
MAF-057021.A0
057021
|
-
|
|
|
|
80 - CYLINDRICAL OVAL-HEAD SCREW
MAF-055188.A16
055188
|
-
|
|
|
|
81 - OVAL-HEAD SCREW
MAF-055129.A2
055129
|
-
|
|
|
|
82 - TRUSS-HEAD SCREW
MAF-005714.A1
005714
|
-
|
|
|
|
83 - SHOULDER SCREW
MAF-005799.A4
005799
|
-
|
|
|
|
84 - HEXAGON-HEAD SCREW
MAF-005614.A0
005614
|
-
|
|
|
|
85 - SHOULDER BOLT
MAF-200360.A4
200360
|
-
|
|
|
|
86 - TUBULAR RIVET
MAF-058130.A5
058130
|
-
|
|
|
|
87 - HEXAGONAL NUT
MAF-005939.A0
005939
|
-
|
|
|
|
88 - SQUARE NUT
MAF-005953.A0
005953
|
-
|
|
|
|
90 - CYLINDRICAL OVAL-HEAD SCREW
MAF-055137.A2
055137
|
£2.13
|
£2.56
|
|
|
91 - SPIRAL DOWEL SLEEVE
MAF-058131.A3
058131
|
-
|
|
|
|
93 - SHIM RING
MAF-061091.A3
061091
|
-
|
|
|
|
94 - RETAINING RING
MAF-061092.A5
061092
|
-
|
|
|
|
95 - SPRING DOWEL SLEEVE
MAF-005874.A2
005874
|
-
|
|
|
|
96 - CUP SPRING
MAF-006660.A0
006660
|
-
|
|
|
|
97 - LOCKING SCREW WITH WASHER
MAF-055155.A5
055155
|
-
|
|
|
|
98 - GROOVED BALL BEARING
MAF-006261.A5
006261
|
-
|
|
|
|
99 - GROOVED BALL BEARING
MAF-006270.A1
006270
|
-
|
|
|
|
100 - GROOVED BALL BEARING
MAF-006288.A3
006288
|
£9.26
|
£11.11
|
|
|
102 - RIBBED NAIL
MAF-005826.A1
005826
|
-
|
|
|
|
104 - CLIP CONNECTOR
MAF-006172.A3
006172
|
-
|
|
|
|
105 - CYLINDER-HEAD SCREW
MAF-005573.A9
005573
|
-
|
|
|
|
106 - CLAMPING LEVER
MAF-007193.A8
007193
|
£13.77
|
£16.52
|
|
|
107 - WING SCREW
MAF-079077.A18
079077
|
-
|
|
|
|
108 - WASHER
MAF-061044.A5
061044
|
£1.73
|
£2.08
|
|
|
109 - CABLE PROTECTING SLEEVE
MAF-086065.A13
086065
|
£3.63
|
£4.36
|
|
|
110 - CYLINDRICAL OVAL-HEAD SCREW
MAF-055195.A0
055195
|
-
|
|
|
|
111 - CLAMPING STRIP
MAF-087626.A1
087626
|
-
|
|
|
|
112 - PART NAME NOT AVAILABLE
MAF-087843.A0
087843
|
-
|
|
|
|
114 - PART NAME NOT AVAILABLE
MAF-200554.A0
200554
|
-
|
|
|
|
115 - WING SCREW
MAF-079030.A4
079030
|
-
|
|
|
|
116 - SHOULDER SCREW
MAF-055118.A4
055118
|
£2.52
|
£3.03
|
|
|
117 - WASHER
MAF-006102.A2
006102
|
-
|
|
|
|
118 - SPRING DOWEL SLEEVE
MAF-005816.A2
005816
|
-
|
|
|
|
119 - SEMI-CIRCULAR RIBBED NAIL
MAF-058136.A4
058136
|
-
|
|
|
|
120 - STICKER
MAF-077308.A8
077308
|
-
|
|
|
|
121 - HEXAGON-HEAD SCREW
MAF-005679.A0
005679
|
-
|
|
|
|
122 - TORSION SPRING
MAF-066038.A2
066038
|
-
|
|
|
|
124 - CLAMPING LEVER
MAF-037714.A3
037714
|
£26.54
|
£31.85
|
|
|
125 - RIBBED NAIL
MAF-058068.A0
058068
|
-
|
|
|
|
126 - SQUARE NUT
MAF-005961.A0
005961
|
-
|
|
|
|
127 - SMALL PLATE
MAF-037987.A1
037987
|
-
|
|
|
|
129 - CONNECTING CABLE
MAF-039264.A1
039264
|
-
|
|
|
|
130 - SHIM RING
MAF-006158.A0
006158
|
-
|
|
|
|
131 - LOCKING WASHER
MAF-061073.A20
061073
|
-
|
|
|
|
133 - SPACER BUSH
MAF-039370.A0
039370
|
-
|
|
|
|
134 - WASHER
MAF-061028.A4
061028
|
-
|
|
|
|
135 - CYLINDER-HEAD SCREW
MAF-055013.A14
055013
|
-
|
|
|
|
136 - LOCKING WASHER
MAF-006113.A22
006113
|
£2.02
|
£2.43
|
|
|
137 - NAME PLATE
MAF-201166.A18
201166
|
£8.54
|
£10.25
|
|
|
140 - PARALLEL GUIDE FENCE
MAF-204591.A0
204591
|
£139.76
|
£167.71
|
|
|
141 - PIN SPANNER
MAF-093240.A1
093240
|
-
|
|
|
|
142 - LOCKING ROD
MAF-093084.A3
093084
|
-
|
|
|
|
143 - ADJUSTMENT GAUGE
MAF-035849.A1
035849
|
-
|
|
|
|
144 - SINGLE-END SPANNER
MAF-093020.A3
093020
|
-
|
|
|
|
145 - TUBULAR BOX SPANNER
MAF-093006.A2
093006
|
-
|
|
|
