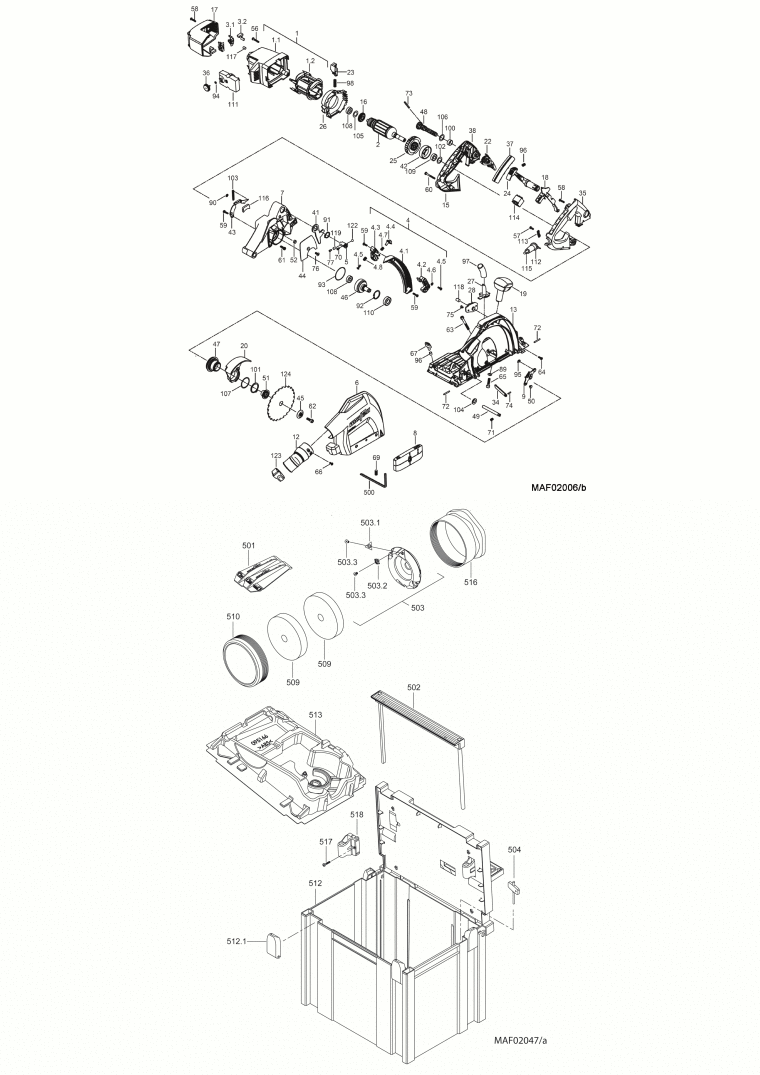

1 - MOTOR CASING WITH INDUCTOR 230 V
MAF-084620.A4
084620
|
£190.78
|
£228.94
|
|
|
1.1 - MOTOR CASING, EMPTY
MAF-204506.A5
204506
|
£59.25
|
£71.10
|
|
|
1.2 - INDUCTOR WITH COIL 230 V
MAF-084618.A3
084618
|
£112.06
|
£134.47
|
|
|
2 - ARMATURE
MAF-088224.A4
088224
|
£162.91
|
£195.49
|
|
|
3.1 - BRUSH HOLDER
MAF-063160.A6
063160
|
£10.57
|
£12.68
|
|
|
3.2 - CARBON BRUSH WITH AUTOMATIC CUT-OFF
MAF-063164.A6
063164
|
£13.02
|
£15.63
|
|
|
4 - DEPTH STOP
MAF-205801.A3
205801
|
-
|
|
|
|
4.1 - DEPTH SETTING
MAF-206027.A5
206027
|
-
|
|
|
|
4.2 - INDICATOR
MAF-204497.A1
204497
|
£12.91
|
£15.49
|
|
|
4.3 - SLIDING COVER
MAF-204511.A5
204511
|
£2.38
|
£2.86
|
|
|
4.4 - INDICATOR
MAF-204520.A3
204520
|
£9.45
|
£11.34
|
|
|
4.5 - CYLINDRICAL OVAL-HEAD SCREW
MAF-055233.A14
055233
|
£1.79
|
£2.15
|
|
|
4.6 - WASHER
MAF-061015.A8
061015
|
-
|
|
|
|
4.7 - PRESSURE SPRING
MAF-066043.A42
066043
|
£3.19
|
£3.83
|
|
|
4.8 - PRESSURE SPRING
MAF-006691.A1
006691
|
-
|
|
|
|
5 - LOCK
MAF-204488.A4
204488
|
£33.78
|
£40.54
|
|
|
6 - PROTECTIVE COVER
MAF-205822.A3
205822
|
-
|
|
|
|
7 - GEAR CASING
MAF-205825.A0
205825
|
-
|
|
|
|
8 - GLIDER
MAF-205817.A2
205817
|
-
|
|
|
|
9 - FRAME
MAF-205819.A1
205819
|
-
|
|
|
|
12 - HOSE CONNECTOR
MAF-206069.A2
206069
|
-
|
|
|
|
13 - BASE PLATE
MAF-206070.A3
206070
|
-
|
|
|
|
15 - HANDLE SHELL
MAF-204486.A3
204486
|
£30.25
|
£36.30
|
|
|
16 - INSULATING DISK
MAF-204492.A0
204492
|
£9.02
|
£10.82
|
|
|
17 - MOTOR COVER
MAF-204493.A2
204493
|
£24.88
|
£29.86
|
|
|
18 - SWITCH TRIGGER
MAF-204494.A0
204494
|
£12.91
|
£15.49
|
|
|
19 - HANDLE
MAF-205308.A4
205308
|
£15.68
|
£18.81
|
|
|
20 - PROTECTIVE COVER
MAF-205807.A4
205807
|
-
|
|
|
|
22 - LOCKING LEVER
MAF-204507.A2
204507
|
£10.82
|
£12.98
|
|
|
23 - LOCKING LEVER
MAF-204509.A5
204509
|
£8.47
|
£10.16
|
|
|
24 - LOCK-OFF BUTTON
MAF-204510.A4
204510
|
£12.05
|
£14.46
|
|
|
25 - FAN
MAF-204517.A3
204517
|
£12.95
|
£15.54
|
|
|
26 - AIR CONDUCTING RING
MAF-204518.A3
204518
|
£17.15
|
£20.58
|
|
|
27 - SPRING GUIDE
MAF-204519.A3
204519
|
£11.26
|
£13.51
|
|
|
28 - INSERT
MAF-205818.A2
205818
|
-
|
|
|
|
34 - STOP CLIP
MAF-204868.A1
204868
|
-
|
|
|
|
35 - HANDLE SHELL
MAF-204490.A3
204490
|
-
|
|
|
|
36 - SETTING WHEEL
MAF-203729.A4
203729
|
-
|
|
|
|
37 - HANDLE INSERT
MAF-203877.A2
203877
|
£20.10
|
£24.12
|
|
|
38 - HANDLE SHELL COVER
MAF-204513.A1
204513
|
£12.35
|
£14.82
|
|
|
41 - CLICK-IN METAL SHEET
MAF-205814.A2
205814
|
-
|
|
|
|
42 - BRAKE DRUM
MAF-201452.A0
201452
|
£14.34
|
£17.21
|
|
|
43 - BRAKE LEVER
MAF-202347.A0
202347
|
£6.57
|
£7.88
|
|
|
44 - COVER
MAF-206061.A2
206061
|
-
|
|
|
|
45 - FLANGE
MAF-204388.A3
204388
|
£17.42
|
£20.90
|
|
|
46 - SAW SHAFT
MAF-205804.A0
205804
|
-
|
|
|
|
47 - BEARING COVER
MAF-205831.A2
205831
|
-
|
|
|
|
48 - PUSH-BUTTON
MAF-204516.A5
204516
|
£32.22
|
£38.67
|
|
|
49 - BOLT
MAF-204528.A5
204528
|
-
|
|
|
|
50 - BOLT
MAF-205823.A3
205823
|
-
|
|
|
|
51 - FLANGE
MAF-205827.A5
205827
|
-
|
|
|
|
52 - SPACER SLEEVE
MAF-206065.A2
206065
|
-
|
|
|
|
56 - OVAL-HEAD SCREW
MAF-055069.A1
055069
|
£2.27
|
£2.72
|
|
|
57 - CYLINDRICAL OVAL-HEAD SCREW
MAF-055233.A0
055233
|
£1.79
|
£2.15
|
|
|
58 - CYLINDRICAL OVAL-HEAD SCREW
MAF-055061.A34
055061
|
£1.79
|
£2.15
|
|
|
59 - SELF-TAPPING SCREW
MAF-055230.A15
055230
|
-
|
|
|
|
60 - OVAL-HEAD SCREW
MAF-055257.A1
055257
|
-
|
|
|
|
61 - CYLINDRICAL OVAL-HEAD SCREW
MAF-055188.A18
055188
|
-
|
|
|
|
62 - CYLINDER-HEAD SCREW
MAF-055096.A3
055096
|
£2.22
|
£2.66
|
|
|
63 - CYLINDER-HEAD SCREW
MAF-055263.A1
055263
|
-
|
|
|
|
64 - CYLINDER-HEAD SCREW
MAF-055203.A8
055203
|
-
|
|
|
|
65 - CYLINDER-HEAD SCREW
MAF-055113.A2
055113
|
£2.78
|
£3.33
|
|
|
66 - CYLINDRICAL OVAL-HEAD SCREW
MAF-055162.A1
055162
|
-
|
|
|
|
67 - WING SCREW
MAF-079091.A5
079091
|
-
|
|
|
|
69 - PRESSURE BIT
MAF-005293.A5
005293
|
-
|
|
|
|
70 - THREADED PIN
MAF-052016.A1
052016
|
-
|
|
|
|
71 - THREADED PIN
MAF-005279.A1
005279
|
-
|
|
|
|
72 - SPIRAL DOWEL SLEEVE
MAF-058191.A3
058191
|
-
|
|
|
|
73 - RIBBED PIN
MAF-058219.A3
058219
|
-
|
|
|
|
74 - SPIRAL DOWEL SLEEVE
MAF-058186.A2
058186
|
-
|
|
|
|
75 - FLAT-HEAD SCREW
MAF-053031.A2
053031
|
£1.81
|
£2.17
|
|
|
76 - FLAT-HEAD SCREW
MAF-005383.A11
005383
|
£2.82
|
£3.38
|
|
|
77 - THREADED PIN
MAF-052010.A6
052010
|
£3.54
|
£4.25
|
|
|
89 - WASHER
MAF-006101.A3
006101
|
£1.62
|
£1.94
|
|
|
90 - LOCKING WASHER
MAF-061069.A1
061069
|
£1.57
|
£1.88
|
|
|
91 - RETAINING RING
MAF-007163.A6
007163
|
-
|
|
|
|
92 - RETAINING RING
MAF-061021.A0
061021
|
-
|
|
|
|
93 - SEALING RING
MAF-065057.A4
065057
|
-
|
|
|
|
94 - SEALING RING
MAF-065004.A13
065004
|
£1.72
|
£2.06
|
|
|
95 - LOCKING WASHER
MAF-061135.A5
061135
|
-
|
|
|
|
96 - PRESSURE SPRING
MAF-066043.A5
066043
|
£3.19
|
£3.83
|
|
|
97 - PRESSURE SPRING
MAF-066166.A0
066166
|
£3.77
|
£4.52
|
|
|
98 - PRESSURE SPRING
MAF-066154.A1
066154
|
-
|
|
|
|
100 - PRESSURE SPRING
MAF-066096.A5
066096
|
£4.47
|
£5.36
|
|
|
101 - RETAINING RING
MAF-006192.A3
006192
|
-
|
|
|
|
102 - SHIM RING
MAF-061141.A5
061141
|
-
|
|
|
|
103 - RETRACTING SPRING
MAF-066092.A5
066092
|
£5.22
|
£6.27
|
|
|
104 - CUP SPRING
MAF-006693.A0
006693
|
-
|
|
|
|
105 - FEDERSCHEIBE
MAF-061132.A4
061132
|
-
|
|
|
|
106 - SHIM RING
MAF-006160.A15
006160
|
£1.73
|
£2.08
|
|
|
107 - WASHER
MAF-061167.A5
061167
|
£53.89
|
£64.67
|
|
|
108 - GROOVED BALL BEARING
MAF-006282.A12
006282
|
£15.42
|
£18.50
|
|
|
109 - GROOVED BALL BEARING
MAF-006288.A14
006288
|
£10.73
|
£12.88
|
|
|
110 - GROOVED BALL BEARING
MAF-006280.A9
006280
|
£14.33
|
£17.20
|
|
|
111 - CONTROL MODULE
MAF-077671.A1
077671
|
£74.34
|
£89.21
|
|
|
112 - CABLE PROTECTING SLEEVE
MAF-086064.A22
086064
|
£3.53
|
£4.24
|
|
|
113 - CABLE CLAMP
MAF-029584.A24
029584
|
-
|
|
|
|
114 - 2-POLE SWITCH
MAF-087851.A5
087851
|
£19.09
|
£22.91
|
|
|
115 - MAINS CABLE 4 M (13.1 FT)
MAF-087323.A6
087323
|
£41.38
|
£49.65
|
|
|
116 - BRAKE LINING
MAF-202429.A1
202429
|
-
|
|
|
|
117 - PRESSURE BIT
MAF-202378.A3
202378
|
-
|
|
|
|
118 - STOP BUFFER
MAF-204009.A3
204009
|
-
|
|
|
|
119 - PRESSURE BIT
MAF-206122.A3
206122
|
-
|
|
|
|
122 - STEEL BALL
MAF-062104.A4
062104
|
-
|
|
|
|
123 - HOOK-AND-LOOP FASTENER BELT
MAF-205049.A4
205049
|
£5.66
|
£6.79
|
|
|
124 - TCT SAW BLADE
MAF-092558.A1
092558
|
£43.30
|
£51.96
|
|
|
500 - COMBINATION SCREW DRIVER
MAF-093005.A3
093005
|
-
|
|
|
|
501 - POSITION INDICATO
MAF-206012.A0
206012
|
-
|
|
|
|
502 - PARALLEL GUIDE FENCE
MAF-206038.A3
206038
|
-
|
|
|
|
503 - WALLBOARD CUTTER MF-GF 90
MAF-206075.A1
206075
|
£303.18
|
£363.81
|
|
|
503.1 - CHAMFER KNIVE
MAF-201930.A2
201930
|
-
|
|
|
|
503.2 - REVERSIBLE KNIFE
MAF-206067.A1
206067
|
-
|
|
|
|
503.3 - FLAT-HEAD SCREW
MAF-055268.A1
055268
|
-
|
|
|
|
504 - SCREW DRIVER
MAF-093293.A6
093293
|
-
|
|
|
|
509 - INLAY
MAF-206045.A0
206045
|
-
|
|
|
|
510 - MK-PACK OUTER PART
MAF-170367.A1
170367
|
-
|
|
|
|
512 - CARRYING CASE MAFELL-MAX
MAF-095043.A5
095043
|
-
|
|
|
|
512.1 - LATCH
MAF-095074.A10
095074
|
-
|
|
|
|
513 - PLASTIC TRAY
MAF-095166.A0
095166
|
-
|
|
|
|
516 - MK-PACK INNER PART
MAF-170386.A0
170386
|
-
|
|
|
|
517 - CYLINDRICAL OVAL-HEAD SCREW
MAF-055233.A24
055233
|
£1.79
|
£2.15
|
|
|
518 - SUPPORT
MAF-205385.A0
205385
|
-
|
|
|
