Mafell 917801 Multi-cutter MF 26 cc AF-MAX in the MAFELL-MAX up to machine no. 1115057 Spare Parts

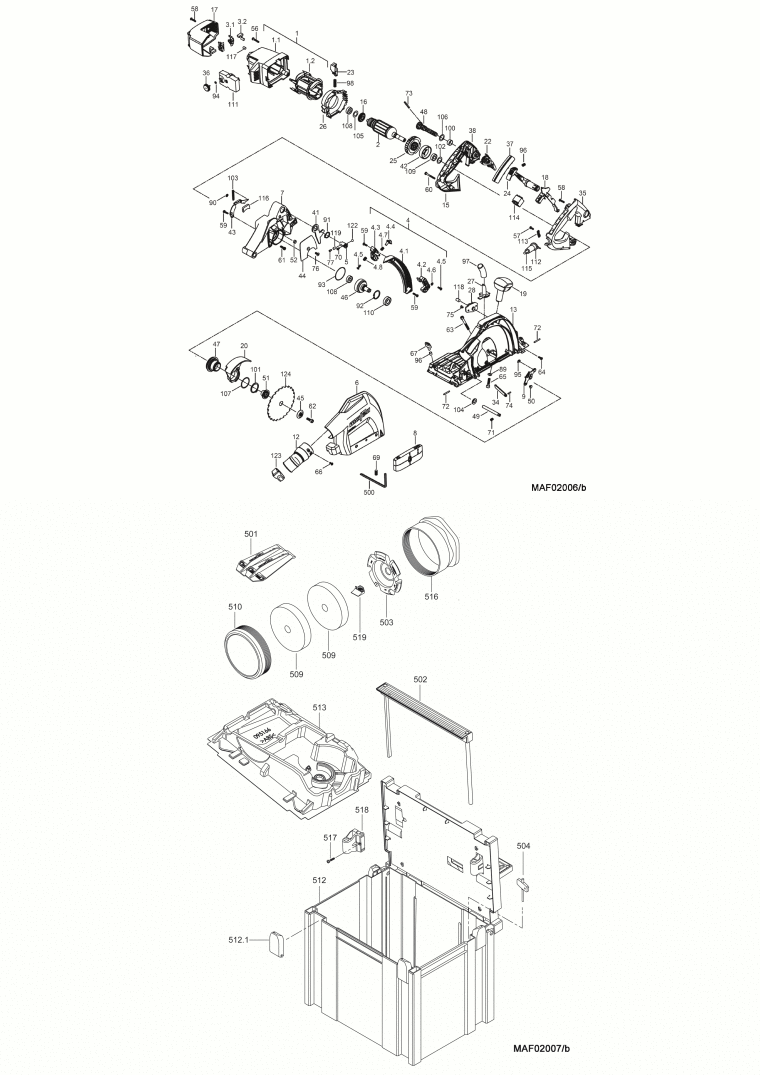

An exploded drawing and spare parts listing for the Mafell 917801 Multi-cutter MF 26 cc AF-MAX in the MAFELL-MAX up to machine no. 1115057

	Ex VAT	Inc VAT
1 - MOTOR CASING WITH INDUCTOR 230 V MAF-084620.A2 084620	£181.70	£218.04
1.1 - MOTOR CASING, EMPTY MAF-204506.A3 204506	£56.42	£67.71
1.2 - INDUCTOR WITH COIL 230 V MAF-084618.A5 084618	£106.72	£128.07
2 - ARMATURE MAF-088224.A2 088224	-
3.1 - BRUSH HOLDER MAF-063160.A7 063160	£10.07	£12.08
3.2 - CARBON BRUSH WITH AUTOMATIC CUT-OFF MAF-063164.A5 063164	£12.41	£14.89
4 - DEPTH STOP MAF-205801.A0 205801	-
4.1 - DEPTH SETTING MAF-206027.A3 206027	-
4.2 - INDICATOR MAF-204497.A0 204497	£12.29	£14.75
4.3 - SLIDING COVER MAF-204511.A1 204511	£2.27	£2.72
4.4 - INDICATOR MAF-204520.A5 204520	£9.00	£10.80
4.5 - CYLINDRICAL OVAL-HEAD SCREW MAF-055233.A6 055233	£1.71	£2.05
4.6 - WASHER MAF-061015.A2 061015	-
4.7 - PRESSURE SPRING MAF-066043.A35 066043	£3.04	£3.65
4.8 - PRESSURE SPRING MAF-006691.A2 006691	-
5 - LOCK MAF-204488.A5 204488	£32.18	£38.61
6 - PROTECTIVE COVER MAF-205822.A1 205822	-
7 - GEAR CASING MAF-205825.A3 205825	-
8 - GLIDER MAF-205817.A5 205817	-
9 - FRAME MAF-205819.A5 205819	-
12 - HOSE CONNECTOR MAF-206069.A0 206069	-
13 - BASE PLATE MAF-206070.A0 206070	-
15 - HANDLE SHELL MAF-204486.A2 204486	£28.81	£34.57
16 - INSULATING DISK MAF-204492.A2 204492	£8.58	£10.30
17 - MOTOR COVER MAF-204493.A3 204493	£23.70	£28.44
18 - SWITCH TRIGGER MAF-204494.A1 204494	£12.29	£14.75
19 - HANDLE MAF-205308.A3 205308	£14.92	£17.91
20 - PROTECTIVE COVER MAF-205807.A1 205807	-
22 - LOCKING LEVER MAF-204507.A5 204507	£10.30	£12.36
23 - LOCKING LEVER MAF-204509.A1 204509	£8.07	£9.68
24 - LOCK-OFF BUTTON MAF-204510.A0 204510	£11.48	£13.77
25 - FAN MAF-204517.A4 204517	£12.33	£14.80
26 - AIR CONDUCTING RING MAF-204518.A0 204518	£16.33	£19.60
27 - SPRING GUIDE MAF-204519.A2 204519	£10.72	£12.87
28 - INSERT MAF-205818.A1 205818	-
34 - STOP CLIP MAF-204868.A4 204868	-
35 - HANDLE SHELL MAF-204490.A1 204490	-
36 - SETTING WHEEL MAF-203729.A1 203729	-
37 - HANDLE INSERT MAF-203877.A1 203877	£19.14	£22.97
38 - HANDLE SHELL COVER MAF-204513.A5 204513	£11.76	£14.11
41 - CLICK-IN METAL SHEET MAF-205814.A1 205814	-
42 - BRAKE DRUM MAF-201452.A1 201452	£13.66	£16.39
43 - BRAKE LEVER MAF-202347.A4 202347	£6.25	£7.50
44 - COVER MAF-206061.A1 206061	-
45 - FLANGE MAF-204388.A4 204388	£16.58	£19.90
46 - SAW SHAFT MAF-205804.A2 205804	-
47 - BEARING COVER MAF-205831.A4 205831	-
48 - PUSH-BUTTON MAF-204516.A0 204516	£30.69	£36.83
49 - BOLT MAF-204528.A3 204528	-
50 - BOLT MAF-205823.A5 205823	-
51 - FLANGE MAF-205827.A2 205827	-
52 - SPACER SLEEVE MAF-206065.A4 206065	-
56 - OVAL-HEAD SCREW MAF-055069.A4 055069	£2.16	£2.59
57 - CYLINDRICAL OVAL-HEAD SCREW MAF-055233.A8 055233	£1.71	£2.05
58 - CYLINDRICAL OVAL-HEAD SCREW MAF-055061.A1 055061	£1.71	£2.05
59 - SELF-TAPPING SCREW MAF-055230.A8 055230	-
60 - OVAL-HEAD SCREW MAF-055257.A0 055257	-
61 - CYLINDRICAL OVAL-HEAD SCREW MAF-055188.A1 055188	-
62 - CYLINDER-HEAD SCREW MAF-055096.A2 055096	£2.11	£2.53
63 - CYLINDER-HEAD SCREW MAF-055263.A2 055263	-
64 - CYLINDER-HEAD SCREW MAF-055203.A3 055203	-
65 - CYLINDER-HEAD SCREW MAF-055113.A3 055113	£2.64	£3.17
66 - CYLINDRICAL OVAL-HEAD SCREW MAF-055162.A2 055162	-
67 - WING SCREW MAF-079091.A2 079091	-
69 - PRESSURE BIT MAF-005293.A1 005293	-
70 - THREADED PIN MAF-052016.A0 052016	-
71 - THREADED PIN MAF-005279.A2 005279	-
72 - SPIRAL DOWEL SLEEVE MAF-058191.A0 058191	-
73 - RIBBED PIN MAF-058219.A5 058219	-
74 - SPIRAL DOWEL SLEEVE MAF-058186.A4 058186	-
75 - FLAT-HEAD SCREW MAF-053031.A11 053031	£1.72	£2.07
76 - FLAT-HEAD SCREW MAF-005383.A19 005383	£2.68	£3.22
77 - THREADED PIN MAF-052010.A1 052010	£3.38	£4.05
89 - WASHER MAF-006101.A18 006101	£1.54	£1.85
90 - LOCKING WASHER MAF-061069.A6 061069	£1.49	£1.79
91 - RETAINING RING MAF-007163.A5 007163	-
92 - RETAINING RING MAF-061021.A7 061021	-
93 - SEALING RING MAF-065057.A5 065057	-
94 - SEALING RING MAF-065004.A8 065004	£1.63	£1.96
95 - LOCKING WASHER MAF-061135.A10 061135	-
96 - PRESSURE SPRING MAF-066043.A27 066043	£3.04	£3.65
97 - PRESSURE SPRING MAF-066166.A2 066166	£3.58	£4.30
98 - PRESSURE SPRING MAF-066154.A0 066154	-
100 - PRESSURE SPRING MAF-066096.A2 066096	£4.25	£5.10
101 - RETAINING RING MAF-006192.A7 006192	-
102 - SHIM RING MAF-061141.A0 061141	-
103 - RETRACTING SPRING MAF-066092.A7 066092	£4.98	£5.97
104 - CUP SPRING MAF-006693.A5 006693	-
105 - FEDERSCHEIBE MAF-061132.A1 061132	-
106 - SHIM RING MAF-006160.A18 006160	£1.65	£1.98
107 - WASHER MAF-061167.A4 061167	£51.32	£61.59
108 - GROOVED BALL BEARING MAF-006282.A5 006282	£14.68	£17.62
109 - GROOVED BALL BEARING MAF-006288.A8 006288	£8.82	£10.58
110 - GROOVED BALL BEARING MAF-006280.A11 006280	£13.65	£16.38
111 - CONTROL MODULE MAF-077671.A2 077671	£70.80	£84.96
112 - CABLE PROTECTING SLEEVE MAF-086064.A28 086064	£3.37	£4.04
113 - CABLE CLAMP MAF-029584.A37 029584	-
114 - 2-POLE SWITCH MAF-087851.A1 087851	£18.18	£21.82
115 - MAINS CABLE 4 M (13.1 FT) MAF-087323.A4 087323	£39.41	£47.29
116 - BRAKE LINING MAF-202429.A4 202429	-
117 - PRESSURE BIT MAF-202378.A2 202378	-
118 - STOP BUFFER MAF-204009.A5 204009	-
119 - PRESSURE BIT MAF-206122.A4 206122	-
122 - STEEL BALL MAF-062104.A1 062104	-
123 - HOOK-AND-LOOP FASTENER BELT MAF-205049.A5 205049	£5.39	£6.47
124 - TCT SAW BLADE MAF-092559.A1 092559	£56.82	£68.19
500 - COMBINATION SCREW DRIVER MAF-093005.A5 093005	-
501 - POSITION INDICATO MAF-206012.A1 206012	-
502 - PARALLEL GUIDE FENCE MAF-206038.A2 206038	-
503 - ALUMINUM COMPOSITE CUTTER MF-AF 90 MAF-206076.A2 206076	£400.58	£480.69
504 - SCREW DRIVER MAF-093293.A3 093293	-
509 - INLAY MAF-206045.A3 206045	-
510 - MK-PACK OUTER PART MAF-170367.A4 170367	-
512 - CARRYING CASE MAFELL-MAX MAF-095043.A4 095043	-
512.1 - LATCH MAF-095074.A22 095074	-
513 - PLASTIC TRAY MAF-095166.A2 095166	-
516 - MK-PACK INNER PART MAF-170386.A3 170386	-
517 - CYLINDRICAL OVAL-HEAD SCREW MAF-055233.A34 055233	£1.71	£2.05
518 - SUPPORT MAF-205385.A2 205385	-
519 - CHIP DEFLECTOR MAF-206060.A2 206060	-
