Mafell 200836 Slot Mortising Attachment SE 400 Spare Parts

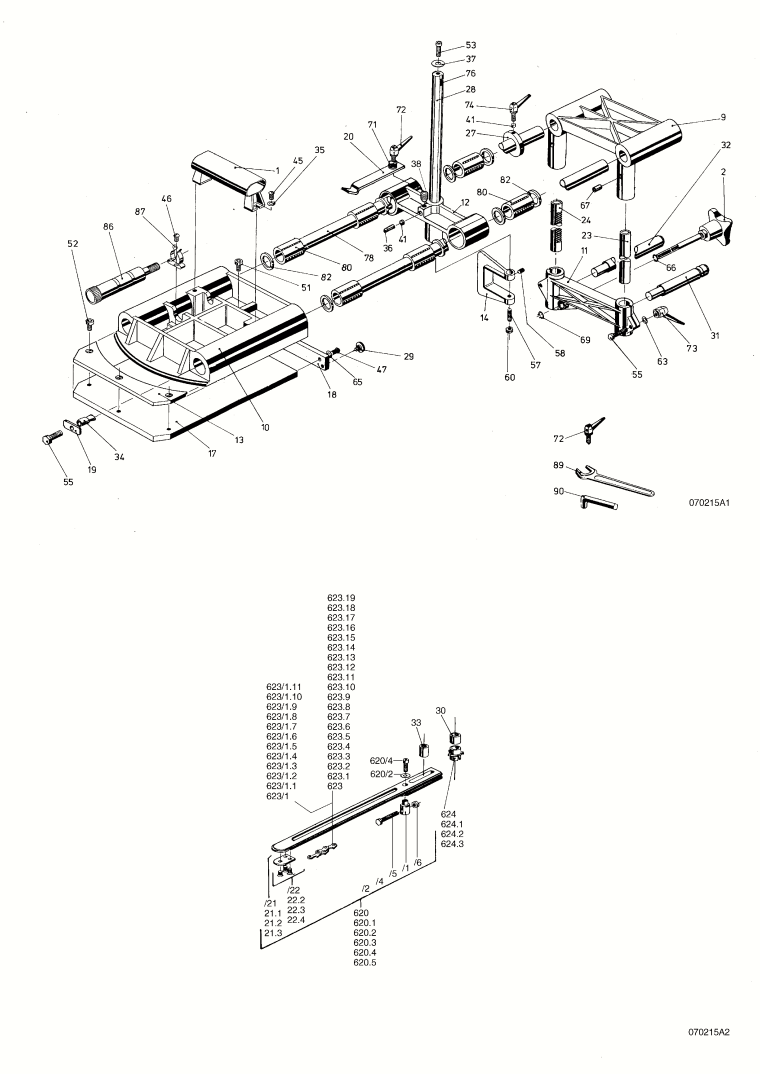

An exploded drawing and spare parts listing for the Mafell 200836 Slot Mortising Attachment SE 400

	Ex VAT	Inc VAT
1 - HANDLE MAF-035137.A2 035137	-
2 - PINION MAF-200842.A0 200842	-
9 - COLUMN SUPPORT MAF-200848.A2 200848	-
10 - PART NAME NOT AVAILABLE MAF-039105.A0 039105	-
11 - GUIDE BLOCK MAF-200830.A 200830	-
12 - SUPPORTING BRIGDE MAF-200832.A2 200832	-
13 - PART NAME NOT AVAILABLE MAF-037682.A1 037682	-
14 - FRAME MAF-037684.A0 037684	-
17 - BASE PLATE MAF-039108.A0 039108	-
18 - STOP PLATE MAF-039109.A0 039109	-
19 - STOP PLATE MAF-039878.A2 039878	-
20 - CLICK-IN METAL SHEET MAF-200846.A0 200846	-
23 - ARBOR, SHORT MAF-037693.A0 037693	-
24 - TOOTHED RACK MAF-037702.A0 037702	-
27 - DEPTH STOP RING MAF-037704.A2 037704	-
28 - GUIDE ROD MAF-200840.A1 200840	-
29 - POSITIONING PIN MAF-039121.A0 039121	-
30 - SPACER RING MAF-091361.A1 091361	-
31 - GUIDE COLUMN, SHORT MAF-200839.A 200839	-
32 - GUIDE COLUMN, LONG MAF-200838.A 200838	-
33 - SPACER RING MAF-091364.A3 091364	-
34 - PART NAME NOT AVAILABLE MAF-039877.A2 039877	-
35 - WASHER MAF-037691.A5 037691	-
36 - PRESSURE TRANSMITTING BOLT MAF-037705.A0 037705	-
37 - WASHER MAF-037695.A0 037695	-
38 - PRESSURE BOLT MAF-201170.A1 201170	-
41 - PRESSURE BOLT MAF-005814.A1 005814	£3.12	£3.74
45 - OVAL-HEAD SCREW MAF-055101.A5 055101	£2.04	£2.45
46 - CYLINDRICAL OVAL-HEAD SCREW MAF-055111.A0 055111	-
47 - OVAL-HEAD SCREW MAF-055130.A1 055130	-
51 - CYLINDER-HEAD SCREW MAF-005501.A2 005501	-
52 - CYLINDER-HEAD SCREW MAF-005590.A0 005590	-
53 - CYLINDER-HEAD SCREW MAF-005573.A5 005573	-
55 - HEXAGON-HEAD SCREW MAF-005633.A0 005633	-
57 - THREADED PIN MAF-005276.A1 005276	£1.81	£2.17
58 - THREADED PIN MAF-005281.A1 005281	-
60 - HEXAGONAL NUT MAF-005920.A17 005920	-
63 - WASHER MAF-006102.A3 006102	-
65 - LOCKING WASHER MAF-006113.A11 006113	£1.92	£2.31
66 - RETAINING RING MAF-006173.A2 006173	-
67 - SPRING DOWEL SLEEVE MAF-005817.A2 005817	-
69 - RETAINING RING MAF-007140.A1 007140	£1.62	£1.94
71 - PRESSURE SPRING MAF-066048.A2 066048	-
72 - CLAMPING LEVER MAF-007110.A0 007110	-
73 - CLAMPING LEVER MAF-007190.A0 007190	-
74 - CLAMPING LEVER MAF-037714.A4 037714	£25.28	£30.33
76 - SCALE MAF-037727.A1 037727	-
78 - HOLLOW SHAFT MAF-037710.A1 037710	-
80 - LINEAR BALL BEARING MAF-062048.A1 062048	-
82 - GASKET MAF-065012.A2 065012	-
86 - GREASE GUN MAF-076158.A0 076158	-
87 - SUPPORT MAF-076159.A4 076159	£9.24	£11.09
89 - SINGLE-END SPANNER MAF-093008.A1 093008	-
90 - ALLEN KEY MAF-093074.A1 093074	£2.95	£3.54
620 - CHAIN BAR 6 - 7 X 300 MM; LS 103 / SG 400 MAF-091606.A1 091606	£730.73	£876.88
620.1 - CHAIN BAR 8 - 9 X 300 MM; LS 103 / SG 400 MAF-091607.A1 091607	-
620.2 - CHAIN BAR 10 - 11 X 300 MM; LS 103 / SG 400 MAF-091608.A0 091608	-
620.3 - CHAIN BAR 12 - 17 X 300 MM; LS 103 / SG 400 MAF-091609.A1 091609	£852.49	£1022.99
620.4 - CHAIN BAR 10 - 11 X 400 MM; LS 103 / SG 400 MAF-091613.A1 091613	-
620.5 - CHAIN BAR 12 - 17 X 400 MM; LS 103 / SG 400 MAF-091611.A0 091611	£882.74	£1059.29
620/1 - CLAMPING PIECE MAF-038021.A0 038021	-
620/2 - WASHER MAF-006144.A1 006144	£2.11	£2.53
620/4 - CYLINDER-HEAD SCREW MAF-005573.A7 005573	-
620/5 - HEXAGON-HEAD SCREW MAF-005685.A1 005685	-
620/6 - HEXAGONAL NUT MAF-005920.A18 005920	-
620/21 - BEARING 6 - 7 MM; SG 230 / SG 400 2.5mm MAF-091398.A3 091398	£112.71	£135.25
620/21.1 - BEARING 8 - 9 MM; SG 230 / SG 400 MAF-091396.A1 091396	£88.00	£105.60
620/21.2 - BEARING 10 - 11 MM; SG 230 / SG 400 MAF-091397.A1 091397	£88.00	£105.60
620/21.3 - BEARING 12 - 17 MM; SG 230 / SG 400 5mm MAF-091399.A2 091399	£101.20	£121.44
620/22 - COVER + 3 FLAT-HEAD SCREWS 6 - 7 MM; SG 230 / SG 400 MAF-091372.A3 091372	£86.32	£103.59
620/22.2 - COVER + 3 FLAT-HEAD SCREWS 8 - 9 MM; SG 230 / SG 400 MAF-091370.A3 091370	£99.73	£119.68
620/22.3 - COVER + 3 FLAT-HEAD SCREWS 10 - 11 MM; SG 230 / SG 400 MAF-091371.A0 091371	£70.71	£84.85
623 - CHAIN 6 X 300 MM; LS 103 / SG 400 MAF-091614.A1 091614	-
623.1 - CHAIN 7 X 300 MM; LS 103 / SG 400 MAF-091616.A0 091616	£674.30	£809.16
623.2 - CHAIN 8 X 300 MM; LS 103 / SG 400 MAF-091617.A1 091617	-
623.3 - CHAIN 9 X 300 MM; LS 103 / SG 400 MAF-091619.A0 091619	-
623.4 - CHAIN 10 X 300 MM; LS 103 / SG 400 MAF-091621.A0 091621	-
623.5 - CHAIN 11 X 300 MM; LS 103 / SG 400 MAF-091623.A1 091623	-
623.6 - CHAIN 12 X 300 MM; LS 103 / SG 400 MAF-091624.A1 091624	£728.74	£874.49
623.7 - CHAIN 13 X 300 MM; LS 103 / SG 400 MAF-091626.A0 091626	-
623.8 - CHAIN 14 X 300 MM; LS 103 / SG 400 MAF-091627.A0 091627	-
623.9 - CHAIN 15 X 300 MM; LS 103 / SG 400 MAF-091628.A0 091628	-
623.10 - CHAIN 16 X 300 MM; LS 103 / SG 400 MAF-091629.A0 091629	-
623.11 - CHAIN 17 X 300 MM; LS 103 / SG 400 MAF-091631.A0 091631	-
623.12 - CHAIN 10 X 400 MM; LS 103 / SG 400 MAF-091632.A1 091632	-
623.13 - CHAIN 11 X 400 MM; LS 103 / SG 400 MAF-091633.A1 091633	£882.74	£1059.29
623.14 - CHAIN 12 X 400 MM; LS 103 / SG 400 MAF-091634.A0 091634	£911.16	£1093.39
623.15 - CHAIN 13 X 400 MM; LS 103 / SG 400 MAF-091636.A0 091636	£1043.63	£1252.36
623.16 - CHAIN 14 X 400 MM; LS 103 / SG 400 MAF-091637.A1 091637	-
623.17 - CHAIN 15 X 400 MM; LS 103 / SG 400 MAF-091638.A0 091638	-
623.18 - CHAIN 16 X 400 MM; LS 103 / SG 400 MAF-091639.A0 091639	-
623.19 - CHAIN 17 X 400 MM; LS 103 / SG 400 MAF-091641.A0 091641	-
623/1 - SET OF LINKS MAF-091393.A0 091393	-
623/1.1 - SET OF LINKS MAF-091394.A3 091394	-
623/1.2 - SET OF LINKS MAF-091395.A2 091395	-
623/1.3 - SET OF LINKS MAF-091391.A0 091391	-
623/1.4 - SET OF LINKS MAF-091366.A0 091366	-
623/1.5 - SET OF LINKS MAF-091392.A2 091392	-
623/1.6 - SET OF LINKS MAF-091367.A2 091367	-
623/1.7 - SET OF LINKS MAF-091368.A0 091368	-
623/1.8 - SET OF LINKS MAF-091369.A2 091369	-
623/1.9 - SET OF LINKS MAF-091335.A1 091335	-
623/1.10 - SET OF LINKS MAF-091336.A3 091336	-
623/1.11 - SET OF LINKS MAF-091337.A3 091337	£633.32	£759.99
624 - SPROCKET MAF-091388.A0 091388	-
624.1 - SPROCKET MAF-091386.A0 091386	-
624.2 - SPROCKET MAF-091387.A0 091387	£72.95	£87.54
624.3 - SPROCKET MAF-091389.A0 091389	-
