Mafell 919901 Cordless Drill Driver A 10 M in the T-MAX Spare Parts

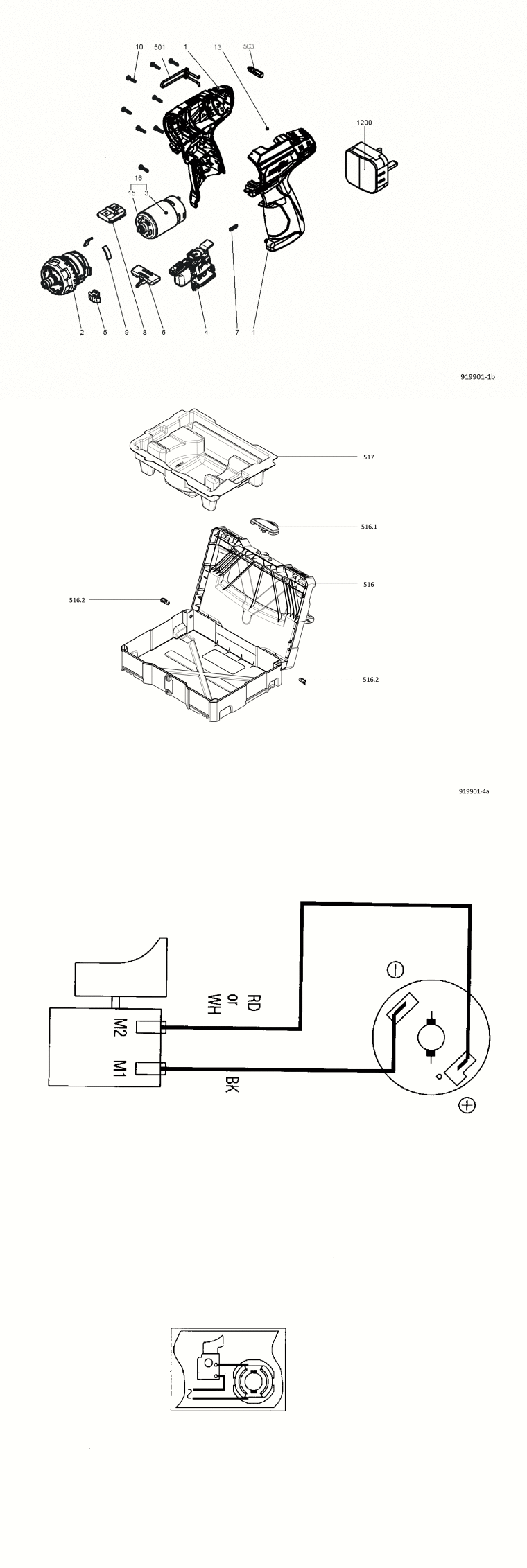

An exploded drawing and spare parts listing for the Mafell 919901 Cordless Drill Driver A 10 M in the T-MAX

	Ex VAT	Inc VAT
1 - HANDLE SHELLS (PAIR) MAF-206732.A0 206732	-
2 - GEARING MAF-094462.A1 094462	£48.94	£58.73
3 - MOTOR MAF-094471.A1 094471	-
4 - SWITCH MAF-094463.A1 094463	£53.83	£64.60
5 - LED-LENS MAF-094464.A1 094464	-
6 - SWITCH FOR ROTATION DIRECTION MAF-094465.A1 094465	-
7 - LABEL LED MAF-094466.A1 094466	-
8 - SWITCH SLIDER MAF-094467.A1 094467	-
9 - FELT MAF-094468.A1 094468	-
10 - SELF-TAPPING OVAL-HEAD SCREW MAF-094469.A1 094469	-
13 - MAGNET MAF-206626.A0 206626	-
15 - PINION MAF-094472.A0 094472	-
16 - MOTOR MAF-207731.A0 207731	£34.38	£41.26
501 - BELT CLIP 10 MAF-206715.A1 206715	£14.64	£17.57
503 - BIT MAF-206641.A4 206641	-
516 - CARRYING CASE T-MAX GR. I MAF-095178.A0 095178	-
516.1 - LATCH T-MAX MAF-095183.A1 095183	-
516.2 - PIVOT MAF-095201.A1 095201	-
517 - PLASTIC TRAY FOR T-MAX MAF-095195.A 095195	-
