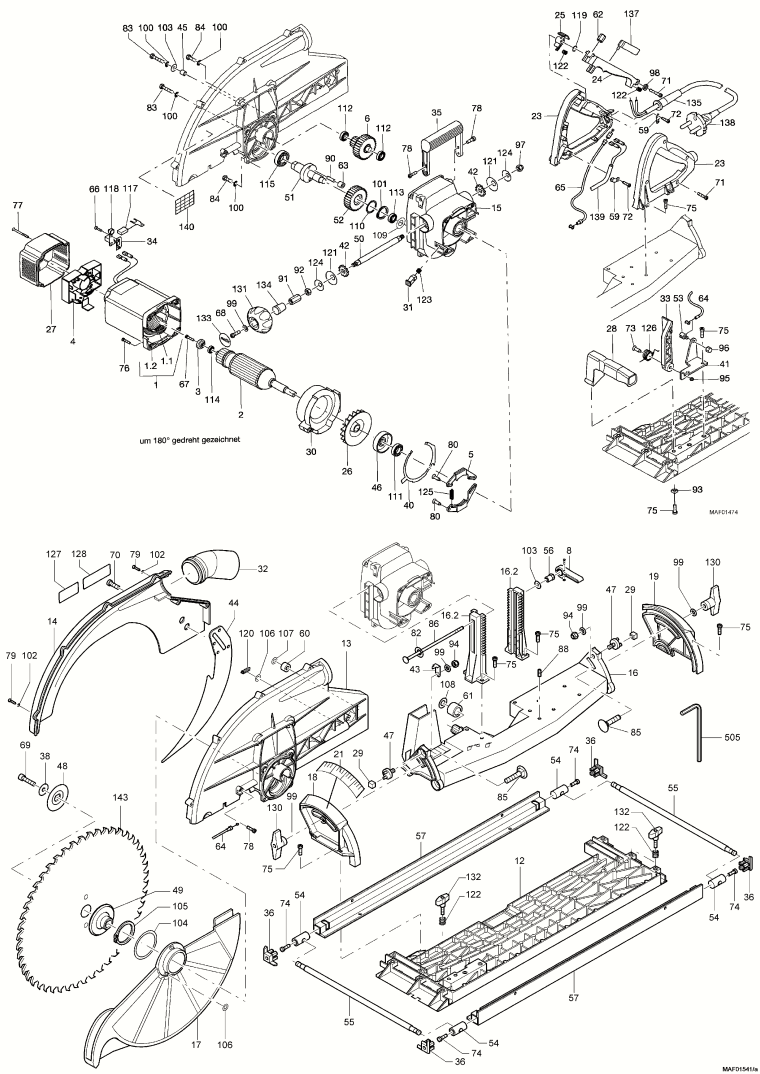

1 - MOTOR CASING WITH INDUCTOR
MAF-084507.A5
084507
|
-
|
|
|
|
1.1 - INDUCTOR WITH COIL
MAF-084508.A5
084508
|
£275.03
|
£330.04
|
|
|
1.2 - MOTOR CASING, EMPTY
MAF-203635.A28
203635
|
£101.12
|
£121.34
|
|
|
2 - ARMATURE, BALANCED
MAF-088153.A6
088153
|
-
|
|
|
|
3 - TACHOMETER CARRIER
MAF-038975.A41
038975
|
£21.15
|
£25.38
|
|
|
4 - CONTROL MODULE
MAF-077142.A9
077142
|
£190.26
|
£228.31
|
|
|
5 - BRAKE LEVER, CPL.
MAF-201122.A25
201122
|
£23.68
|
£28.41
|
|
|
6 - GEAR SHAFT, CPL.
MAF-202214.A2
202214
|
-
|
|
|
|
8 - TENSIONING LEVER
MAF-039806.A4
039806
|
£7.81
|
£9.37
|
|
|
12 - BASE PLATE
MAF-202180.A5
202180
|
-
|
|
|
|
13 - CASING
MAF-202182.A5
202182
|
£375.48
|
£450.57
|
|
|
14 - CASING COVER
MAF-202184.A11
202184
|
-
|
|
|
|
15 - GEAR CASING
MAF-203839.A6
203839
|
-
|
|
|
|
16 - TILTING SUPPORT, ASSEMBLED
MAF-202188.A8
202188
|
£364.98
|
£437.98
|
|
|
16.2 - VERTICAL GUIDEWAY
MAF-202189.A6
202189
|
£82.11
|
£98.53
|
|
|
17 - PROTECTIVE COVER
MAF-202192.A4
202192
|
-
|
|
|
|
18 - PART NAME NOT AVAILABLE
MAF-204661.A0
204661
|
-
|
|
|
|
19 - SEGMENT FOR TILTING, REAR
MAF-202196.A2
202196
|
-
|
|
|
|
23 - HANDLE SHELLS (PAIR)
MAF-202518.A5
202518
|
-
|
|
|
|
24 - SWITCH LEVER
MAF-201114.A31
201114
|
£13.89
|
£16.67
|
|
|
25 - LOCKING LEVER
MAF-201745.A41
201745
|
£6.32
|
£7.58
|
|
|
26 - FAN
MAF-039182.A20
039182
|
£19.45
|
£23.34
|
|
|
27 - MOTOR COVER
MAF-204037.A12
204037
|
-
|
|
|
|
28 - HANDLE
MAF-033468.A22
033468
|
-
|
|
|
|
29 - SLIDING BLOCK
MAF-201129.A10
201129
|
-
|
|
|
|
30 - AIR CONDUCTING RING
MAF-202201.A13
202201
|
-
|
|
|
|
31 - LOCKING BOLT
MAF-202202.A7
202202
|
-
|
|
|
|
32 - HOSE CONNECTOR
MAF-202203.A6
202203
|
-
|
|
|
|
33 - LEVER
MAF-202204.A4
202204
|
-
|
|
|
|
34 - PAD
MAF-201872.A74
201872
|
-
|
|
|
|
35 - BOW HANDLE
MAF-202224.A9
202224
|
£19.48
|
£23.37
|
|
|
36 - END CAP
MAF-202229.A10
202229
|
-
|
|
|
|
38 - WASHER
MAF-034731.A7
034731
|
-
|
|
|
|
40 - COVERING RING
MAF-202205.A18
202205
|
-
|
|
|
|
41 - FIXTURE
MAF-202206.A13
202206
|
-
|
|
|
|
42 - ROUE DENTÉE
MAF-202207.A12
202207
|
-
|
|
|
|
43 - INDICATOR
MAF-202208.A5
202208
|
-
|
|
|
|
44 - RIVING KNIFE/SPLITTER
MAF-202209.A4
202209
|
-
|
|
|
|
45 - DISTANCE SLEEVE
MAF-035272.A17
035272
|
-
|
|
|
|
46 - BRAKE DRUM
MAF-201138.A9
201138
|
-
|
|
|
|
47 - GUIDE PIECE
MAF-201149.A0
201149
|
-
|
|
|
|
48 - FLANGE, FRONT
MAF-202215.A1
202215
|
-
|
|
|
|
49 - FLANGE, REAR
MAF-202216.A12
202216
|
-
|
|
|
|
50 - ARBOR
MAF-202217.A7
202217
|
-
|
|
|
|
51 - SAW SHAFT
MAF-202222.A0
202222
|
£107.32
|
£128.78
|
|
|
52 - ROUE DENTÉE
MAF-202223.A3
202223
|
-
|
|
|
|
53 - SHOULDER BOLT
MAF-202227.A8
202227
|
-
|
|
|
|
54 - BOLT
MAF-202231.A8
202231
|
-
|
|
|
|
55 - GUIDE BAR
MAF-202232.A8
202232
|
£28.48
|
£34.18
|
|
|
56 - PART NAME NOT AVAILABLE
MAF-203835.A5
203835
|
-
|
|
|
|
57 - GUIDE FENCE EXTENSION
MAF-202233.A0
202233
|
-
|
|
|
|
59 - CABLE CLAMP
MAF-029584.A105
029584
|
-
|
|
|
|
60 - STOP BUFFER
MAF-034209.A51
034209
|
-
|
|
|
|
61 - BUFFER
MAF-037764.A15
037764
|
-
|
|
|
|
62 - HEXAGONAL NUT
MAF-201147.A12
201147
|
£7.80
|
£9.36
|
|
|
63 - SLEEVE
MAF-202225.A7
202225
|
-
|
|
|
|
64 - BOWDEN CABLE, CPL. (BLADE GUARD)
MAF-205494.A0
205494
|
£47.08
|
£56.49
|
|
|
65 - BOWDEN CABLE, CPL. (BRAKE)
MAF-202228.A16
202228
|
£50.43
|
£60.52
|
|
|
66 - COUNTER-SUNK OVAL-HEAD SCREW
MAF-053020.A93
053020
|
£2.11
|
£2.53
|
|
|
67 - CYLINDER-HEAD SCREW
MAF-005505.A29
005505
|
-
|
|
|
|
68 - CYLINDER-HEAD SCREW
MAF-005501.A13
005501
|
-
|
|
|
|
69 - CYLINDER-HEAD SCREW
MAF-055038.A29
055038
|
£2.78
|
£3.33
|
|
|
70 - CYLINDER-HEAD SCREW
MAF-055044.A9
055044
|
-
|
|
|
|
71 - CYLINDRICAL OVAL-HEAD SCREW
MAF-055061.A219
055061
|
£1.79
|
£2.15
|
|
|
72 - SELF-TAPPING OVAL-HEAD SCREW
MAF-055062.A76
055062
|
-
|
|
|
|
73 - SHOULDER SCREW
MAF-055063.A21
055063
|
-
|
|
|
|
74 - CYLINDER-HEAD SCREW
MAF-055059.A11
055059
|
-
|
|
|
|
75 - OVAL-HEAD SCREW
MAF-055101.A41
055101
|
£2.14
|
£2.57
|
|
|
76 - OVAL-HEAD SCREW
MAF-055114.A33
055114
|
-
|
|
|
|
77 - SELF-TAPPING OVAL-HEAD SCREW
MAF-055124.A43
055124
|
-
|
|
|
|
78 - OVAL-HEAD SCREW
MAF-055129.A28
055129
|
-
|
|
|
|
79 - OVAL-HEAD SCREW
MAF-055068.A40
055068
|
-
|
|
|
|
80 - SHOULDER SCREW
MAF-055118.A57
055118
|
£2.52
|
£3.03
|
|
|
82 - SHIM RING
MAF-061152.A11
061152
|
-
|
|
|
|
83 - HEXAGON-HEAD SCREW
MAF-005683.A4
005683
|
-
|
|
|
|
84 - HEXAGON-HEAD SCREW
MAF-005697.A31
005697
|
-
|
|
|
|
85 - TRUSS-HEAD SCREW
MAF-005726.A18
005726
|
-
|
|
|
|
86 - TRUSS-HEAD SCREW
MAF-057042.A3
057042
|
-
|
|
|
|
88 - THREADED PIN
MAF-005230.A15
005230
|
-
|
|
|
|
90 - CYLINDRICAL PIN
MAF-058021.A7
058021
|
-
|
|
|
|
91 - HEXAGONAL NUT
MAF-059003.A5
059003
|
-
|
|
|
|
92 - HEXAGONAL NUT
MAF-005920.A55
005920
|
-
|
|
|
|
93 - SQUARE NUT
MAF-005953.A69
005953
|
-
|
|
|
|
94 - LOCKING NUT
MAF-005970.A10
005970
|
-
|
|
|
|
95 - LOCKING NUT
MAF-005999.A30
005999
|
-
|
|
|
|
96 - CAP NUT
MAF-005934.A21
005934
|
-
|
|
|
|
97 - CAP NUT
MAF-005946.A7
005946
|
-
|
|
|
|
98 - WASHER
MAF-061013.A69
061013
|
-
|
|
|
|
99 - WASHER
MAF-006102.A75
006102
|
-
|
|
|
|
100 - LOCKING WASHER
MAF-006113.A60
006113
|
£2.02
|
£2.43
|
|
|
101 - RETAINING RING
MAF-006167.A11
006167
|
-
|
|
|
|
102 - LOCKING WASHER
MAF-006184.A66
006184
|
£1.58
|
£1.89
|
|
|
103 - WASHER
MAF-061044.A54
061044
|
£1.73
|
£2.08
|
|
|
104 - SHIM RING
MAF-061071.A12
061071
|
-
|
|
|
|
105 - RETAINING RING
MAF-061072.A12
061072
|
-
|
|
|
|
106 - LOCKING WASHER
MAF-061073.A30
061073
|
-
|
|
|
|
107 - LOCKING WASHER
MAF-061005.A15
061005
|
-
|
|
|
|
108 - LOCKING WASHER
MAF-061145.A16
061145
|
-
|
|
|
|
109 - PART NAME NOT AVAILABLE
MAF-061182.A2
061182
|
-
|
|
|
|
110 - SHIM RING
MAF-061164.A11
061164
|
-
|
|
|
|
111 - GROOVED BALL BEARING
MAF-006260.A48
006260
|
£19.06
|
£22.87
|
|
|
112 - GROOVED BALL BEARING
MAF-006280.A67
006280
|
£14.33
|
£17.20
|
|
|
113 - GROOVED BALL BEARING
MAF-006269.A31
006269
|
-
|
|
|
|
114 - GROOVED BALL BEARING
MAF-062073.A82
062073
|
£15.00
|
£18.00
|
|
|
115 - GROOVED BALL BEARING
MAF-062018.A26
062018
|
£27.36
|
£32.83
|
|
|
117 - CARBON BRUSH WITH AUTOMATIC CUT-OFF
MAF-063147.A44
063147
|
£15.46
|
£18.55
|
|
|
118 - BRUSH HOLDER
MAF-063148.A47
063148
|
£10.82
|
£12.98
|
|
|
119 - SEALING RING
MAF-006591.A36
006591
|
£1.73
|
£2.08
|
|
|
120 - RETRACTING SPRING
MAF-035025.A6
035025
|
-
|
|
|
|
121 - CUP SPRING
MAF-066132.A8
066132
|
-
|
|
|
|
122 - PRESSURE SPRING
MAF-066043.A145
066043
|
£3.19
|
£3.83
|
|
|
123 - PRESSURE SPRING
MAF-066053.A52
066053
|
£2.67
|
£3.20
|
|
|
124 - CUP SPRING
MAF-066021.A16
066021
|
-
|
|
|
|
125 - RETRACTING SPRING
MAF-066112.A17
066112
|
£5.80
|
£6.96
|
|
|
126 - TORSION SPRING
MAF-066122.A9
066122
|
-
|
|
|
|
127 - ADHESIVE LABEL
MAF-070669.A13
070669
|
-
|
|
|
|
128 - ADHESIVE LABEL
MAF-070427.A3
070427
|
-
|
|
|
|
130 - WING NUT
MAF-065023.A27
065023
|
-
|
|
|
|
131 - HANDLE
MAF-038970.A54
038970
|
£8.78
|
£10.53
|
|
|
132 - WING SCREW
MAF-079070.A41
079070
|
-
|
|
|
|
133 - NAME PLATE
MAF-201166.A40
201166
|
£8.54
|
£10.25
|
|
|
134 - SLEEVE
MAF-202717.A2
202717
|
-
|
|
|
|
135 - CABLE PROTECTING SLEEVE
MAF-086065.A48
086065
|
£3.63
|
£4.36
|
|
|
137 - 2-POLE SWITCH
MAF-087599.A15
087599
|
£53.30
|
£63.96
|
|
|
138 - MAINS CABLE 10 M (32.8 FT.)
MAF-087612.A36
087612
|
£76.11
|
£91.33
|
|
|
139 - CONNECTING CABLE
MAF-087798.A9
087798
|
-
|
|
|
|
140 - ADHESIVE LABEL
MAF-070667.A4
070667
|
-
|
|
|
|
143 - TCT SAW BLADE
MAF-092525.A1
092525
|
£180.94
|
£217.13
|
|
|
505 - ALLEN KEY
MAF-093081.A27
093081
|
-
|
|
|
