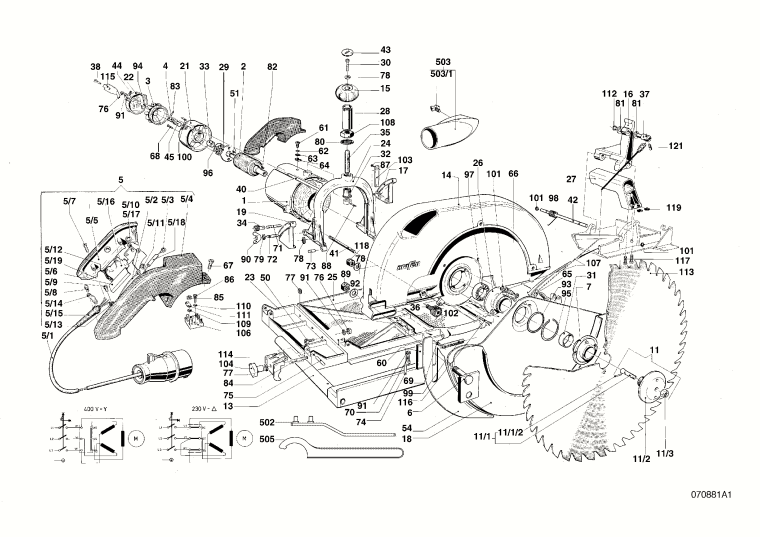

1 - STATOR
MAF-008247.A
008247
|
-
|
|
|
|
2 - ROTOR PACKAGED
MAF-033713.A
033713
|
-
|
|
|
|
3 - FAN WITH BRAKE RING, ASSEMBLED
MAF-027740.A1
027740
|
-
|
|
|
|
4 - BRAKE BOLT, ASSEMBLED
MAF-027864.A1
027864
|
-
|
|
|
|
5 - SWITCH, CPL., WITH CEE-PLUG
MAF-094275.A
094275
|
-
|
|
|
|
5/1 - PART NAME NOT AVAILABLE
MAF-201257.A
201257
|
-
|
|
|
|
5/2 - PART NAME NOT AVAILABLE
MAF-075109.A1
075109
|
-
|
|
|
|
5/3 - PART NAME NOT AVAILABLE
MAF-201256.A1
201256
|
-
|
|
|
|
5/4 - HANDLE SHELL, RIGHT
MAF-201251.A0
201251
|
-
|
|
|
|
5/5 - HANDLE SHELL, LEFT
MAF-201252.A0
201252
|
-
|
|
|
|
5/6 - COVERING INSULATION
MAF-028596.A2
028596
|
-
|
|
|
|
5/7 - FLAT-HEAD SCREW
MAF-005347.A0
005347
|
-
|
|
|
|
5/8 - CYLINDER-HEAD SCREW
MAF-055054.A9
055054
|
-
|
|
|
|
5/9 - LOCKING SCREW WITH WASHER
MAF-055155.A28
055155
|
-
|
|
|
|
5/10 - CYLINDER-HEAD SCREW
MAF-005598.A2
005598
|
-
|
|
|
|
5/11 - WASHER
MAF-061015.A56
061015
|
-
|
|
|
|
5/12 - CYLINDER-HEAD SCREW
MAF-055110.A2
055110
|
-
|
|
|
|
5/13 - CLIP CONNECTOR
MAF-006172.A22
006172
|
-
|
|
|
|
5/14 - CABLE CLAMP
MAF-006566.A8
006566
|
-
|
|
|
|
5/15 - CABLE PROTECTING SLEEVE
MAF-086065.A64
086065
|
£3.63
|
£4.36
|
|
|
5/16 - 3-POLE SWITCH WITH LOCK-OFF BUTTON
MAF-087598.A3
087598
|
-
|
|
|
|
5/17 - LOCKING WASHER
MAF-006184.A49
006184
|
£1.58
|
£1.89
|
|
|
5/19 - SAFETY GUARD
MAF-038283.A4
038283
|
-
|
|
|
|
6 - CLAMPING PLATE, FRONT, ASSEMBLED
MAF-025613.A1
025613
|
-
|
|
|
|
7 - FLANGE, ASSEMBLED
MAF-023833.A
023833
|
-
|
|
|
|
11 - CLAMPING FLANGE
MAF-024336.A
024336
|
-
|
|
|
|
11/1 - EXPANDING BOLT, ASSEMBLED
MAF-024340.A0
024340
|
-
|
|
|
|
11/1/2 - SPRING DOWEL SLEEVE
MAF-005862.A4
005862
|
-
|
|
|
|
11/2 - CLAMPING FLANGE
MAF-024319.A
024319
|
-
|
|
|
|
11/3 - HEXAGONAL NUT
MAF-005920.A75
005920
|
-
|
|
|
|
13 - PARALLEL GUIDE FENCE
MAF-201254.A1
201254
|
-
|
|
|
|
14 - BEARING COVER WITH HOOD
MAF-039118.A
039118
|
-
|
|
|
|
15 - HANDLE
MAF-038970.A59
038970
|
£8.78
|
£10.53
|
|
|
16 - LEVER
MAF-039267.A0
039267
|
-
|
|
|
|
17 - SEGMENT FOR TILTING, RIGHT
MAF-023382.A0
023382
|
-
|
|
|
|
18 - PROTECTIVE COVER
MAF-039341.A
039341
|
-
|
|
|
|
19 - SEGMENT FOR TILTING, LEFT
MAF-028031.A0
028031
|
-
|
|
|
|
21 - INTERMEDIATE COVER
MAF-039280.A1
039280
|
-
|
|
|
|
22 - FAN COVER
MAF-027667.A1
027667
|
-
|
|
|
|
23 - PLATE EXTENSION
MAF-200525.A1
200525
|
-
|
|
|
|
24 - PIVOTING BEARING
MAF-027746.A0
027746
|
-
|
|
|
|
26 - FLANGE
MAF-023801.A0
023801
|
-
|
|
|
|
27 - HANDLE
MAF-033468.A10
033468
|
-
|
|
|
|
28 - EXTENSION PIPE
MAF-201393.A0
201393
|
-
|
|
|
|
29 - CLAMPING RING
MAF-028505.A1
028505
|
-
|
|
|
|
30 - CYLINDER-HEAD SCREW
MAF-005501.A9
005501
|
-
|
|
|
|
31 - SPACER RING
MAF-037602.A
037602
|
-
|
|
|
|
32 - THREADED BUSHING
MAF-027954.A1
027954
|
-
|
|
|
|
33 - SPACER RING
MAF-027823.A1
027823
|
-
|
|
|
|
34 - KNURLED NUT, LONG
MAF-023435.A1
023435
|
-
|
|
|
|
35 - LIFTING SPINDLE
MAF-027953.A1
027953
|
-
|
|
|
|
36 - BOLT
MAF-039266.A1
039266
|
-
|
|
|
|
37 - HINGE BOLT
MAF-039282.A0
039282
|
-
|
|
|
|
38 - SHOULDER SCREW
MAF-027744.A0
027744
|
-
|
|
|
|
40 - MOTOR CLAMPING SCREW, LONG
MAF-027826.A
027826
|
-
|
|
|
|
41 - MOTOR CLAMPING SCREW, SHORT
MAF-027825.A
027825
|
-
|
|
|
|
42 - ARBOR
MAF-039284.A0
039284
|
-
|
|
|
|
43 - NAME PLATE
MAF-201166.A53
201166
|
£8.54
|
£10.25
|
|
|
44 - STOP BOLT
MAF-022131.A0
022131
|
-
|
|
|
|
45 - SLEEVE
MAF-027747.A0
027747
|
-
|
|
|
|
50 - CYLINDER-HEAD SCREW
MAF-005573.A15
005573
|
-
|
|
|
|
51 - WOODRUFF KEY, SPECIAL
MAF-025336.A0
025336
|
-
|
|
|
|
54 - RIVING KNIFE/SPLITTER
MAF-025577.A
025577
|
-
|
|
|
|
60 - CLAMPING PLATE, REAR
MAF-025612.A2
025612
|
-
|
|
|
|
61 - CHEESE-HEAD SCREW
MAF-005520.A3
005520
|
-
|
|
|
|
62 - SPLIT SPRING LOCK WASHER
MAF-061011.A1
061011
|
-
|
|
|
|
63 - CLAMPING DISK
MAF-061031.A0
061031
|
-
|
|
|
|
64 - CLIP CONNECTOR
MAF-006172.A28
006172
|
-
|
|
|
|
65 - THREADED PIN
MAF-005218.A1
005218
|
-
|
|
|
|
66 - SCREW WITH PIVOT
MAF-005250.A0
005250
|
-
|
|
|
|
67 - FLAT-HEAD SCREW
MAF-005324.A4
005324
|
-
|
|
|
|
68 - FLAT-HEAD SCREW
MAF-005347.A3
005347
|
-
|
|
|
|
69 - CYLINDER-HEAD SCREW
MAF-005547.A
005547
|
-
|
|
|
|
70 - CYLINDER-HEAD SCREW
MAF-005537.A1
005537
|
-
|
|
|
|
71 - SET SCREW
MAF-005736.A0
005736
|
-
|
|
|
|
72 - SET SCREW
MAF-005737.A0
005737
|
-
|
|
|
|
73 - CYLINDRICAL PIN
MAF-058023.A1
058023
|
-
|
|
|
|
74 - CYLINDRICAL PIN
MAF-005864.A1
005864
|
-
|
|
|
|
75 - SPRING DOWEL SLEEVE
MAF-058090.A4
058090
|
-
|
|
|
|
76 - HEXAGONAL NUT
MAF-005939.A43
005939
|
-
|
|
|
|
77 - WASHER
MAF-006101.A134
006101
|
£1.80
|
£2.16
|
|
|
78 - WASHER
MAF-006102.A61
006102
|
-
|
|
|
|
79 - WASHER
MAF-006130.A21
006130
|
-
|
|
|
|
80 - WASHER
MAF-006141.A0
006141
|
-
|
|
|
|
81 - SUPPORTING DISK
MAF-061103.A3
061103
|
-
|
|
|
|
82 - WOODRUFF KEY
MAF-007803.A8
007803
|
-
|
|
|
|
83 - CYLINDRICAL PIN
MAF-005867.A0
005867
|
-
|
|
|
|
84 - SET SCREW
MAF-005703.A1
005703
|
-
|
|
|
|
85 - HEXAGONAL NUT
MAF-005912.A6
005912
|
-
|
|
|
|
86 - CYLINDER-HEAD SCREW
MAF-005510.A0
005510
|
-
|
|
|
|
87 - RIBBED NAIL
MAF-005826.A12
005826
|
-
|
|
|
|
88 - SPRING DOWEL SLEEVE
MAF-005831.A6
005831
|
-
|
|
|
|
89 - HEXAGONAL NUT
MAF-005926.A13
005926
|
-
|
|
|
|
90 - WING NUT
MAF-005941.A2
005941
|
-
|
|
|
|
91 - LOCKING WASHER
MAF-006113.A61
006113
|
£2.02
|
£2.43
|
|
|
92 - WASHER
MAF-006104.A14
006104
|
-
|
|
|
|
93 - SHIM RING
MAF-006143.A0
006143
|
-
|
|
|
|
94 - RETAINING RING
MAF-006175.A3
006175
|
-
|
|
|
|
95 - RETAINING RING
MAF-006199.A2
006199
|
-
|
|
|
|
96 - GROOVED BALL BEARING
MAF-006270.A2
006270
|
-
|
|
|
|
97 - GROOVED BALL BEARING
MAF-006261.A14
006261
|
-
|
|
|
|
98 - TORSION SPRING
MAF-066069.A0
066069
|
-
|
|
|
|
99 - RETRACTING SPRING
MAF-006633.A0
006633
|
-
|
|
|
|
100 - PRESSURE SPRING
MAF-006642.A0
006642
|
-
|
|
|
|
101 - RETAINING RING
MAF-007140.A8
007140
|
£1.70
|
£2.04
|
|
|
102 - BUFFER
MAF-037764.A12
037764
|
-
|
|
|
|
103 - HEIGHT ADJUSTMENT SCALE
MAF-007821.A0
007821
|
-
|
|
|
|
104 - WING NUT
MAF-007988.A11
007988
|
-
|
|
|
|
106 - TERMINAL STRIP
MAF-006474.A0
006474
|
-
|
|
|
|
107 - BOWDEN CABLE, CPL.
MAF-039283.A0
039283
|
-
|
|
|
|
108 - HEXAGONAL NUT
MAF-005988.A1
005988
|
-
|
|
|
|
109 - WASHER
MAF-006111.A0
006111
|
-
|
|
|
|
110 - LOCKING WASHER
MAF-006184.A65
006184
|
£1.58
|
£1.89
|
|
|
111 - CONNECTING BRIDGE
MAF-006478.A0
006478
|
-
|
|
|
|
112 - RETAINING RING
MAF-007159.A18
007159
|
-
|
|
|
|
113 - TCT SAW BLADE
MAF-092516.A
092516
|
-
|
|
|
|
114 - CLAMPING FRAME
MAF-027815.A0
027815
|
-
|
|
|
|
115 - PART NAME NOT AVAILABLE
MAF-027741.A1
027741
|
-
|
|
|
|
116 - FLAT-HEAD SCREW
MAF-005337.A1
005337
|
-
|
|
|
|
117 - CYLINDER-HEAD SCREW
MAF-005526.A6
005526
|
-
|
|
|
|
118 - CAP NUT
MAF-005950.A15
005950
|
-
|
|
|
|
119 - SQUARE NUT
MAF-005953.A49
005953
|
-
|
|
|
|
121 - CYLINDRICAL PIN
MAF-058126.A7
058126
|
-
|
|
|
|
502 - PIN SPANNER
MAF-093014.A1
093014
|
-
|
|
|
|
503 - HOSE CONNECTOR
MAF-037205.A2
037205
|
-
|
|
|
|
503/1 - WING SCREW
MAF-079026.A14
079026
|
-
|
|
|
|
505 - HOOK SPANNER
MAF-093086.A0
093086
|
-
|
|
|
