Mafell 922801 Portable Band Saw Z 3 K up to machine no. 823989 Spare Parts

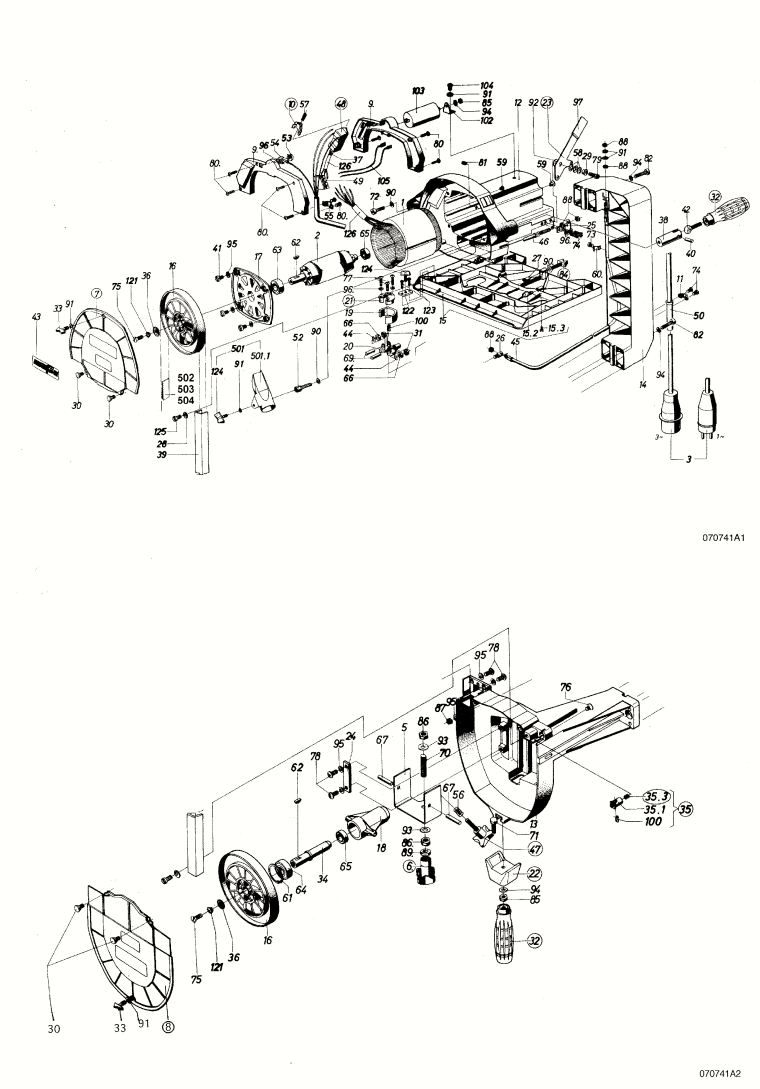

An exploded drawing and spare parts listing for the Mafell 922801 Portable Band Saw Z 3 K up to machine no. 823989

	Ex VAT	Inc VAT
1 - STATOR MAF-082105.A0 082105	-
2 - ROTOR MAF-007240.A1 007240	-
3 - MAINS CABLE WITH CEE-PLUG MAF-038334.A1 038334	-
5 - CLAMPING SUPPORT, CPL. MAF-038339.A3 038339	-
6 - STAR-SHAPED HANDLE MAF-039082.A4 039082	£108.28	£129.94
7 - COVER, UPPER MAF-038344.A2 038344	-
8 - COVER, LOWER MAF-038345.A3 038345	£33.57	£40.28
9 - SWITCH CASING MAF-038346.A1 038346	-
10 - LOCKING-OFF SLIDE MAF-038347.A1 038347	-
11 - CABLE CLAMP MAF-006566.A9 006566	-
12 - MOTOR CASING MAF-038313.A1 038313	-
13 - PART NAME NOT AVAILABLE MAF-203829.A3 203829	-
14 - FRAME MAF-038315.A0 038315	-
15 - BASE PLATE, CPL. MAF-038317.A0 038317	-
15.2 - ECCENTRIC BOLT MAF-039367.A0 039367	-
15.3 - CYLINDER-HEAD SCREW MAF-055028.A3 055028	-
16 - PART NAME NOT AVAILABLE MAF-038319.A0 038319	-
17 - BEARING COVER MAF-038321.A2 038321	-
18 - SHAFT BEARING MAF-038323.A2 038323	-
19 - SUPPORT FOR TILTING DEVICE MAF-038325.A4 038325	£79.11	£94.93
20 - BALL BEARING SUPPORT 607ZZ MAF-038327.A4 038327	£53.30	£63.96
21 - SUPPORTING PIECE MAF-038329.A1 038329	£10.50	£12.60
22 - LEG MAF-038366.A2 038366	-
23 - LEVER MAF-038330.A2 038330	-
24 - GUIDE PLATE MAF-038331.A5 038331	-
25 - HOLDING ANGLE MAF-038348.A6 038348	-
26 - SETTING SCREW SUPPORT MAF-038349.A1 038349	-
27 - THREADED BUSHING MAF-038350.A5 038350	-
28 - CLAMPING DISK MAF-038364.A4 038364	£4.32	£5.18
29 - BEARING BUSH MAF-038352.A0 038352	-
30 - SHOULDER BOLT MAF-038353.A1 038353	-
31 - SPACER SLEEVE MAF-039514.A0 039514	£7.16	£8.59
32 - HANDLE MAF-038355.A2 038355	-
33 - WING SCREW MAF-079071.A4 079071	-
34 - WHEEL SHAFT MAF-038332.A0 038332	-
35 - SLOTTED BOLT, CPL. MAF-038351.A0 038351	-
35.1 - SLOTTED BOLT MAF-038333.A0 038333	-
35.3 - THREADED PIN MAF-005269.A1 005269	-
36 - CLAMPING DISK MAF-038356.A3 038356	-
37 - CONNECTING CABLE MAF-027056.A2 027056	-
38 - HINGE PIECE MAF-038368.A1 038368	-
39 - PART NAME NOT AVAILABLE MAF-038363.A1 038363	£21.66	£25.99
40 - CYLINDRICAL PIN MAF-058050.A0 058050	-
41 - CYLINDER-HEAD SCREW MAF-005531.A22 005531	£2.90	£3.48
42 - THREADED EYE-BOLT MAF-057018.A12 057018	-
43 - STICKER MAF-077308.A20 077308	-
44 - SHIM RING MAF-061049.A4 061049	£1.81	£2.17
45 - BOWDEN CONTROL CABLE, LONG MAF-038357.A3 038357	-
46 - PART NAME NOT AVAILABLE MAF-203742.A2 203742	-
47 - STAR-SHAPED HANDLE SCREW MAF-079043.A2 079043	-
48 - 3-POLE SWITCH MAF-087607.A1 087607	-
49 - CLAMPING STRIP MAF-086062.A1 086062	-
50 - CABLE PROTECTING SLEEVE MAF-086048.A2 086048	-
52 - SPECIAL SCREW MAF-039382.A0 039382	-
53 - LOCKING SCREW WITH WASHER MAF-055155.A29 055155	-
54 - CLIP CONNECTOR MAF-006172.A24 006172	-
55 - CABLE CLAMP MAF-029584.A132 029584	-
56 - PRESSURE SPRING MAF-066056.A2 066056	-
57 - PRESSURE SPRING MAF-066053.A39 066053	£2.67	£3.20
58 - CUP SPRING MAF-066068.A3 066068	-
59 - PROTECTIVE PLUG MAF-086074.A0 086074	-
60 - CLAMP MAF-086063.A10 086063	-
61 - RETAINING RING MAF-061008.A7 061008	-
62 - WOODRUFF KEY MAF-007805.A16 007805	£2.72	£3.27
63 - GROOVED BALL BEARING MAF-006277.A2 006277	-
64 - GROOVED BALL BEARING MAF-062018.A36 062018	£27.36	£32.83
65 - GROOVED BALL BEARING MAF-006268.A28 006268	£16.07	£19.28
66 - GROOVED BALL BEARING MAF-062010.A36 062010	£15.24	£18.29
67 - CYLINDRICAL PIN MAF-058052.A8 058052	-
69 - CYLINDRICAL PIN MAF-058145.A4 058145	£2.54	£3.05
70 - THREADED PIN MAF-005295.A2 005295	-
71 - HEXAGON-HEAD SCREW MAF-005692.A5 005692	-
72 - CYLINDER-HEAD SCREW MAF-005501.A7 005501	-
73 - CYLINDER-HEAD SCREW MAF-005598.A5 005598	-
74 - CYLINDER-HEAD SCREW MAF-055054.A13 055054	-
75 - FLAT-HEAD SCREW MAF-005349.A5 005349	-
76 - FLAT-HEAD SCREW MAF-005320.A2 005320	-
77 - OVAL-HEAD SCREW MAF-055069.A34 055069	£2.27	£2.72
78 - OVAL-HEAD SCREW MAF-055101.A51 055101	£2.14	£2.57
79 - HEXAGON-HEAD SCREW MAF-005683.A9 005683	-
80 - SELF-TAPPING OVAL-HEAD SCREW MAF-055062.A102 055062	-
81 - THREADED PIN MAF-005282.A2 005282	-
82 - CYLINDER-HEAD SCREW MAF-055074.A21 055074	£2.23	£2.68
84 - WING SCREW MAF-079026.A8 079026	-
85 - HEXAGONAL NUT MAF-005920.A67 005920	-
86 - HEXAGONAL NUT MAF-005924.A44 005924	£1.75	£2.10
87 - HEXAGONAL NUT MAF-005939.A40 005939	-
88 - HEXAGONAL NUT MAF-005911.A31 005911	-
89 - WASHER MAF-039122.A1 039122	-
90 - WASHER MAF-006102.A72 006102	-
91 - WASHER MAF-006101.A110 006101	£1.80	£2.16
92 - WASHER MAF-061044.A40 061044	£1.73	£2.08
93 - LOCKING WASHER MAF-006183.A23 006183	£2.11	£2.53
94 - LOCKING WASHER MAF-006114.A45 006114	-
95 - LOCKING WASHER MAF-006113.A34 006113	£2.02	£2.43
96 - LOCKING WASHER MAF-006184.A80 006184	£1.58	£1.89
97 - PLASTIC CAP MAF-038338.A1 038338	-
100 - PART NAME NOT AVAILABLE MAF-038340.A5 038340	£7.88	£9.46
121 - TOOTHED WASHER MAF-006118.A5 006118	-
122 - CLAMPING PLATE MAF-033933.A12 033933	£7.16	£8.59
123 - OVAL-HEAD SCREW MAF-055114.A23 055114	-
124 - WING SCREW MAF-079077.A39 079077	-
125 - CYLINDER-HEAD SCREW MAF-005531.A13 005531	£2.90	£3.48
126 - PROTECTIVE TUBE MAF-200349.A0 200349	-
501 - HOSE CONNECTOR MAF-039380.A0 039380	-
501.1 - HOSE CONNECTOR MAF-039381.A1 039381	-
502 - BAND SAW BLADES, 1 PIECE MAF-092337.A3 092337	£36.74	£44.09
503 - BAND SAW BLADES, 10 PIECES MAF-092335.A2 092335	£25.37	£30.44
504 - BAND SAW BLADES, 10 PIECES MAF-092336.A4 092336	£21.17	£25.40
