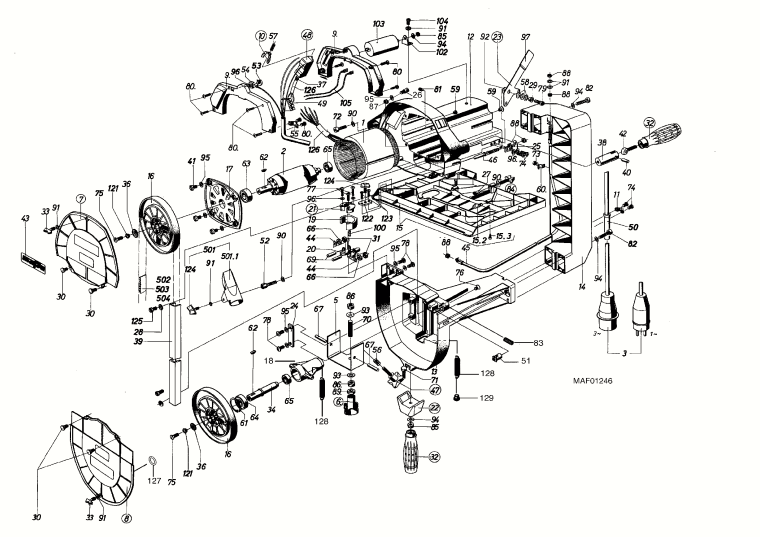

1 - STATOR
MAF-082105.A1
082105
|
-
|
|
|
|
2 - ROTOR
MAF-007240.A0
007240
|
-
|
|
|
|
3 - MAINS CABLE WITH CEE-PLUG
MAF-038334.A0
038334
|
-
|
|
|
|
5 - CLAMPING SUPPORT, CPL.
MAF-038339.A4
038339
|
-
|
|
|
|
6 - STAR-SHAPED HANDLE
MAF-039082.A3
039082
|
£108.28
|
£129.94
|
|
|
7 - COVER, UPPER
MAF-038344.A0
038344
|
-
|
|
|
|
8 - COVER, LOWER
MAF-038345.A5
038345
|
£33.57
|
£40.28
|
|
|
9 - SWITCH CASING
MAF-038346.A0
038346
|
-
|
|
|
|
10 - LOCKING-OFF SLIDE
MAF-038347.A0
038347
|
-
|
|
|
|
11 - CABLE CLAMP
MAF-006566.A5
006566
|
-
|
|
|
|
12 - MOTOR CASING
MAF-038313.A0
038313
|
-
|
|
|
|
13 - PART NAME NOT AVAILABLE
MAF-203829.A6
203829
|
-
|
|
|
|
14 - FRAME
MAF-038315.A1
038315
|
-
|
|
|
|
15 - BASE PLATE, CPL.
MAF-038317.A1
038317
|
-
|
|
|
|
15.2 - ECCENTRIC BOLT
MAF-039367.A2
039367
|
-
|
|
|
|
15.3 - CYLINDER-HEAD SCREW
MAF-055028.A1
055028
|
-
|
|
|
|
16 - PART NAME NOT AVAILABLE
MAF-038319.A1
038319
|
-
|
|
|
|
17 - BEARING COVER
MAF-038321.A0
038321
|
-
|
|
|
|
18 - SHAFT BEARING
MAF-038323.A5
038323
|
-
|
|
|
|
19 - SUPPORT FOR TILTING DEVICE
MAF-038325.A0
038325
|
£79.11
|
£94.93
|
|
|
20 - BALL BEARING SUPPORT 607ZZ
MAF-038327.A3
038327
|
£53.30
|
£63.96
|
|
|
21 - SUPPORTING PIECE
MAF-038329.A5
038329
|
£10.50
|
£12.60
|
|
|
22 - LEG
MAF-038366.A0
038366
|
-
|
|
|
|
23 - LEVER
MAF-038330.A1
038330
|
-
|
|
|
|
24 - GUIDE PLATE
MAF-038331.A4
038331
|
-
|
|
|
|
25 - HOLDING ANGLE
MAF-038348.A1
038348
|
-
|
|
|
|
26 - SETTING SCREW SUPPORT
MAF-038349.A0
038349
|
-
|
|
|
|
27 - THREADED BUSHING
MAF-038350.A3
038350
|
-
|
|
|
|
28 - CLAMPING DISK
MAF-038364.A0
038364
|
£4.32
|
£5.18
|
|
|
29 - BEARING BUSH
MAF-038352.A2
038352
|
-
|
|
|
|
30 - SHOULDER BOLT
MAF-038353.A0
038353
|
-
|
|
|
|
31 - SPACER SLEEVE
MAF-039514.A6
039514
|
£7.16
|
£8.59
|
|
|
32 - HANDLE
MAF-038355.A1
038355
|
-
|
|
|
|
33 - WING SCREW
MAF-079071.A5
079071
|
-
|
|
|
|
34 - WHEEL SHAFT
MAF-038332.A2
038332
|
-
|
|
|
|
36 - CLAMPING DISK
MAF-038356.A7
038356
|
-
|
|
|
|
37 - CONNECTING CABLE
MAF-027056.A4
027056
|
-
|
|
|
|
38 - HINGE PIECE
MAF-038368.A0
038368
|
-
|
|
|
|
39 - PART NAME NOT AVAILABLE
MAF-038363.A0
038363
|
£21.66
|
£25.99
|
|
|
40 - CYLINDRICAL PIN
MAF-058050.A1
058050
|
-
|
|
|
|
41 - CYLINDER-HEAD SCREW
MAF-005531.A18
005531
|
£2.90
|
£3.48
|
|
|
42 - THREADED EYE-BOLT
MAF-057018.A7
057018
|
-
|
|
|
|
43 - STICKER
MAF-077308.A21
077308
|
-
|
|
|
|
44 - SHIM RING
MAF-061049.A5
061049
|
£1.81
|
£2.17
|
|
|
45 - BOWDEN CONTROL CABLE, LONG
MAF-038357.A4
038357
|
-
|
|
|
|
46 - PART NAME NOT AVAILABLE
MAF-203742.A1
203742
|
-
|
|
|
|
47 - STAR-SHAPED HANDLE SCREW
MAF-079043.A5
079043
|
-
|
|
|
|
48 - 3-POLE SWITCH
MAF-087607.A0
087607
|
-
|
|
|
|
49 - CLAMPING STRIP
MAF-086062.A0
086062
|
-
|
|
|
|
50 - CABLE PROTECTING SLEEVE
MAF-086048.A0
086048
|
-
|
|
|
|
51 - PART NAME NOT AVAILABLE
MAF-203816.A2
203816
|
-
|
|
|
|
52 - SPECIAL SCREW
MAF-039382.A1
039382
|
-
|
|
|
|
53 - LOCKING SCREW WITH WASHER
MAF-055155.A30
055155
|
-
|
|
|
|
54 - CLIP CONNECTOR
MAF-006172.A23
006172
|
-
|
|
|
|
55 - CABLE CLAMP
MAF-029584.A153
029584
|
-
|
|
|
|
56 - PRESSURE SPRING
MAF-066056.A1
066056
|
-
|
|
|
|
57 - PRESSURE SPRING
MAF-066053.A19
066053
|
£2.67
|
£3.20
|
|
|
58 - CUP SPRING
MAF-066068.A4
066068
|
-
|
|
|
|
59 - PROTECTIVE PLUG
MAF-086074.A1
086074
|
-
|
|
|
|
60 - CLAMP
MAF-086063.A3
086063
|
-
|
|
|
|
61 - RETAINING RING
MAF-061008.A11
061008
|
-
|
|
|
|
62 - WOODRUFF KEY
MAF-007805.A20
007805
|
£2.72
|
£3.27
|
|
|
63 - GROOVED BALL BEARING
MAF-006277.A1
006277
|
-
|
|
|
|
64 - GROOVED BALL BEARING
MAF-062018.A45
062018
|
£27.36
|
£32.83
|
|
|
65 - GROOVED BALL BEARING
MAF-006268.A26
006268
|
£16.07
|
£19.28
|
|
|
66 - GROOVED BALL BEARING
MAF-062010.A25
062010
|
£15.24
|
£18.29
|
|
|
67 - CYLINDRICAL PIN
MAF-058052.A4
058052
|
-
|
|
|
|
69 - CYLINDRICAL PIN
MAF-058145.A2
058145
|
£2.54
|
£3.05
|
|
|
70 - THREADED PIN
MAF-005295.A3
005295
|
-
|
|
|
|
71 - HEXAGON-HEAD SCREW
MAF-005692.A6
005692
|
-
|
|
|
|
72 - CYLINDER-HEAD SCREW
MAF-005501.A4
005501
|
-
|
|
|
|
73 - CYLINDER-HEAD SCREW
MAF-005598.A4
005598
|
-
|
|
|
|
74 - CYLINDER-HEAD SCREW
MAF-055054.A15
055054
|
-
|
|
|
|
75 - FLAT-HEAD SCREW
MAF-005349.A2
005349
|
-
|
|
|
|
76 - FLAT-HEAD SCREW
MAF-005320.A1
005320
|
-
|
|
|
|
77 - OVAL-HEAD SCREW
MAF-055069.A40
055069
|
£2.27
|
£2.72
|
|
|
78 - OVAL-HEAD SCREW
MAF-055101.A59
055101
|
£2.14
|
£2.57
|
|
|
79 - HEXAGON-HEAD SCREW
MAF-005683.A0
005683
|
-
|
|
|
|
80 - SELF-TAPPING OVAL-HEAD SCREW
MAF-055062.A99
055062
|
-
|
|
|
|
81 - THREADED PIN
MAF-005282.A0
005282
|
-
|
|
|
|
82 - CYLINDER-HEAD SCREW
MAF-055074.A23
055074
|
£2.23
|
£2.68
|
|
|
83 - THREADED PIN
MAF-005284.A91
005284
|
-
|
|
|
|
84 - WING SCREW
MAF-079026.A11
079026
|
-
|
|
|
|
85 - HEXAGONAL NUT
MAF-005920.A66
005920
|
-
|
|
|
|
86 - HEXAGONAL NUT
MAF-005924.A39
005924
|
£1.75
|
£2.10
|
|
|
87 - HEXAGONAL NUT
MAF-005939.A42
005939
|
-
|
|
|
|
88 - HEXAGONAL NUT
MAF-005911.A25
005911
|
-
|
|
|
|
89 - WASHER
MAF-039122.A2
039122
|
-
|
|
|
|
90 - WASHER
MAF-006102.A101
006102
|
-
|
|
|
|
91 - WASHER
MAF-006101.A121
006101
|
£1.80
|
£2.16
|
|
|
92 - WASHER
MAF-061044.A42
061044
|
£1.73
|
£2.08
|
|
|
93 - LOCKING WASHER
MAF-006183.A29
006183
|
£2.11
|
£2.53
|
|
|
94 - LOCKING WASHER
MAF-006114.A44
006114
|
-
|
|
|
|
95 - LOCKING WASHER
MAF-006113.A64
006113
|
£2.02
|
£2.43
|
|
|
96 - LOCKING WASHER
MAF-006184.A48
006184
|
£1.58
|
£1.89
|
|
|
97 - PLASTIC CAP
MAF-038338.A2
038338
|
-
|
|
|
|
100 - PART NAME NOT AVAILABLE
MAF-038340.A0
038340
|
£7.88
|
£9.46
|
|
|
121 - TOOTHED WASHER
MAF-006118.A3
006118
|
-
|
|
|
|
122 - CLAMPING PLATE
MAF-033933.A10
033933
|
£7.16
|
£8.59
|
|
|
123 - OVAL-HEAD SCREW
MAF-055114.A14
055114
|
-
|
|
|
|
124 - WING SCREW
MAF-079077.A46
079077
|
-
|
|
|
|
125 - CYLINDER-HEAD SCREW
MAF-005531.A17
005531
|
£2.90
|
£3.48
|
|
|
126 - PROTECTIVE TUBE
MAF-200349.A1
200349
|
-
|
|
|
|
127 - SEALING RING
MAF-065004.A66
065004
|
£1.72
|
£2.06
|
|
|
128 - PART NAME NOT AVAILABLE
MAF-066153.A1
066153
|
-
|
|
|
|
129 - BOLT
MAF-203815.A2
203815
|
-
|
|
|
|
501 - HOSE CONNECTOR
MAF-039380.A2
039380
|
-
|
|
|
|
501.1 - HOSE CONNECTOR
MAF-039381.A0
039381
|
-
|
|
|
|
502 - BAND SAW BLADES, 1 PIECE
MAF-092337.A4
092337
|
£36.74
|
£44.09
|
|
|
503 - BAND SAW BLADES, 10 PIECES
MAF-092335.A1
092335
|
£25.37
|
£30.44
|
|
|
504 - BAND SAW BLADES, 10 PIECES
MAF-092336.A0
092336
|
£21.17
|
£25.40
|
|
