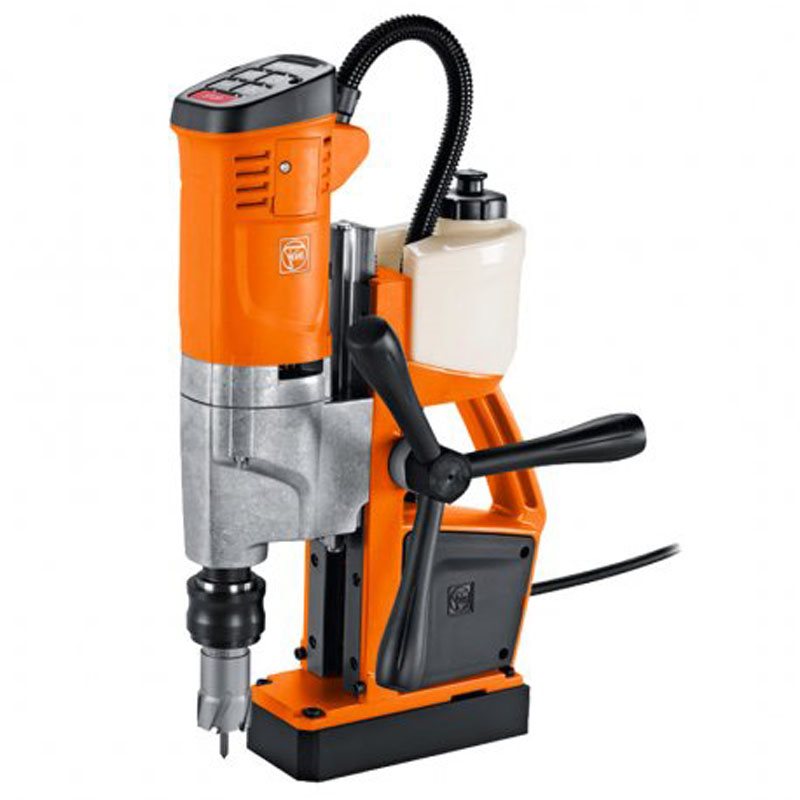

Fein KBU 35 QW Universal Magnetic Core Drill

Small and powerful single-speed universal magnetic core drill with clockwise/anti-clockwise operation and maximum functionality for flexible working on the construction site.

Extremely low-wear tool design with swivel-mounted motor cable protection hose for tough use in industry and manual trades.
Perfect power-to-weight ratio thanks to compact, weight-optimised design and FEIN 1 100 W high-power motor with tacho electronics for high speed stability for reliable and economical working.
With clockwise/anti-clockwise operation, electronic speed setting and a 260 mm stroke range, this is a universal tool for core drilling, twist drilling, tapping, countersinking and reaming.
Small and lightweight.
Simple operating concept avoids mix-ups and can be clearly seen by the user.
Convenient magnetic holding force display.
High magnetic holding force.
Tilt sensor.Additional magnetic switch in the drill jig.
Integrated coolant tank.
Feed handwheel can be moved from one side to the other.
Speed saving "memory function".
Personal safety switch.

Specification:

Input 1,010 W

Output 550 W

Speed, full load 130 - 520 rpm

Carbide core drill bit max. Ø 35 mm

HSS core drill max. Ø 35 mm

Core drill, drilling depth max. 50 mm

Twist drill max. Ø16 mm

Tapping M 14

Countersinking max. Ø 31 mm

Reaming max. Ø 16 mm

Core drill holder 3/4 in Weldon

Changing the core bit tool-free

Stroke 135 mm

Total stroke range 260 mm

Magnetic holding power 10,000 N

Magnetic foot dimensions 175 x 80 mm

Cable with plug 4 m

Weight according to EPTA 10.70 kg

Includes:

1 coolant tank

1 lashing strap

1 swarf hook

1 centering pin

1 contact guard

1 case

	Ex VAT	Inc VAT
Fein KBU 35 QW Universal Magnetic Core Drill - 110 Volt 72705461240	£749.99	£899.99

Attribute Name	Value
Brand	Fein
