Extremely small and light for working in tight and difficult-to-reach spots – including vertically and overhead – thanks to height of 169 mm, a length of 290 mm and a weight of 8.5 kg.#
Extremely low wear and long-life tool design with spindle sleeve feed without clearance for accurate drilling results in tough use in industry and manual trades.
Very powerful and maintenance-free brushless 1200 W high-power motor with high speed stability for continuously fast work progress as well as forward / reverse running and electronic speed setting for all drilling applications, such as core drilling, twist drilling and tapping and countersinking.
High gearbox positioning for optimum view of the drilling point.
Large installation space under the drill spindle with a stroke range of 46 mm.
Space-saving operation on both sides with ratchet.Combined drive shaft, 1/2” square and 8 mm hexagon socket.
Intuitive operating concept avoids mix-ups and can be clearly seen by the user.
Convenient magnetic holding force display.
Tilt sensor stops the drill motor when the tool slips or tilts.
Integrated handle.
Speed saving "memory function".
Personal safety switch.
Slot for 5 mm hexagon socket wrench on the tool itself.

Specification:
Input : 1,200 W
Output : 680 W
Speed, full load : 130 - 610 rpm
Speed, no load : 130 - 660 rpm
Carbide core drill bit max. Ø : 36 mm
HSS core drill max. Ø : 36 mm
Core drill, drilling depth max. : 35 mm
Twist drill max. Ø : 16 mm
Tapping : M 12
Countersinking max. Ø : 32 mm
Core drill holder : 3/4 in Weldon
Width across corners : 40 mm
Height : 169 mm
Stroke : 46 mm
Magnetic holding power : 10,000 N
Magnetic foot dimensions : 175 x 80 mm
Cable with plug : 3 m
Weight according to EPTA : 8.50 kg

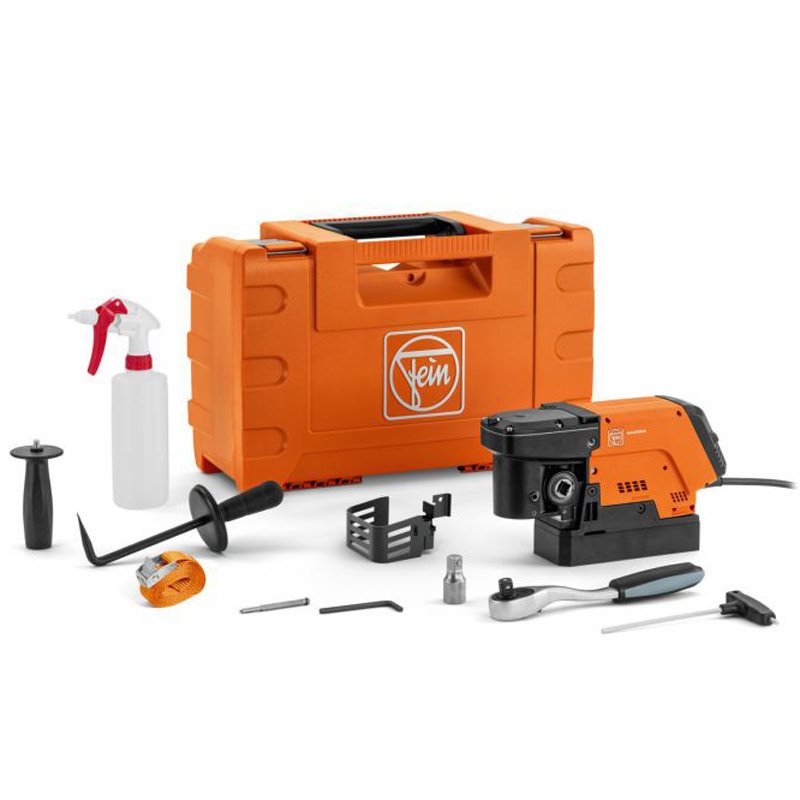

Includes:
1 x 1/2” ratchet
1 x 1/2” socket wrench extension
1 x coolant pump
1 lashing strap
1 swarf hook
1 x 82 mm centring pin
1 contact guard
1 additional handle
1 x 5 mm hexagon socket wrench
1 x 5 mm hexagon socket wrench with T-handle
1 case
