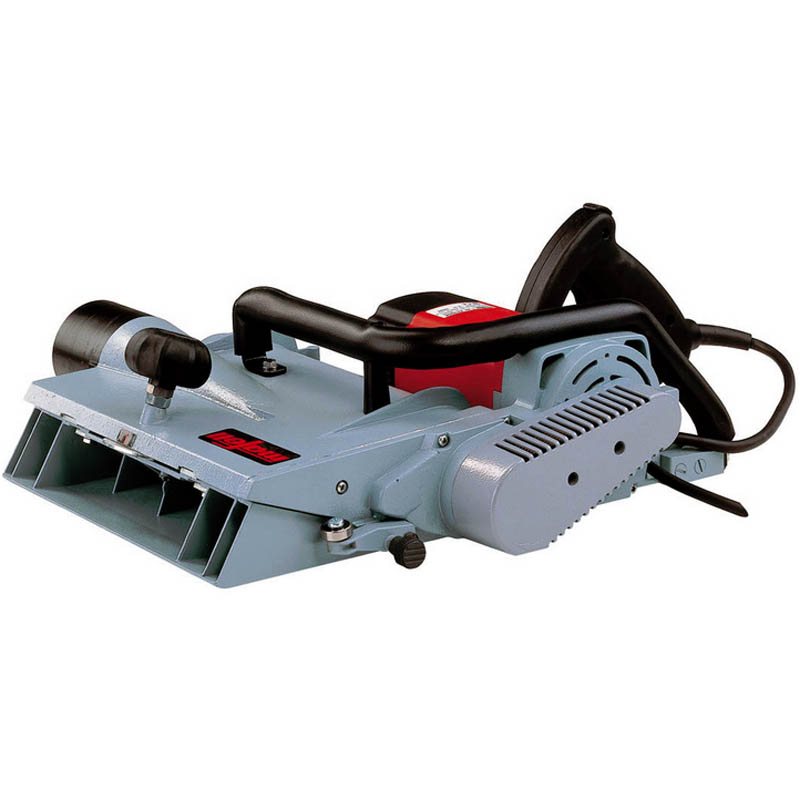

Mafell ZH320Ec / ZH320 Carpentry Planing Machine. The new chip ejector with excellent chip removal via enhanced air flow and new air duct makes blockages due to wet chips a thing of the past! Thanks to the development of the 2700 watt (3.6 hp) motor, it is now possible to achieve a 320 mm (12 5/8 in.) planing width with a light current motor. Due the consistent lightweight design, the solid cast construction weighs only 14 kg (30.9 lbs). As with most MAFELL machines, the intelligent control electronics keep watch in the background. For smooth start-up and constant speed under load, speed reduction to protect the machine without load and overload protection. After switching off, the highly efficient tool brake stops the cutter head in seconds. Just a detail, but important for your continued safety after planing.

• High quality standard means lower machine costs and longer service life.
• Practical lightweight, ergonomic handle ensures exemplary handling.
• With guide rollers - for maximum utilisation of the planing width.
• Disposable reversible knife system means no more time-consuming planing knife adjustment.
• Cutting width up to 320 mm
• Compatible materials include solid wood

Specification:
Planing width : 320 mm
Planing depth : 0 - 3 mm
Nominal no-load speed : 8500 1/min
Cutting speed : 32,9 m/s
Nominal input : 2700 W
Weight : 14 kg
Cutter head diameter : 74 mm
Universal-motor : 230 V / 50 Hz

Includes:
1 Single-end spanner 8 mm; Ref. No. 093258
1 Mains cable 10 m (32.8 ft), Ref. No. 087378
