Stanley AL32D Type 1 Optical Instrument Spare Parts

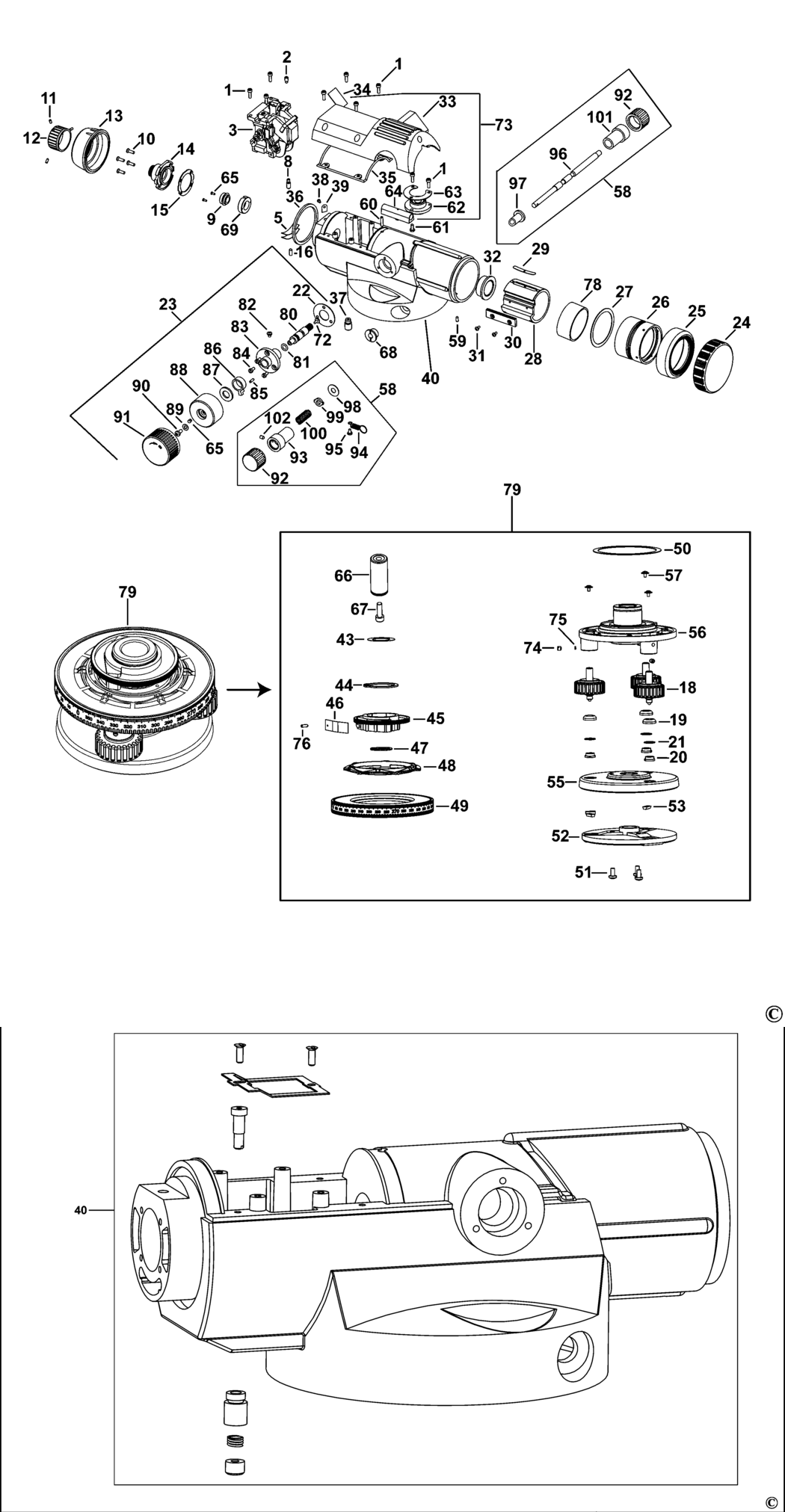

An exploded drawing and spare parts listing for the Stanley AL32D Type 1 Optical Instrument

	Ex VAT	Inc VAT
2 - PIN BDE-07Z-BZ04.A2 07Z-BZ04	£1.50	£1.80
5 - SHIM BDE-C010.A3 C010	£1.50	£1.80
8 - CONTROL SCREW BDE-M034B.A0 M034B	£1.50	£1.80
9 - LENS BDE-07BC-B02.A1 07BC-B02	£37.35	£44.82
10 - SCREW BDE-M2.5X8 GB819-85.A0 M2.5X8 GB819-85	£1.42	£1.70
11 - SCREW BDE-M2X5 GB71-85.A0 M2X5 GB71-85	£1.42	£1.70
12 - KNOB SA BDE-07BC-M11 07BC-M11	£7.18	£8.62
13 - COVER BDE-71Z-P05.A0 71Z-P05	£3.30	£3.96
14 - LENS BDE-07BC-5.A0 07BC-5	£45.14	£54.17
15 - O RING BDE-07BC-X02.A3 07BC-X02	£1.50	£1.80
16 - PISTON BDE-M033A.A3 M033A	£1.50	£1.80
18 - WHEEL ADJUSTER BDE-P021A.A3 P021A	£5.88	£7.06
19 - SUPPORT BDE-M007.A0 M007	£1.50	£1.80
20 - SUPPORT BDE-M005.A3 M005	£1.50	£1.80
21 - BUSHING BDE-C004.A0 C004	£1.50	£1.80
22 - GASKET BDE-71Z-X06.A1 71Z-X06	£1.50	£1.80
23 - ADJUSTER SA BDE-71BJ.A1 71BJ	£24.39	£29.27
24 - CAP BDE-71Z-X01.A1 71Z-X01	£4.69	£5.63
25 - COVER BDE-71Z-P01.A0 71Z-P01	£1.50	£1.80
26 - LENS BDE-71BB.A1 71BB	£65.52	£78.62
27 - SPACER BDE-71Z-C01.A1 71Z-C01	£1.50	£1.80
28 - SLIDE BDE-71BD-B01.A1 71BD-B01	£30.08	£36.10
29 - SPRING BDE-C016.A0 C016	£1.50	£1.80
30 - RACK BDE-P017.A0 P017	£7.18	£8.62
31 - SCREW BDE-M2X4 GB818-85.A2 M2X4 GB818-85	£1.42	£1.70
32 - BUSH BDE-D1007.A0 D1007	-
33 - COVER BDE-71Z-P03.A1 71Z-P03	£7.85	£9.42
34 - GASKET BDE-71Z-C03.A0 71Z-C03	£1.50	£1.80
35 - O RING BDE-71Z-X07.A0 71Z-X07	£2.78	£3.34
36 - GASKET BDE-71Z-X03.A0 71Z-X03	£1.50	£1.80
37 - LOCK BDE-07BY.A1 07BY	£4.69	£5.63
38 - SCREW BDE-M1.6X3 GB823-88.A1 M1.6X3 GB823-88	£1.42	£1.70
39 - INDICATOR BDE-P002.A1 P002	£1.50	£1.80
40 - HOUSING SA BDE-71Z-A01A-Z.A0 71Z-A01A-Z	£93.62	£112.35
43 - WASHER BDE-C001D.A0 C001D	£1.50	£1.80
44 - CIRCLIP BDE-GB894.1-86.A3 GB894.1-86	£1.50	£1.80
45 - GEAR BDE-P010.A3 P010	£7.18	£8.62
46 - SHIM BDE-C007.A0 C007	£1.50	£1.80
47 - CIRCLIP BDE-GB894.1-86.A2 GB894.1-86	£1.50	£1.80
48 - RING BDE-4-15.A0 4-15	£1.42	£1.70
49 - SCALE BDE-P007.A0 P007	£7.85	£9.42
50 - WASHER BDE-C005.A3 C005	£4.69	£5.63
51 - SCREW BDE-M4X8 GB823-88.A0 M4X8 GB823-88	£1.42	£1.70
52 - BASEPLATE BDE-A003B.A0 A003B	£16.03	£19.24
53 - BALL BDE-M004.A0 M004	£1.50	£1.80
55 - COVER BDE-A002.A3 A002	£16.03	£19.24
56 - BASE BDE-A004NB.A1 A004NB	£38.80	£46.56
58 - ADJUSTER SA BDE-71BI.A0 71BI	£16.03	£19.24
59 - SCREW BDE-M2.5X6 GB71-85.A0 M2.5X6 GB71-85	£1.42	£1.70
60 - SCREW BDE-M2.5X12 GB71-85.A1 M2.5X12 GB71-85	£1.42	£1.70
61 - SCREW BDE-M2.5X6 GB818-85.A3 M2.5X6 GB818-85	£1.42	£1.70
62 - LEVEL BDE-D3003A.A1 D3003A	£16.03	£19.24
63 - GASKET BDE-C018.A3 C018	£1.50	£1.80
64 - LENS BDE-71BC-B01.A0 71BC-B01	£2.78	£3.34
66 - SHAFT BDE-M001B.A0 M001B	£9.41	£11.29
67 - SCREW BDE-M5X12 GB70-85.A3 M5X12 GB70-85	£1.42	£1.70
68 - BUSHING BDE-L18-P03.A3 L18-P03	£1.50	£1.80
69 - MOUNT BDE-07BC-M12.A0 07BC-M12	£5.88	£7.06
72 - SHAFT BDE-P015.A0 P015	£1.50	£1.80
73 - COVER SA BDE-71Z-SG.A0 71Z-SG	£12.17	£14.60
74 - SCREW BDE-M4X4 GB73-85.A3 M4X4 GB73-85	£1.42	£1.70
75 - BUSHING BDE-06BG-C01.A2 06BG-C01	£1.50	£1.80
76 - SCREW BDE-M2.5X8 GB71-85.A3 M2.5X8 GB71-85	£1.42	£1.70
78 - SPACER BDE-71Z-P12.A1 71Z-P12	£1.50	£1.80
80 - SHAFT BDE-71Z-M07A.A1 71Z-M07A	£7.18	£8.62
81 - O RING BDE-71Z-X05.A0 71Z-X05	£1.50	£1.80
82 - SCREW BDE-M2.5X3 GB818-85.A0 M2.5X3 GB818-85	£1.42	£1.70
83 - GEAR BDE-71Z-M06.A0 71Z-M06	£10.85	£13.02
84 - SCREW BDE-M2.5X5 GB818-85.A1 M2.5X5 GB818-85	£1.42	£1.70
85 - PIN BDE-B2X6 GB/T119.A0 B2X6 GB/T119	£1.42	£1.70
86 - RING BDE-71Z-P09.A0 71Z-P09	£1.50	£1.80
88 - KNOB BDE-71Z-P08.A1 71Z-P08	£3.30	£3.96
89 - WASHER BDE-GB848-85.A0 GB848-85	£1.50	£1.80
90 - SCREW BDE-M3X6 GB818-85.A0 M3X6 GB818-85	£1.42	£1.70
91 - CAP BDE-71Z-X04.A1 71Z-X04	£2.26	£2.71
92 - KNOB BDE-X001.A0 X001	£1.50	£1.80
93 - KNOB BDE-P006.A3 P006	£3.30	£3.96
94 - SPRING BDE-71Z-C05.A1 71Z-C05	£1.50	£1.80
95 - SCREW BDE-M2.5X4 GB818-85.A1 M2.5X4 GB818-85	£1.42	£1.70
96 - ADJUSTER SA BDE-M002A.A3 M002A	£7.85	£9.42
97 - BUSHING BDE-P004.A0 P004	£1.50	£1.80
98 - BUSHING BDE-C002.A0 C002	£1.50	£1.80
99 - SPACER BDE-P016.A0 P016	£1.50	£1.80
100 - SPRING BDE-C003.A3 C003	£1.50	£1.80
101 - KNOB BDE-P003.A0 P003	£2.26	£2.71
102 - SCREW BDE-M3X5 GB71-85.A2 M3X5 GB71-85	£1.42	£1.70
