Festool DF 500 Q-PLUS 110V GB / 493908 Spare Parts

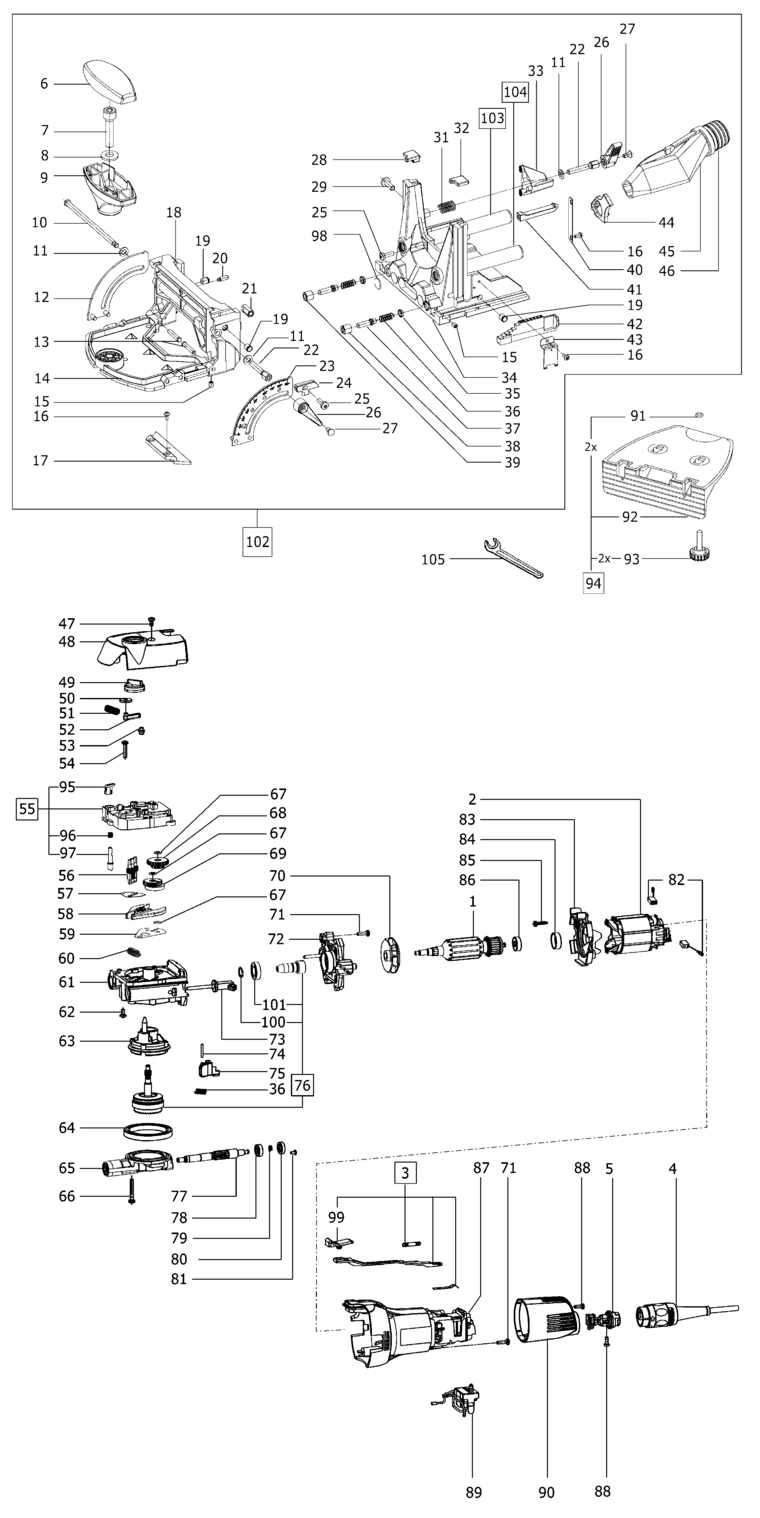

An exploded diagram and spare parts listing for the Festool DF 500 Q-PLUS 110V GB / 493908

	Ex VAT	Inc VAT
1 - ARMATURE GB 110V FSP-494487.A0 494487	£78.69	£94.43
2 - FIELD ASSEMBLY GB 110V FSP-494688.A0 494688	£63.43	£76.12
3 - SWITCH LINKAGE FSP-494014.A5 494014	£24.95	£29.94
4 - DESCRIPTION UNAVAILABLE FSP-000000.A126 000000	-
4 - PLUG IT-CABLE FSP-203924.A44 203924	£24.16	£28.99
5 - SOCKET HOUSING GB 110V FSP-493636.A0 493636	£10.54	£12.65
6 - UPPER SECTION OF PISTOL FSP-434597.A5 434597	£2.00	£2.40
7 - CHEESE HEAD SCREW M8 X 35 FSP-200695.A0 200695	£2.00	£2.40
8 - NO LONGER AVAILABLE FSP-00000.A5455 00000	-
9 - LOWER SECTION OF PISTOL FSP-434596.A0 434596	£2.00	£2.40
10 - PULL ROD FSP-469040.A0 469040	£4.41	£5.29
11 - WASHER 5.3 MM FSP-761515.A26 761515	£2.00	£2.40
12 - R - SEGMENT FSP-493779.A8 493779	£12.57	£15.08
13 - PIN FSP-469141.A4 469141	£3.10	£3.72
14 - NO LONGER AVAILABLE FSP-00000.A5456 00000	-
15 - NO LONGER AVAILABLE FSP-00000.A5457 00000	-
16 - RAISED-HEAD SCREW FSP-400983.A6 400983	£2.00	£2.40
17 - SCALE FSP-469800.A1 469800	£5.50	£6.60
18 - V - SLIDE FSP-493928.A3 493928	£54.94	£65.93
19 - PRESSURE CLAMPING ELEMENT FSP-400286.A26 400286	£4.56	£5.47
20 - THREADED PIN M4 X 12 FSP-203387.A12 203387	£2.00	£2.40
21 - SLEEVE FSP-469075.A2 469075	£8.42	£10.11
22 - THREADED PIN FSP-465575.A5 465575	£3.14	£3.77
24 - SEGMENT FSP-499023.A0 499023	£33.68	£40.42
25 - RAISED-HEAD SCREW M4 X 12 FSP-470216.A4 470216	£2.00	£2.40
26 - LEVER FSP-10881222.A4 10881222	£2.01	£2.41
27 - FLAT HEAD SCREW M4 X 8 FSP-400211.A3 400211	£2.00	£2.40
28 - CAP FSP-466094.A5 466094	£3.09	£3.71
29 - RAISED-HEAD SCREW M5 X 12 FSP-400901.A0 400901	£2.00	£2.40
31 - PRESSURE SPRING FSP-464334.A10 464334	£2.00	£2.40
32 - CAP FSP-466093.A0 466093	£3.09	£3.71
33 - CLAMPING ELEMENT FSP-10022457.A2 10022457	£8.71	£10.45
34 - BEARER FSP-493900.A1 493900	£128.31	£153.97
35 - NO LONGER AVAILABLE FSP-00000.A5458 00000	-
36 - PRESSURE SPRING FSP-436528.A10 436528	£2.00	£2.40
37 - SPRING-LOCKED CONNECTING PIN FSP-464829.A1 464829	£4.81	£5.77
38 - ECCENTRIC BUSH FSP-470301.A0 470301	£3.68	£4.42
39 - BUSH FSP-471641.A0 471641	£7.99	£9.59
40 - SCALE FSP-10036126.A5 10036126	£2.00	£2.40
41 - TENSION BOLT FSP-471202.A3 471202	£3.20	£3.84
42 - SLIDE FSP-10515490.A0 10515490	£4.41	£5.29
43 - ANGLE PLATE FSP-464821.A5 464821	£3.45	£4.14
44 - INTAKE FLANGE FSP-465203.A5 465203	£2.00	£2.40
45 - EXTRACTOR TUBE FSP-465204.A0 465204	£6.29	£7.55
46 - SUCTION CONNECTING PIECE FSP-10027879.A0 10027879	£3.93	£4.72
47 - RAISED-HEAD SCREW M4 X 8 FSP-467961.A2 467961	£2.00	£2.40
48 - COVER FSP-493153.A5 493153	£7.86	£9.43
49 - SHIFT KNOB FSP-493815.A0 493815	£6.39	£7.67
50 - ROLLER FSP-464837.A0 464837	£2.00	£2.40
51 - PRESSURE SPRING FSP-467959.A3 467959	£2.00	£2.40
52 - LEVER FSP-464839.A5 464839	£2.00	£2.40
53 - PLUG FSP-466890.A5 466890	£3.44	£4.13
54 - RAISED-HEAD SCREW M4 X 18 FSP-400904.A12 400904	£2.00	£2.40
55 - PENDULAR HOUSING FSP-493921.A2 493921	£66.22	£79.46
56 - CAMSHAFT FSP-465947.A3 465947	£18.13	£21.76
57 - SCREEN FSP-466015.A5 466015	£2.00	£2.40
58 - LEVER PENDULAR FSP-464840.A0 464840	£44.17	£53.00
59 - SCREEN FSP-466262.A3 466262	£2.00	£2.40
60 - PRESSURE SPRING FSP-472015.A3 472015	£2.00	£2.40
61 - MAIN GIRDER FSP-493895.A0 493895	£68.82	£82.58
62 - RAISED-HEAD SCREW M4 X 8 FSP-228570.A25 228570	£2.00	£2.40
63 - INSIDE POT FSP-493920.A4 493920	£66.68	£80.01
64 - BALL BEARING FSP-401073.A2 401073	£31.42	£37.71
65 - PENDULAR POT FSP-493898.A5 493898	£66.55	£79.86
66 - RAISED-HEAD SCREW M4 X 30 FSP-400094.A5 400094	£2.00	£2.40
67 - WASHER FSP-465024.A5 465024	£2.00	£2.40
68 - GEAR FSP-493897.A0 493897	£34.44	£41.33
69 - ECCENTRIC GEAR FSP-493896.A5 493896	£56.13	£67.36
70 - FAN FSP-485108.A23 485108	£4.37	£5.24
71 - RAISED-HEAD SCREW M4 X 14 FSP-445566.A21 445566	£2.00	£2.40
72 - CONNECTION FLANGE FSP-493893.A5 493893	£58.60	£70.32
73 - ADJUSTING GATE VALVE FSP-492418.A1 492418	£6.29	£7.55
74 - CYLINDER PIN FSP-469645.A0 469645	£2.00	£2.40
75 - BRACKET FSP-469643.A5 469643	£2.00	£2.40
76 - ROTARY-DISTRIBUTOR FSP-205156.A2 205156	£84.27	£101.13
77 - CUTTER SPINDLE FSP-201683.A4 201683	£37.92	£45.51
78 - BALL BEARING FSP-479254.A5 479254	£3.80	£4.56
79 - WASHER FSP-400106.A9 400106	£2.00	£2.40
80 - PLUG FSP-464847.A5 464847	£2.00	£2.40
81 - SAFETY SCREW FSP-400552.A5 400552	£2.00	£2.40
82 - SHUT-OFF BRUSH (PAIR) FSP-492629.A31 492629	£10.67	£12.80
83 - AIR DUCT FSP-465193.A0 465193	£2.00	£2.40
84 - O-RING FSP-400982.A0 400982	£2.00	£2.40
85 - RAISED-HEAD SCREW 4.0 X 16 MM FSP-228713.A31 228713	£2.00	£2.40
86 - BALL BEARING FSP-228672.A44 228672	£4.41	£5.29
87 - MOTOR HOUSING FSP-493154.A0 493154	£12.76	£15.31
88 - RAISED-HEAD SCREW 3.5 X 10 MM FSP-219031.A282 219031	£2.00	£2.40
89 - SWITCH MODUL FSP-492779.A5 492779	£17.65	£21.18
90 - CAP FSP-465032.A1 465032	£4.69	£5.63
91 - O-RING FSP-200911.A4 200911	£2.00	£2.40
92 - STOP ANGLE FSP-469159.A2 469159	£7.80	£9.36
100 - SNAP RING FSP-761559.A8 761559	£2.00	£2.40
101 - BALL BEARING FSP-464873.A5 464873	£15.72	£18.87
102 - GUIDE FRAME FSP-202470.A5 202470	£224.99	£269.99
103 - ROD INCL. POS 28. 32 FSP-494703.A0 494703	£43.96	£52.75
104 - ROD INCL. POS 28. 32 FSP-494704.A5 494704	£40.80	£48.96
105 - OPEN ENDED SPANNER SW 8 FSP-401739.A1 401739	£5.50	£6.60
